Boat Windlass Cost Guide 2026: What You Will Really Pay
A windlass costs between $1,106.75 and $7,595.25 depending on your boat. But the winch is only 57 to 77 percent of what you actually spend, because the rode and the anchor are not in the box and are not optional.
- Boats to 26 ft. From $1,437 all in: a DW 06 drum winch at $1,106.75, rode from $123.00, anchor from $207.00.
- Boats to 30 ft. From $2,768 all in: a Storm VR600 at $1,587.45, rode from $548.00, anchor from $209.00, chain stopper from $424.00.
- Boats to 43 ft. From $4,025 all in: a Storm VR1250 at $2,339.85, with the same three extras scaled up.
Battery cable and installation labour sit on top of every figure here.
The winch is not the bill
Every windlass comparison you will read prices the machine. Nobody prices the job. The gap between those two numbers is where people get caught, because a winch with no rode on it does nothing at all.

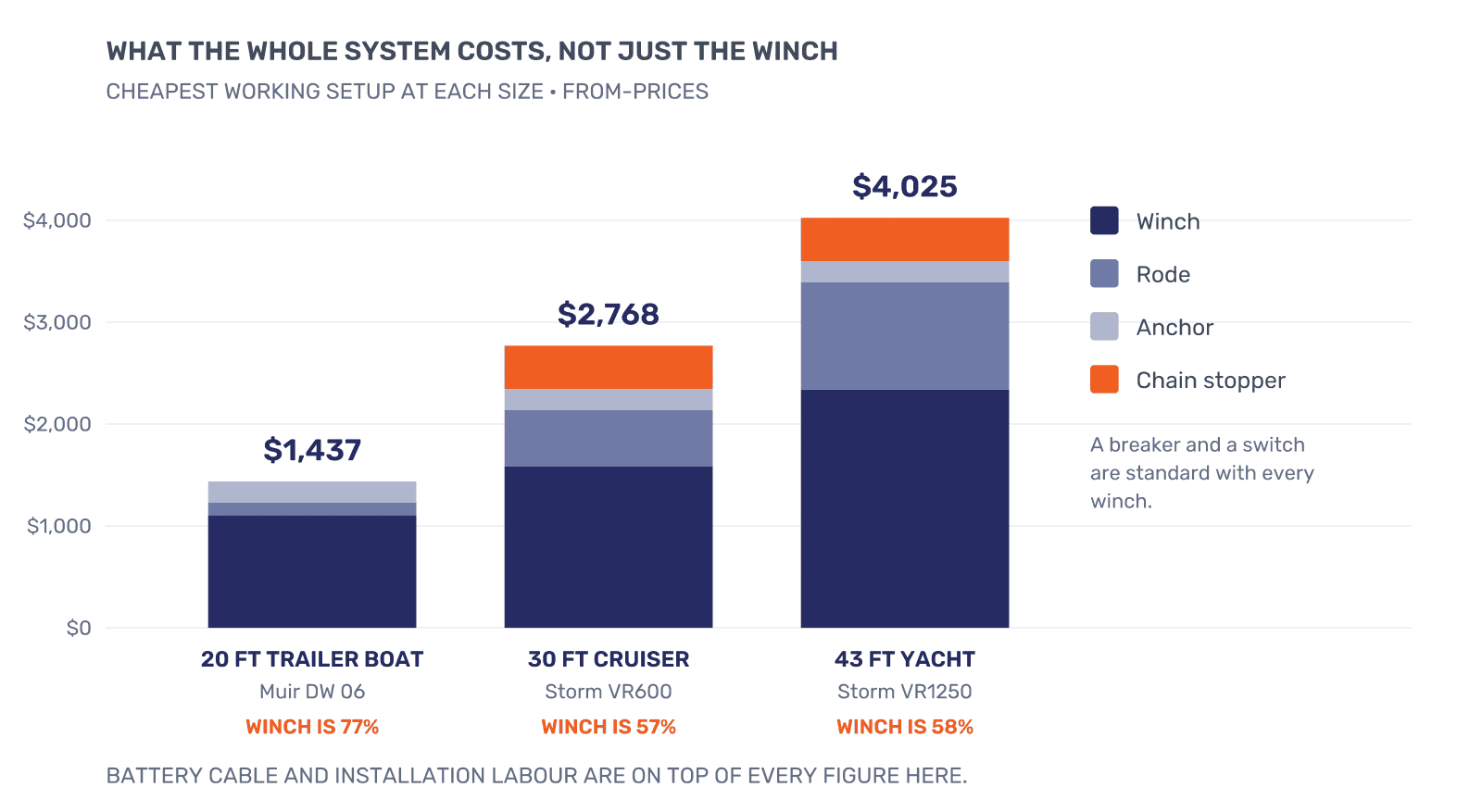

The pattern is worth reading twice. On a trailer boat the winch really is most of the spend, because the rode is short and light. By 30 ft the rode and the deck gear together cost almost as much as the machine, and the proportion barely moves after that.
What the winch itself costs
Muir rates every model to a maximum boat length. Find your length, then read across.
| Rated to | Vertical | Horizontal | Drum |
|---|---|---|---|
| 23 ft | — | — | DW 06 $1,106.75 |
| 26 ft | — | HR650 Lynx $1,679.20 | DW 08 $1,268.25 |
| 30 ft | Storm VR600 $1,587.45 | — | — |
| 33 ft | — | HR1200 $2,638.91 | DW 10 $1,800.25 |
| 36 ft | Storm VR850 $1,952.25 | HR950 Lynx $1,776.50 | — |
| 39 ft | — | — | DW 12 $2,778.75 |
| 43 ft | Storm VR1250 $2,339.85 | HR1600 Cougar $3,014.75 | — |
| 46 ft | — | — | DW 15 $3,301.25 |
| 49 ft | Storm VR2200 $2,739.80 | — | — |
| 56 ft | — | HR2500 Cheetah $4,419.00 | — |
| 66 ft | Storm VR2500 $4,271.20 | HR3500 Jaguar $5,695.25 | — |
| 79 ft | Storm VR3500 $4,512.50 | HR4000 Thor $7,595.25 | — |
| 82 ft | Storm VR4000 $6,164.55 | — | — |
Rated lengths from Muir’s master data. Prices are the lowest configuration of each model.
The format gap nobody mentions
Below 40 ft, format barely moves the price. At 36 ft the horizontal is actually the cheaper machine: an HR950 Lynx costs $175.75 less than a Storm VR850.
Above 40 ft it inverts, and then it runs away.
- 43 ft. Storm VR1250 $2,339.85 against HR1600 Cougar $3,014.75. The vertical saves $674.90.
- 66 ft. Storm VR2500 $4,271.20 against HR3500 Jaguar $5,695.25. The vertical saves $1,424.05.
- 79 ft. Storm VR3500 $4,512.50 against HR4000 Thor $7,595.25. The vertical saves $3,082.75 for the same rated boat length.
That last figure is not a typo. On a big boat the horizontal costs two-thirds again as much as a vertical rated to the same length. If your locker can take a vertical, the money says fit one. If it cannot, the extra is the price of the locker you do not have, and it is worth knowing that before you shop rather than after. We have set the two formats against each other in vertical vs horizontal windlass.
The cheap end is a drum winch
The least you can spend on a powered anchor here is $1,106.75, and it buys a drum winch rather than a windlass. On a trailer boat with no usable locker that is not a compromise, since a gypsy windlass would not work at all.
Drum rode is also much cheaper, because it is mostly rope. A drum rope-and-chain kit starts at $123.00 against $548.00 for a windlass kit, which is why the 20 ft column in the chart above is so lopsided.
What comes with the winch
Muir specifies switchgear as standard on every model in the range: a circuit breaker and a helm switch, and on most models a reversing solenoid as well. Drum winch packages also list the deck mounting studs and fasteners.
Two things are worth knowing before you assume it is all covered.
On some larger models the standard switchgear is a deck switch and breaker, with the rocker switch and three-pole solenoid as an optional upgrade. The Storm VR1250 is one of them. If you want helm control on that model rather than a foredeck switch, budget for the upgrade.
Battery cable is never included, on any model, from any manufacturer. It is sized to your run length rather than to the winch, so nobody can put it in the box. On a boat where the battery is aft and the winch is on the bow, that cable is a real number.
What you buy on top
| Item | From | Notes |
|---|---|---|
| Windlass rope and chain kit | $548.00 | To $1,052.00 for longer, heavier rodes |
| Drum winch rope and chain kit | $123.00 | To $439.00 |
| Anchor, galvanised | $168.00 | Grapnel; Danforth from $207.00, Delta from $209.00, Bruce from $217.00 |
| Anchor, 316 stainless | $198.00 | Roughly double the galvanised equivalent |
| Chain stopper | $424.00 | Takes the anchored load off the winch |
| Snubber line kit | $67.00 | The cheap way to do the same job |
| Circuit breaker and deck switch kit | $79.00 | Spare or replacement |
| Reversing switch kit | $244.00 | The helm-control upgrade |
| Dual direction solenoid | $195.00 | Replacement |
| Foot switch | $29.00 | Deck control |
| Drum winch guide roller | $42.00 | Keeps the rode spooling evenly |
On chain, honestly
We sell rope-and-chain kits, which is rope spliced to a chain leader and covers most boats under 40 ft. We do not currently sell chain on its own.
So if you want an all-chain rode, budget for it separately and buy it locally. Chain is heavy and shipping it a long way rarely makes sense anyway.
The upgrades that cost more than people expect
- A capstan adds $101.65 to $253.65. The VRC models are the VR models with a warping drum on top. On the Storm 1250 it is $101.65; on the 2500 it is $253.65.
- Free-fall adds $427.55 on the Storm 600. A VFF600 is $2,015.00 against $1,587.45 for the VR600.
- Stainless anchors cost about double galvanised. A galvanised Danforth starts at $207.00; the 316 stainless version starts at $362.00. It buys appearance and corrosion resistance, not holding power.
- Going one model up is usually cheaper than you fear. Between neighbouring drum winches it is $161.50 to $978.50. Between a VR600 and a VR850 it is $364.80.
Where the money actually goes wrong
- Buying for the boat length instead of the ground tackle. Two 35-footers can need different machines if one runs all chain. Weigh what you are lifting.
- Forgetting the cable. Undersized cable drops voltage, the motor draws harder to compensate and runs hot. It is the cheapest part to get wrong and one of the more expensive to put right.
- Skipping the stopper or the snubber. Leaving the anchored load on the winch is how gearboxes die. A snubber kit is $67.00.
- Choosing the format before measuring the locker. You find out after the deck is cut, and by then the cost is not the winch.
Frequently asked questions
How much does a boat windlass cost?
Between $1,106.75 and $7,595.25 for the machine, depending on rated boat length and format. A complete system with rode and anchor starts around $1,437 for a trailer boat and $2,768 for a 30-footer.
What is the cheapest windlass that actually works?
The Muir DW 06 drum winch at $1,106.75, for boats to 23 ft. The cheapest gypsy windlass is the Storm VR600 at $1,587.45, rated to 30 ft, and it needs an anchor locker with 16 in of fall.
Is a vertical or horizontal windlass cheaper?
It depends on size. At 36 ft the horizontal is cheaper by $175.75. At 43 ft the vertical is cheaper by $674.90, and at 79 ft it is cheaper by $3,082.75. Above 40 ft, verticals win on price and the gap widens with length.
What else do I need to buy with a windlass?
A rode, an anchor, battery cable, and something to take the load once you are anchored. A circuit breaker and a switch come with the winch. Rode kits start at $123.00 for drums and $548.00 for windlasses.
Do you sell anchor chain?
We sell rope-and-chain kits, which is rope spliced to a chain leader. We do not sell chain by itself at the moment, so an all-chain rode needs to be sourced separately.
How much does installation cost?
That depends on your boat and whether you do it yourself. The parts cost is what we can be precise about; a yard quote for cutting the deck, fitting backing plates and running cable is a separate conversation. Our installation guide covers what the job involves.
Why are your prices lower than a US dealer?
We ship direct from Melbourne with duties and taxes included where they apply, so the price you see is the price landed. On drum winches in particular that puts us several hundred dollars under comparable US-sold machines.
Is it worth paying for a capstan version?
Only if you will warp lines with it. The capstan adds $101.65 to $253.65 depending on model. If you have never wanted a powered winch for docklines, save the money.
Send us your boat length, your anchor and rode, and whether you have a usable anchor locker. We will price the whole system, not just the winch.
