DFF 10 Combo Package
$2,943.00
Drum Capacity
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions
Chain standard: the chain in this kit is hot-dip galvanised DIN 766 short link (our supplier builds to DIN 766 only). It has to match your gypsy. If your windlass runs BBB or G4 high test chain, DIN 766 will not feed properly, so message us with your windlass model before you order and we will check it. Rope and chain are cut to order and cannot be returned.
Muir DFF 10 Combo Free-Fall Drum Winch
Engineered for boats 8–10m (26–33ft), the DFF 10 Combo offers the same robust performance of the DW 10 Combo with the added speed of free-fall anchoring — no electronics required.
Drawings

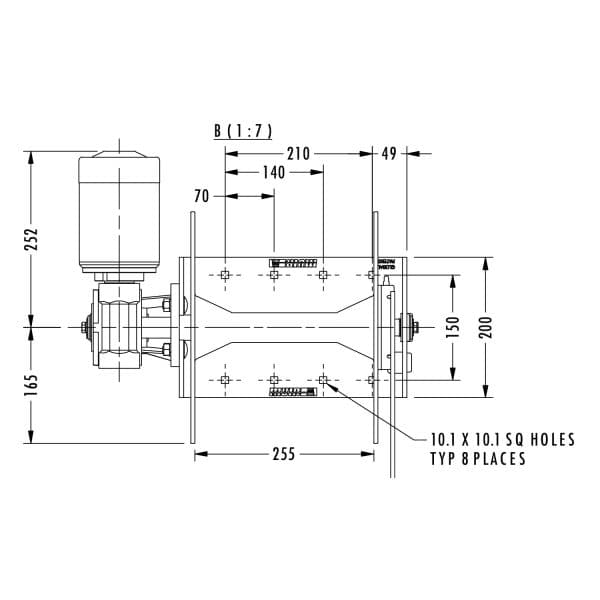

Top View
Slide View
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing center for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage

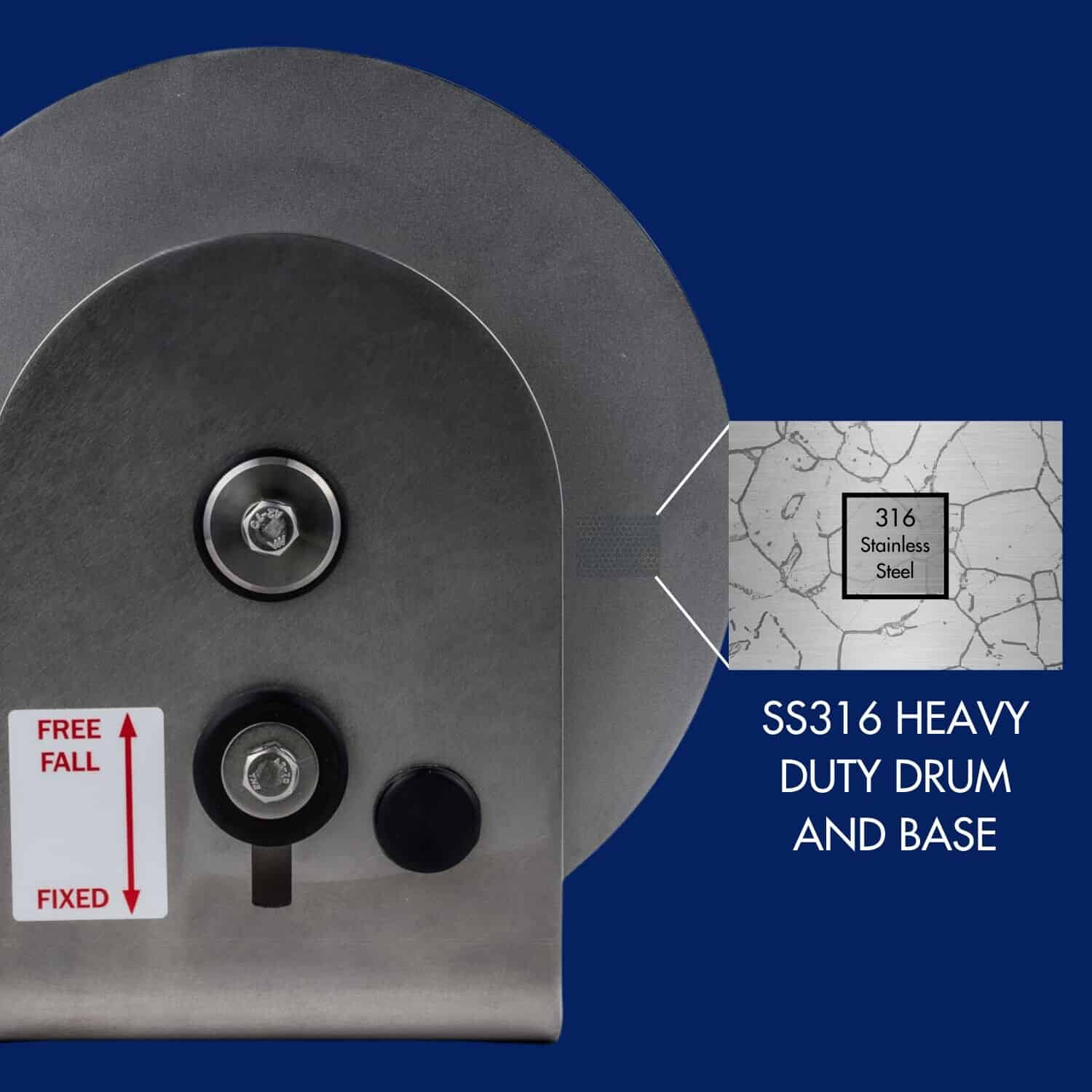

- 316 stainless steel drum
- Superior heavy-duty Italian drive train
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
8m - 10m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
1200Watts
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
261Kg
Workload (Kg)
87Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
10 mm (3/8")
Auto Anchor Compatible
Yes
Net Weight DC VR/HR or Standard (kg)
30Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Reviews
Description
Chain standard: the chain in this kit is hot-dip galvanised DIN 766 short link (our supplier builds to DIN 766 only). It has to match your gypsy. If your windlass runs BBB or G4 high test chain, DIN 766 will not feed properly, so message us with your windlass model before you order and we will check it. Rope and chain are cut to order and cannot be returned.
Muir DFF 10 Combo Free-Fall Drum Winch
Engineered for boats 8–10m (26–33ft), the DFF 10 Combo offers the same robust performance of the DW 10 Combo with the added speed of free-fall anchoring — no electronics required.
Drawings
Top View
Slide View
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing center for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage
- 316 stainless steel drum
- Superior heavy-duty Italian drive train
Technical Specification
Name
Specs
Drum capacity
Recommended Vessel Length (m)
8m - 10m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
1200Watts
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
261Kg
Workload (Kg)
87Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
10 mm (3/8")

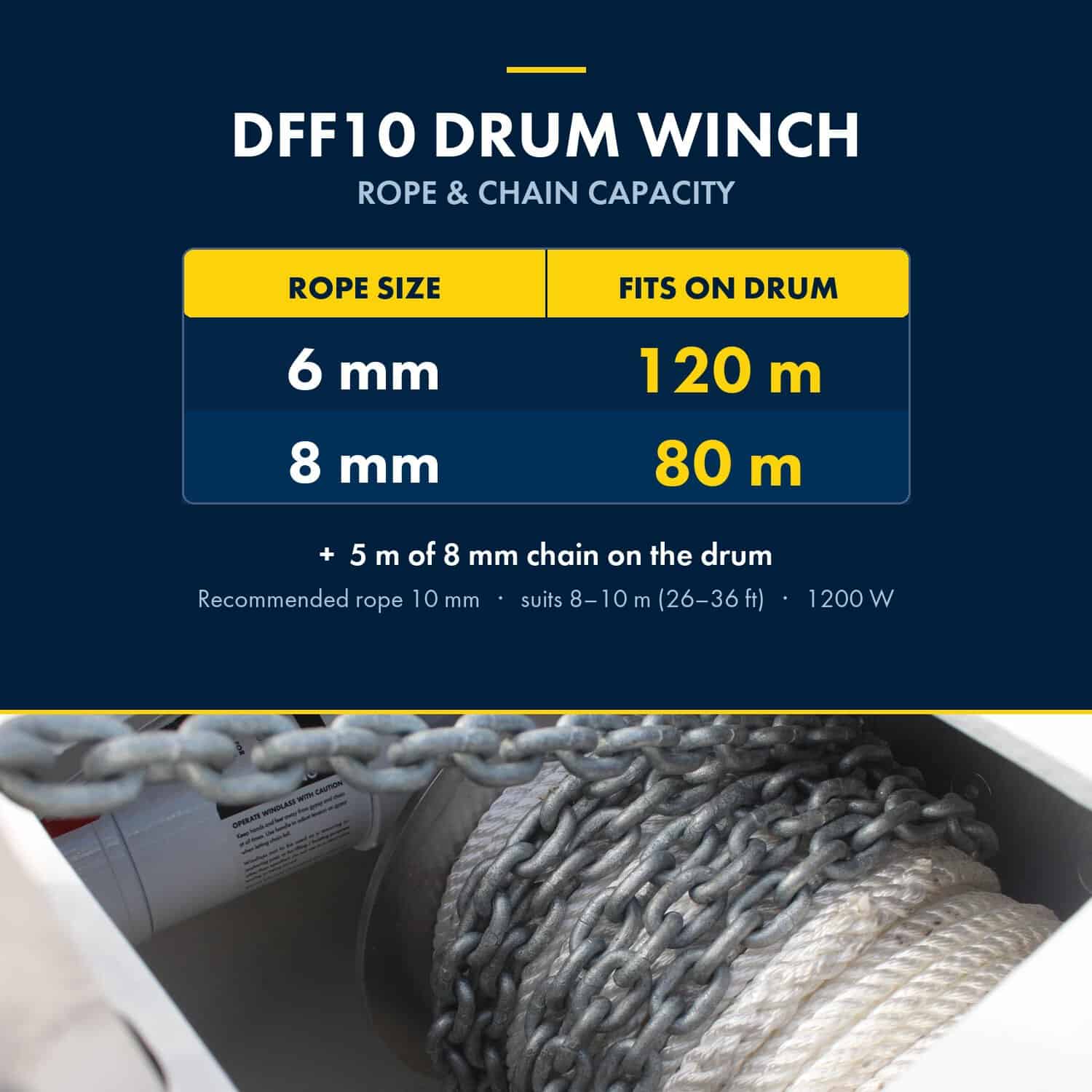

Chain On Drum
5 m of 8 mm
Rope Capacity @ 6mm
120 m
Rope Capacity @ 8mm
80 m
Auto Anchor Compatible
Yes
Net Weight DC VR/HR or Standard (kg)
30Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
