DFF 08 Standard Package
$1,631.44
Drum Capacity
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions
Drawings

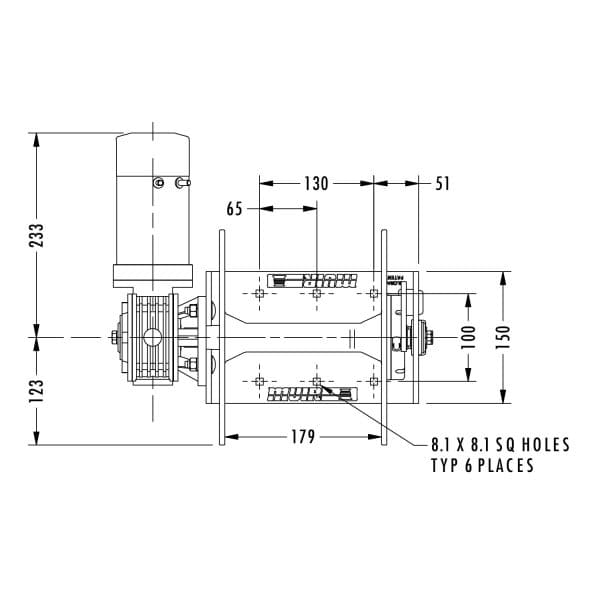

Top View
Slide View
Features

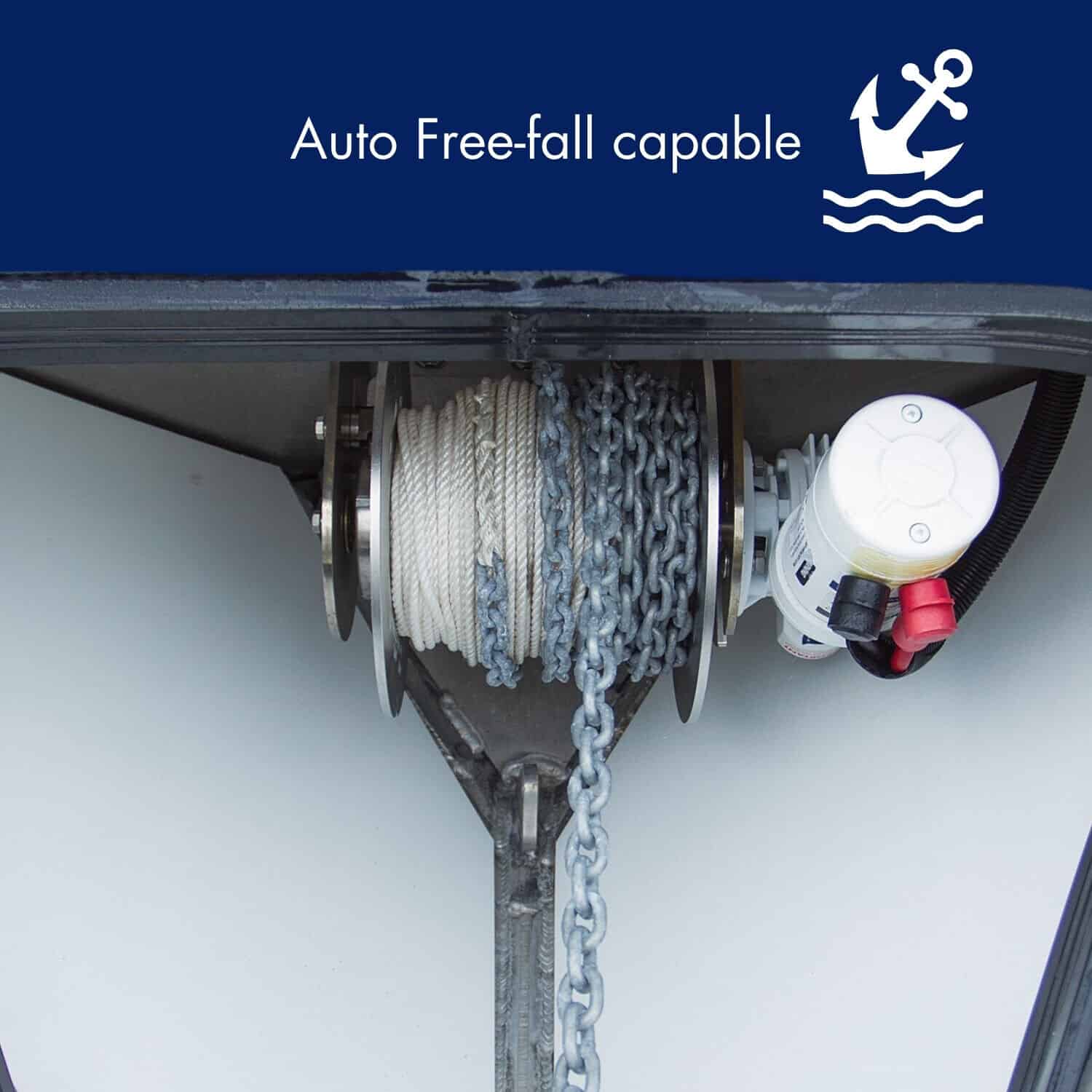

- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing center for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage

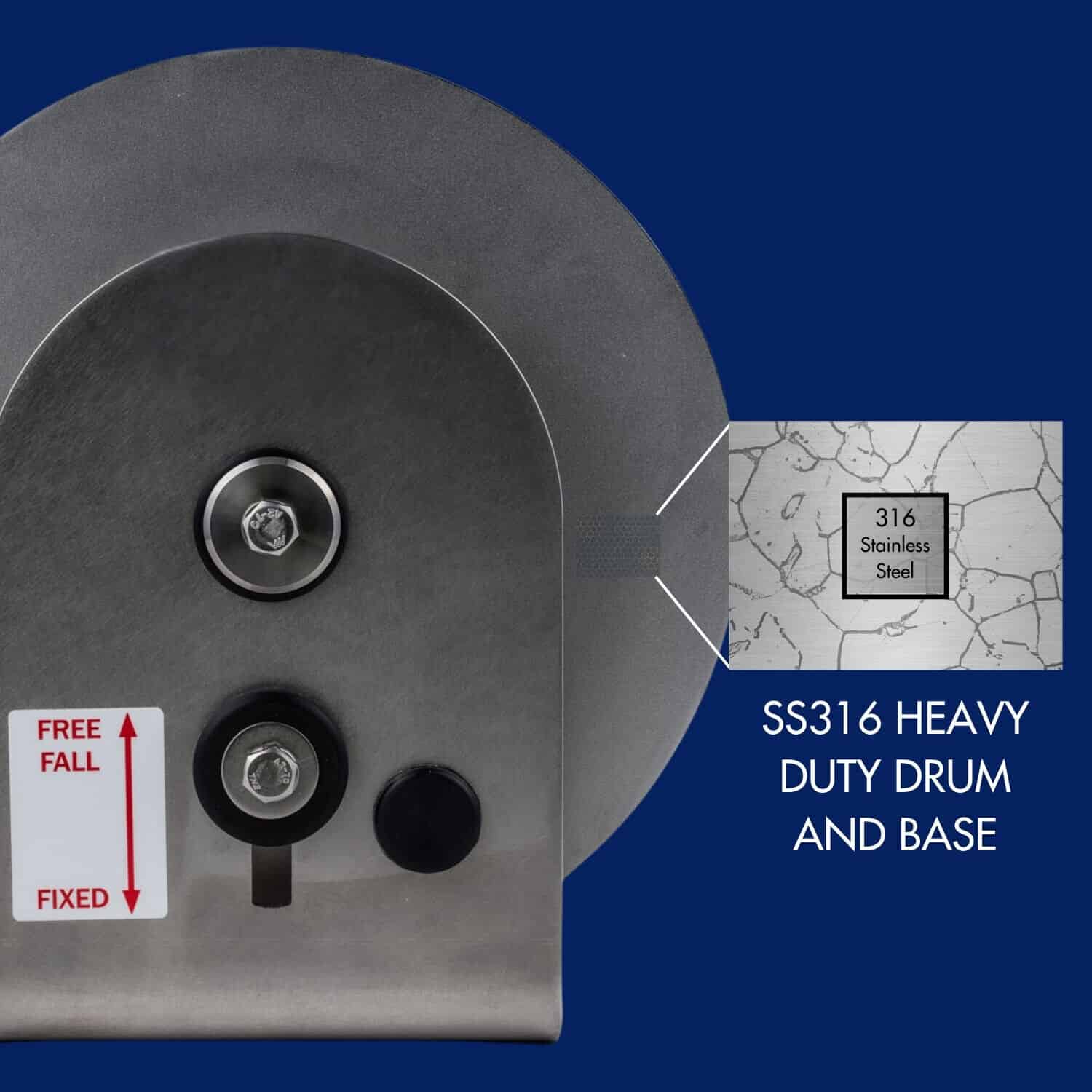

- 316 stainless steel drum

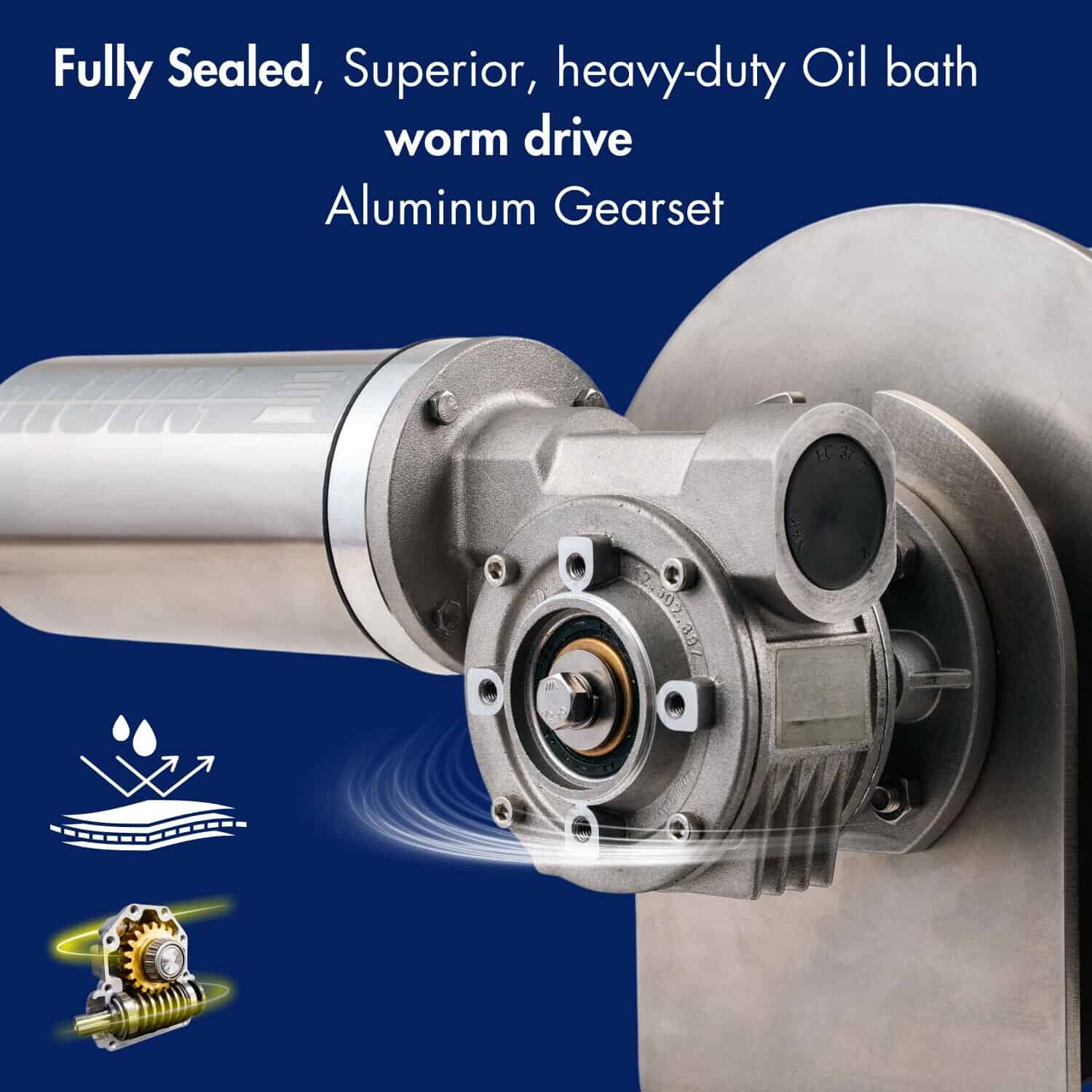

- Superior heavy-duty Italian drive train
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
5m - 8m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
100A/80A (12/24V)

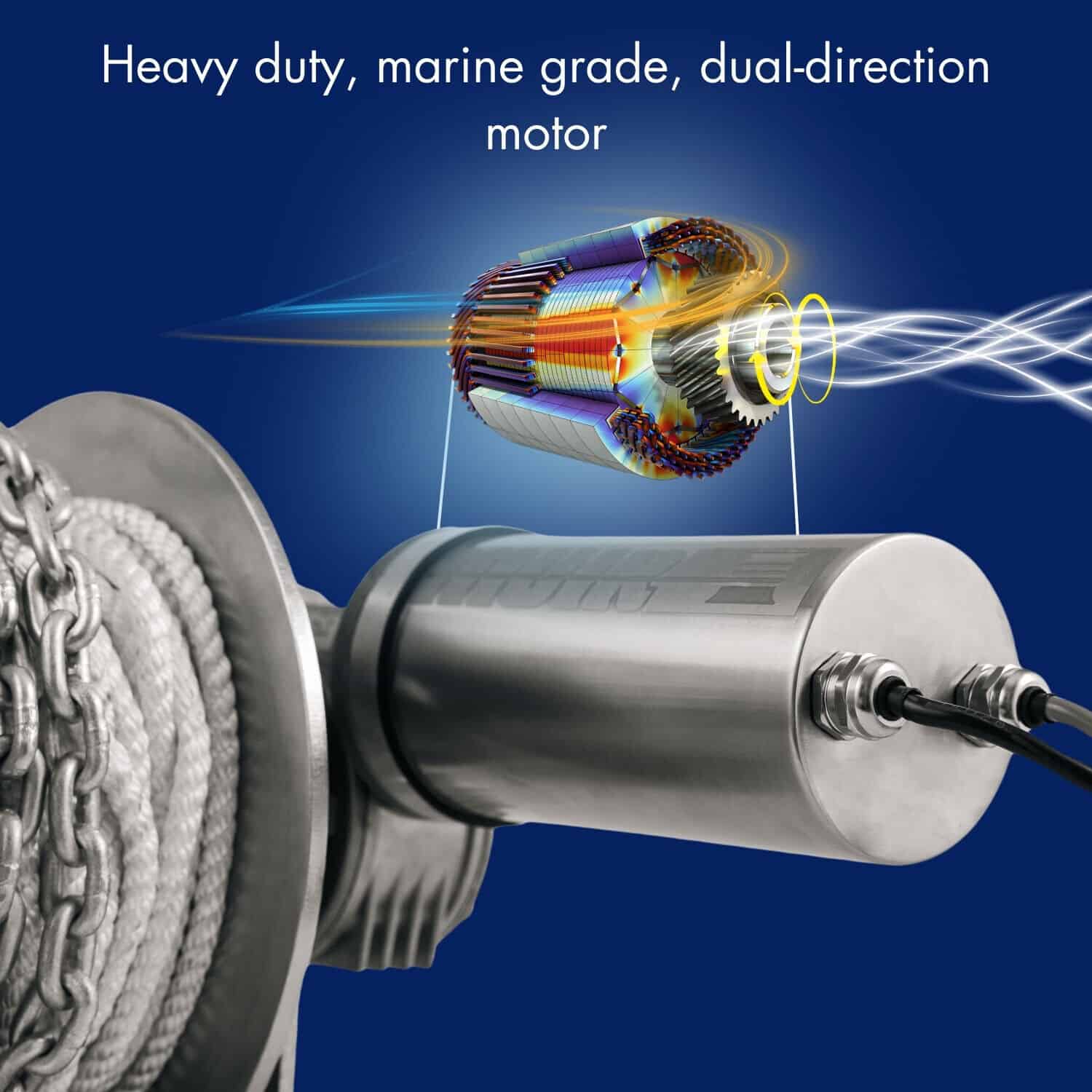

Motor (Watts)
800Watts
Amps Workload
80A (12V)
Max Load (Kg)
180Kg
Workload (Kg)
60Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16")
Compatible Rope Sizes (mm)
8mm (5/16")
Auto Anchor Compatible
Yes
Net Weight DC VR/HR or Standard (kg)
15Kg

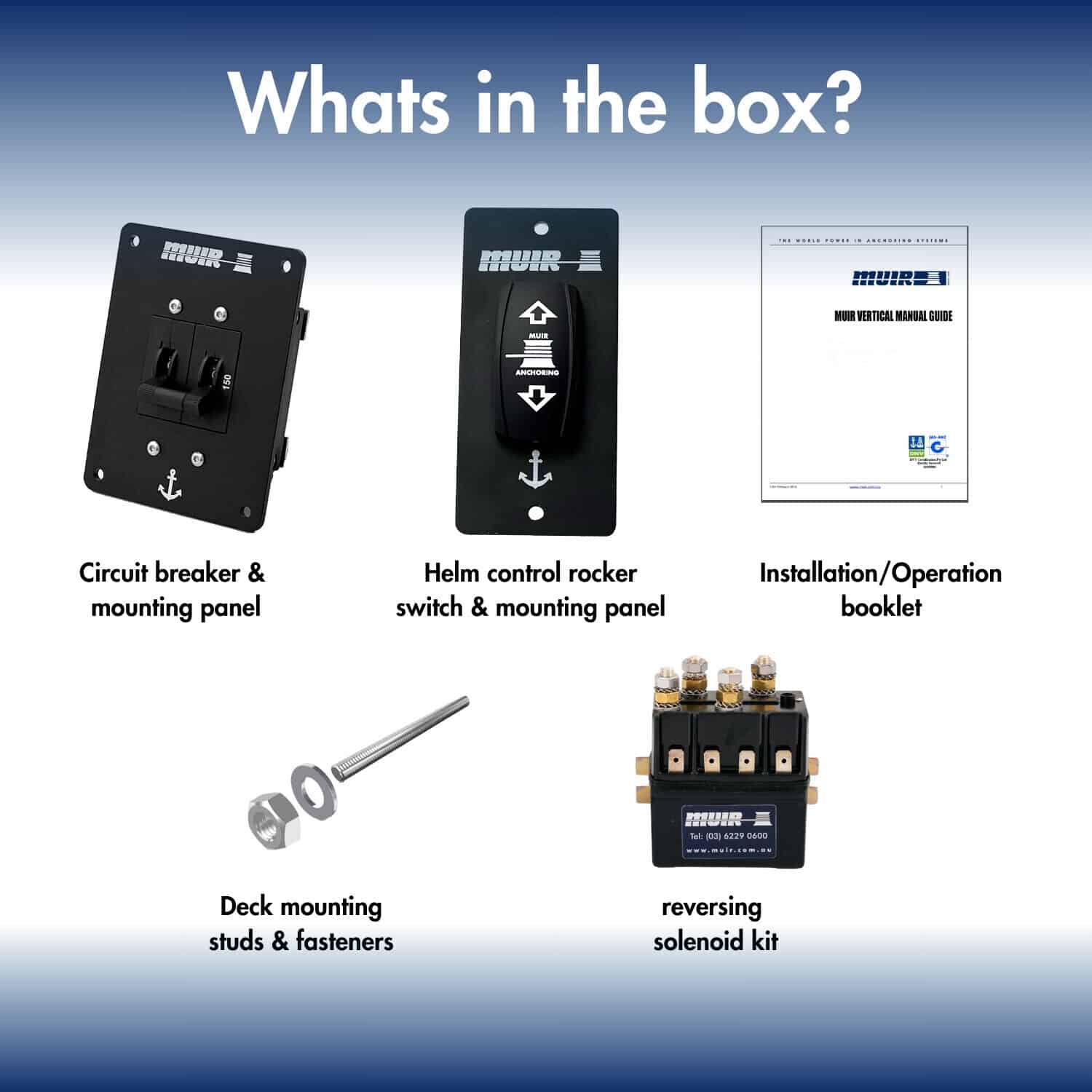

Package Inclusions
Circuit Breaker and Mounting Panel

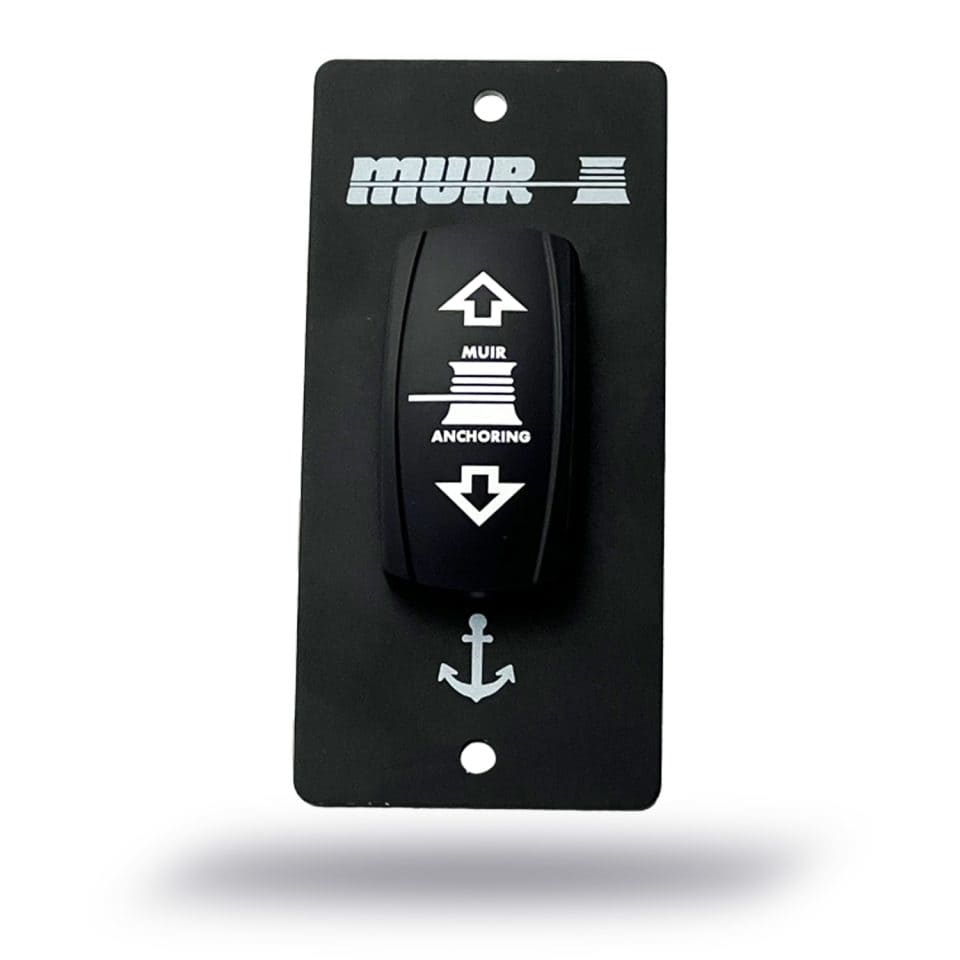

Rocker Switch
Deck mounting studs and fasteners

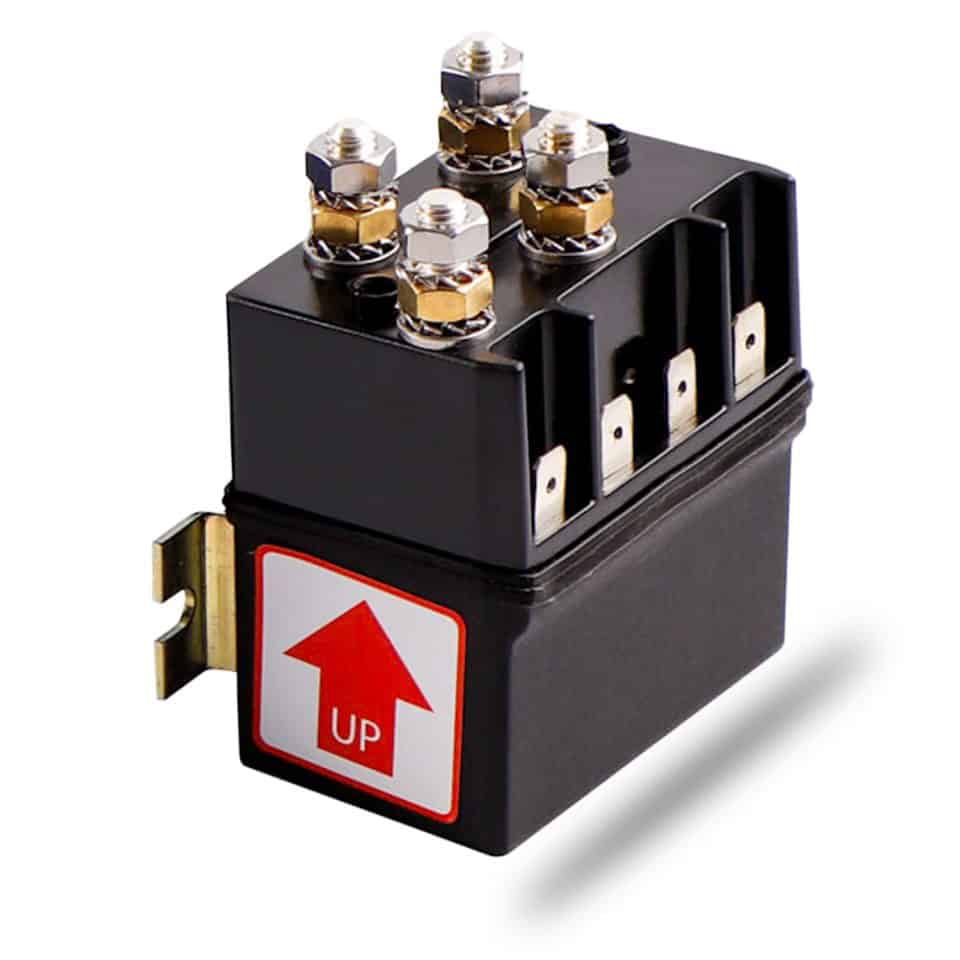

Reversing Solenoid kit
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Muir Reliable DFF 08 Standard Free-Fall Drum Winch
Fast drop. Smooth retrieve. The DFF 08 Standard adds mechanical free-fall to the DW 08 for rapid anchoring when time counts. Ideal for boats 5–8m (16–26ft) fishing shallow reefs or rivers.

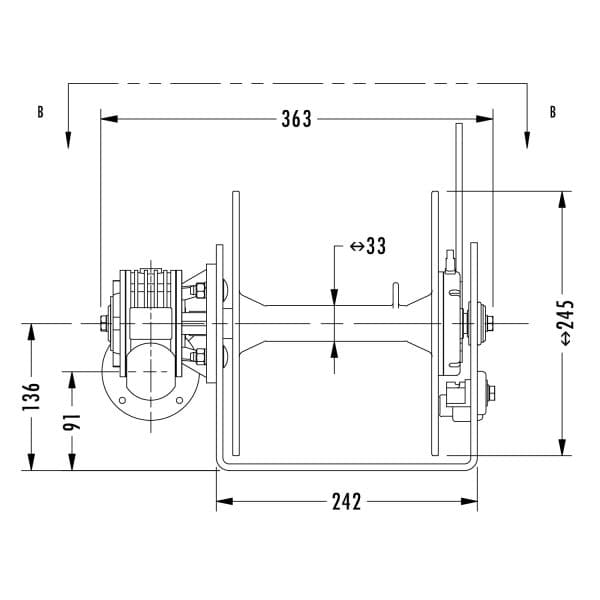

Drawings
Top View
Slide View
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing center for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage
- 316 stainless steel drum
- Superior heavy-duty Italian drive train
Technical Specification
Name
Specs
Drum capacity
Recommended Vessel Length (m)
5m - 8m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
800Watts
Amps Workload
80A (12V)
Max Load (Kg)
180Kg
Workload (Kg)
60Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16")
Compatible Rope Sizes (mm)
8mm (5/16")

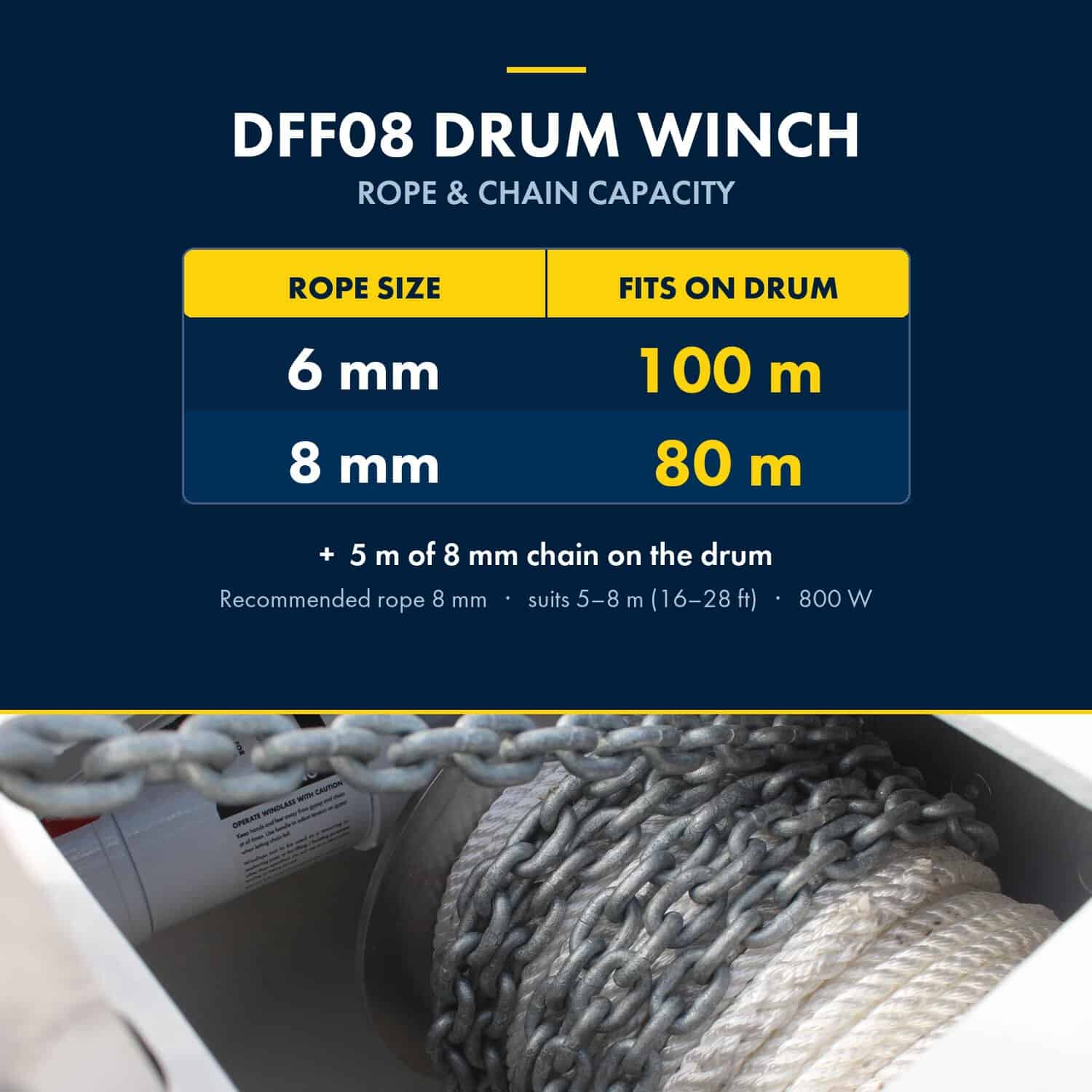

Chain On Drum
5 m of 8 mm
Rope Capacity @ 6mm
100 m
Rope Capacity @ 8mm
80 m
Auto Anchor Compatible
Yes
Net Weight DC VR/HR or Standard (kg)
15Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
