Auto Anchor, Panel Mounted Series
AA800 Control And Counter
3 Years Warranty
Comprehensive Coverage and peace of mind.
Description
AA800 Control and Chain Counter – Advanced Touchscreen Windlass Control
The AA800 Control and Counter is a state-of-the-art touchscreen controller designed to give you total command of your windlass system. Featuring a full-colour backlit display, this all-in-one unit provides real-time chain length readout, up/down windlass control, and intuitive touchscreen navigation—all in a compact, waterproof design.
Ideal for both recreational and commercial vessels, the AA800 Control And Counter offers precision anchoring, programmable deployment settings, and automatic retrieval alerts. Its modern interface and reliable performance make it a standout upgrade for any anchoring setup.
   ✔ Full-colour touchscreen display
   ✔ Real-time chain counter with depth accuracy
   ✔ Up/down windlass control with safety lockout
   ✔ Waterproof and UV-resistant for marine conditions
   ✔ Easy to install and compatible with most windlass systems
Upgrade your anchoring experience with the AA800 Control and Counter—the perfect blend of innovation, control, and marine-grade durability.
Specification
Specification
Â
|
Parameter |

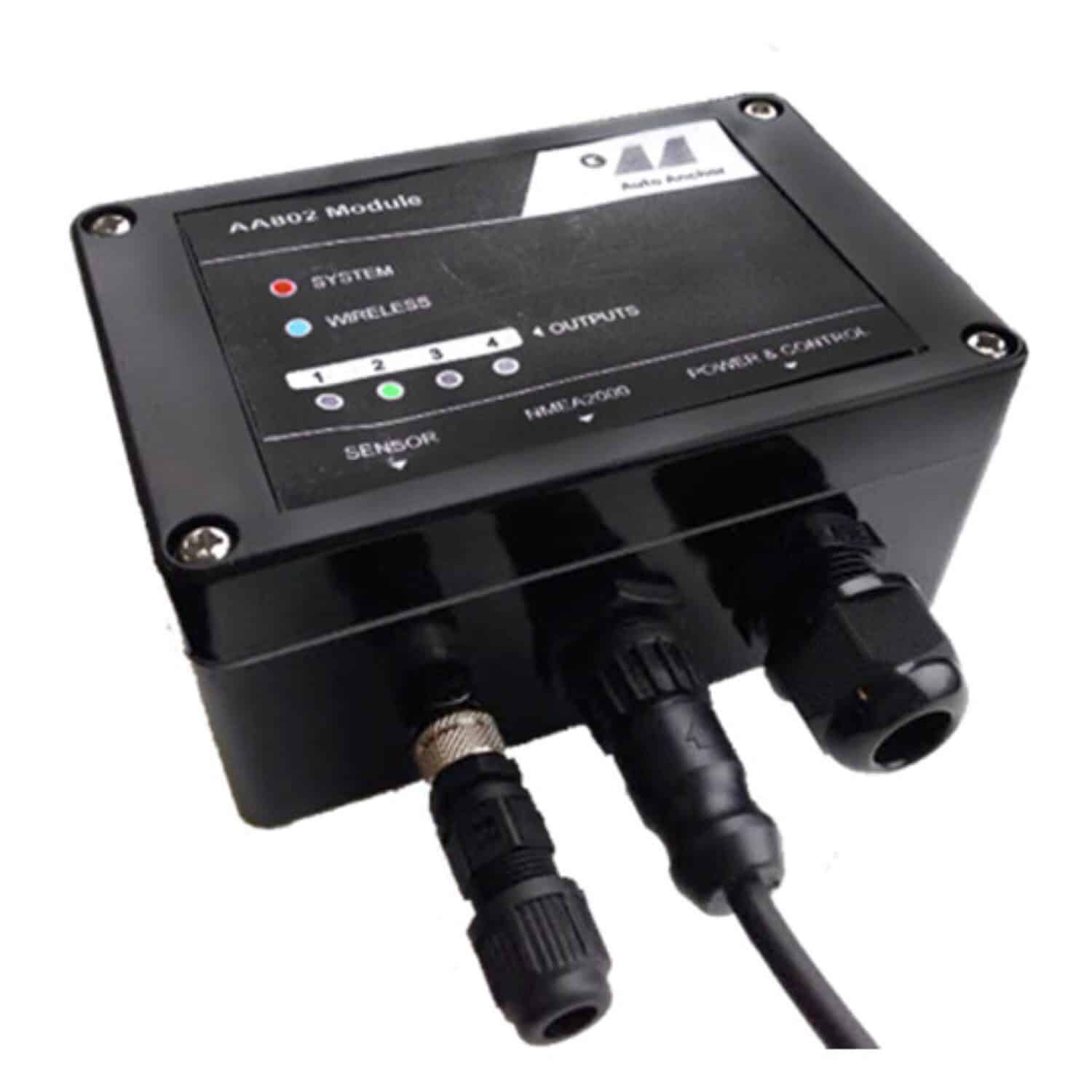

AA802 Smart Box |
AA870 Smart Console |
|
Power supply |
12V/24V DC |
12V/24V DC |
|
Maximum Voltage |
30V DC |
30V DC |
|
Current Consumption |
30mA |
30mA |
|
Output Maximum Current Draw |
12V DC: 4A 24V DC: 4A |
12V DC: 4A 24V DC: 4A |
|
Output Minimum Current Draw |
12V DC: 10mA 24V DC: 20mA |
12V DC: 10mA 24V DC: 20mA |
|
IP Rating |
IP67 |
IP67 from the front provided the unit is mounted so the back is protected from moisture. |
|
Operating Temperature Range |
23°F to 140°F (-5°C to 60°C) |
23°F to 140°F (-5°C to 60°C) |
|
Wireless Transmission |
2.4Hz ISM Band, IEEE 802.15.1 compliant |
|
|
Wireless Range |
Typical minimum 15m (50ft). Range depends on installation. |
|
|
Network |
NMEA 2000 compliant |
NMEA 2000 (pending) |
|
Sensor |
Compatible with AA800 Smart Sensor only. |
Not applicable. |
|
Rode – Chain Only |
Stainless or galvanized steel. |
|
|
Rode – Rope and Chain |
Must have a minimum of 10ft (3m) of chain. Chain must be galvanized steel. Rope should be a good quality, nylon anchor rope. Type 66 or equivalent. |
|
|
DC windlasses require a dual-direction solenoid. |
||
Â
Features
Â
- Effortless addition of multiple counters
- Very accurate chain and rope count
- Simplified installation, set up and calibration.
- Daisy-chain wiring to read outs with a single cable or via Bluetooth
- NMEA2000 for 3rd party displays and for integrated information
- Bluetooth Wireless for excellent wireless coverage and links to smartphone apps or plotters
- Improved sensor technology
Package Inclusions
Auto Anchor 800 Kit Includes:
- Sensor with 2m cable
- Load sensing connectors
- 2 X Magnet
- Installation/Operation booklet
