Storm VR2200
Price range: $2,739.80 through $3,374.72
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions

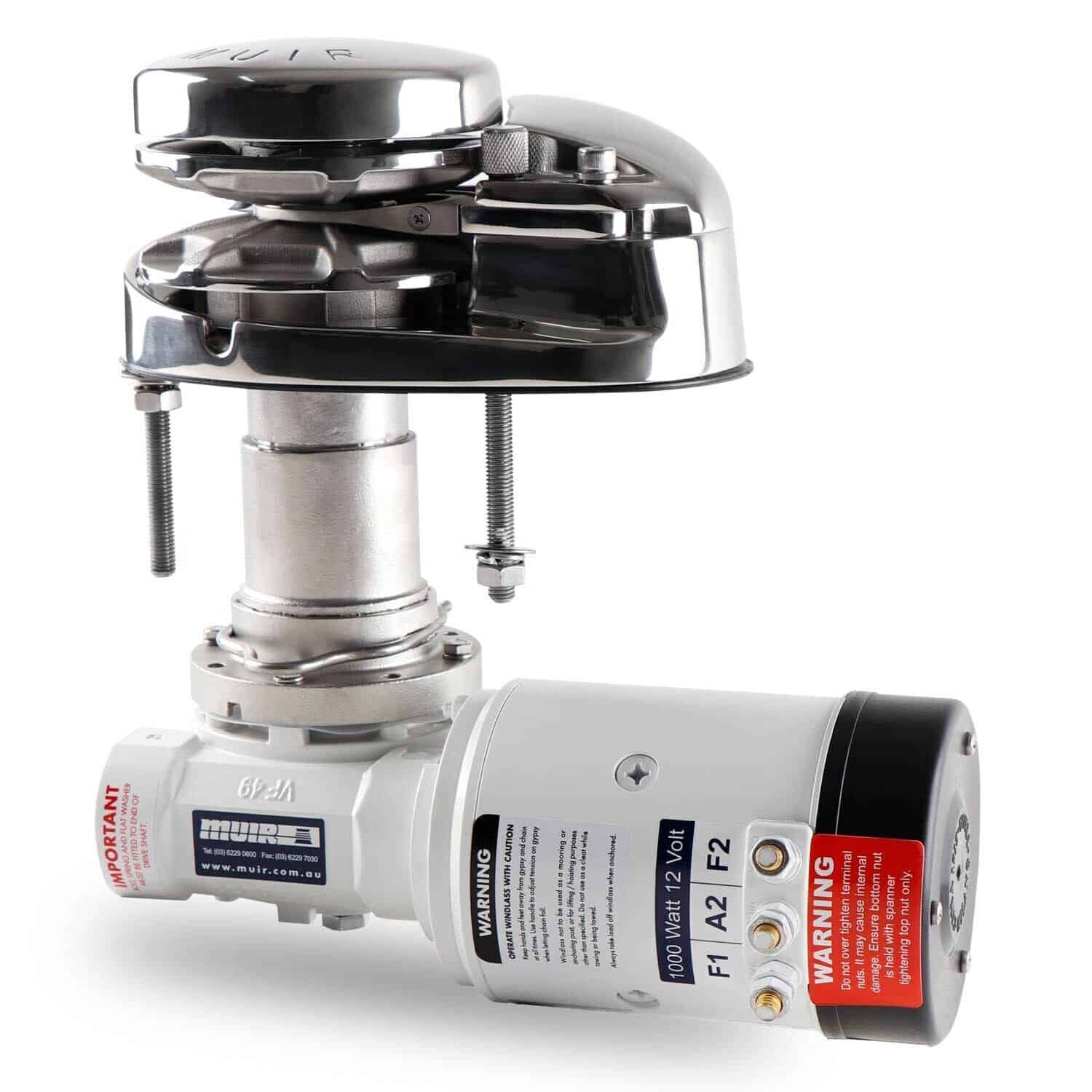

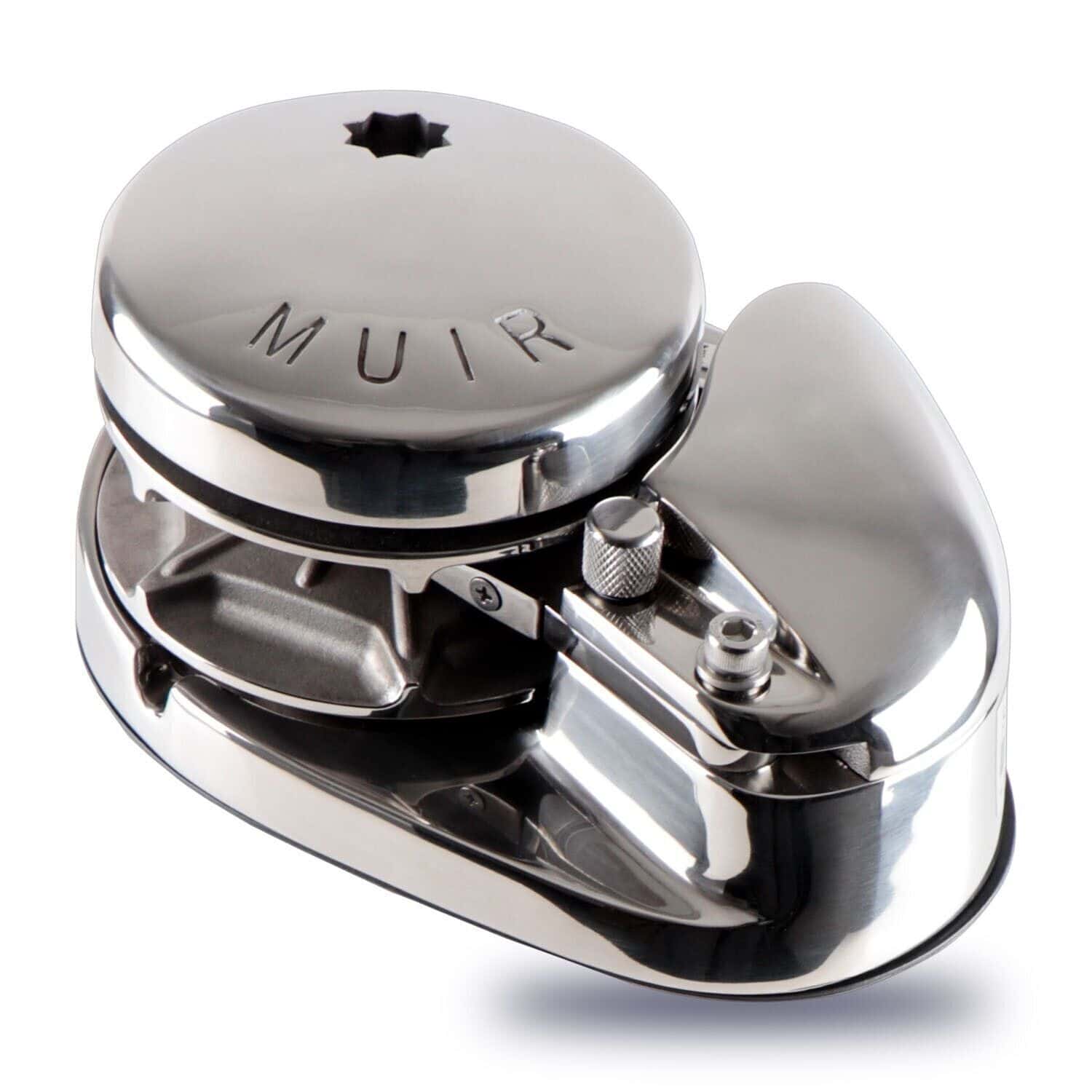

Storm VR2200
For vessels up to 15m (50ft), the Storm VR2200 delivers serious muscle with smooth, quiet operation. Its rope-chain management system ensures flawless retrieval, while the polished stainless build adds strength and sophistication to your foredeck.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.

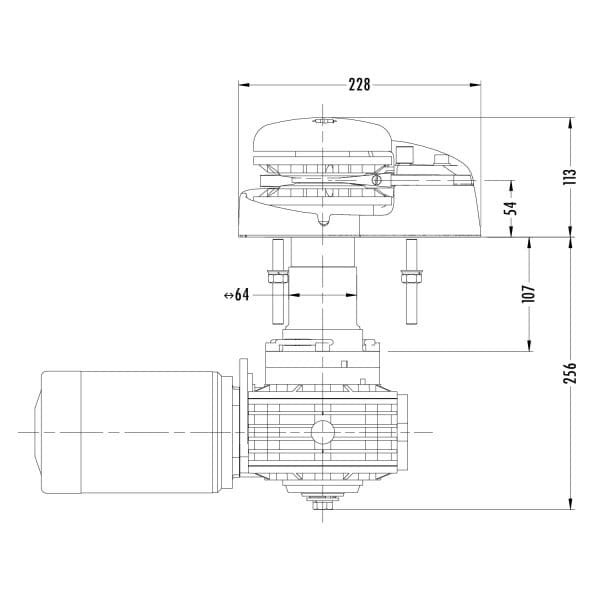

Drawings

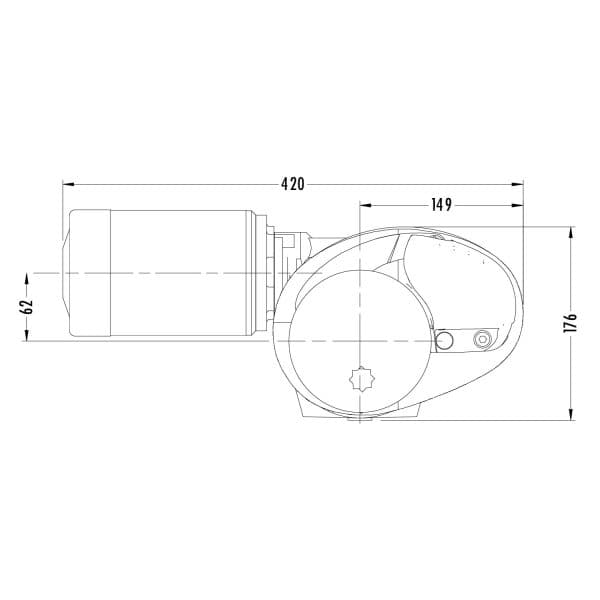

Top View
VR
Features

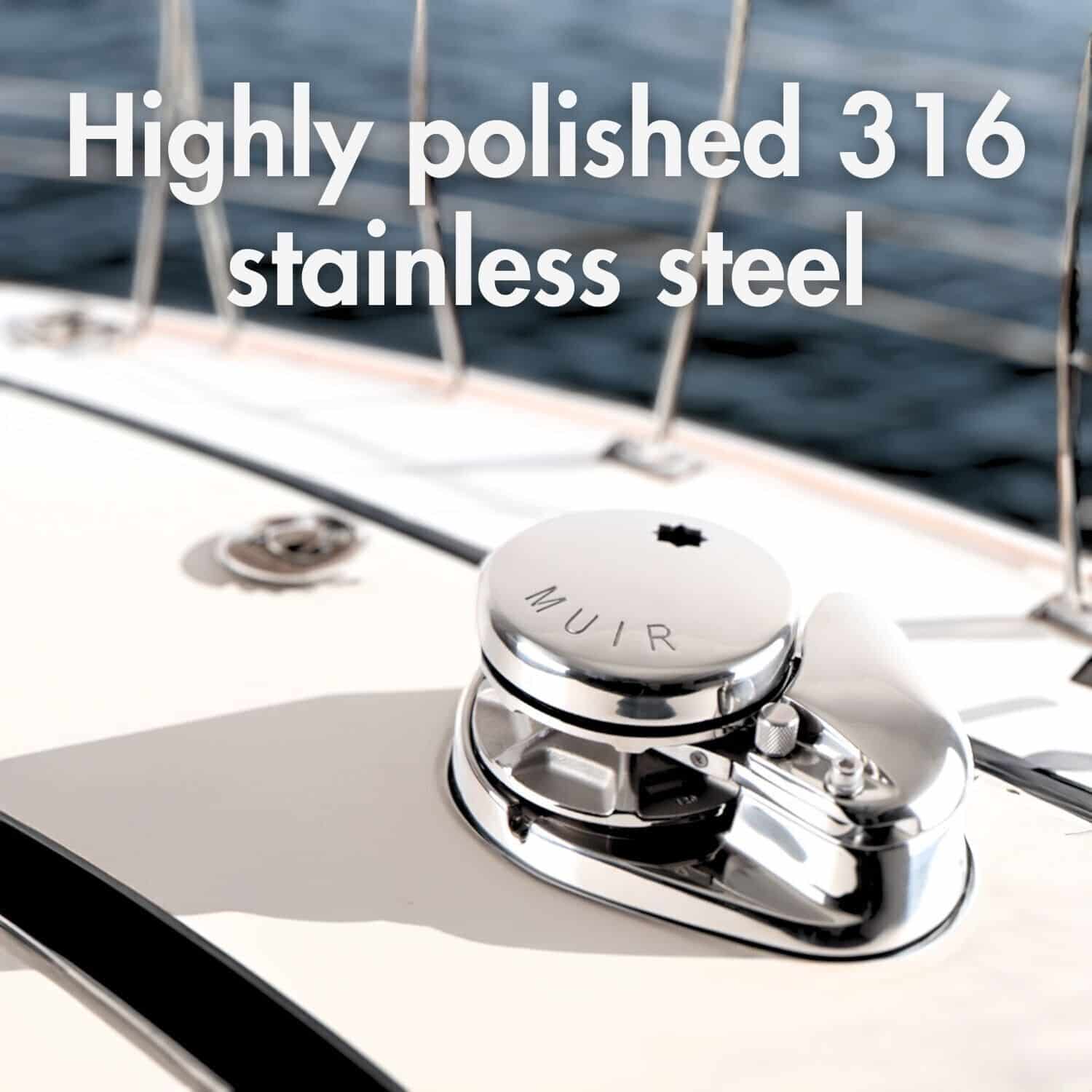

- Polished stainless steel components

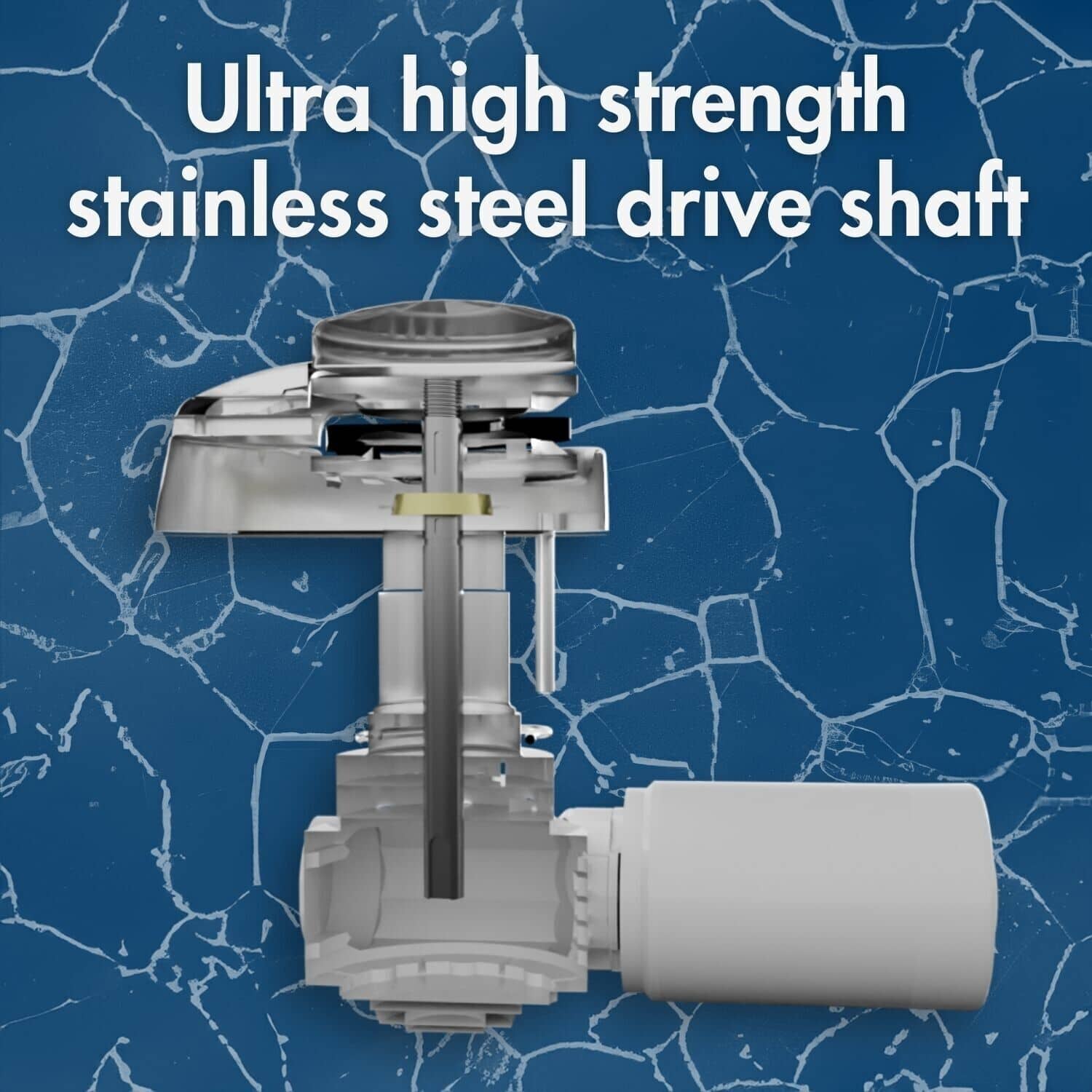

- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor

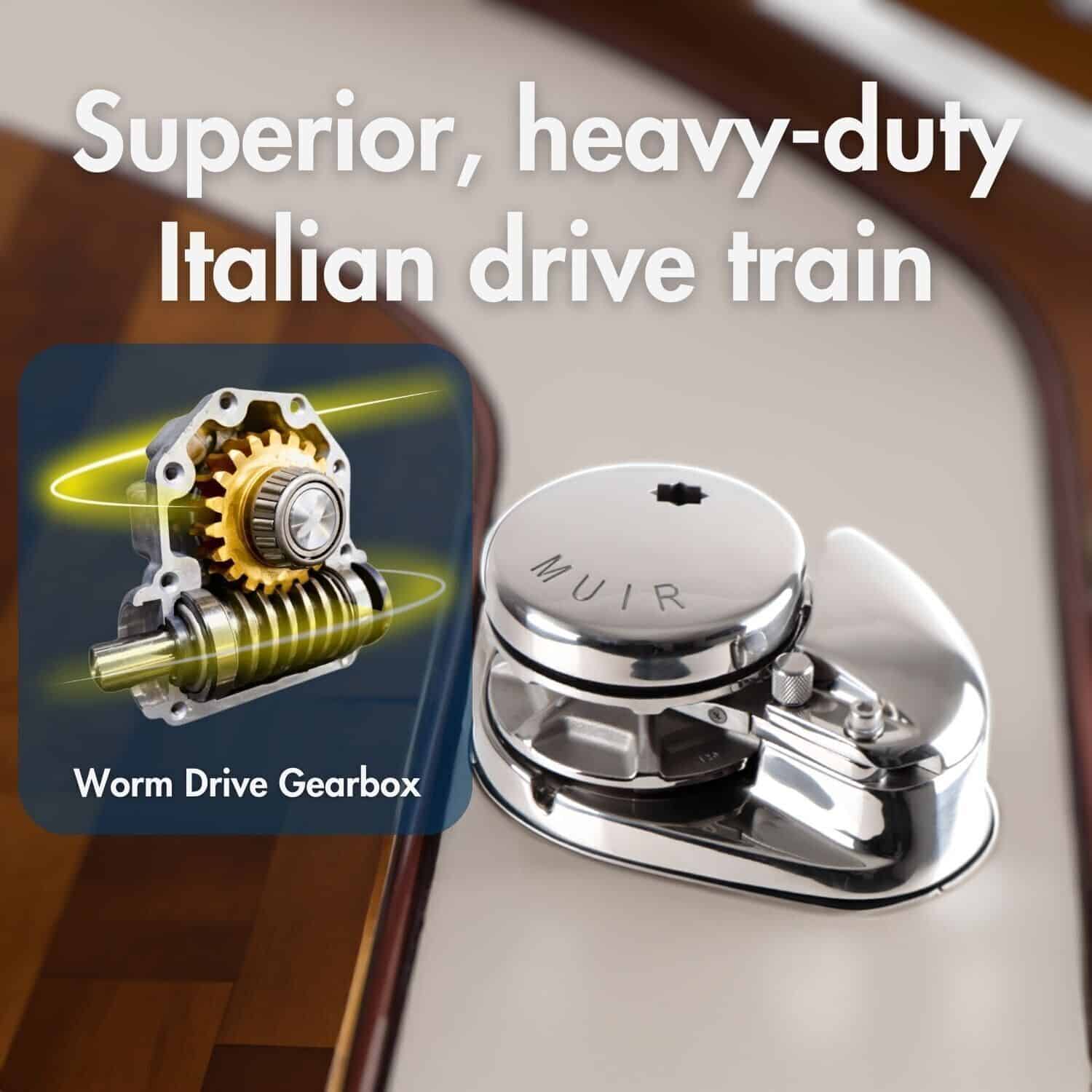

- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
12m - 15m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1500Watts
Amps Workload
150A/70A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
15L/min
Max Load (Kg)
1100Kg
Workload (Kg)
367Kg
Max Line Speed
30m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Compatible Rope/Chain Combo (mm)
6 mm (1/4"), 8mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Manual Operation
MOS (std on most gypsy sizes)

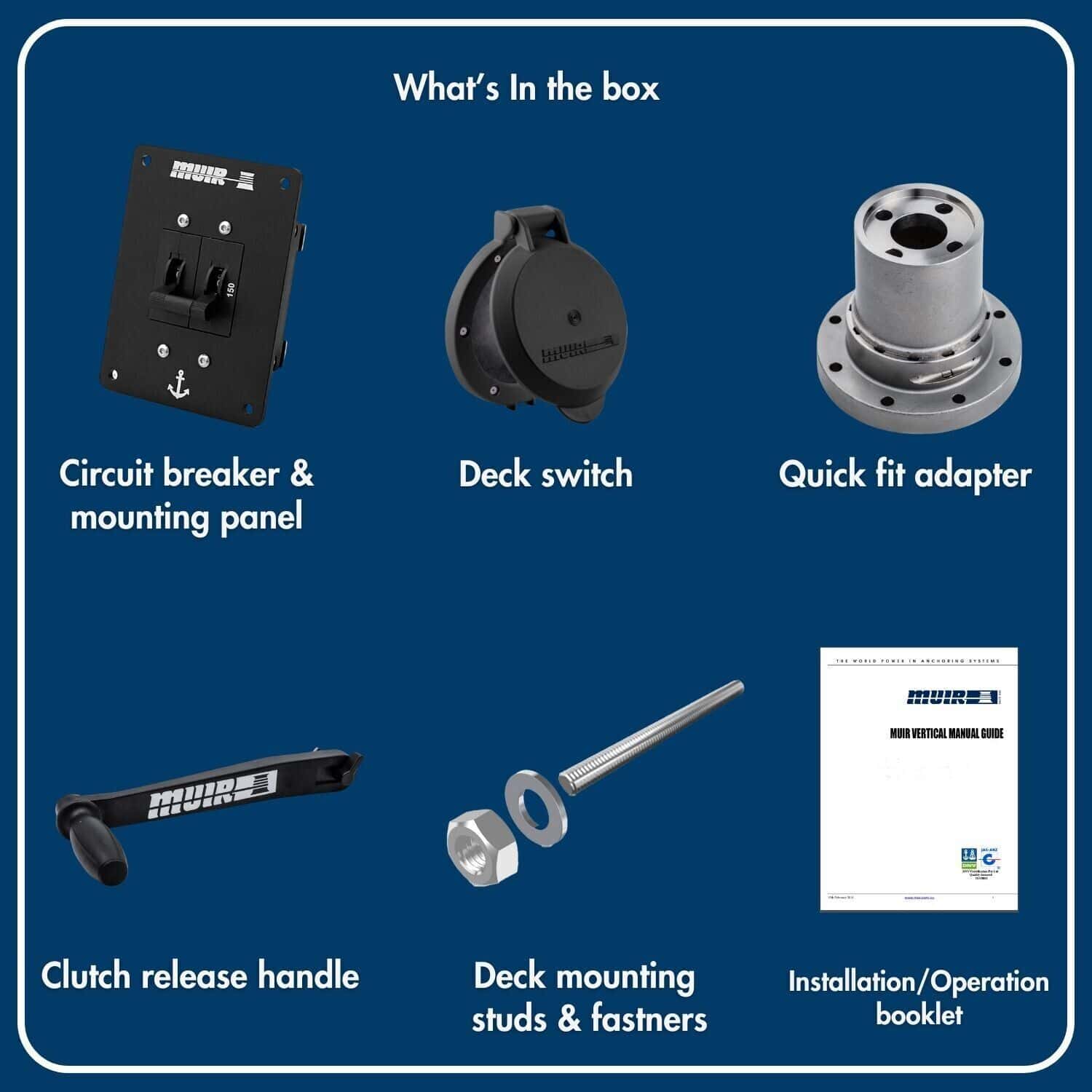

Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch

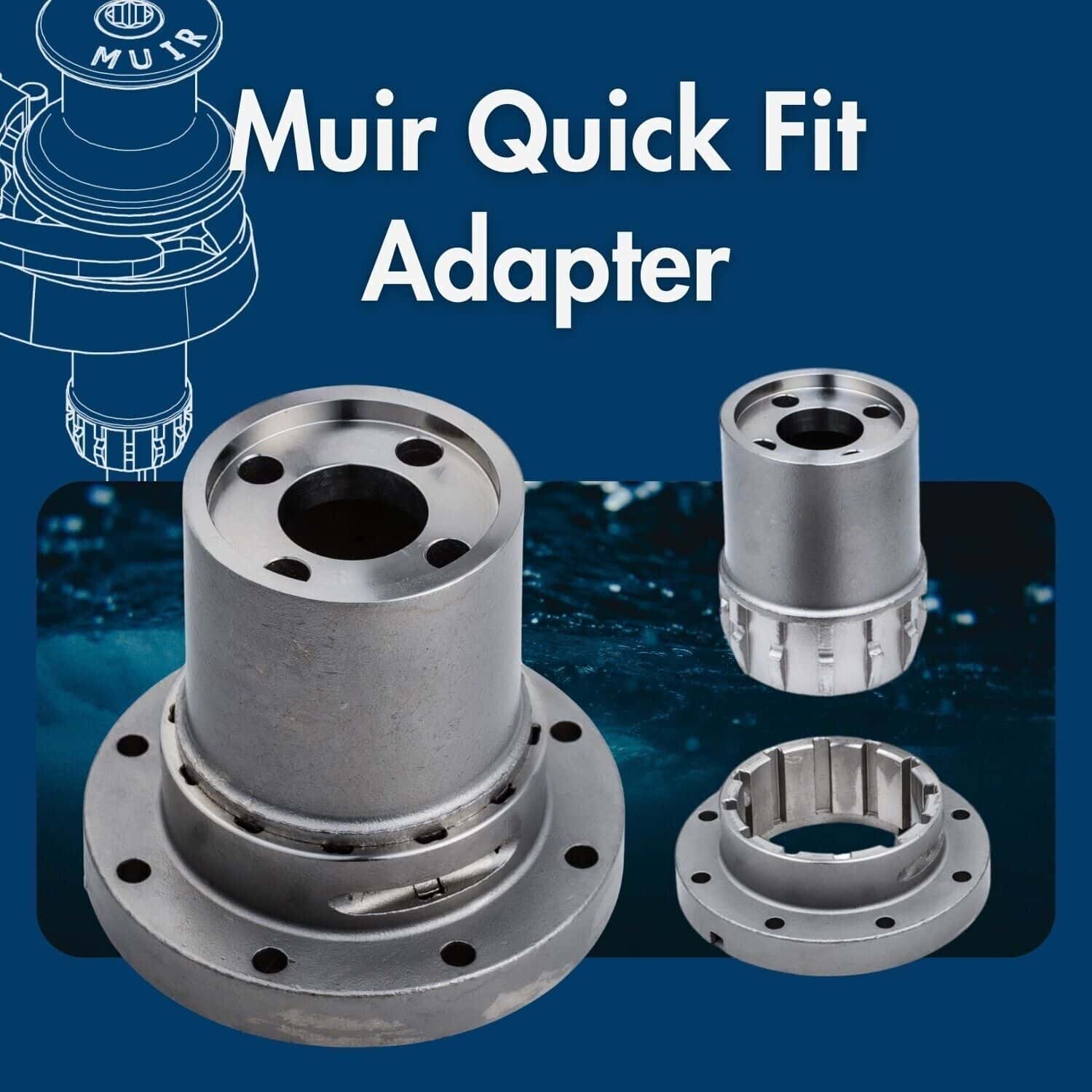

Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Operation System MOS
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Storm VR2200
For vessels up to 15m (50ft), the Storm VR2200 delivers serious muscle with smooth, quiet operation. Its rope-chain management system ensures flawless retrieval, while the polished stainless build adds strength and sophistication to your foredeck.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
VR
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Recommended Vessel Length (m)
12m - 15m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1500Watts
Amps Workload
150A/70A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
15L/min
Max Load (Kg)
1100Kg
Workload (Kg)
367Kg
Max Line Speed
30m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Compatible Rope/Chain Combo (mm)
6 mm (1/4"), 8mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Manual Operation
MOS (std on most gypsy sizes)
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Operation System MOS
Downloads
Parts
Only logged in customers who have purchased this product may leave a review.
Not Sure Which Windlass Is Right for You?
Find the right recreational windlass for your boat using our Windlass Selection Guide.
Find Your WindlassPart of the Muir Storm Vertical Series?
Explore the complete Storm Vertical Series and compare available models.
View Storm Vertical Series
Reviews
There are no reviews yet.
