Storm VFF600
$2,015.00
3 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions
Storm VFF600 Vertical Free-Fall Windlass
Engineered for speed and ease, the Storm VFF600 allows instant anchor deployment with the flick of a switch. Suitable for boats up to 9 meters (31 feet), it offers quick retrieval, polished stainless steel styling, and seamless rope-chain compatibility. Ideal for frequent anchoring and single-handed operation.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.

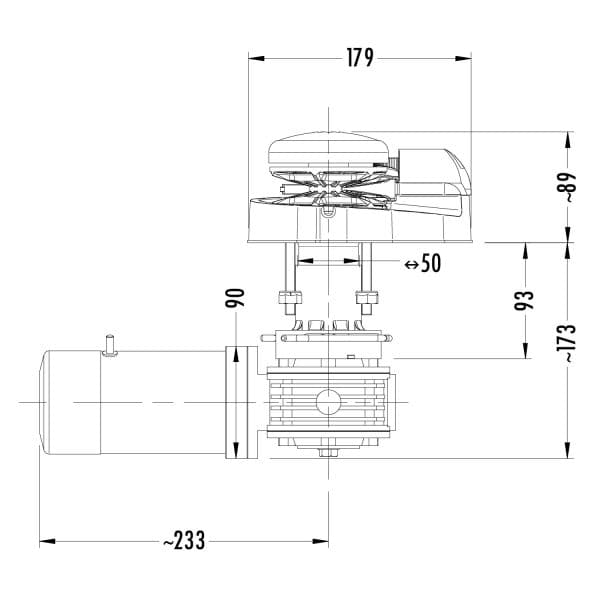

Drawings

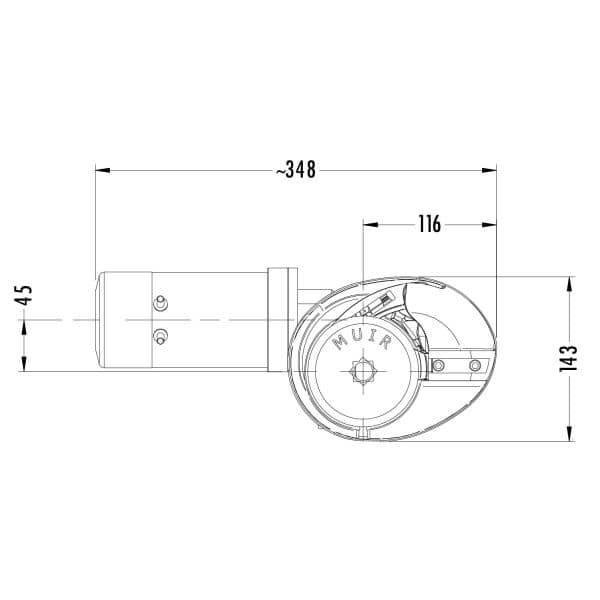

Top View
VR
Features

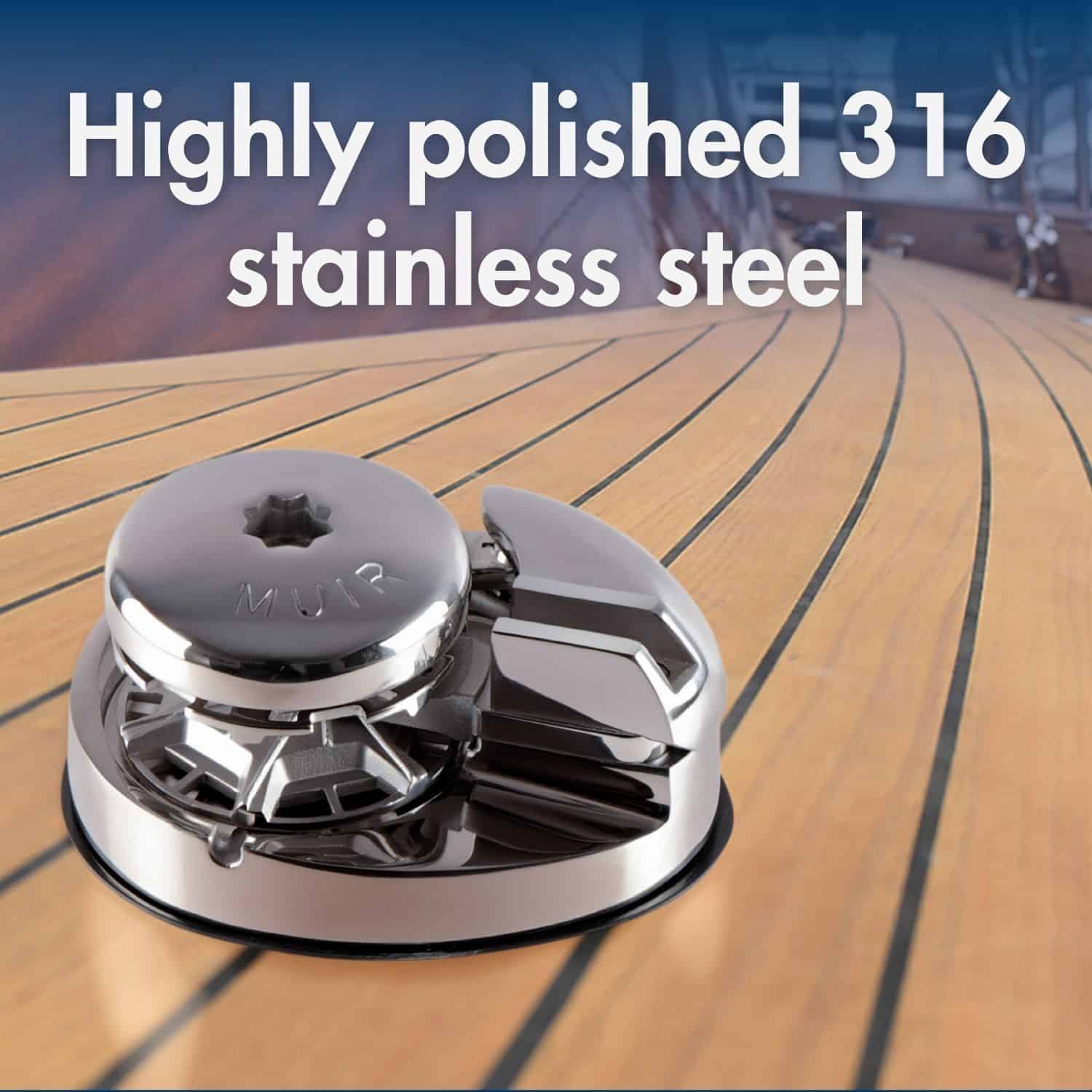

- Polished stainless steel components

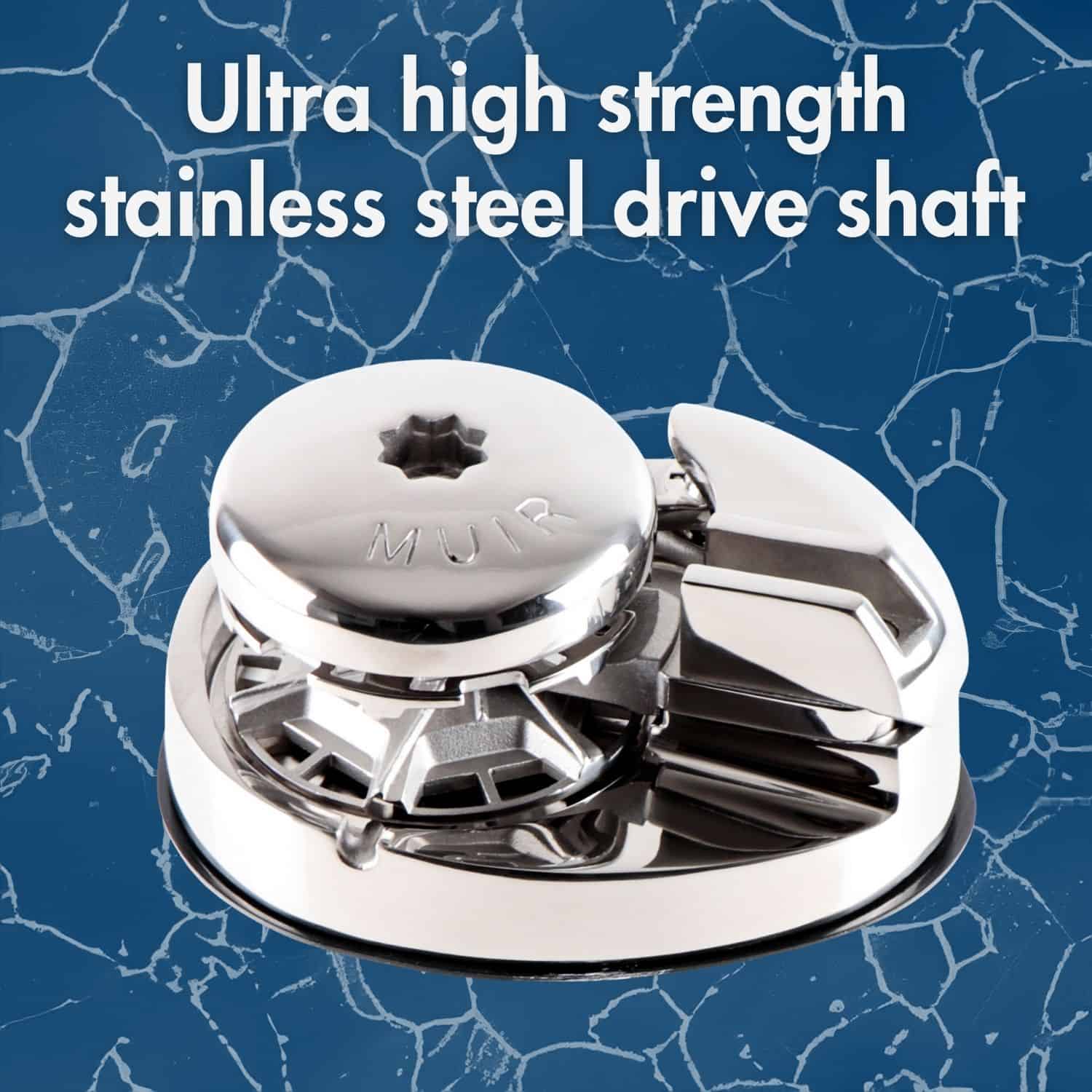

- High tensile stainless steel shaft

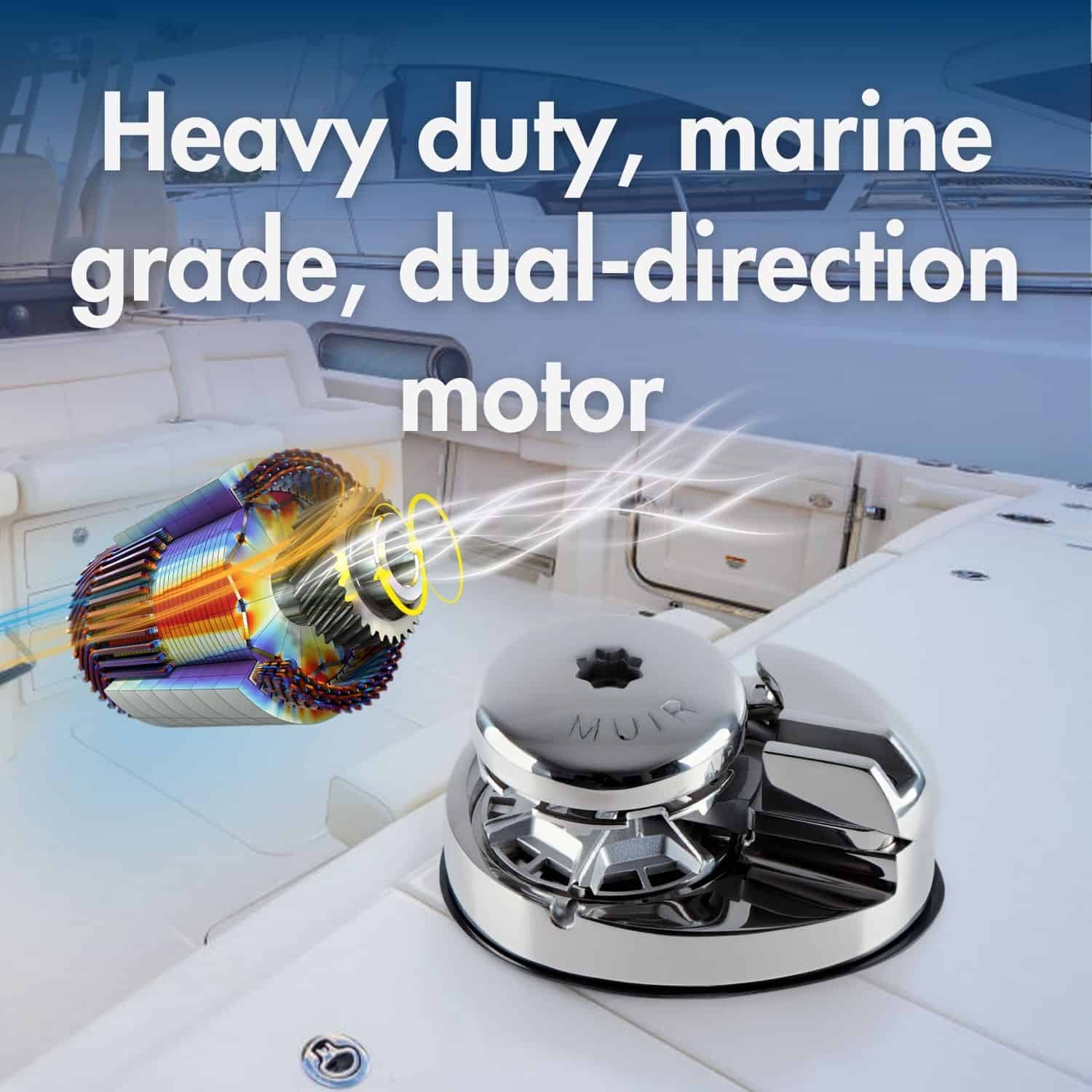

- Heavy duty, marine grade, dual-direction motor

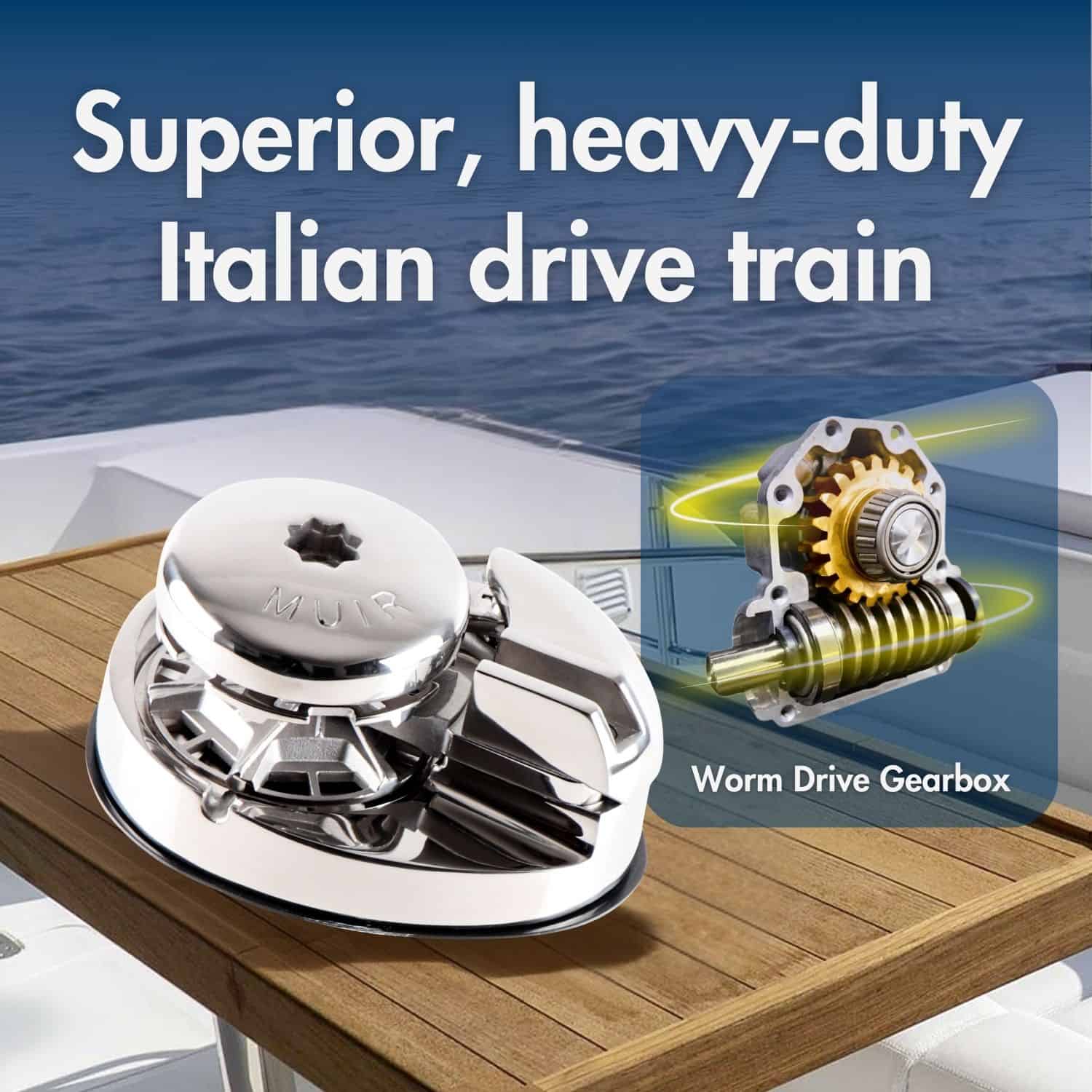

- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
Technical Specification
Name
Specifications
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
80A (12V)
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
369Kg
Workload (Kg)
123Kg
Max Line Speed
21m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 7 mm (7/25")
Compatible Rope Sizes (mm)
12 mm (1/2")
Auto Anchor Compatible
Yes

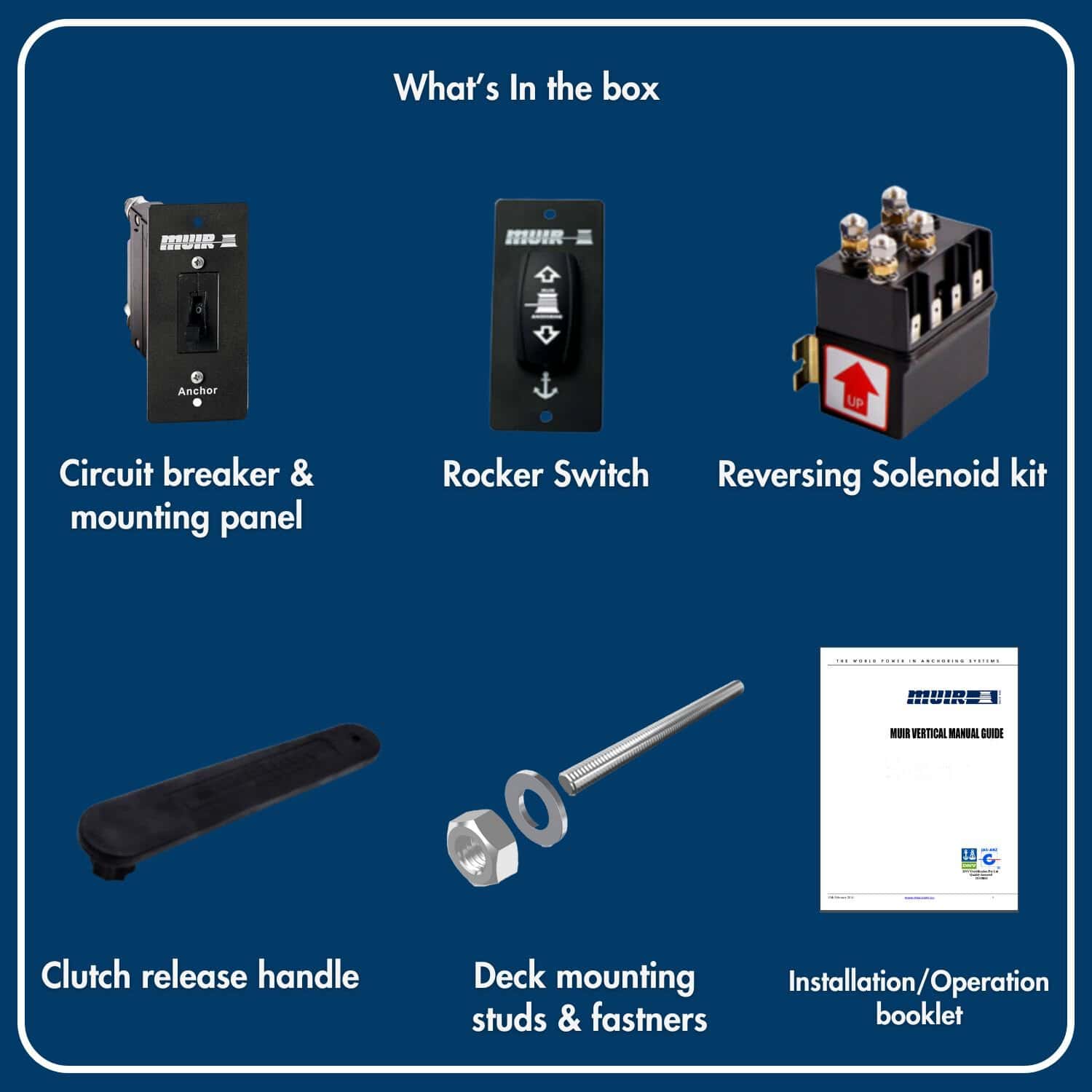

Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners

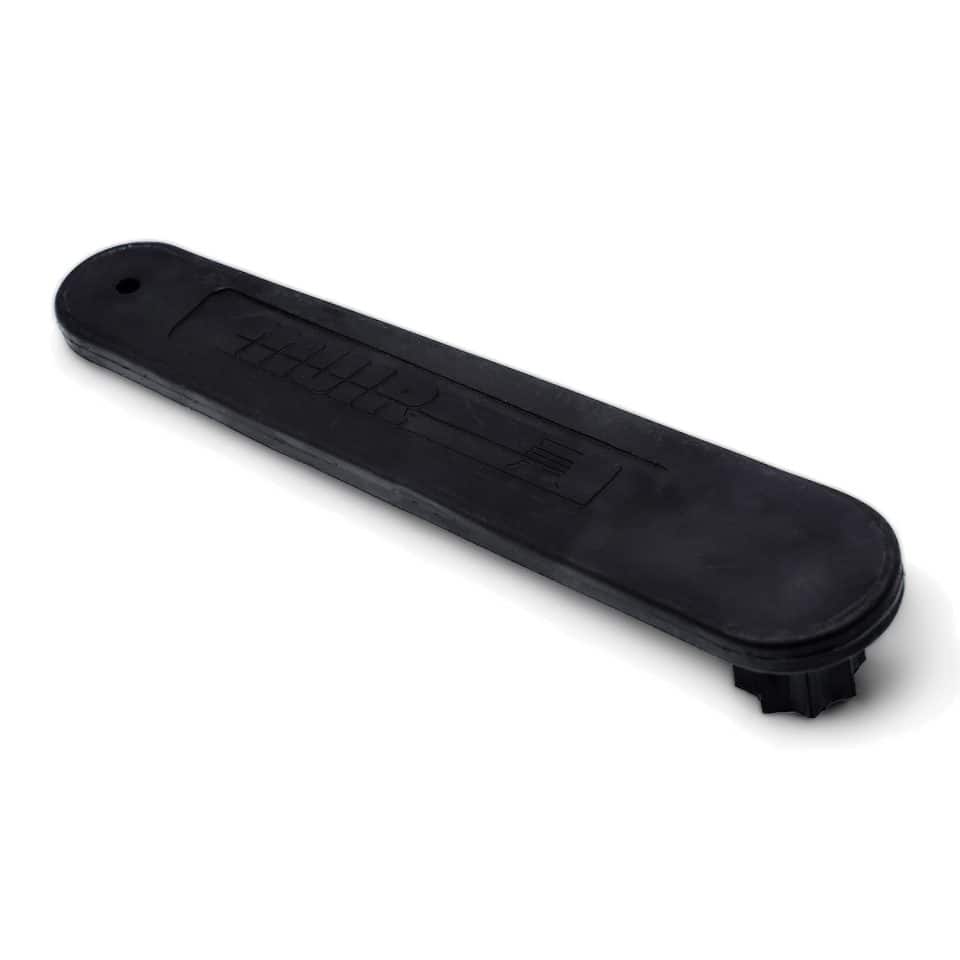

Clutch release handle small
Reversing Solenoid kit
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Reviews
Description
Storm VFF600 Vertical Free-Fall Windlass
Engineered for speed and ease, the Storm VFF600 allows instant anchor deployment with the flick of a switch. Suitable for boats up to 9 meters (31 feet), it offers quick retrieval, polished stainless steel styling, and seamless rope-chain compatibility. Ideal for frequent anchoring and single-handed operation.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
VR
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
Technical Specification
Name
Specs
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
80A (12V)
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
369Kg
Workload (Kg)
123Kg
Max Line Speed
21m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 7 mm (7/25")
Compatible Rope Sizes (mm)
12 mm (1/2")
Auto Anchor Compatible
Yes
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Clutch release handle small
Reversing Solenoid kit
Installation/Operation booklet
