DW 08 Standard Package
$1,268.25
3 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions
Muir Reliable DW 08 Standard Drum Winch
Designed for vessels 5–8m (16–26ft), the DW 08 Standard combines reliable power with mechanical free-fall capability — all in a low-profile drum that’s easy to install and operate.
Drawings

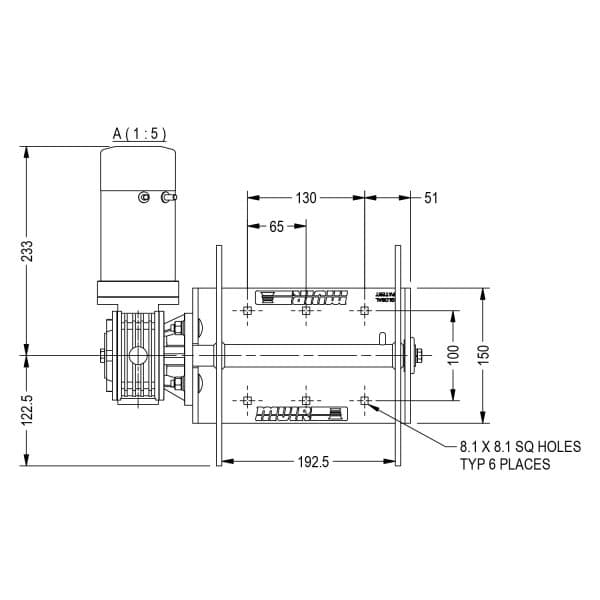

Top View

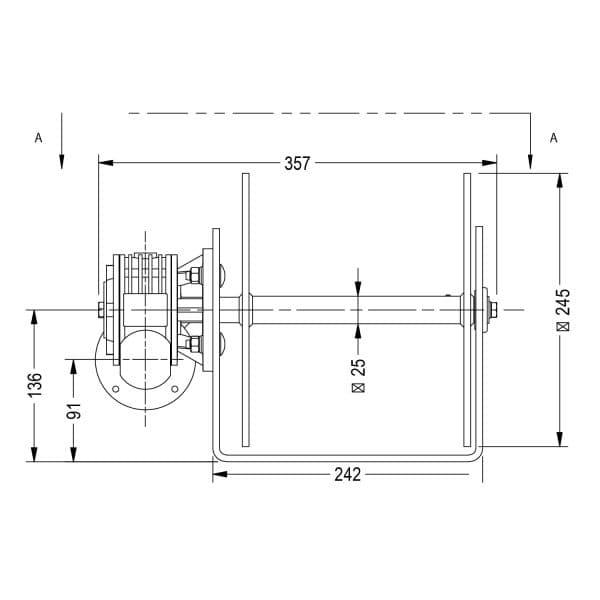

Slide View
Features

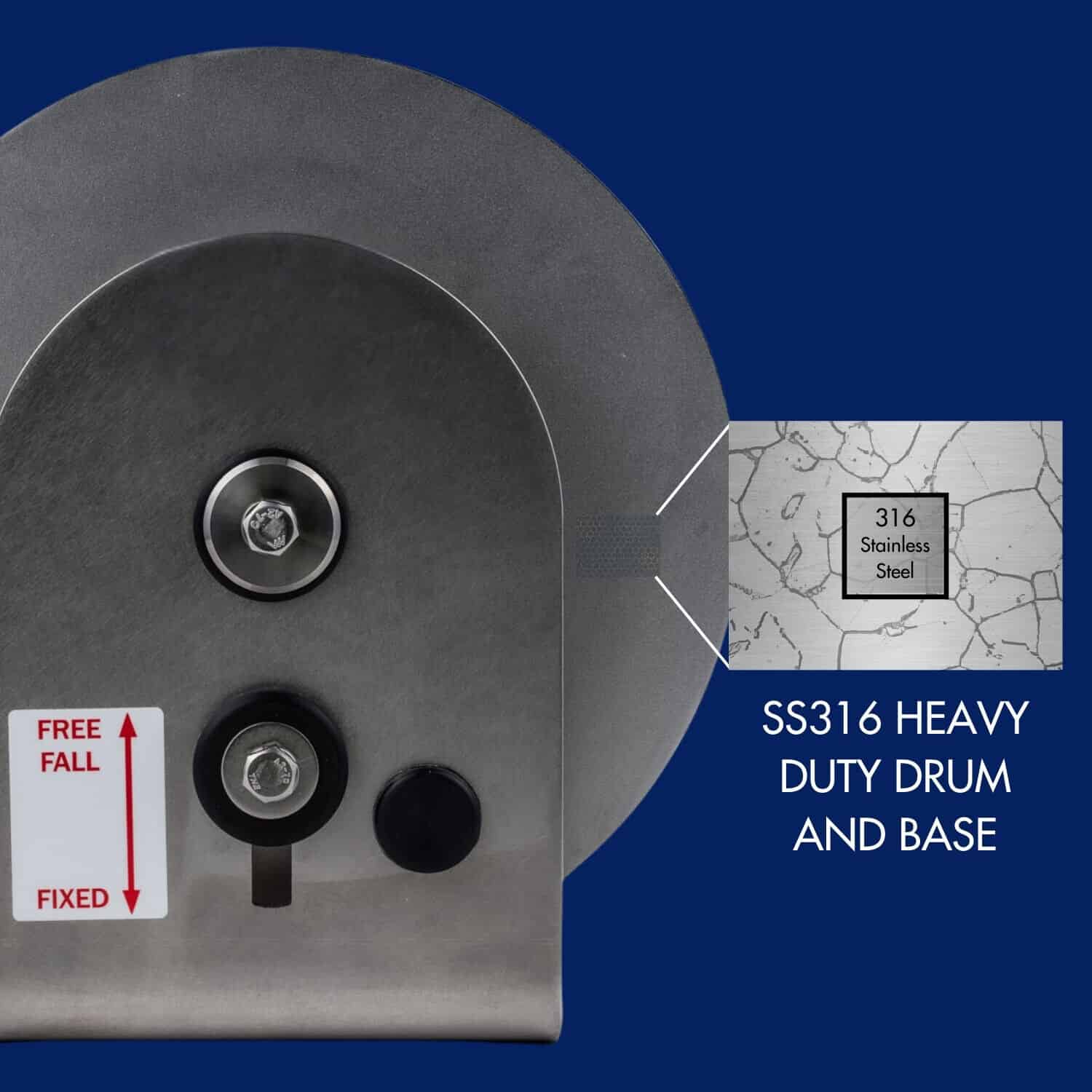

- Marine grade 316 stainless steel drum

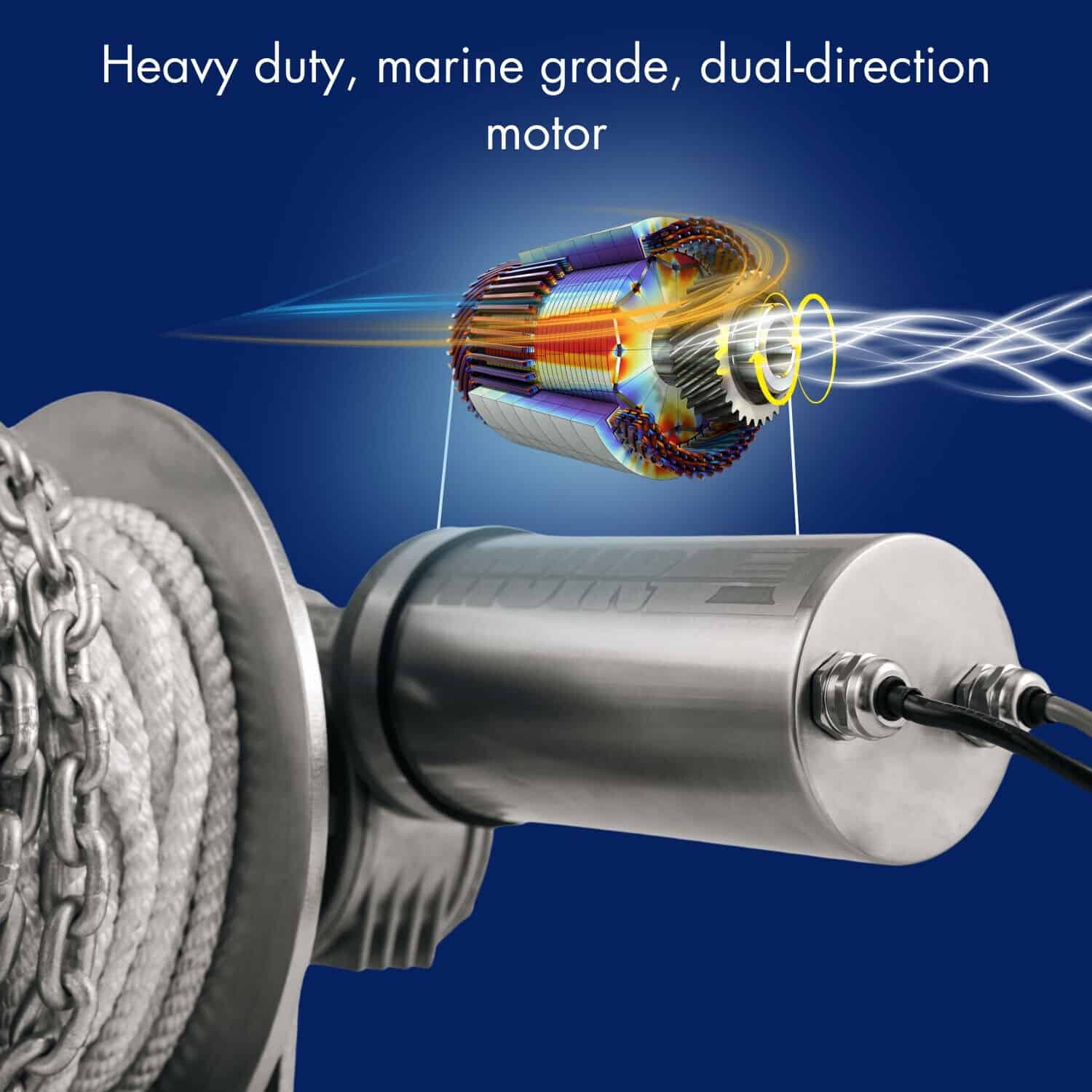

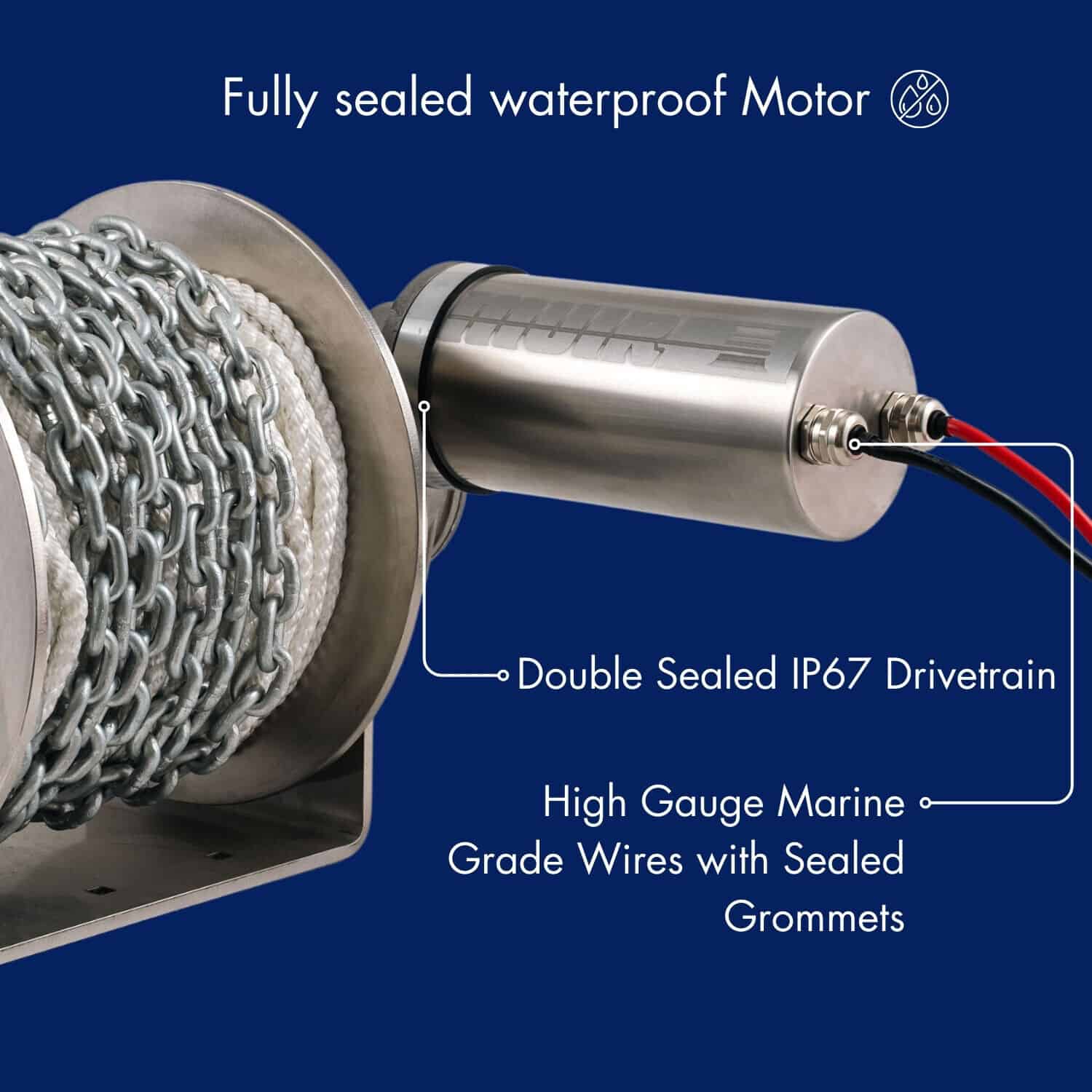

- Heavy duty, marine grade, dual-direction motor

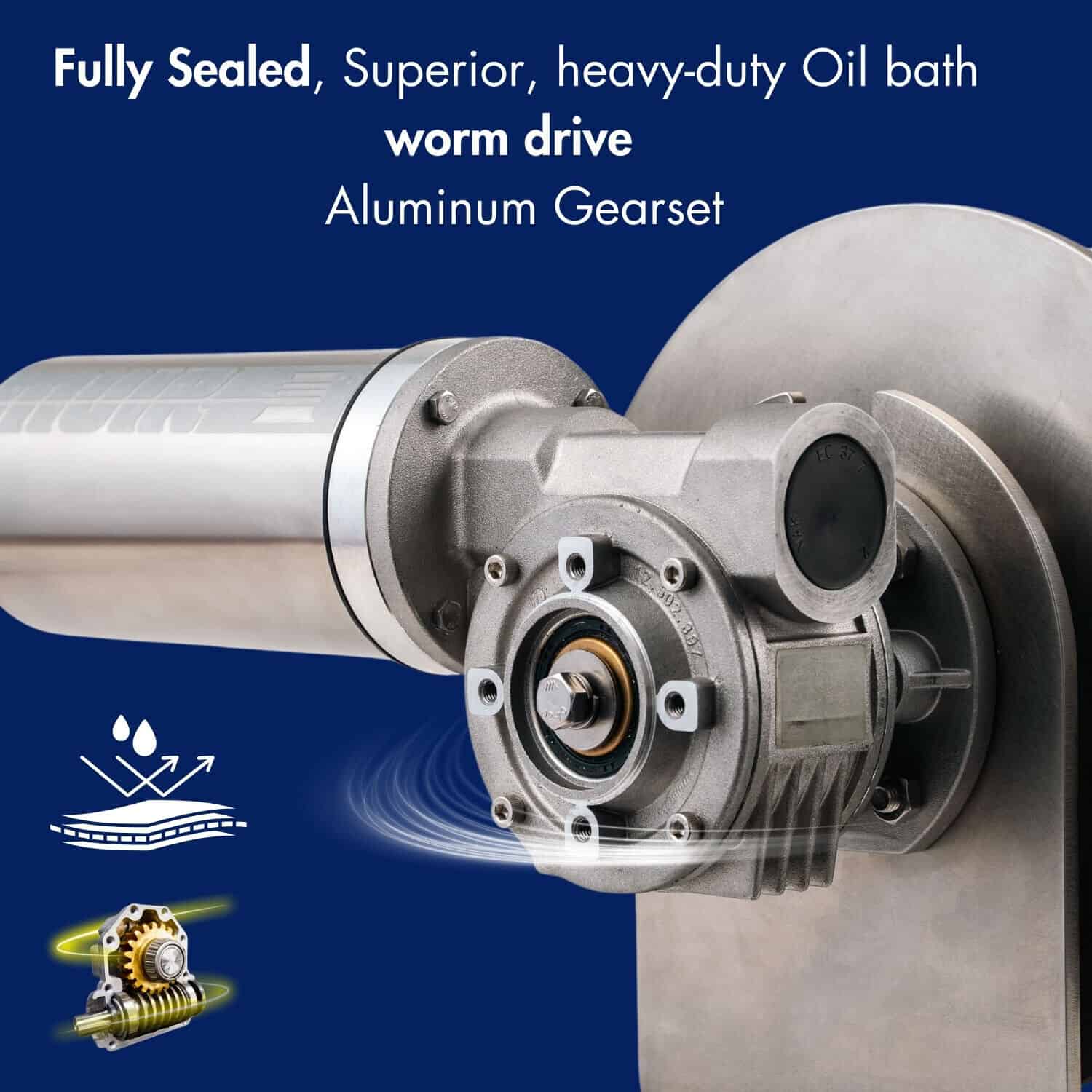

- Superior heavy-duty Italian drive train
- Compact Anchoring system to suit boats with no anchor rode storage

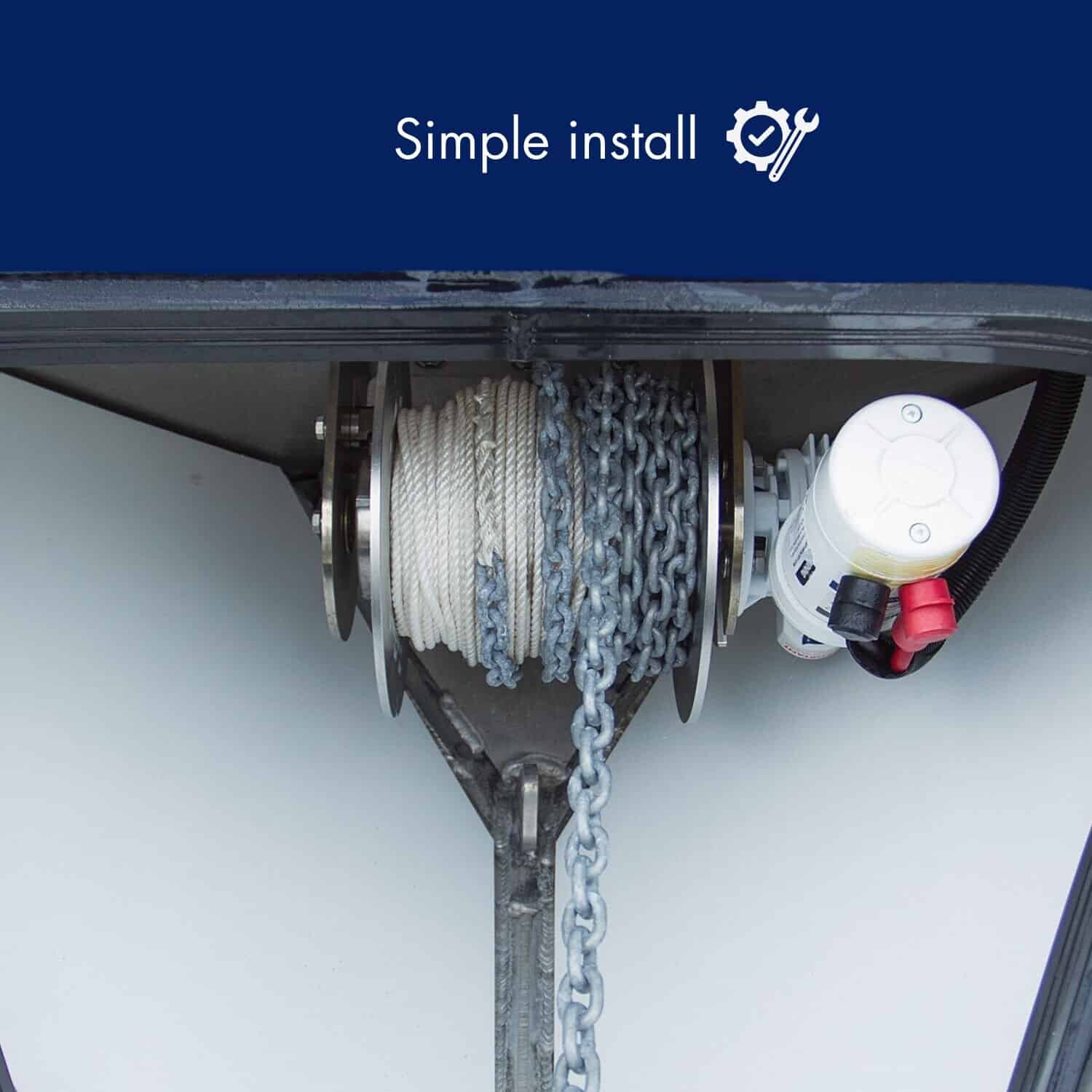

- Simple installation
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
5m - 8m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
800Watts
Amps Workload
80A (12V)
Max Load (Kg)
180Kg
Workload (Kg)
60Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16")
Compatible Rope Sizes (mm)
8mm (5/16")
Auto Anchor Compatible
Yes

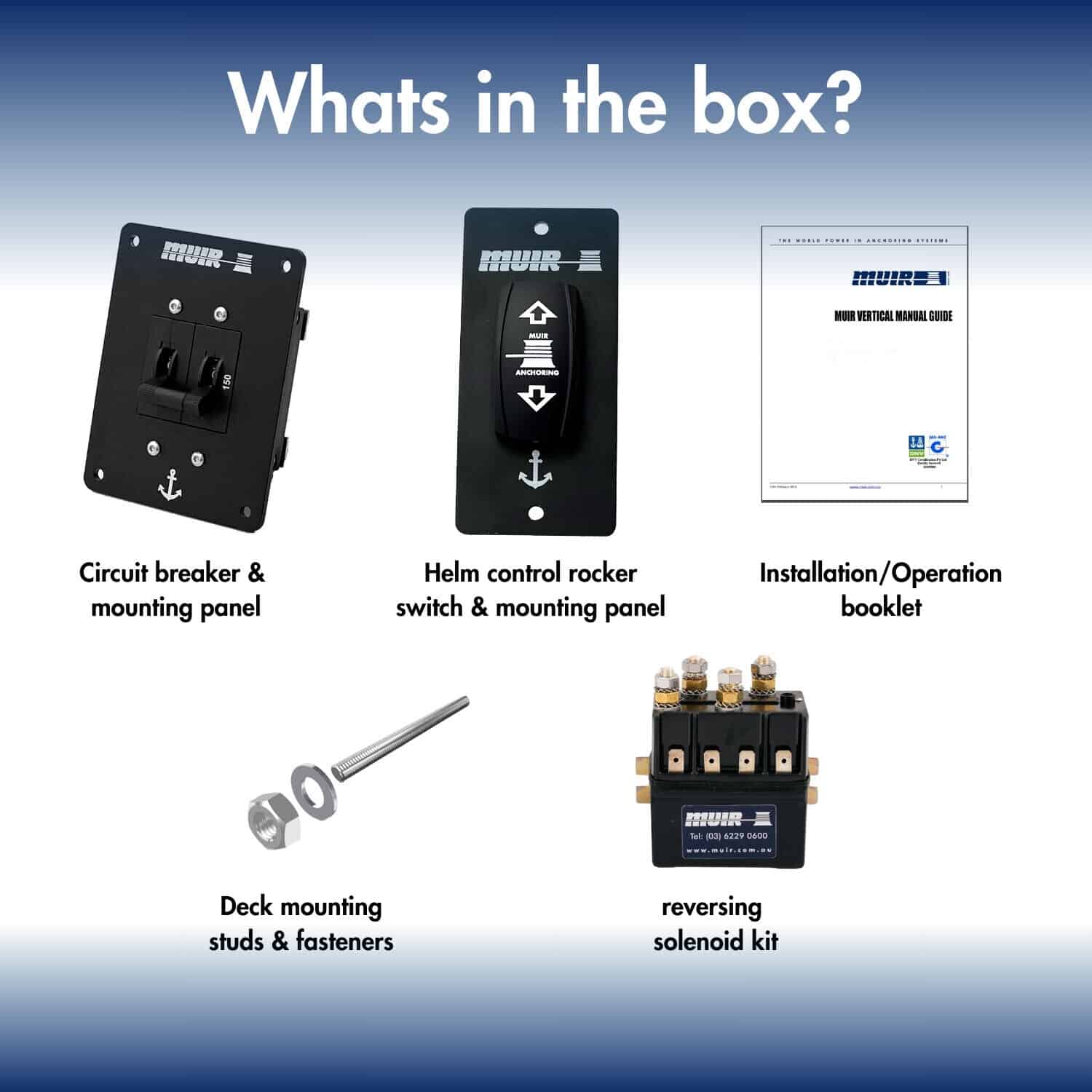

Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Muir Reliable DW 08 Standard Drum Winch
Designed for vessels 5–8m (16–26ft), the DW 08 Standard combines reliable power with mechanical free-fall capability — all in a low-profile drum that’s easy to install and operate.
Drawings
Top View
Slide View
Features
- Marine grade 316 stainless steel drum
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Compact Anchoring system to suit boats with no anchor rode storage
- Simple installation
Technical Specification
Name
Specs
Recommended Vessel Length (m)
5m - 8m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
800Watts
Amps Workload
80A (12V)
Max Load (Kg)
180Kg
Workload (Kg)
60Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16")
Compatible Rope Sizes (mm)
8mm (5/16")

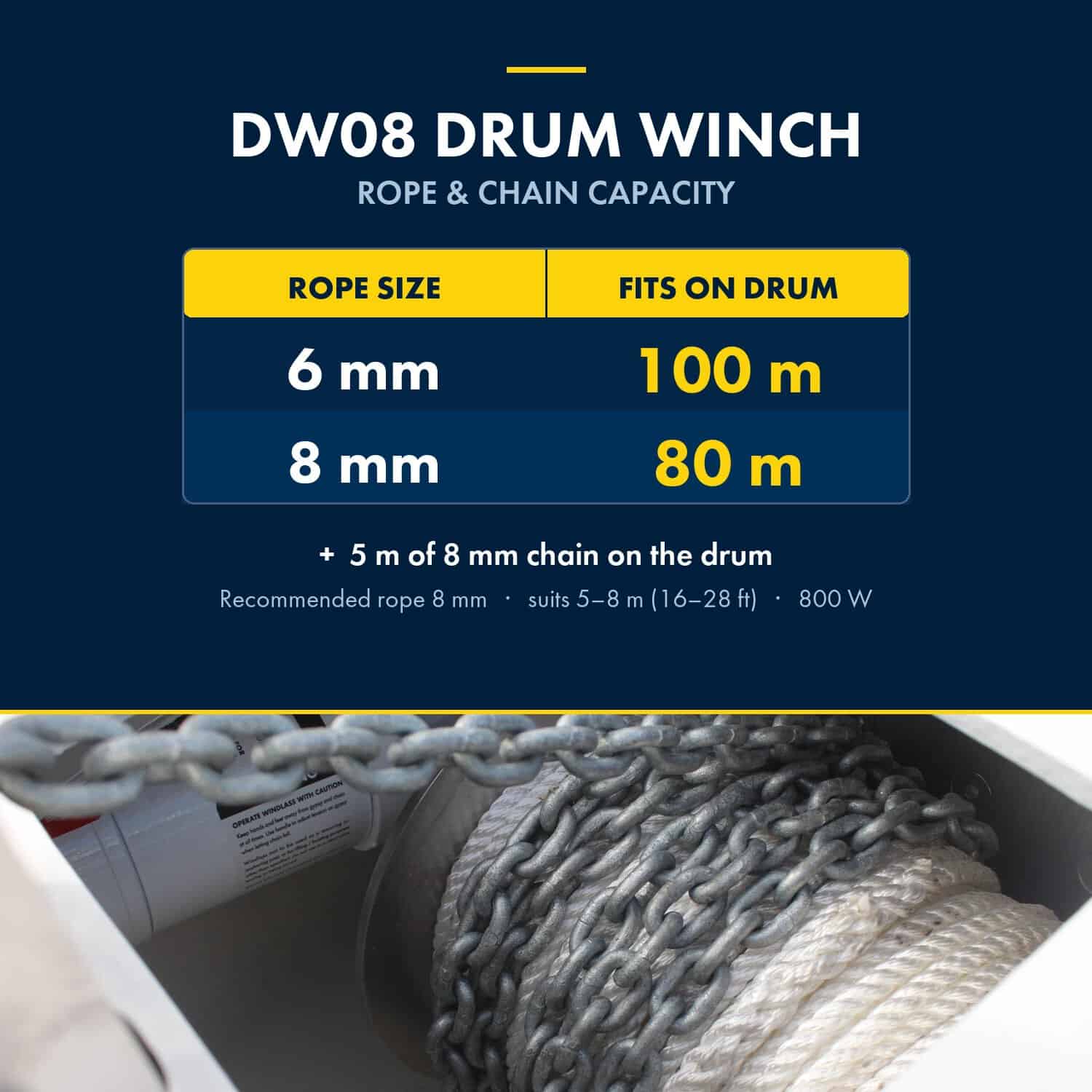

Chain On Drum
5 m of 8 mm
Rope Capacity @ 6mm
100 m
Rope Capacity @ 8mm
80 m
Auto Anchor Compatible
Yes
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
