HR1600 Stainless
$2,969.62
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions
Muir Reliable Compact HR1600 Stainless
Ideal for vessels up to 14m (46ft), the HR1600 Stainless features a heavy-duty motor, fast retrieval speeds, and robust stainless/bronze construction. Manual override included for total control offshore.
Drawings

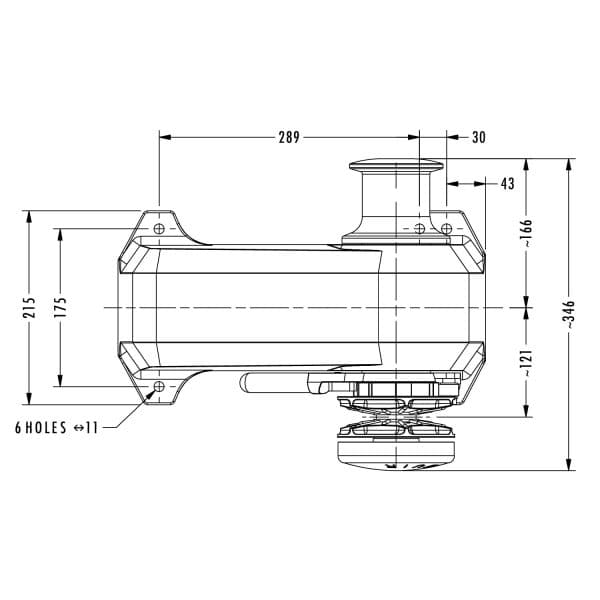

Top View

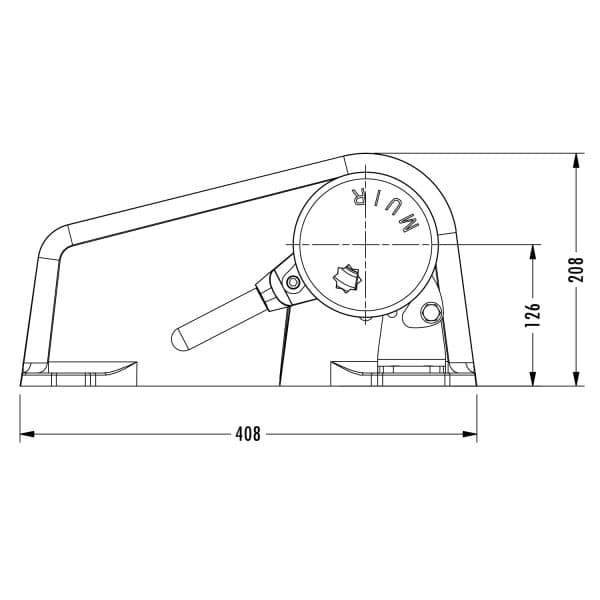

Slide View
Features

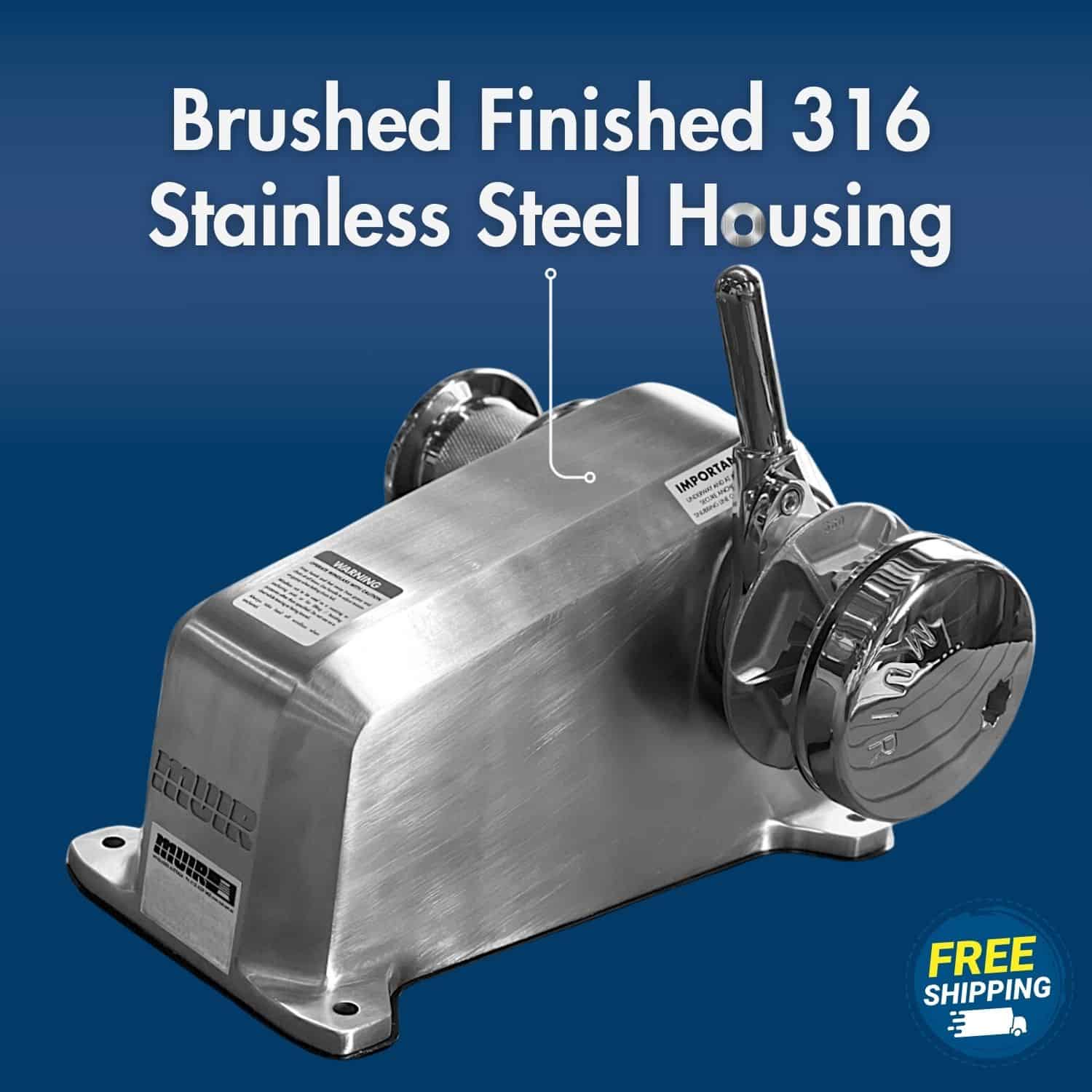

- Brushed finished 316 stainless steel housing

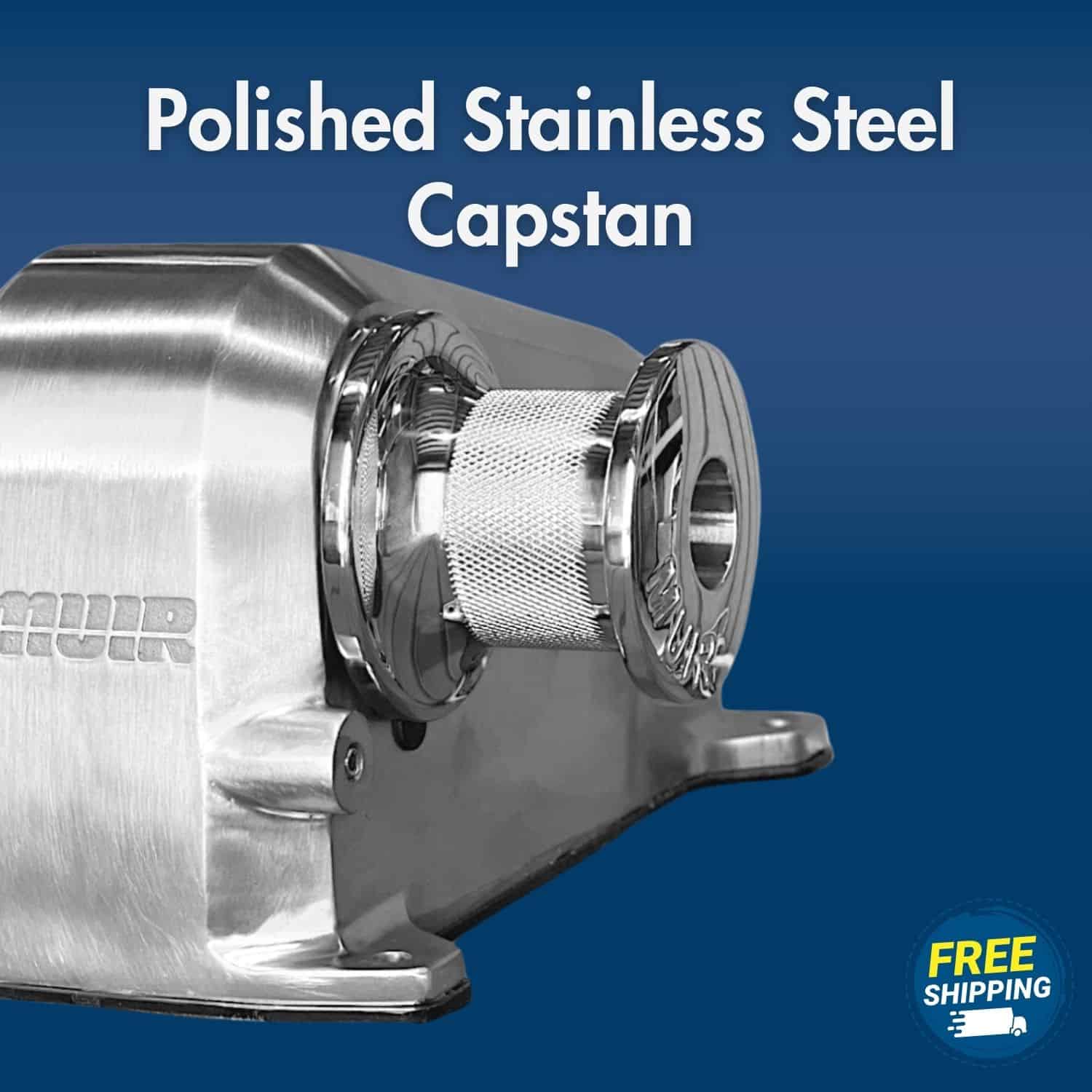

- Polished stainless steel components
- High tensile stainless steel shaft

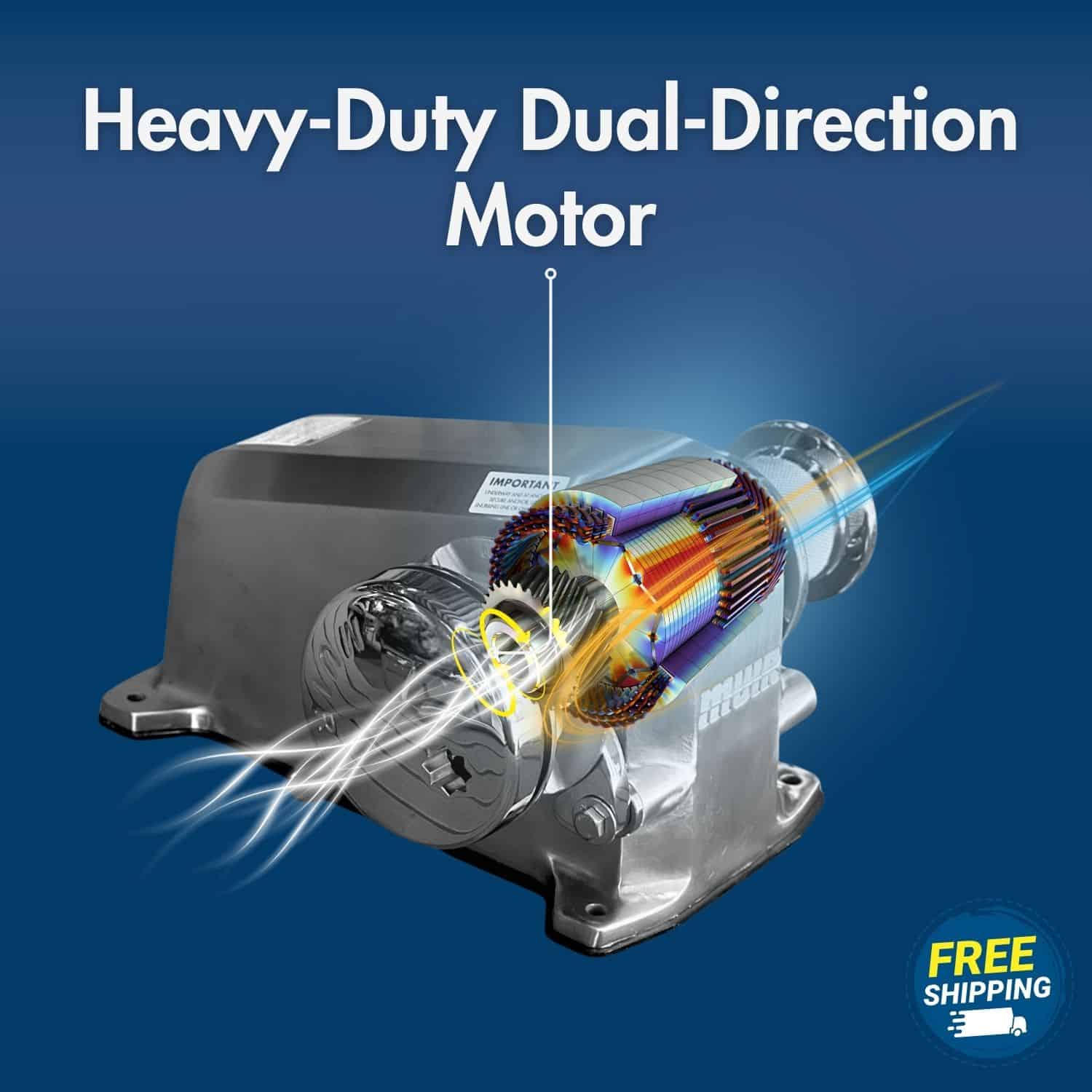

- Heavy duty, marine grade, dual-direction motor

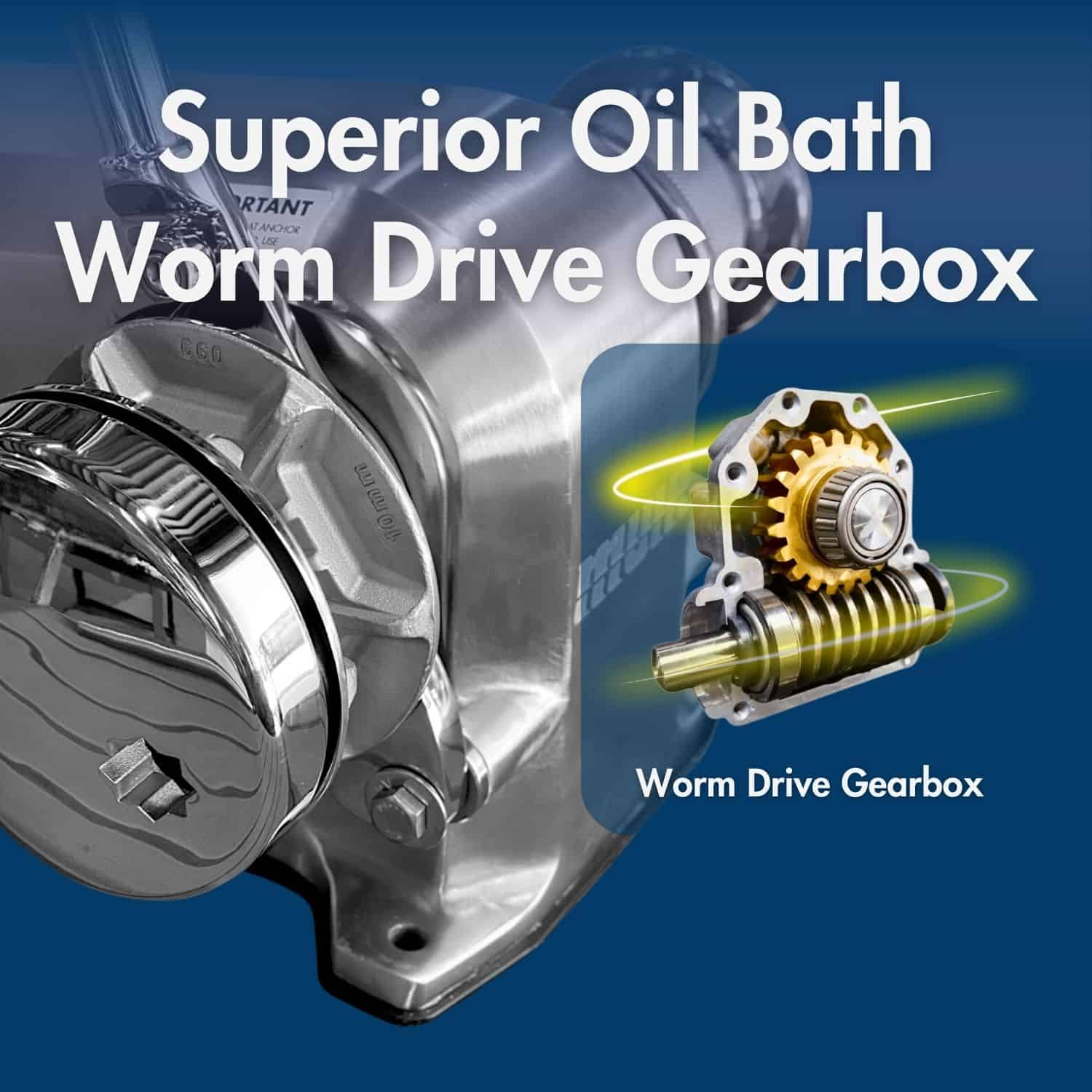

- Superior heavy-duty Italian drive train
- Gypsy lock/pawl

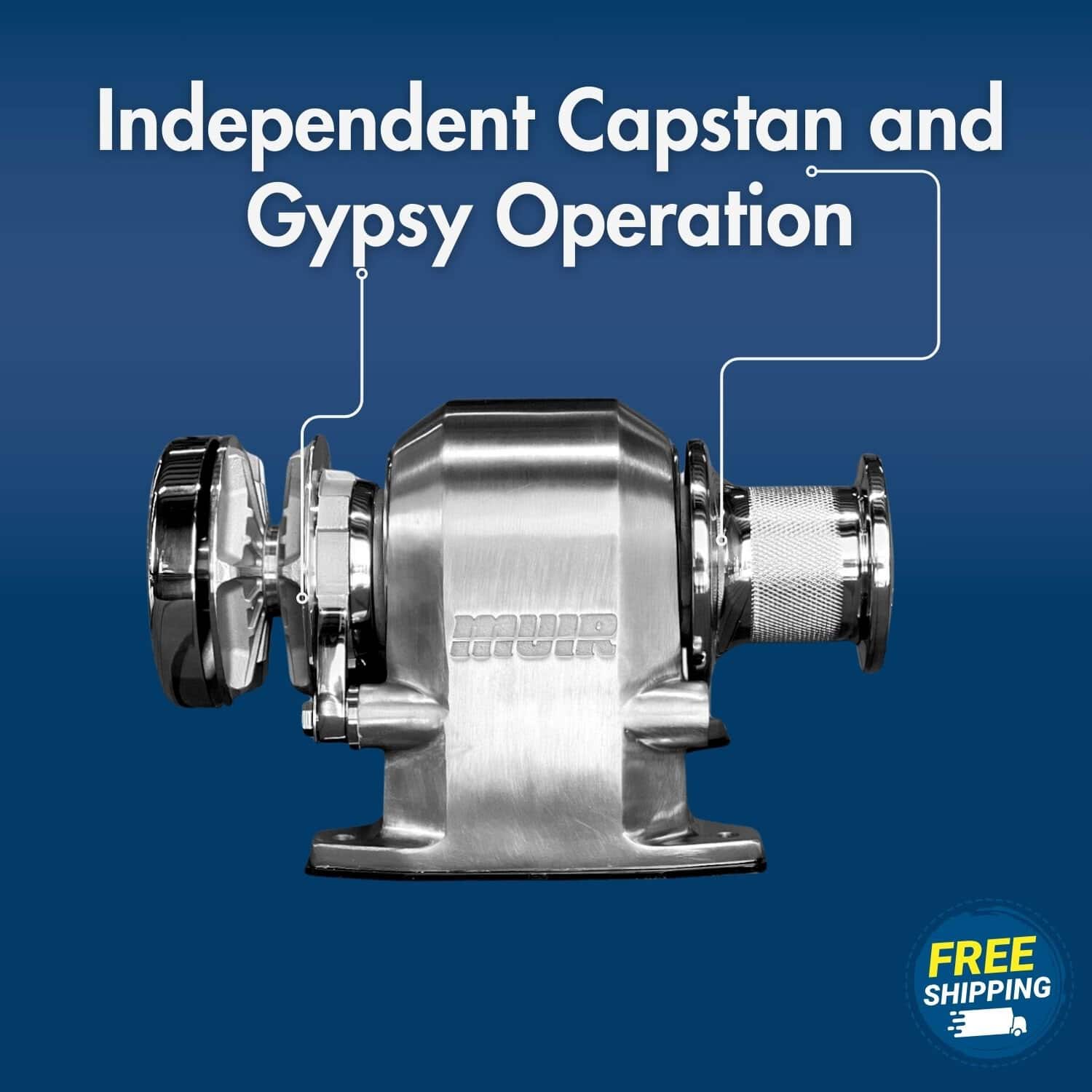

- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
9m - 13m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
1200Watts
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
621Kg
Workload (Kg)
207Kg
Max Line Speed
30m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel

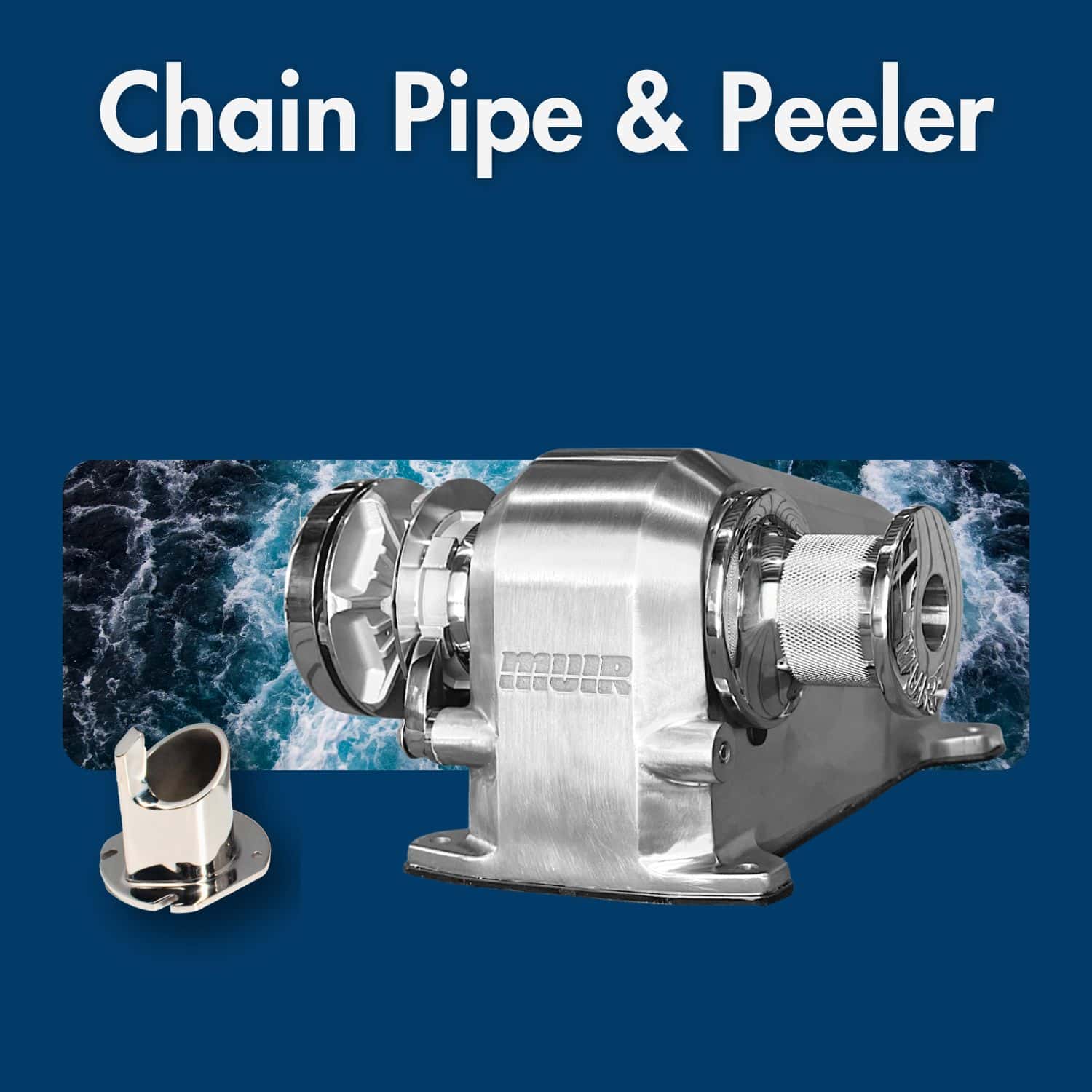

Chain Pipe

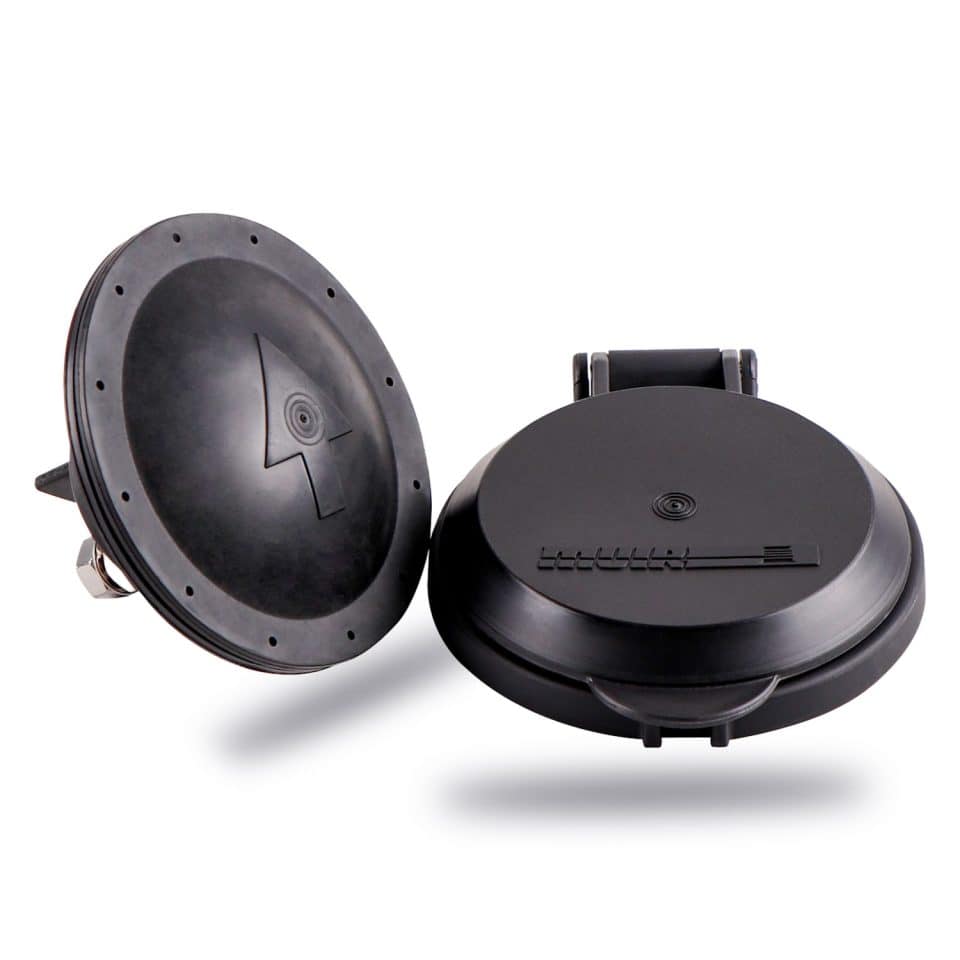

Deck Switch
Clutch release handle
Installation/Operation booklet
Deck mounting studs and fasteners
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Reviews
Description
Muir Reliable Compact HR1600 Stainless
Ideal for vessels up to 14m (46ft), the HR1600 Stainless features a heavy-duty motor, fast retrieval speeds, and robust stainless/bronze construction. Manual override included for total control offshore.
Drawings
Top View
Slide View
Features
- Brushed finished 316 stainless steel housing
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Gypsy lock/pawl
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Recommended Vessel Length (m)
9m - 13m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
1200Watts
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
621Kg
Workload (Kg)
207Kg
Max Line Speed
30m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Clutch release handle
Installation/Operation booklet
Deck mounting studs and fasteners
