DW 10 Combo Package
$2,070.29
Drum Capacity
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions
Chain standard: the chain in this kit is hot-dip galvanised DIN 766 short link (our supplier builds to DIN 766 only). It has to match your gypsy. If your windlass runs BBB or G4 high test chain, DIN 766 will not feed properly, so message us with your windlass model before you order and we will check it. Rope and chain are cut to order and cannot be returned.
Muir Reliable DW 10 Combo Drum Winch
For boats up to 10m (33ft), the DW 10 Combo offers high-capacity drum storage, dual-direction control, and smooth, tangle-free rope-chain operation. Built for serious weekenders and offshore anglers.
Drawings

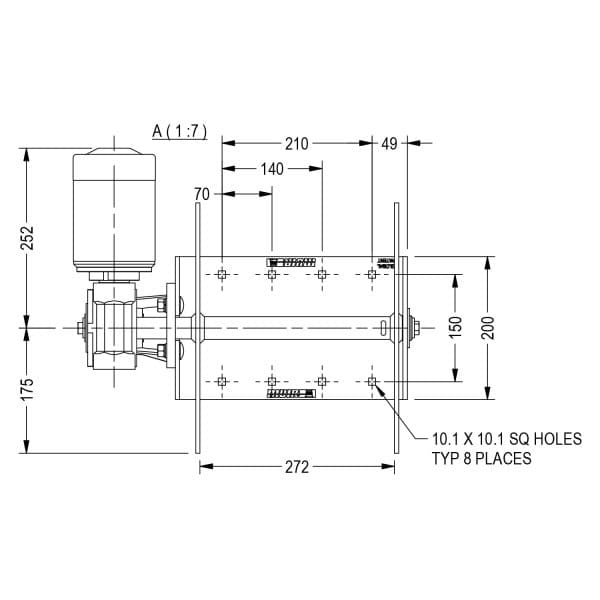

Top View

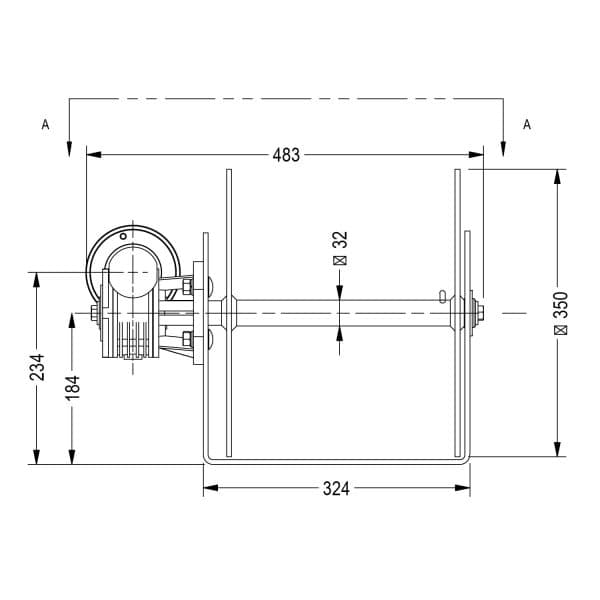

Slide View
Features

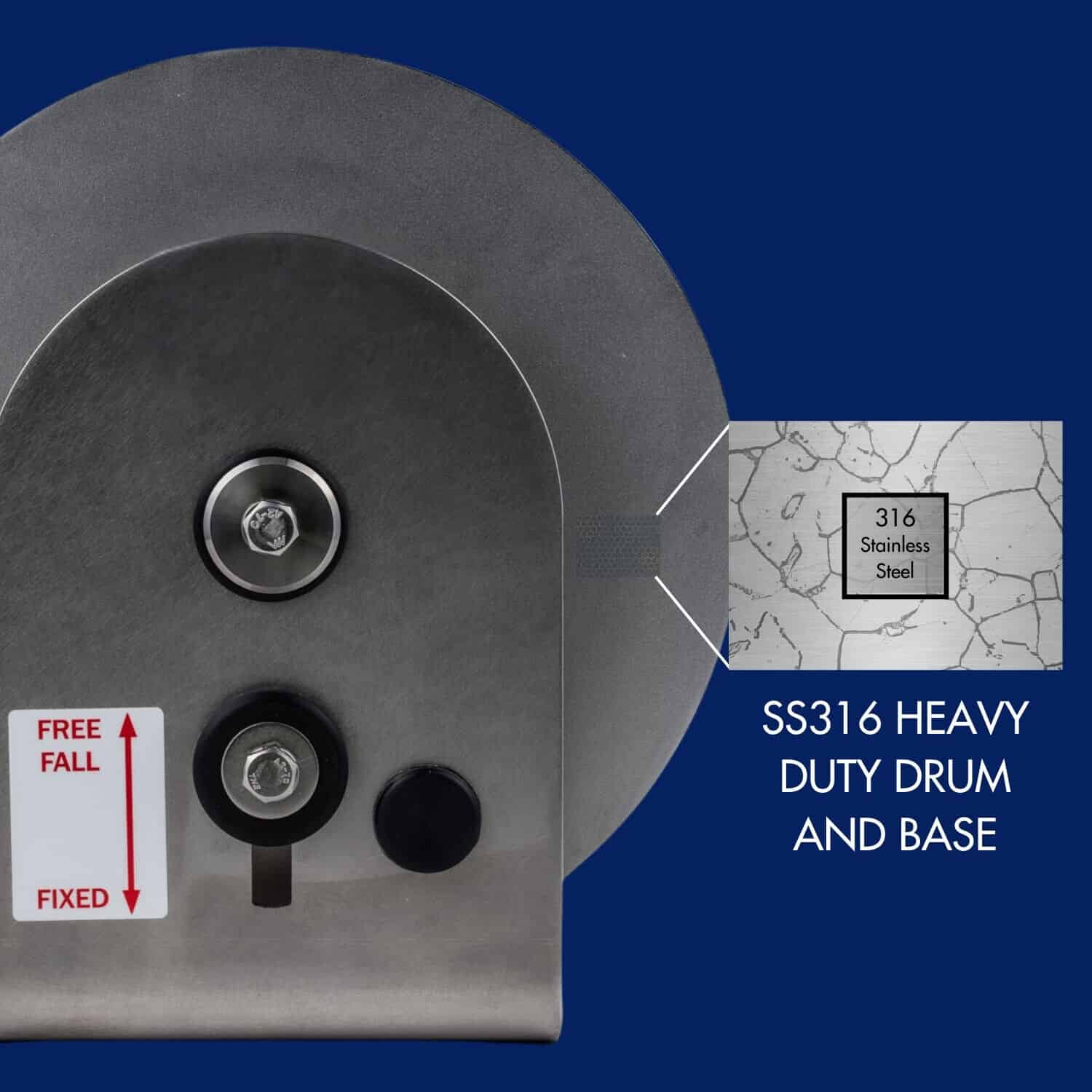

- Marine grade 316 stainless steel drum

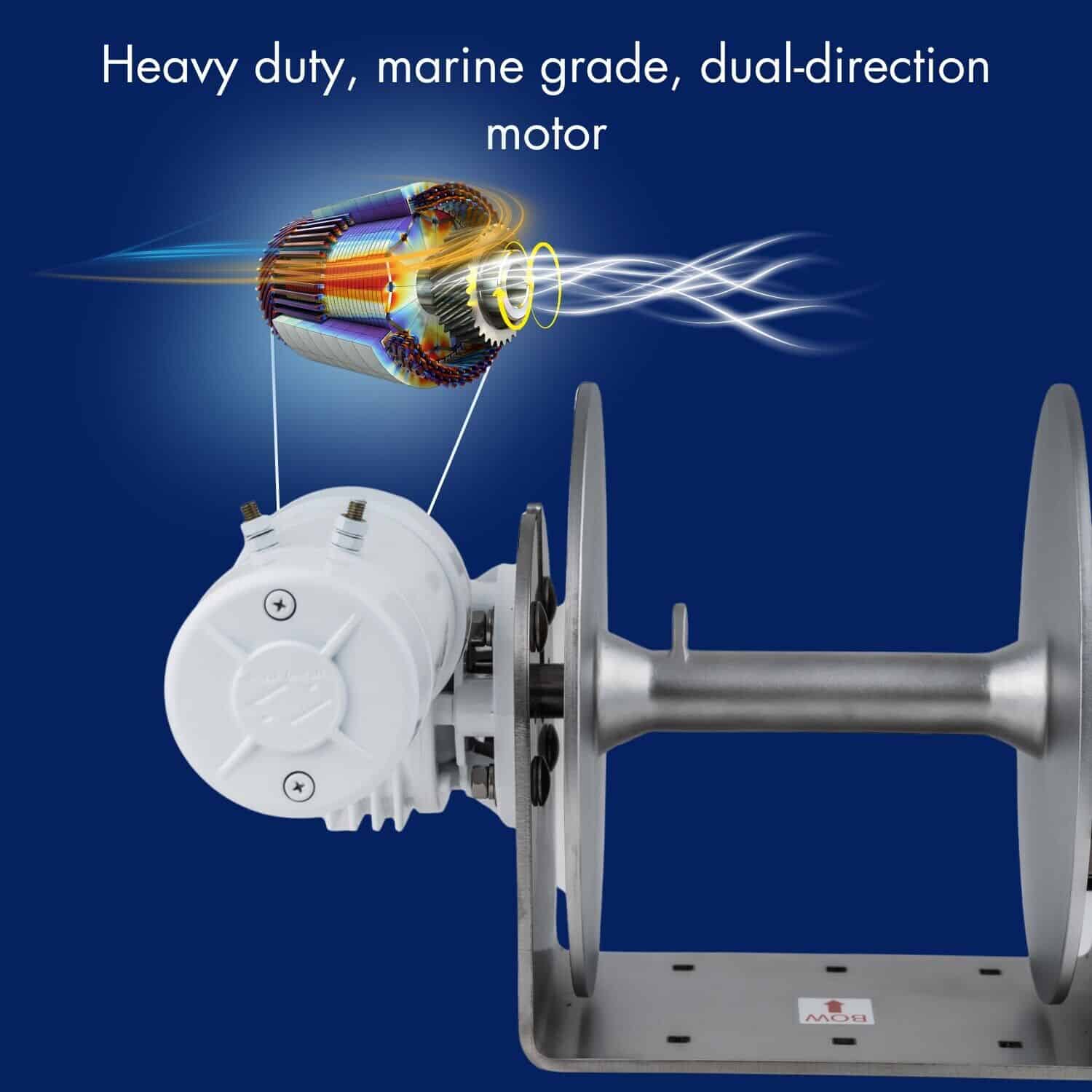

- Heavy duty, marine grade, dual-direction motor

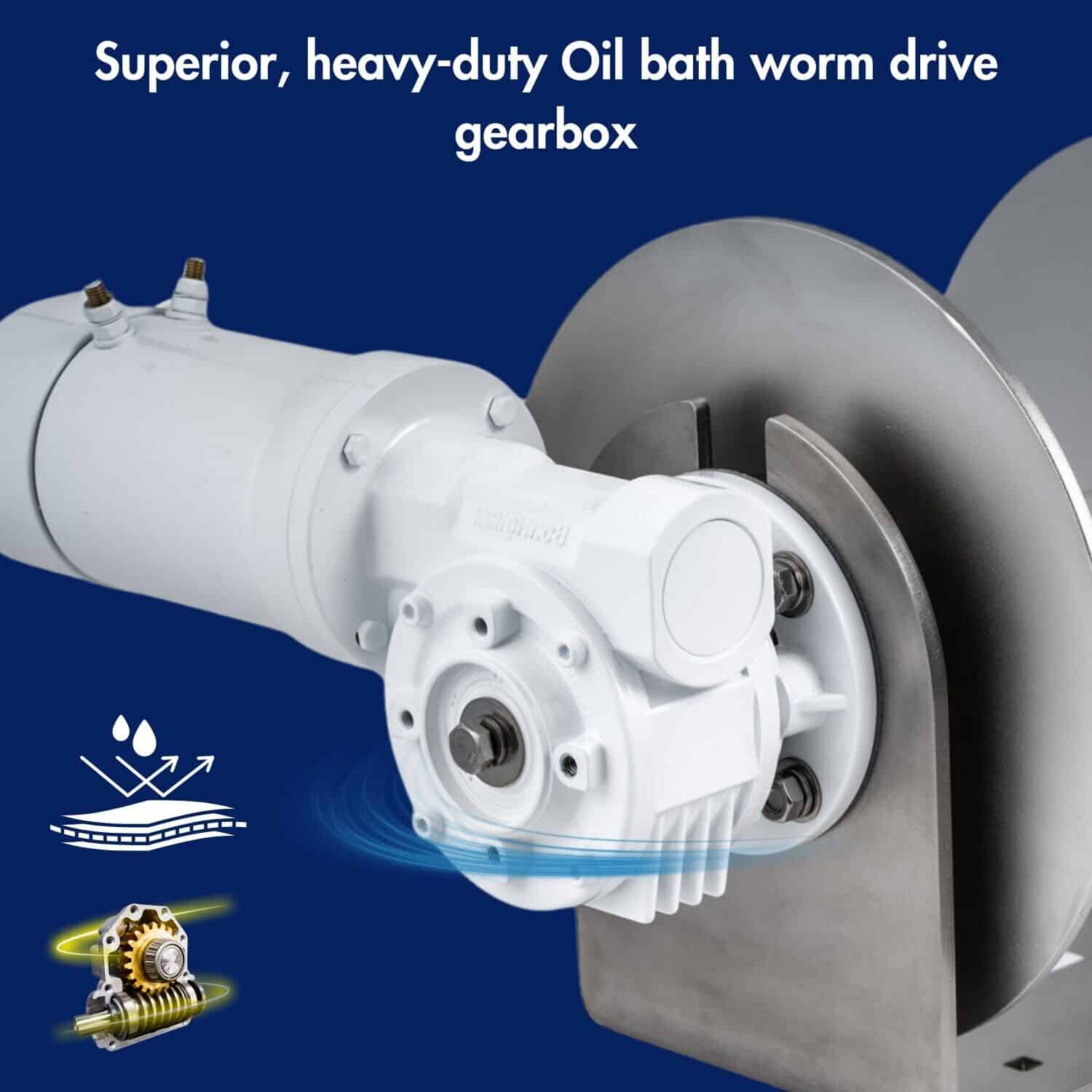

- Superior heavy-duty Italian drive train

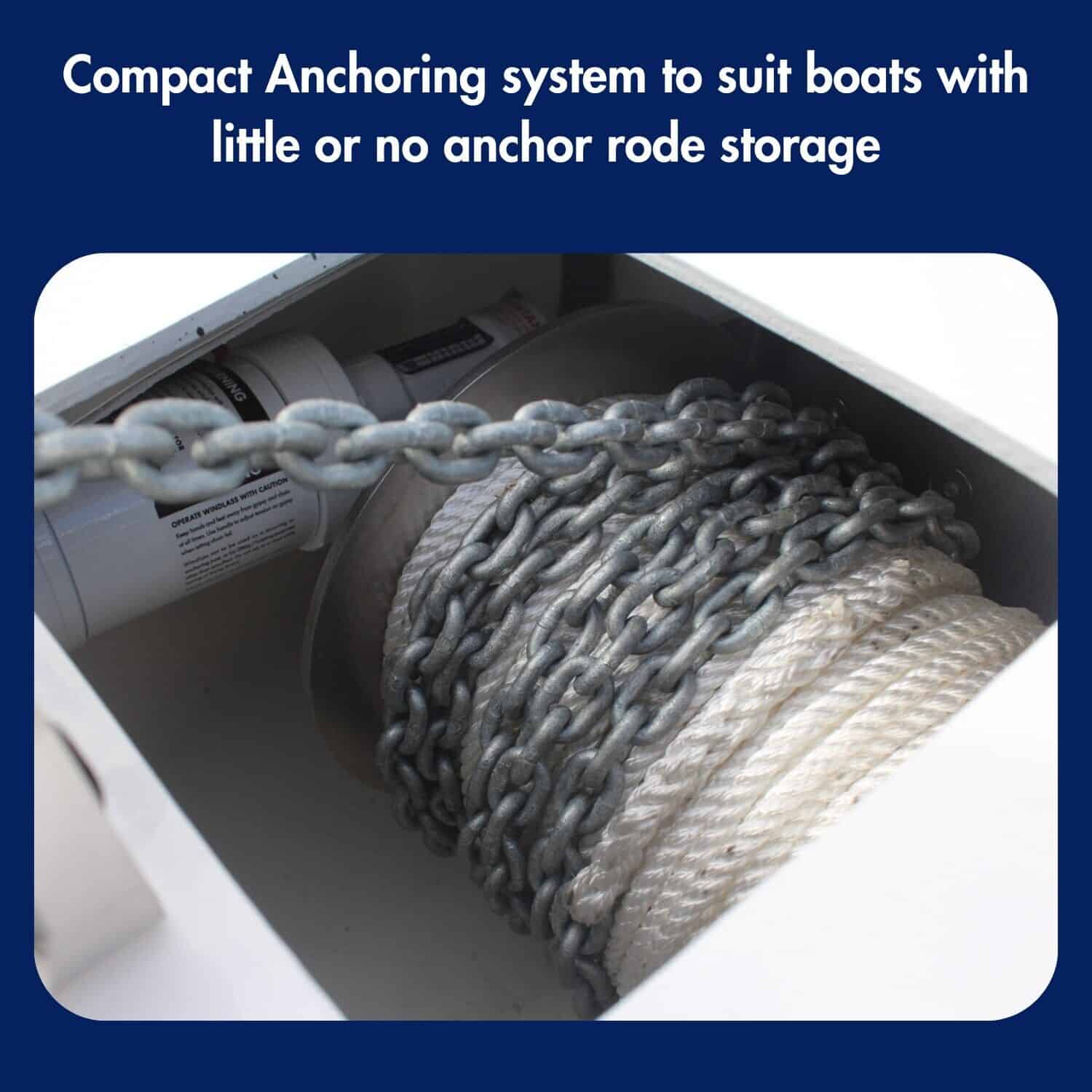

- Compact Anchoring system to suit boats with no anchor rode storage
- Simple installation
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
8m - 10m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
1200Watts
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
260Kg
Workload (Kg)
87Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
10 mm (3/8")

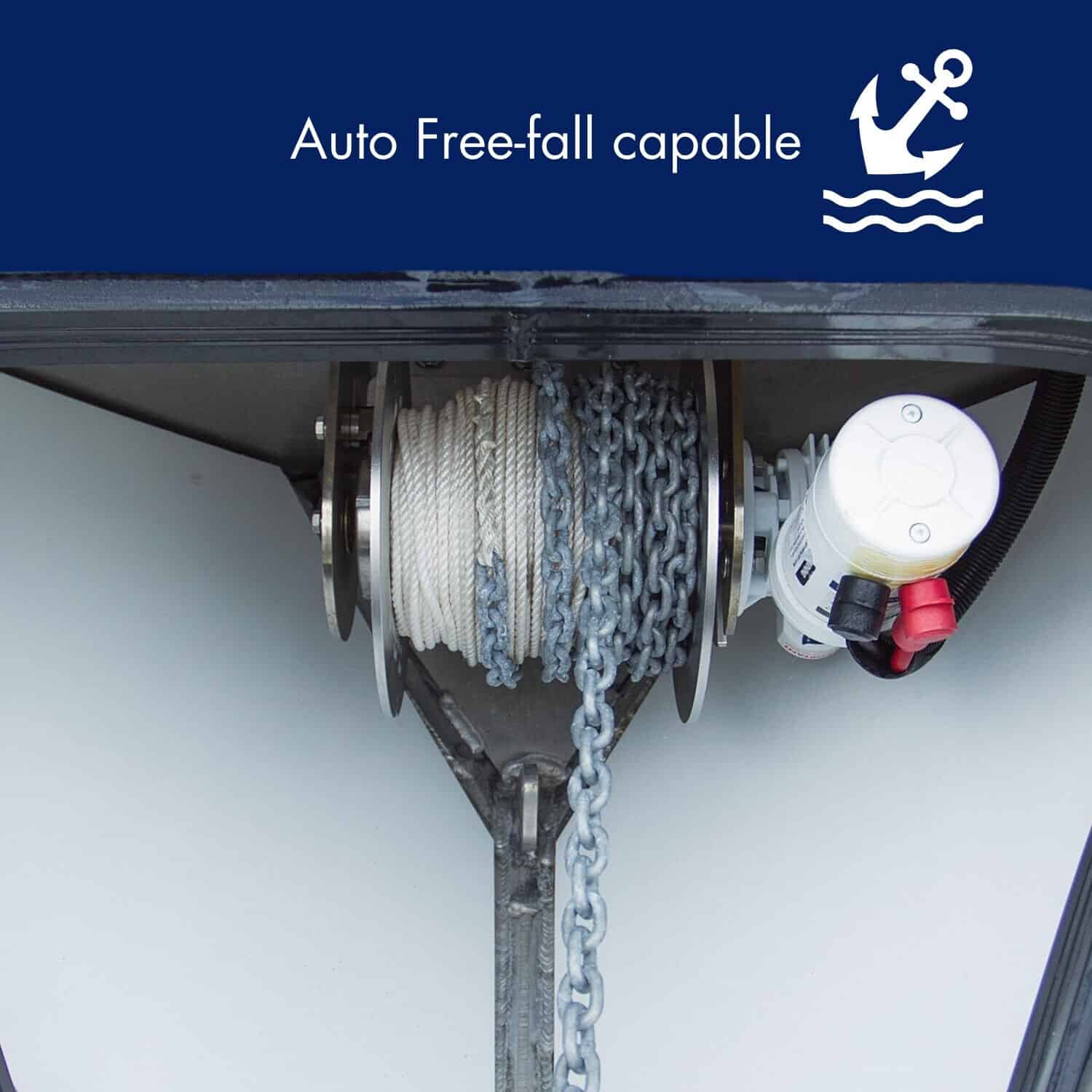

Auto Anchor Compatible
Yes
Net Weight DC VR/HR or Standard (kg)
30Kg

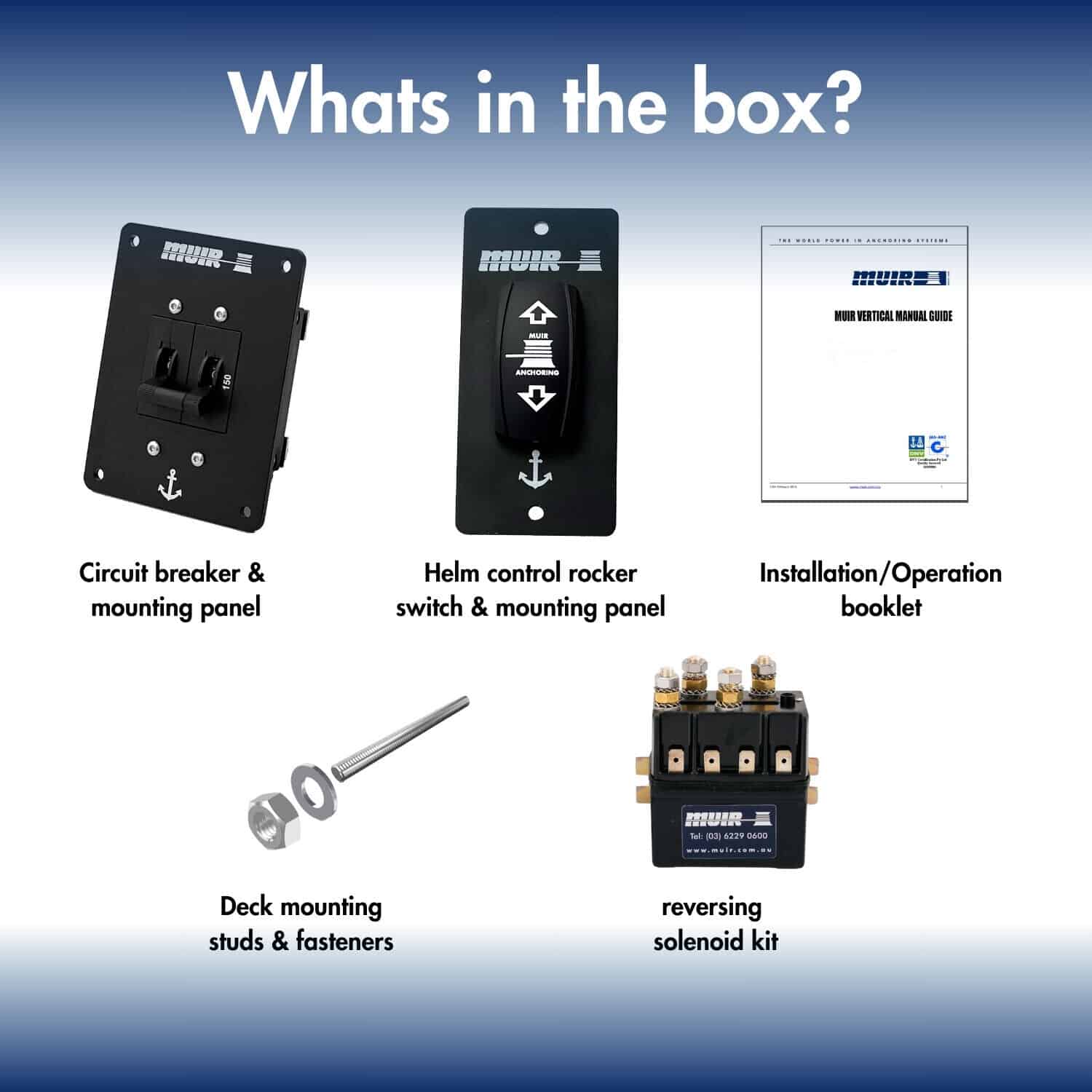

Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Chain standard: the chain in this kit is hot-dip galvanised DIN 766 short link (our supplier builds to DIN 766 only). It has to match your gypsy. If your windlass runs BBB or G4 high test chain, DIN 766 will not feed properly, so message us with your windlass model before you order and we will check it. Rope and chain are cut to order and cannot be returned.
Muir Reliable DW 10 Combo Drum Winch
For boats up to 10m (33ft), the DW 10 Combo offers high-capacity drum storage, dual-direction control, and smooth, tangle-free rope-chain operation. Built for serious weekenders and offshore anglers.
Drawings
Top View
Slide View
Features
- Marine grade 316 stainless steel drum
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Compact Anchoring system to suit boats with no anchor rode storage
- Simple installation
Technical Specification
Name
Specs
Drum capacity
Recommended Vessel Length (m)
8m - 10m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
1200Watts
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
260Kg
Workload (Kg)
87Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
10 mm (3/8")

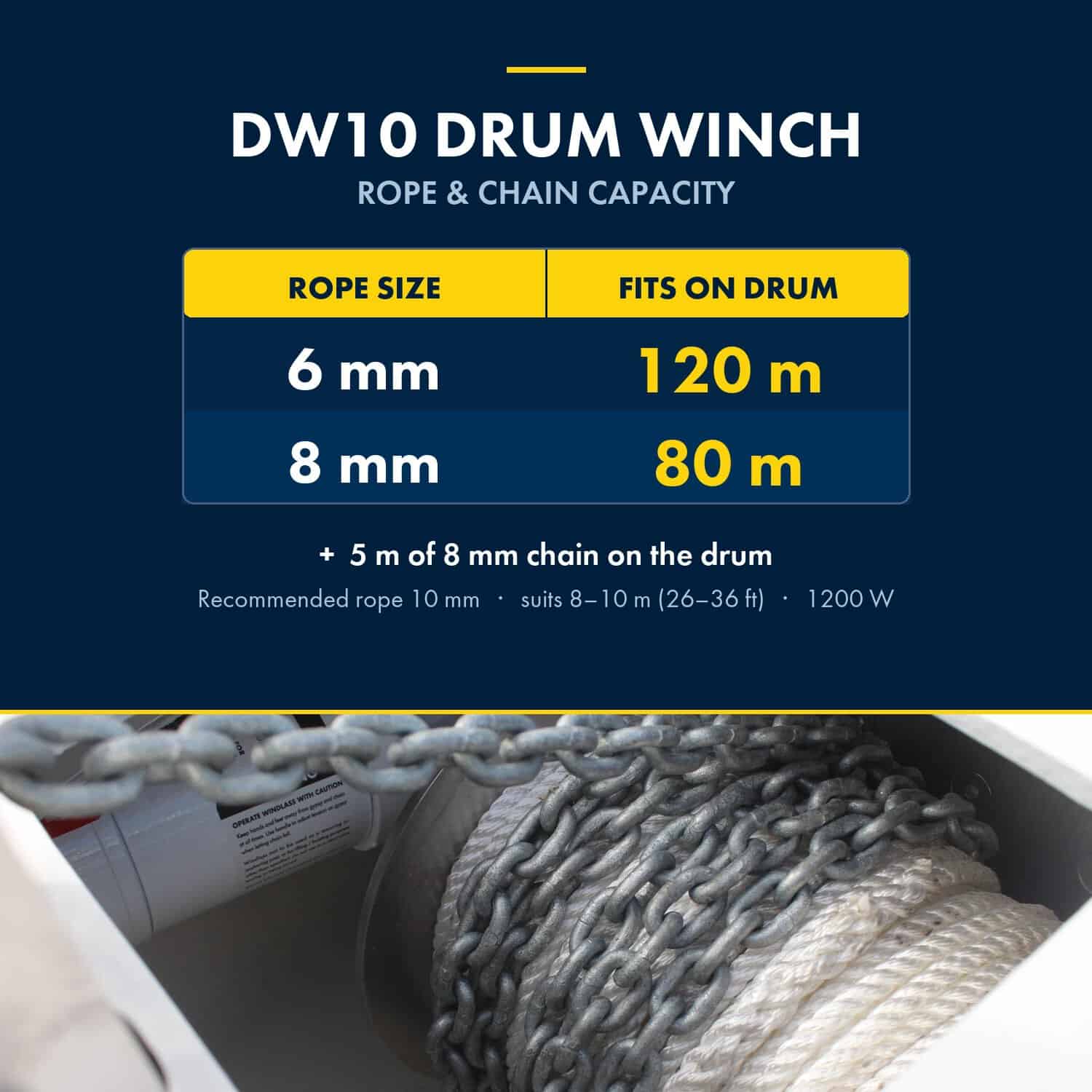

Chain On Drum
5 m of 8 mm
Rope Capacity @ 6mm
120 m
Rope Capacity @ 8mm
80 m
Auto Anchor Compatible
Yes
Net Weight DC VR/HR or Standard (kg)
30Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
Downloads
Parts
