Storm VRC850
$2,104.25
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions
Storm VRC850 Reliable Windlass
For vessels up to 11m (37ft), The Storm VRC850 offers rapid retrieval, quiet power, and reliable rope-chain performance. With premium stainless steel construction and modern styling, it’s the perfect upgrade for small to mid-size boats.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.

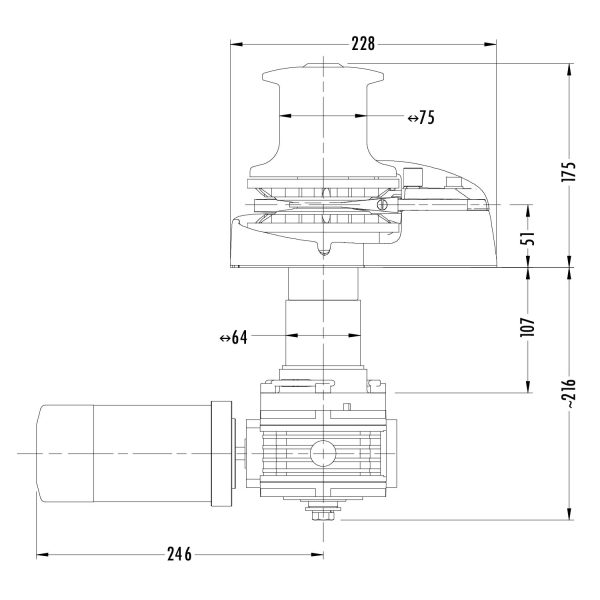

Drawings
Top View
VRC
Features

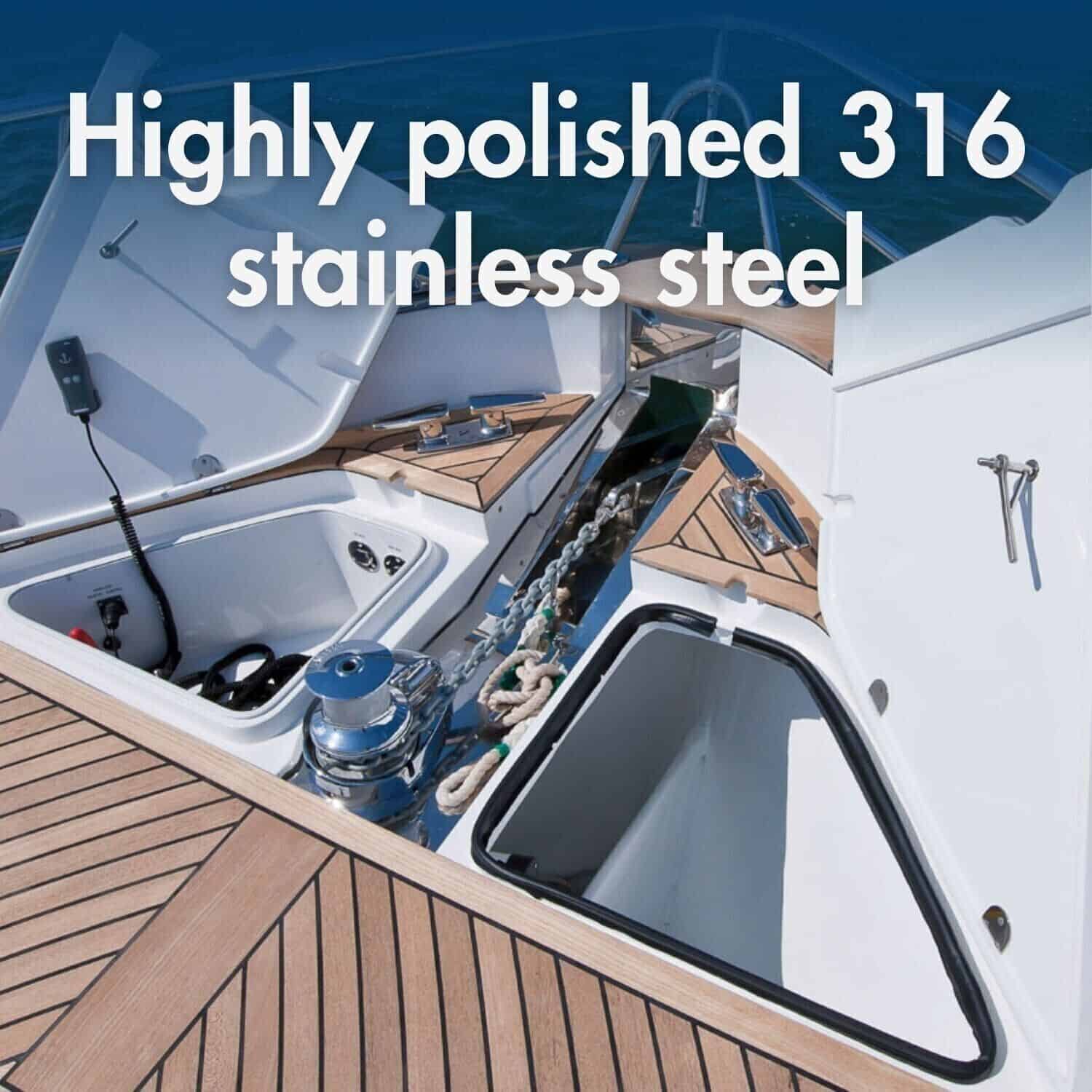

- Polished stainless steel components

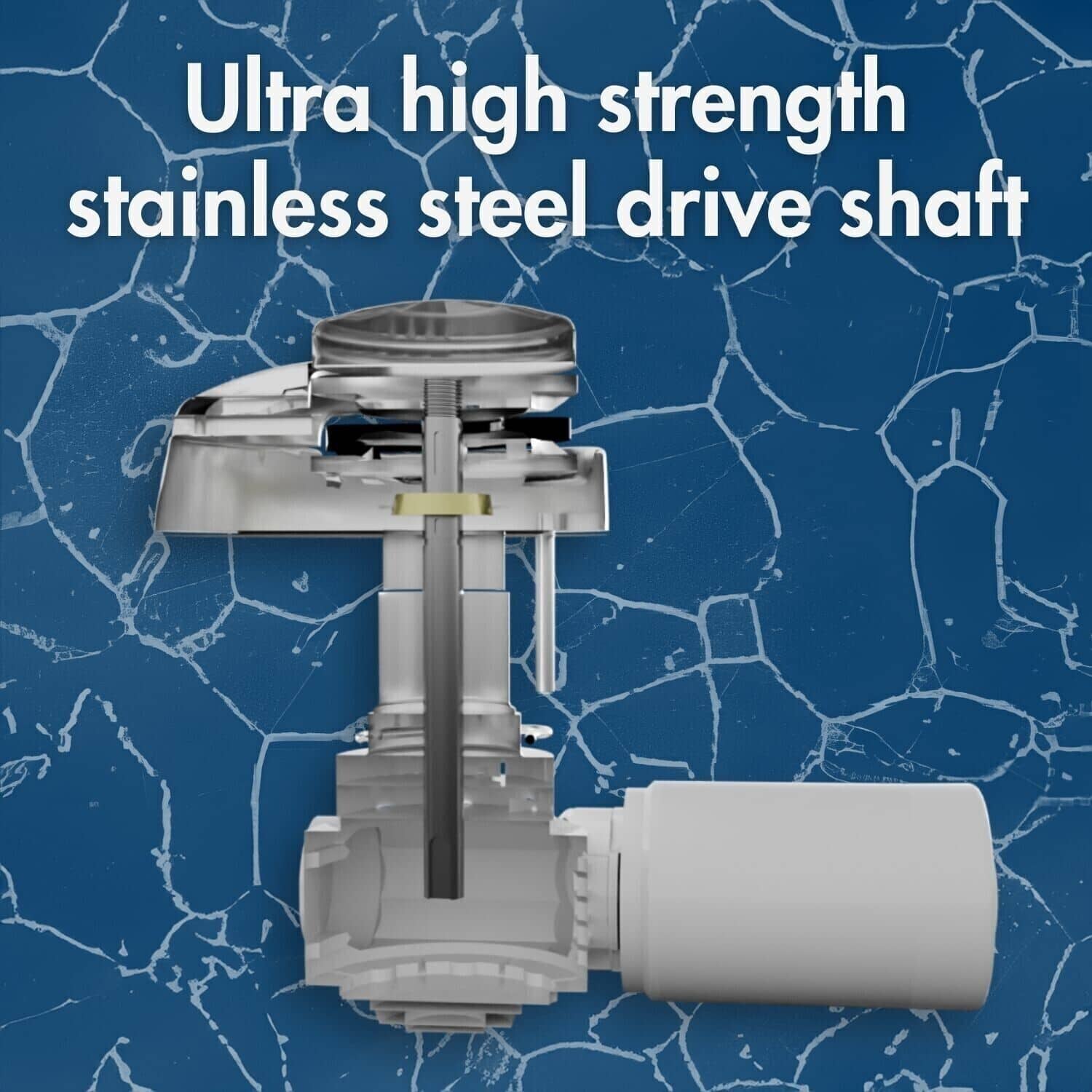

- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush

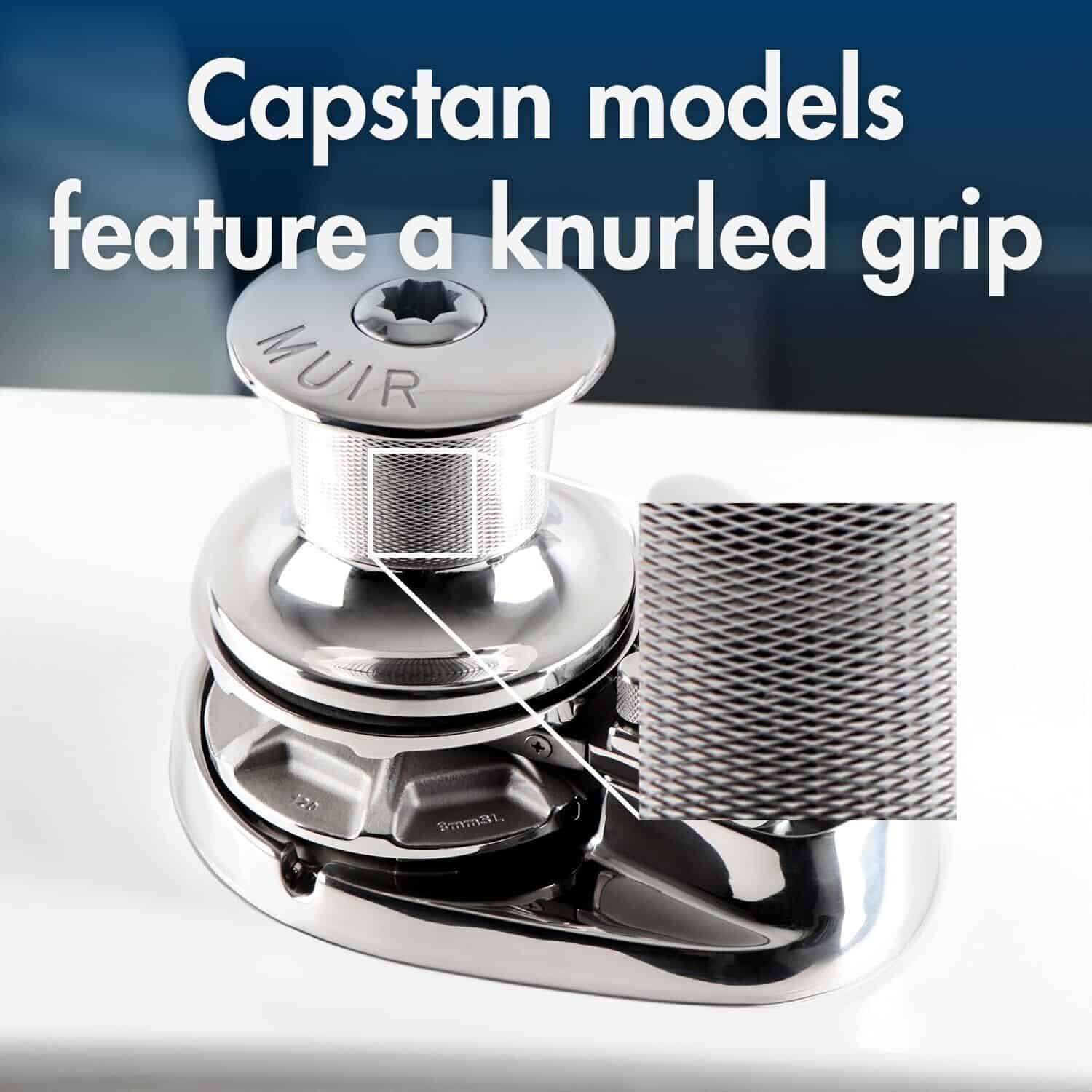

- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
8m - 11m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
80A/80A (12/24V)
Motor (Watts)
800Watts
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
450Kg
Workload (Kg)
150Kg
Max Line Speed
26m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Compatible Rope/Chain Combo (mm)
6 mm (1/4"), 8mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Manual Operation
MOS (std on most gypsy sizes)
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Operation System MOS
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Storm VRC850 Reliable Windlass
For vessels up to 11m (37ft), The Storm VRC850 offers rapid retrieval, quiet power, and reliable rope-chain performance. With premium stainless steel construction and modern styling, it’s the perfect upgrade for small to mid-size boats.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
VRC
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Recommended Vessel Length (m)
8m - 11m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
80A/80A (12/24V)
Motor (Watts)
800Watts
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
450Kg
Workload (Kg)
150Kg
Max Line Speed
26m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Compatible Rope/Chain Combo (mm)
6 mm (1/4"), 8mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Manual Operation
MOS (std on most gypsy sizes)
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Operation System MOS
Downloads
Parts
