HC650
$1,847.55
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions
Muir HC650 Compact Horizontal Windlass — Reliable Anchoring Power for Smaller Boats
The Muir HC650 Compact Horizontal Windlass is engineered for smooth, dependable anchor handling and retrieval on recreational vessels. Built with a brushed 316-grade stainless steel housing and polished stainless components, it offers excellent corrosion resistance and durability in marine environments. Featuring a heavy-duty marine-grade motor and Italian drive train, this horizontal windlass provides reliable performance for boats in the 5–9 m (16–30 ft) range.
Its design includes a chain pipe and peeler, independent gypsy and capstan operation, and compatibility with multiple global chain standards, making it a versatile solution for anchoring setups. With compact dimensions and precision engineering, the HRC650 makes anchoring easier and safer for cruising and coastal sailing.
Drawings

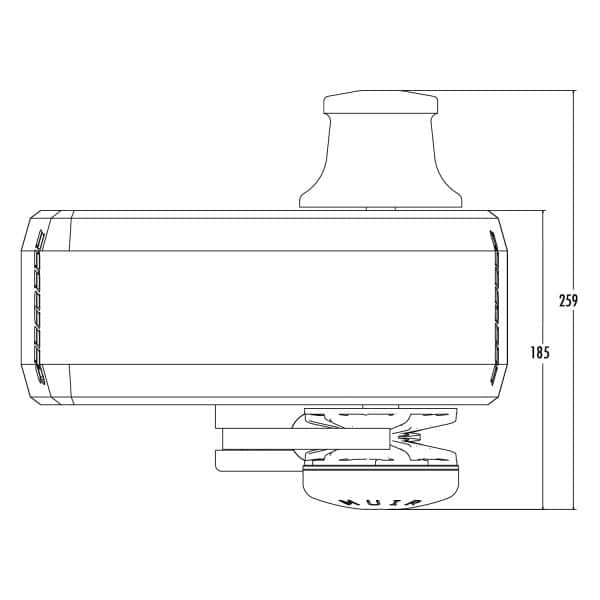

Top View
Slide View
Features
- Brushed finished 316 stainless steel housing

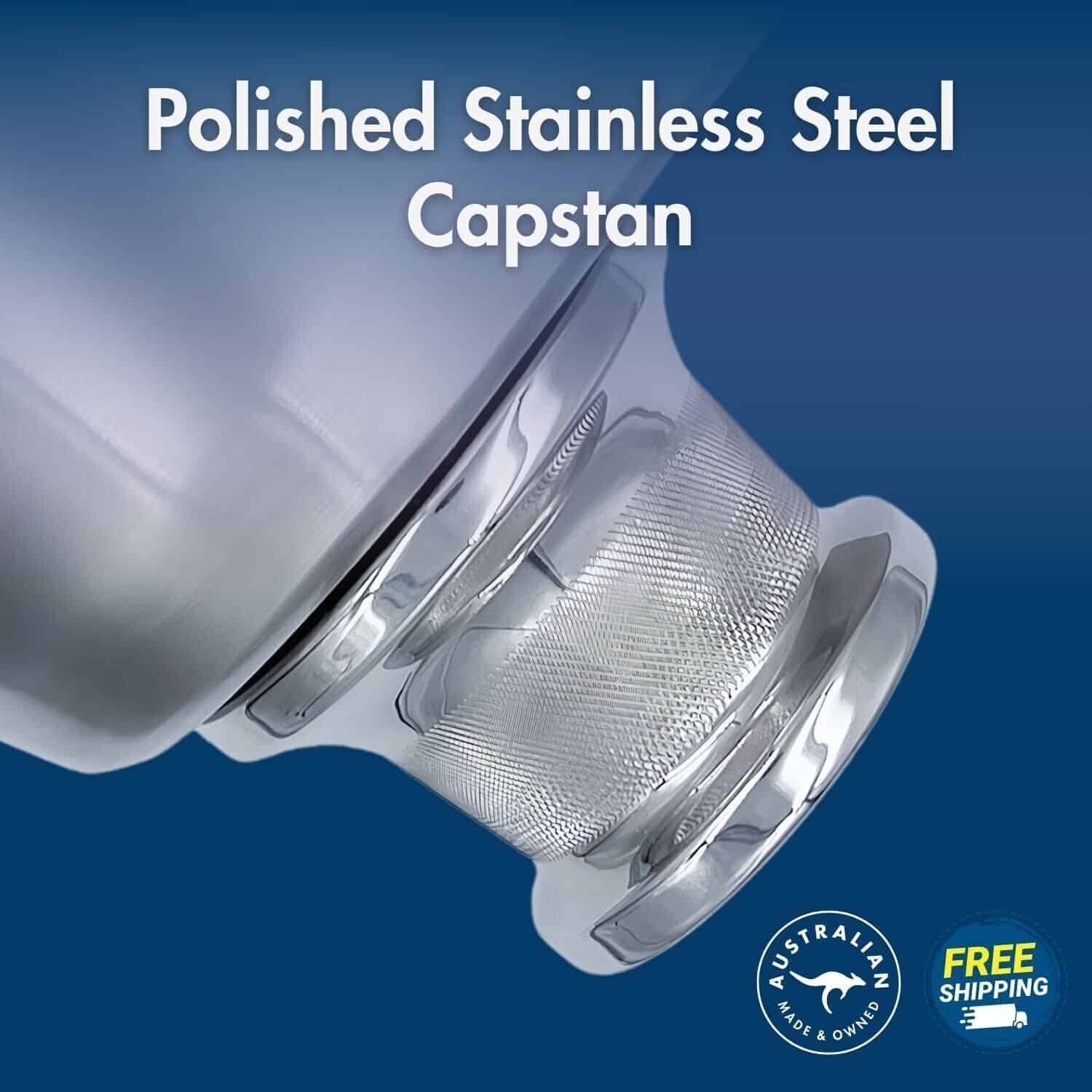

- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Chain Pipe and Peeler

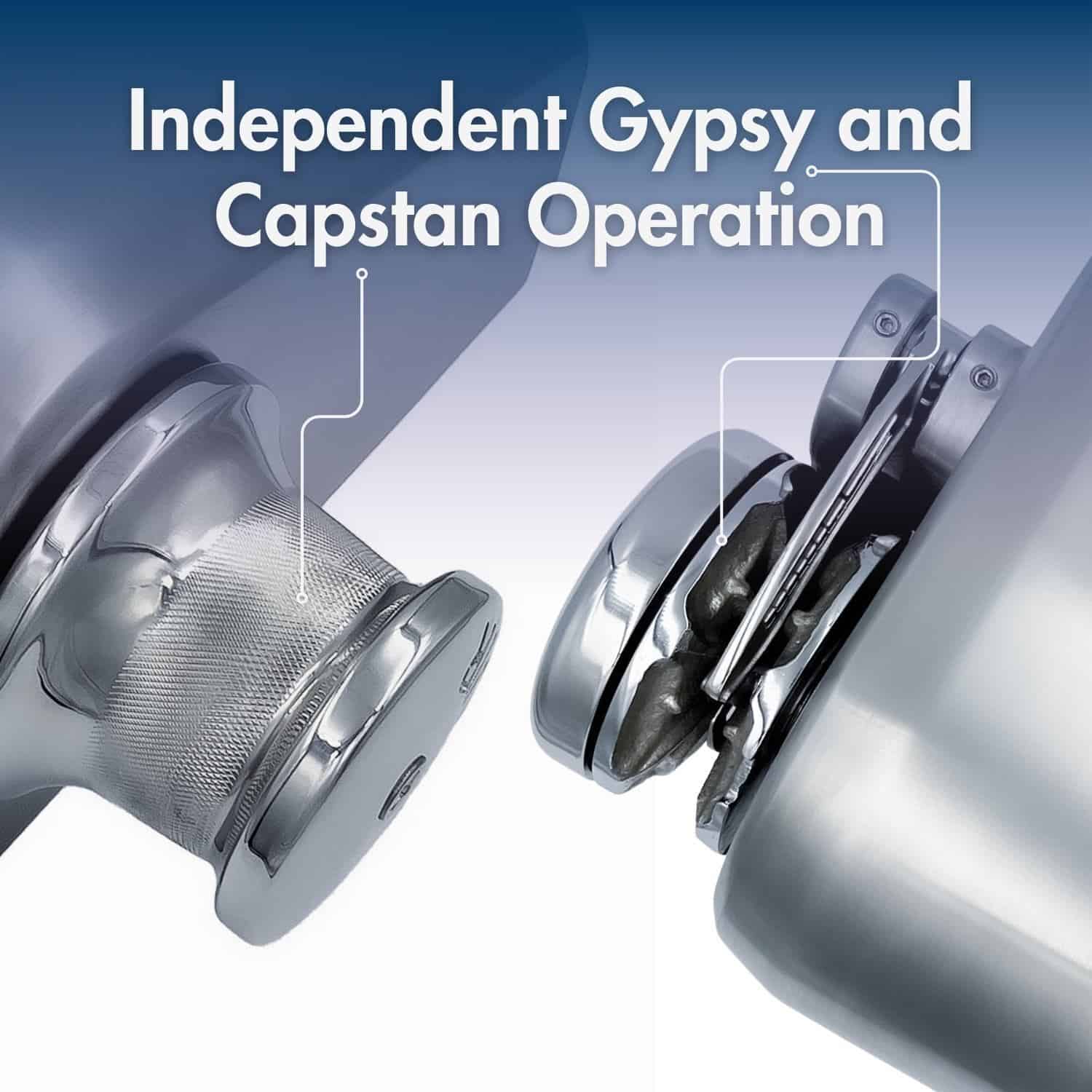

- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
5m - 8m
Power Supply Options
DC 12V
Recommended Circuit Breaker
80A (12V)
Motor (Watts)
550Watts
Amps Workload
60A (12V)
Max Load (Kg)
369Kg
Workload (Kg)
123Kg
Max Line Speed
21m/min
Compatible Chain Sizes (mm)
6 mm (1/4")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Clutch release handle
Reversing Solenoid kit
Installation/Operation booklet
Download
