VC 3500
Price range: $3,230.00 through $3,946.98
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions
Muir Reliable VC 3500 Capstan

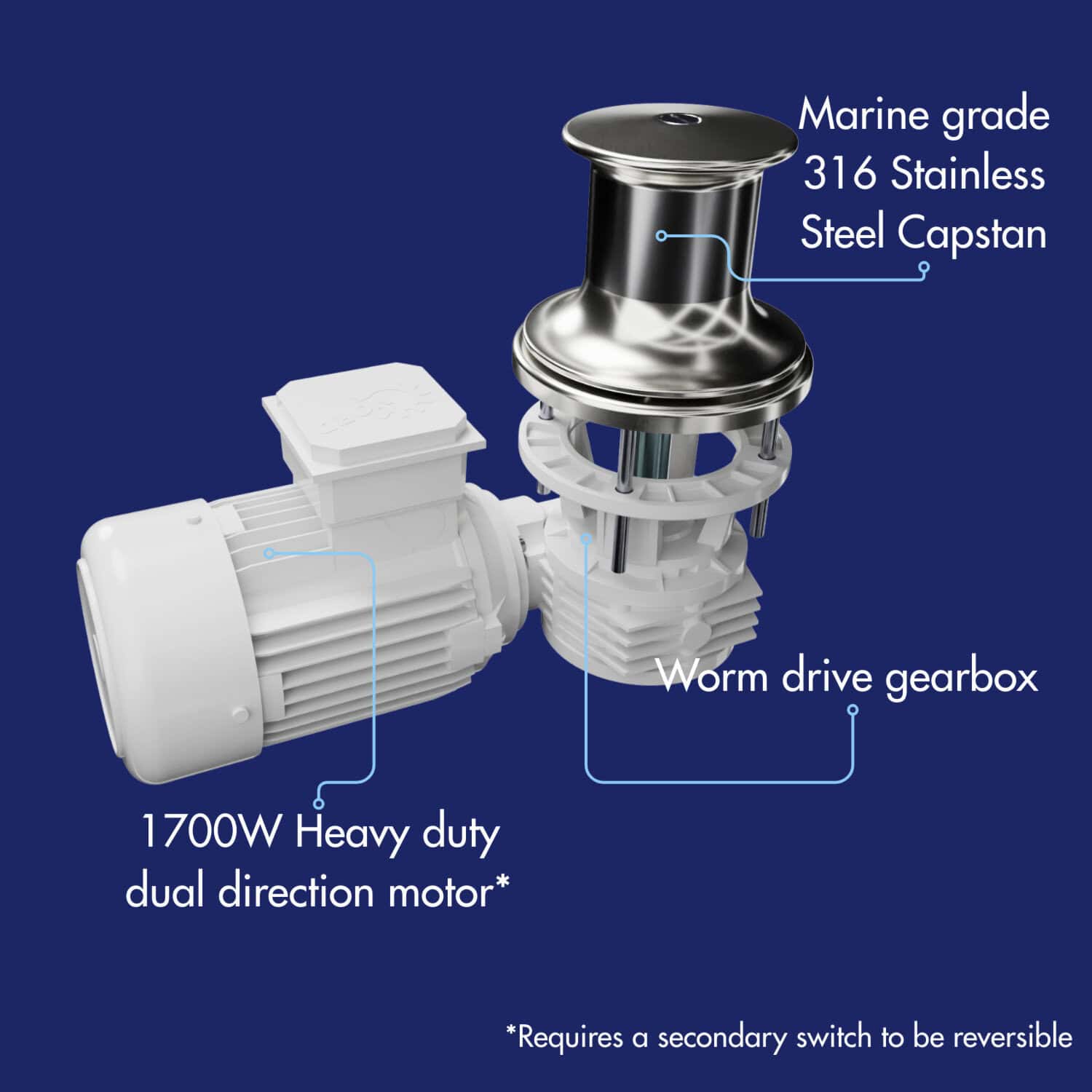

Serious power for serious jobs. The VC 3500 handles vessels up to 27m (88ft) with a 1700W motor, dual-direction drive, and robust stainless construction. Built for reliability in high-load line handling and anchoring.
AC drive option: available on request (POA) — contact us for a quote.
Features
- Deck hugging snag free design
- Unit can be mounted horizontally
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
- Capstan features knurled finish for increased grip

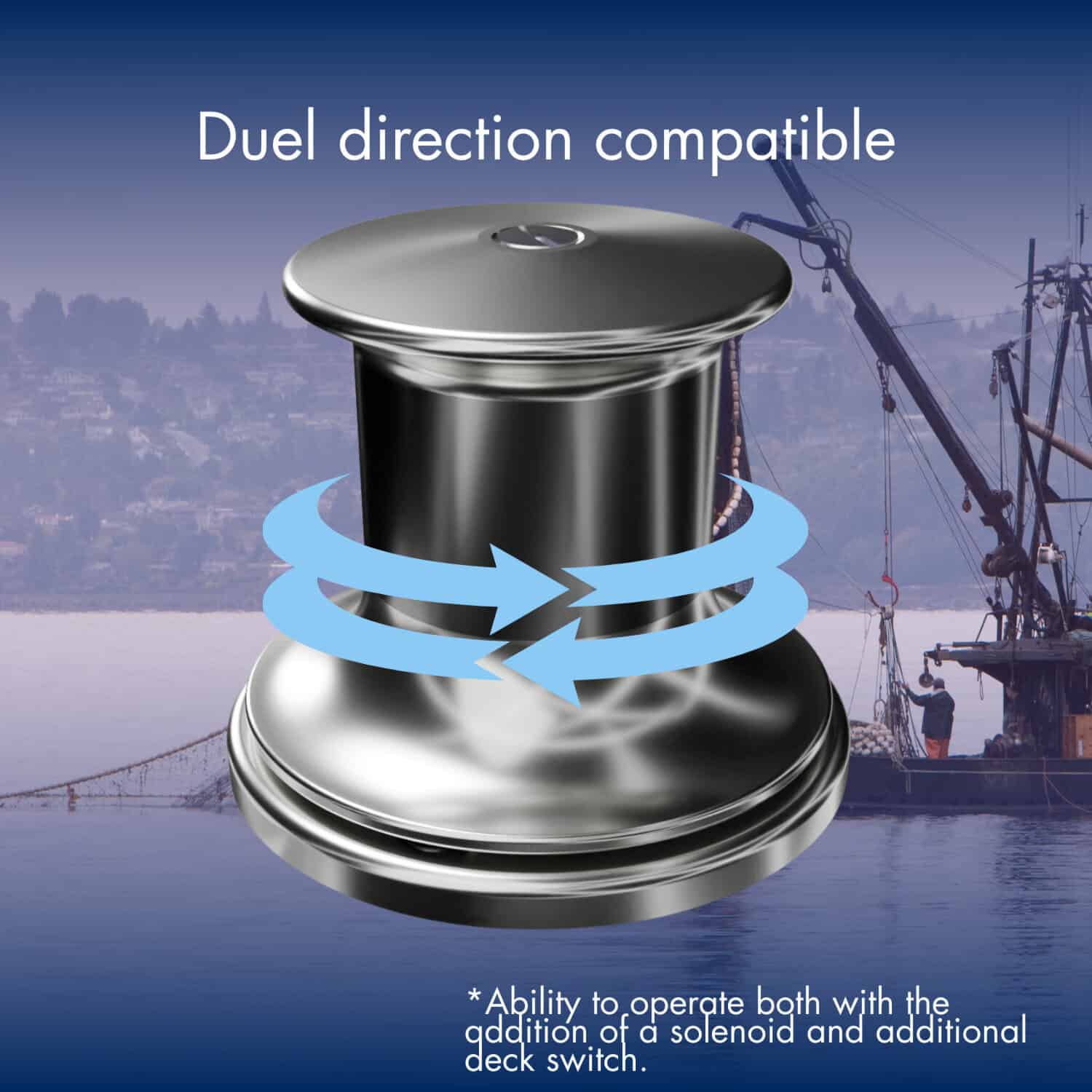

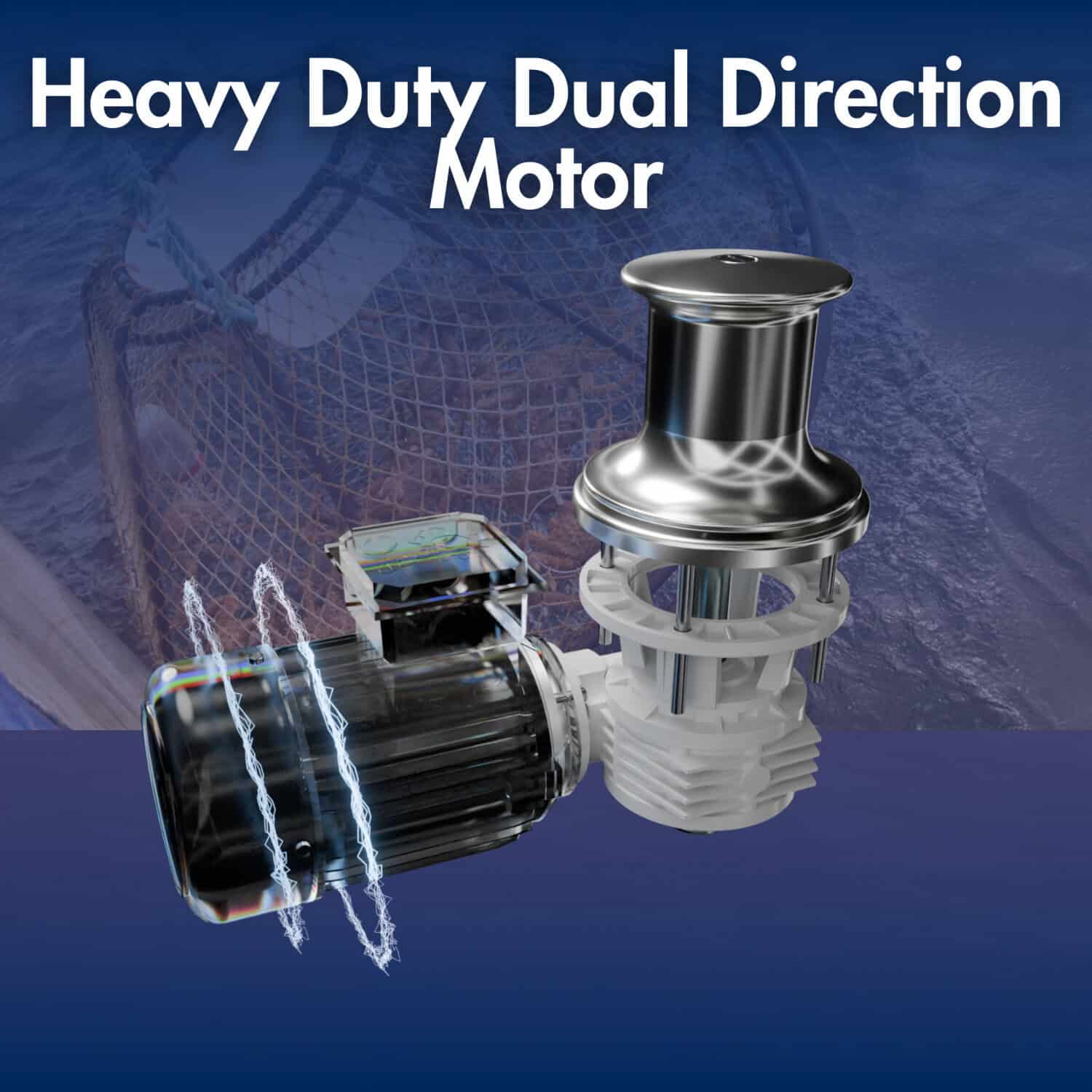

- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
16m - 27m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1700Watts
Amps Workload
185A/90A (12/24V)
Hydraulic Pressure
11MPa
Hydraulic Flow
28L/min

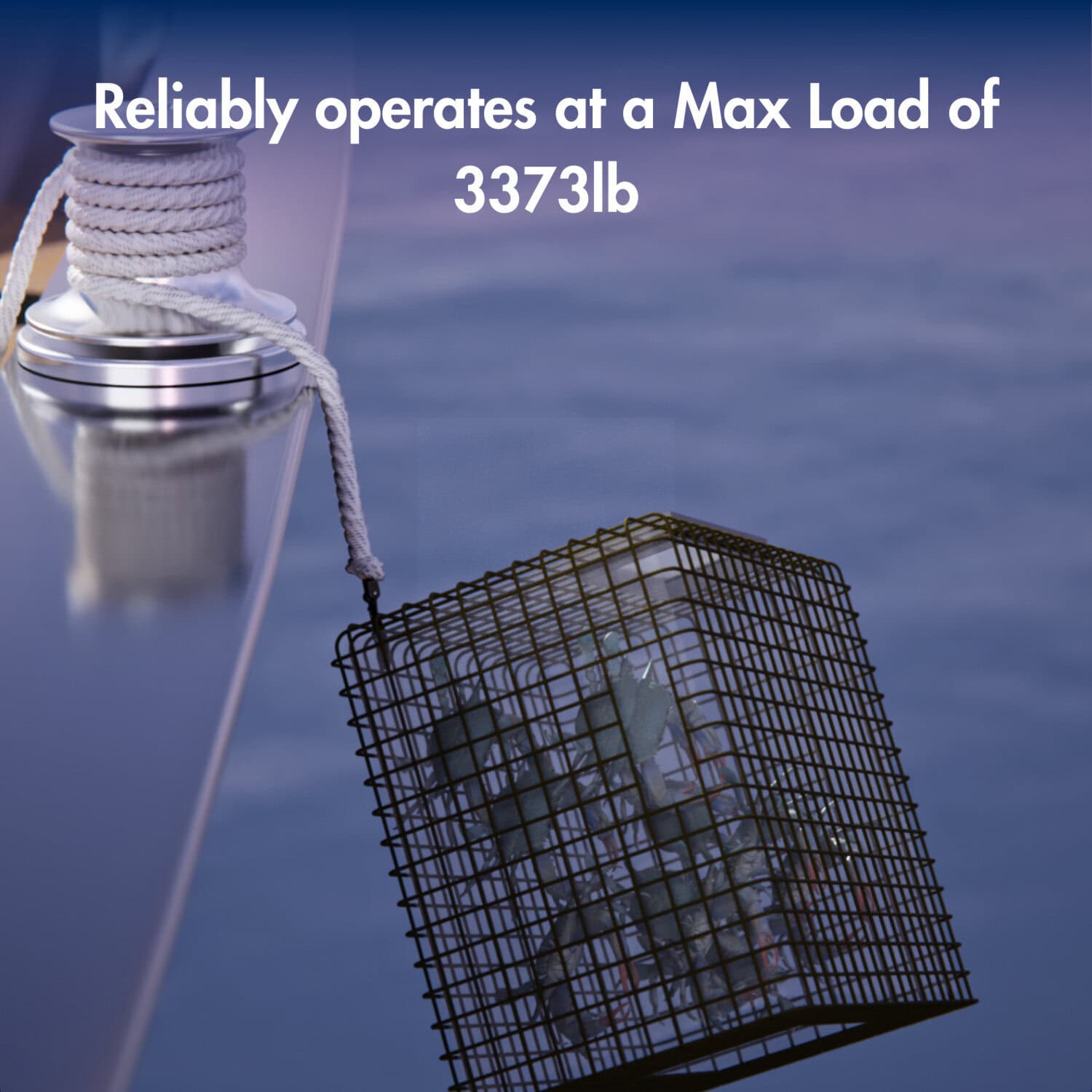

Max Load (Kg)
1530Kg
Workload (Kg)
510Kg
Max Line Speed
16m/min
Compatible Rope Sizes (mm)
14 mm (9/16"), 25 mm (1")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
27Kg
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Muir Reliable VC 3500 Capstan
Serious power for serious jobs. The VC 3500 handles vessels up to 27m (88ft) with a 1700W motor, dual-direction drive, and robust stainless construction. Built for reliability in high-load line handling and anchoring.
AC drive option: available on request (POA) — contact us for a quote.

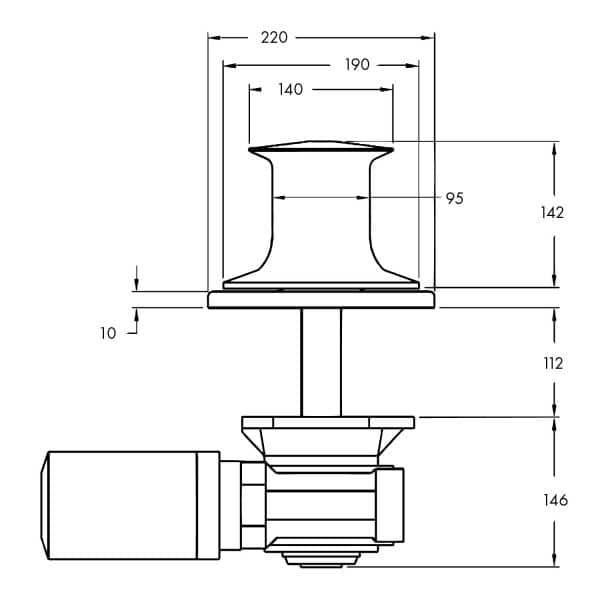

Drawings
Slide View
Features
- Deck hugging snag free design
- Unit can be mounted horizontally
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
- Capstan features knurled finish for increased grip
- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specification
Name
Specs
Recommended Vessel Length (m)
16m - 27m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1700Watts
Amps Workload
185A/90A (12/24V)
Hydraulic Pressure
11MPa
Hydraulic Flow
28L/min
Max Load (Kg)
1530Kg
Workload (Kg)
510Kg
Max Line Speed
16m/min
Compatible Rope Sizes (mm)
14 mm (9/16"), 25 mm (1")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
27Kg
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Installation/Operation booklet
