Storm VR1250
Price range: $2,339.85 through $2,920.98
3 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions

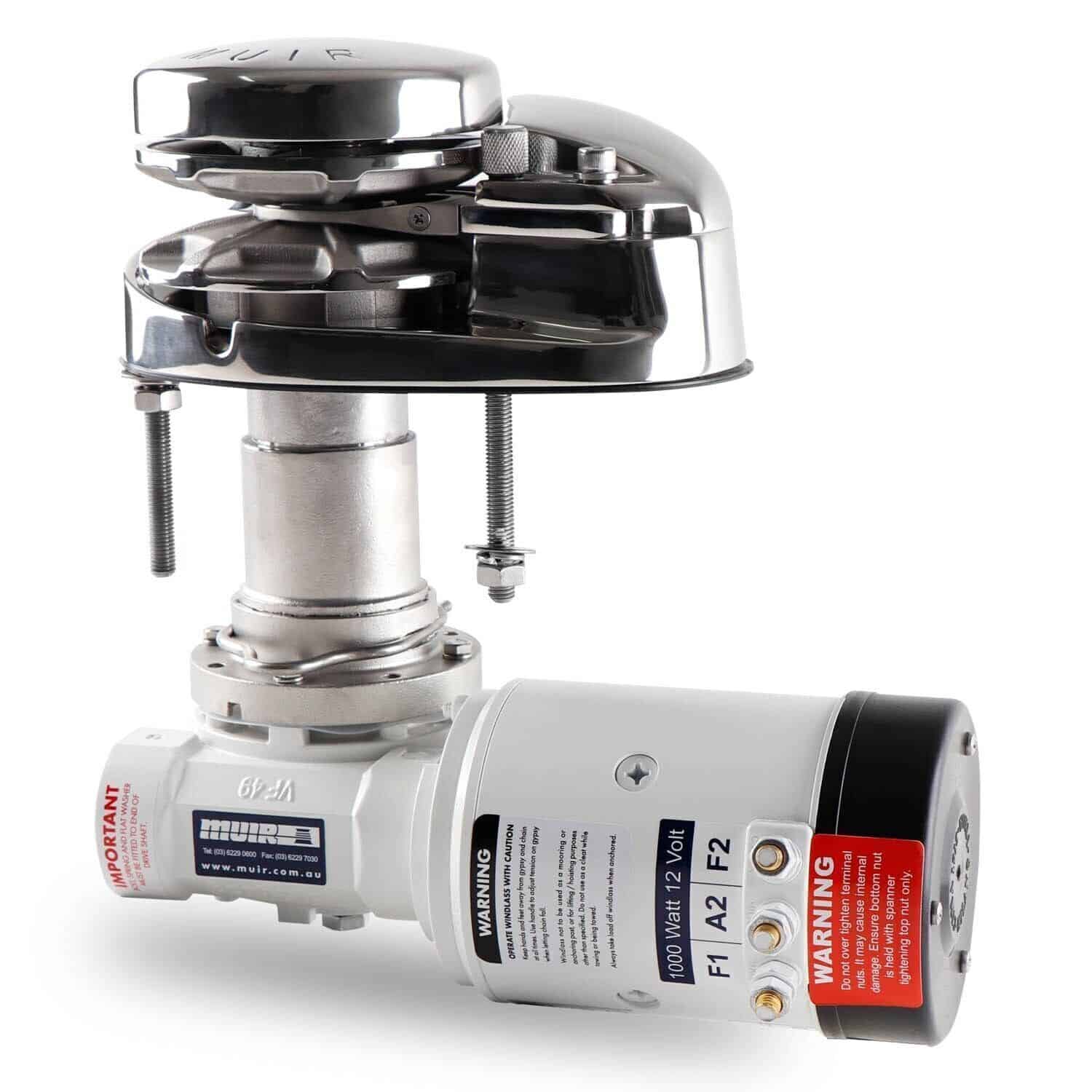

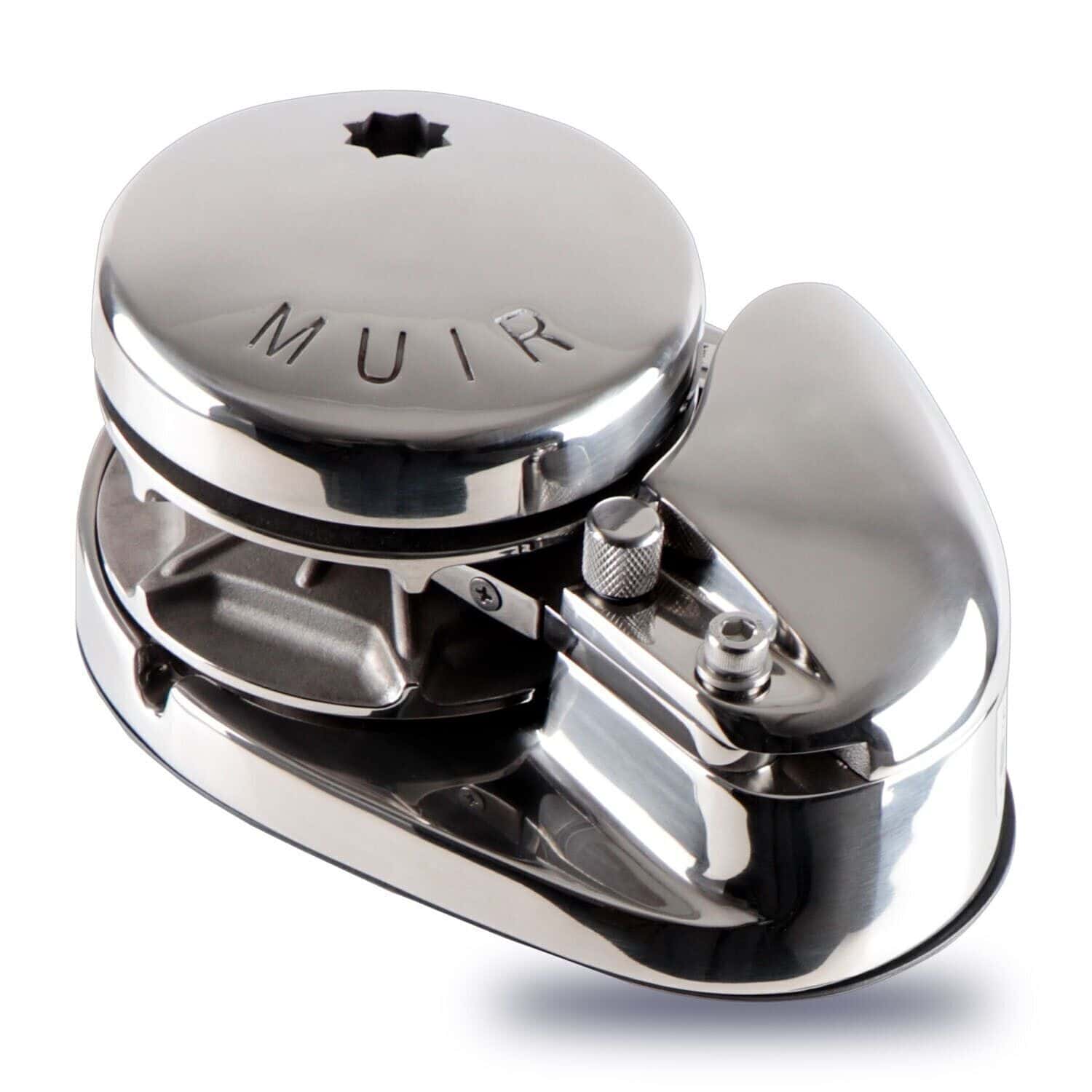

Storm VR1250
Power, style, and reliability — the Muir Storm VR1250 is the ultimate windlass for boats up to 13m (44ft). With fast retrieval, seamless rope-chain handling, and a premium polished stainless steel finish, it’s built to perform and made to last in all conditions.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.

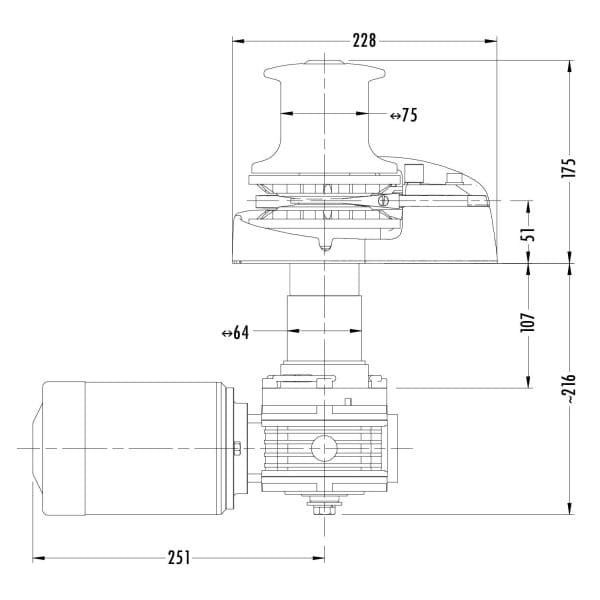

Drawings
Top View
VR
Features

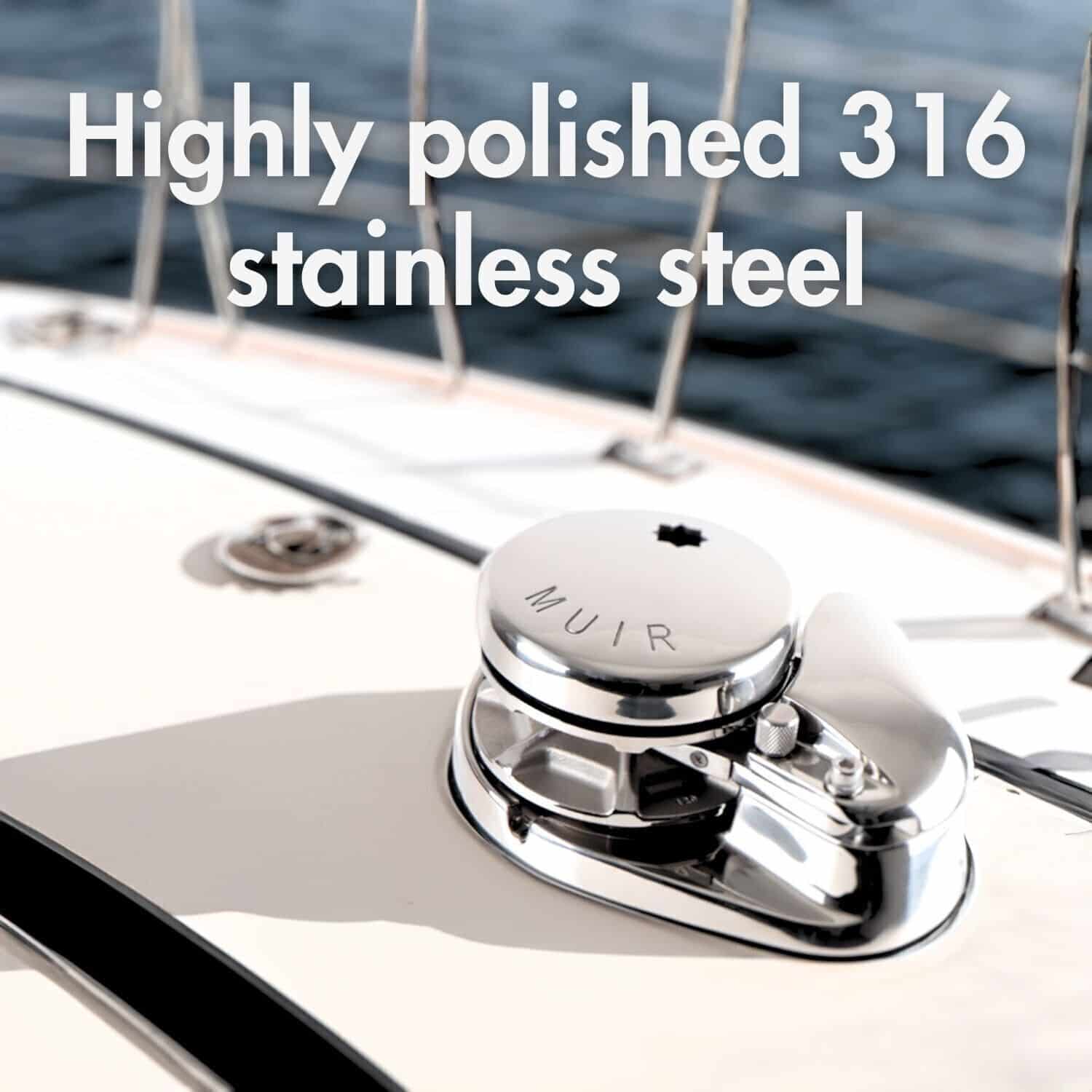

- Polished stainless steel components

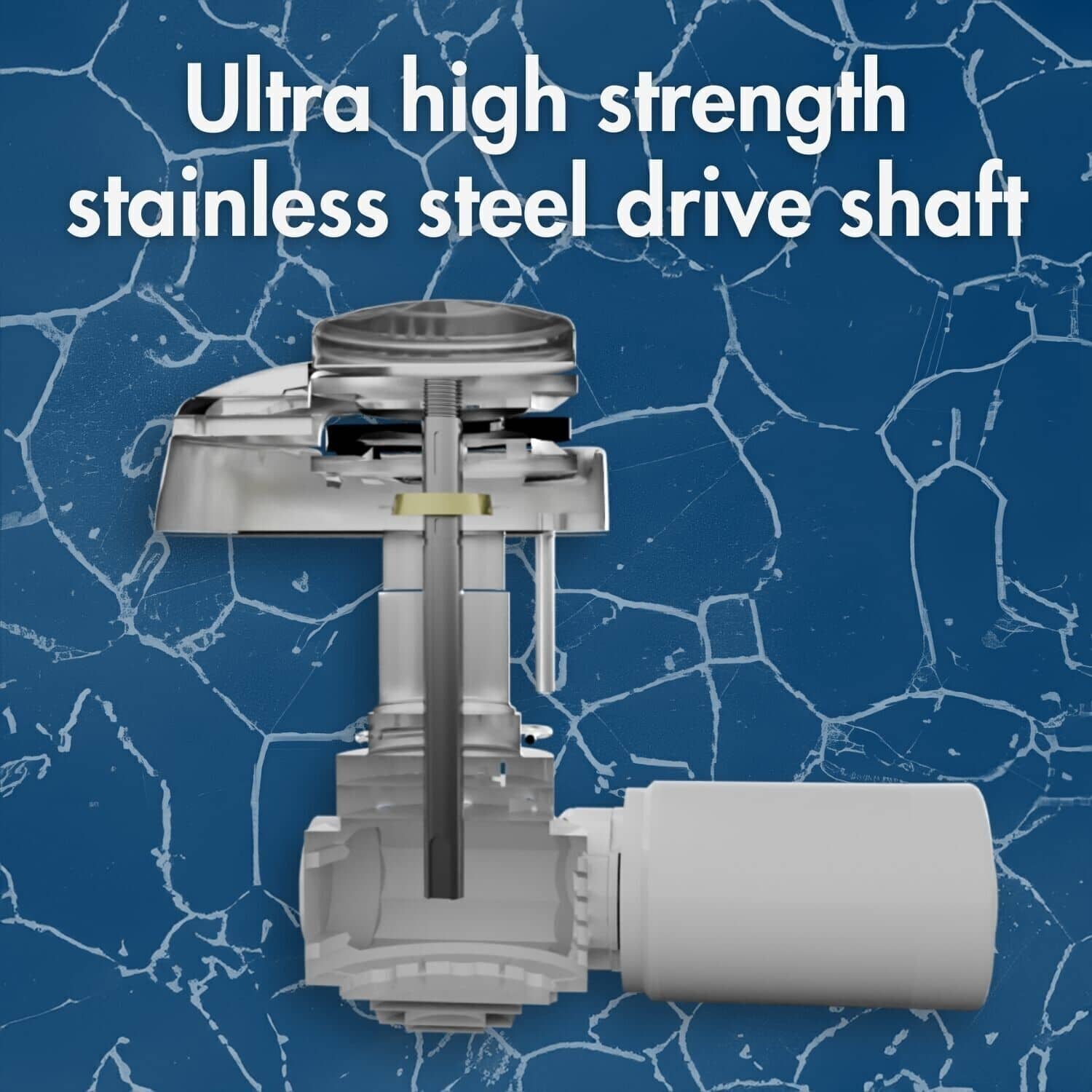

- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor

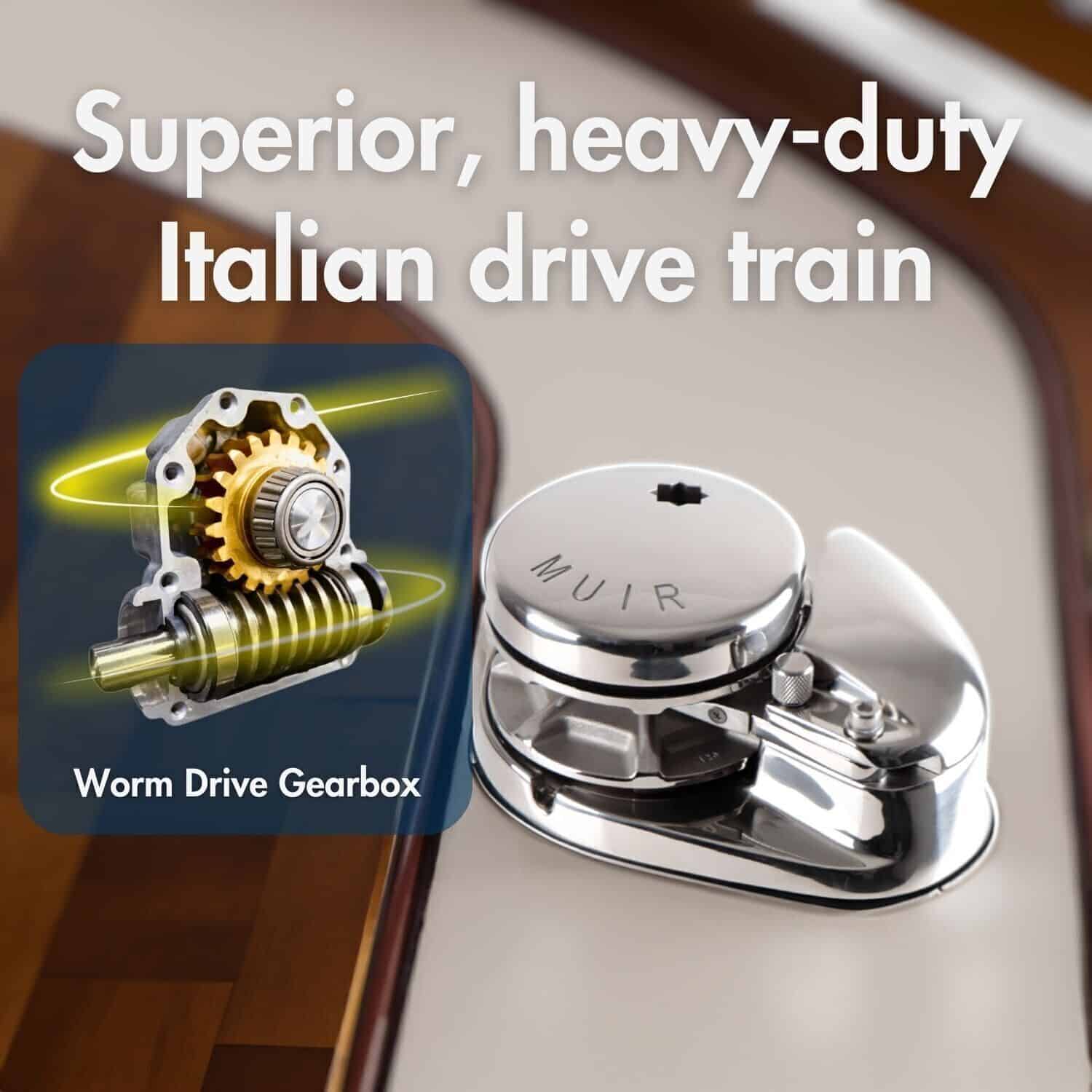

- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
100A/80A (12/24V)
Amps Workload
125A/60A (12/24V)
Hydraulic Pressure
8MPa
Hydraulic Flow
15L/min
Max Load (Kg)
621Kg
Workload (Kg)
207Kg
Max Line Speed
30m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Compatible Rope/Chain Combo (mm)
6 mm (1/4"), 8mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes

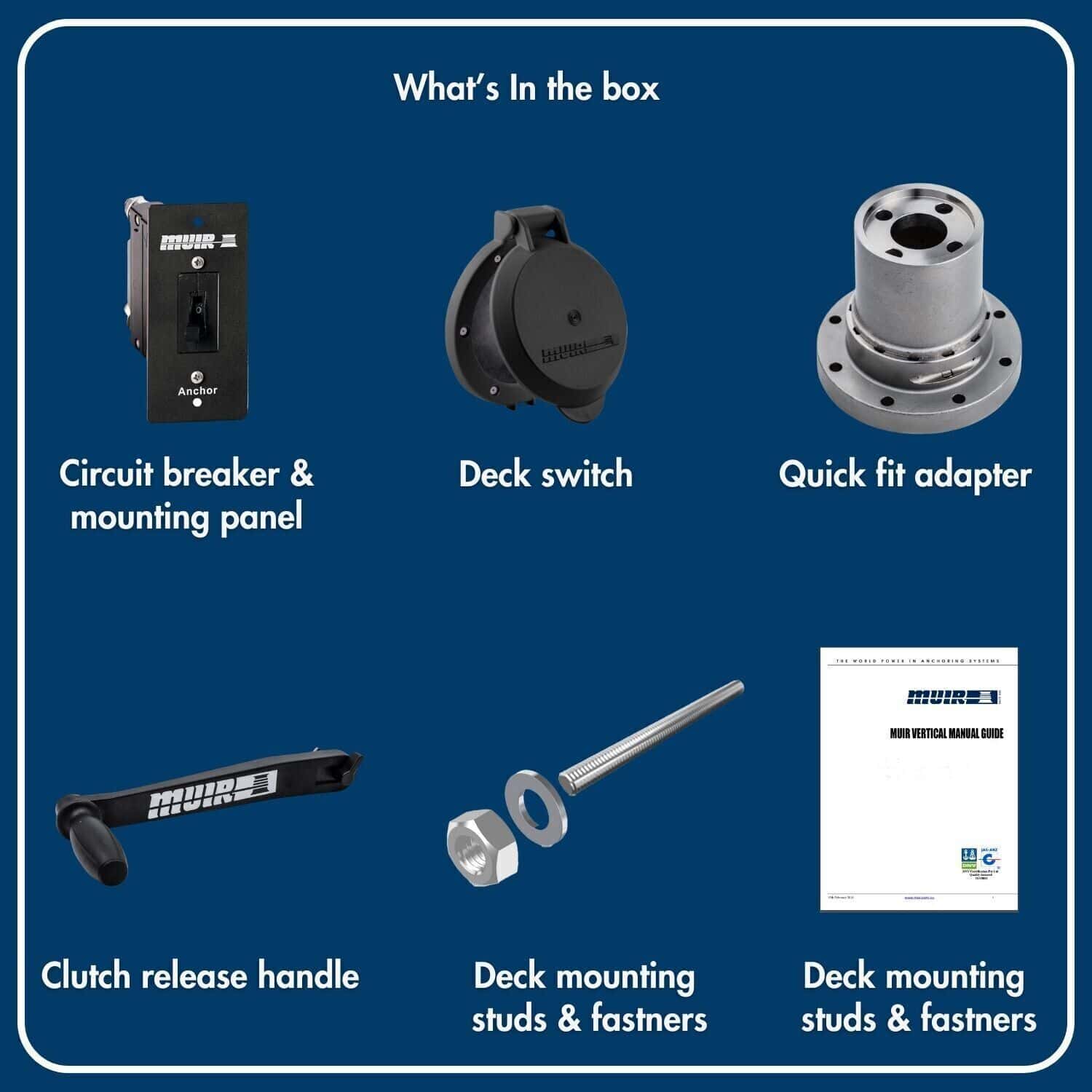

Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch

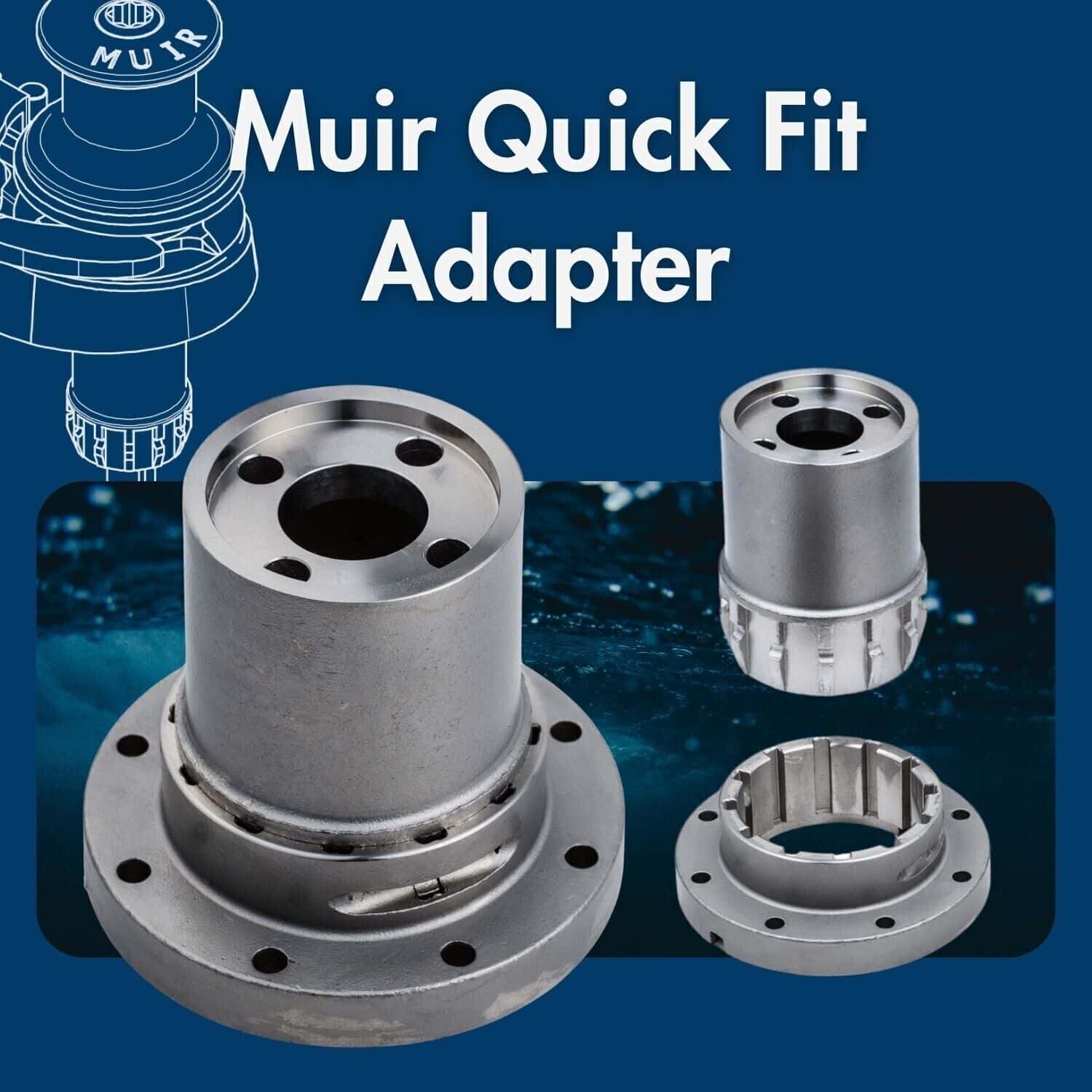

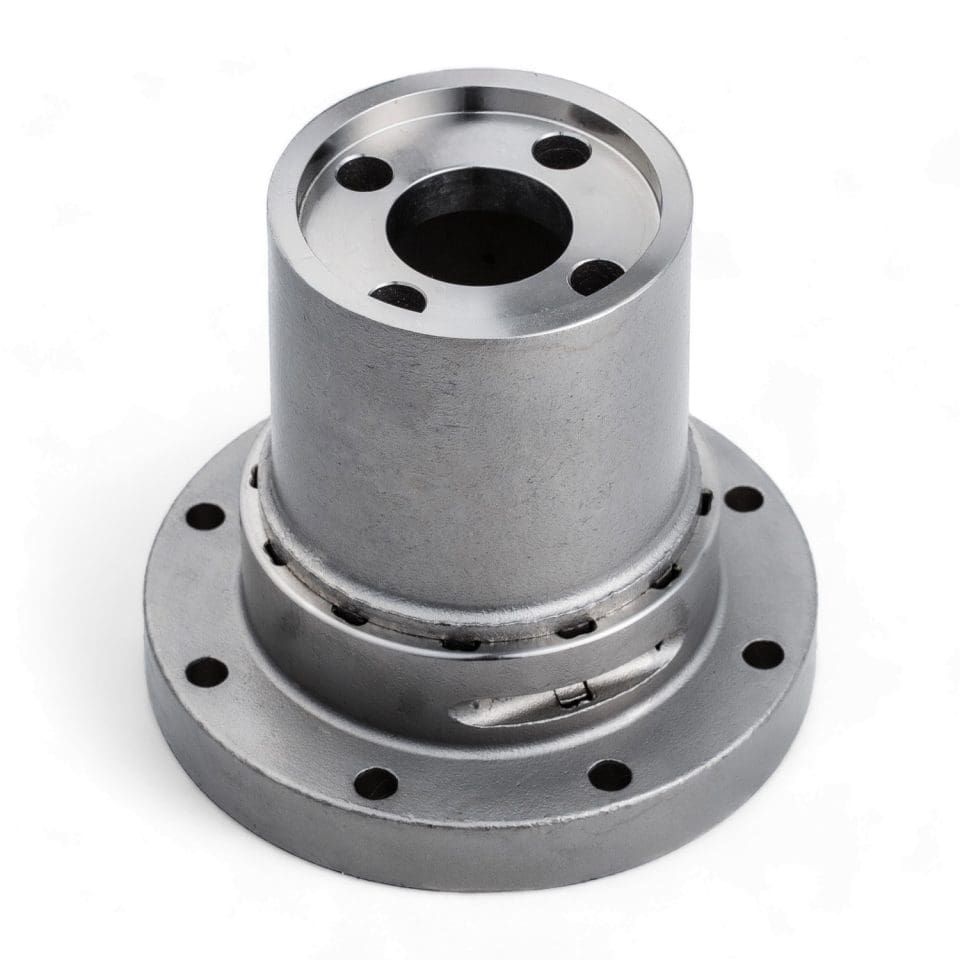

Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet

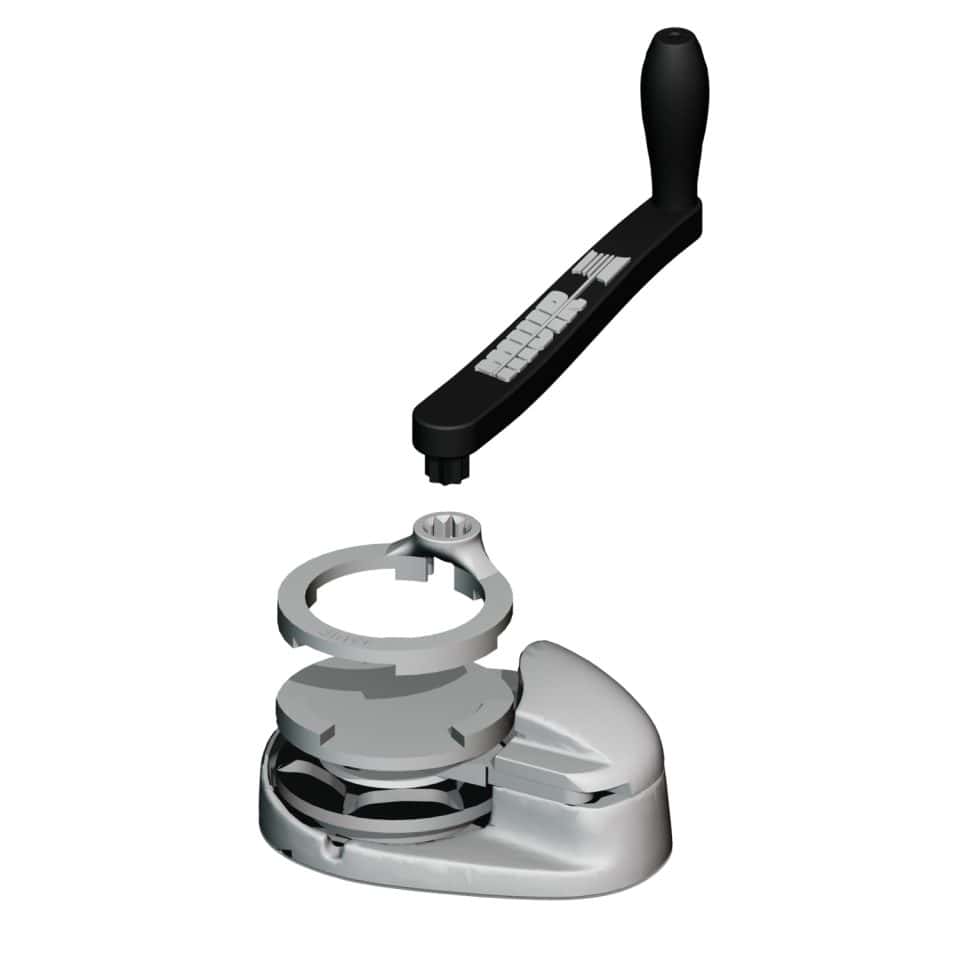

Manual Operation System MOS
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Storm VR1250
Power, style, and reliability — the Muir Storm VR1250 is the ultimate windlass for boats up to 13m (44ft). With fast retrieval, seamless rope-chain handling, and a premium polished stainless steel finish, it’s built to perform and made to last in all conditions.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
VR
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
100A/80A (12/24V)
Amps Workload
125A/60A (12/24V)
Hydraulic Pressure
8MPa
Hydraulic Flow
15L/min
Max Load (Kg)
621Kg
Workload (Kg)
207Kg
Max Line Speed
30m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Compatible Rope/Chain Combo (mm)
6 mm (1/4"), 8mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Operation System MOS
