DFF 15
$3,678.15
Drum Capacity
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions
Muir DFF 15 Free-Fall Drum Winch
Built for big boats and big loads. The DFF 15 handles up to 390kg (860lb) with mechanical free-fall, oversized drum capacity, and unmatched control — perfect for vessels 12–14m (40–47ft).
Drawings

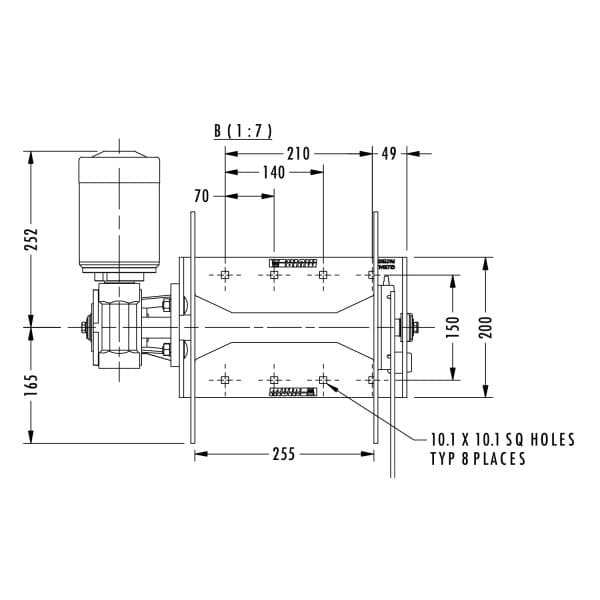

Top View

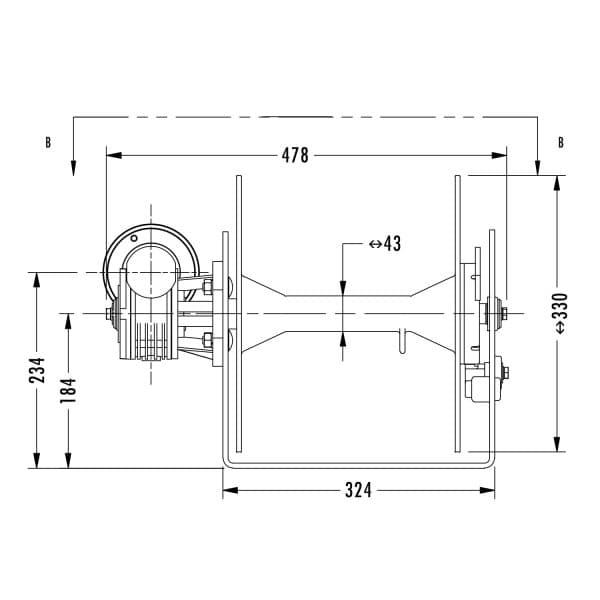

Slide View
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing center for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage
- 316 stainless steel drum
- Superior heavy-duty Italian drive train
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
12m - 14m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1700Watts
Amps Workload
185A/90A (12/24V)
Max Load (Kg)
390Kg
Workload (Kg)
130Kg
Max Line Speed
25m/min
Compatible Chain Sizes (mm)
10mm (3/8"), 12 mm (0.47244“)
Compatible Rope Sizes (mm)
12 mm (1/2")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
35Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Reviews
Description
Muir DFF 15 Free-Fall Drum Winch
Built for big boats and big loads. The DFF 15 handles up to 390kg (860lb) with mechanical free-fall, oversized drum capacity, and unmatched control — perfect for vessels 12–14m (40–47ft).
Drawings
Top View
Slide View
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing center for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage
- 316 stainless steel drum
- Superior heavy-duty Italian drive train
Technical Specification
Name
Specs
Drum capacity
Recommended Vessel Length (m)
12m - 14m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1700Watts
Amps Workload
185A/90A (12/24V)
Max Load (Kg)
390Kg
Workload (Kg)
130Kg
Max Line Speed
25m/min
Compatible Chain Sizes (mm)
10mm (3/8"), 12 mm (0.47244“)
Compatible Rope Sizes (mm)
12 mm (1/2")

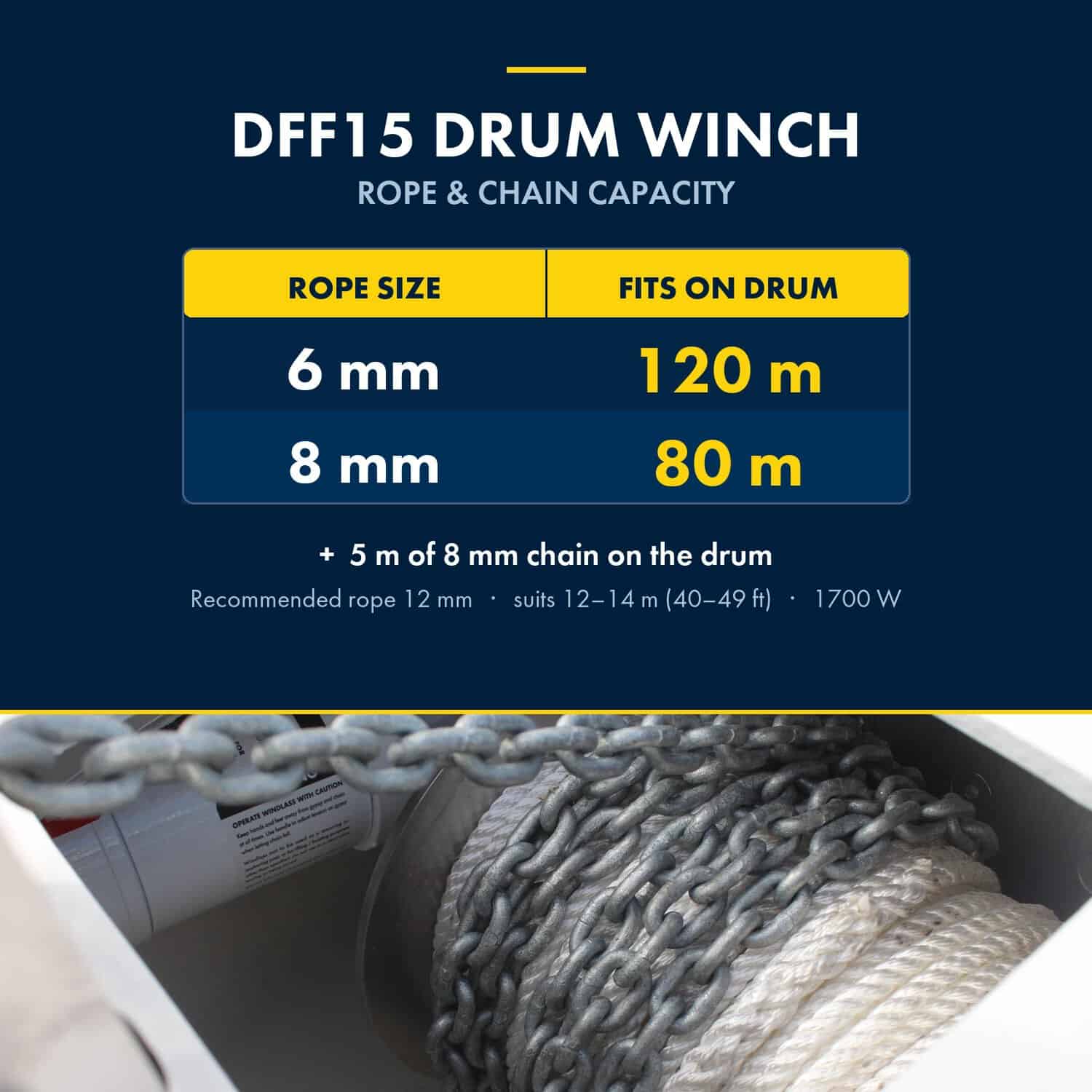

Chain On Drum
5 m of 8 mm
Rope Capacity @ 6mm
120 m
Rope Capacity @ 8mm
80 m
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
35Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
