DW 10 Standard Package
$1,800.25
3 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions
Muir Reliable DW 10 Standard Drum Winch
For boats up to 10m (33ft), the DW 10 Standard offers high-capacity drum storage, dual-direction control, and smooth, tangle-free rope-chain operation. Built for serious weekenders and offshore anglers.
Drawings
Top View
Slide View
Features

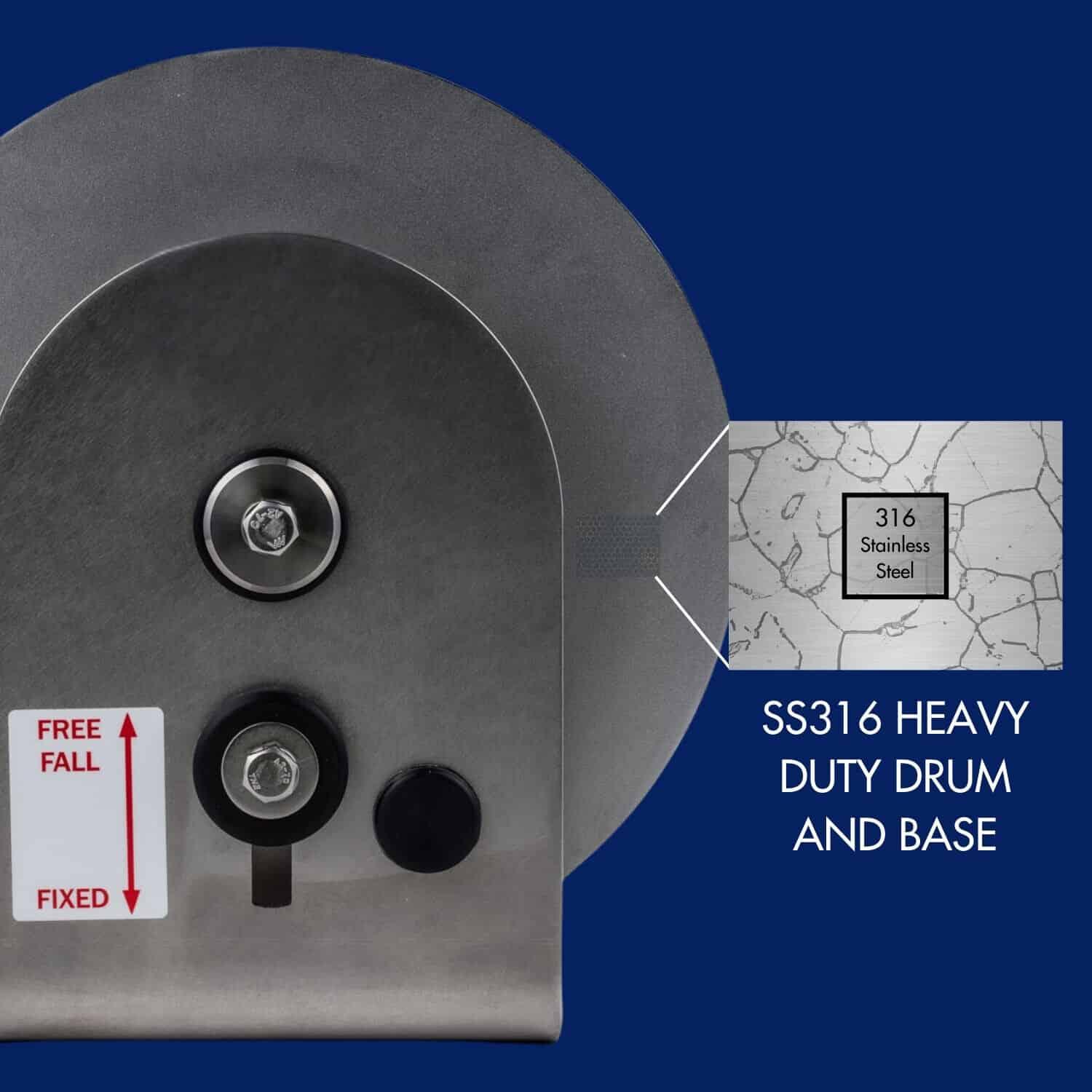

- Marine grade 316 stainless steel drum

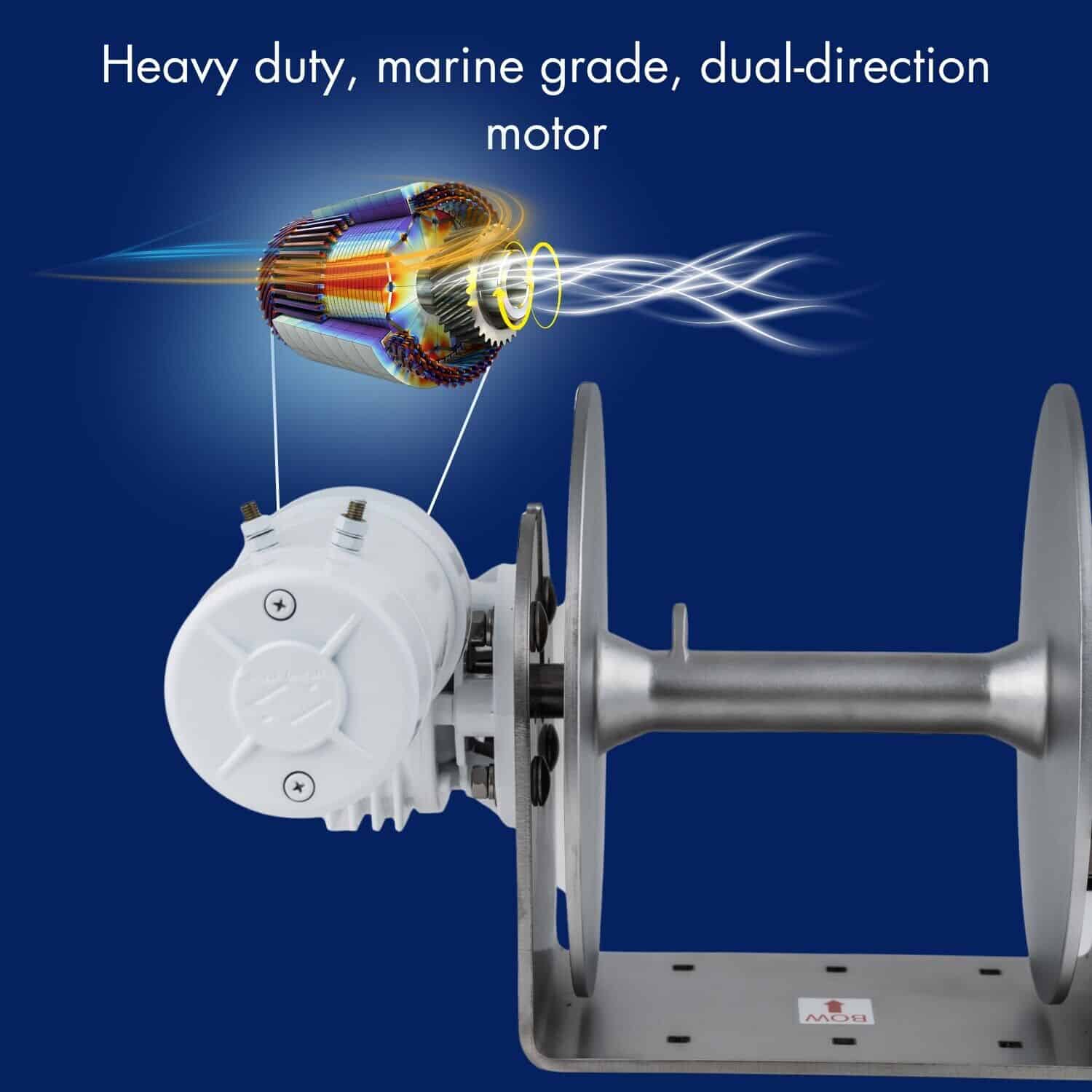

- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train

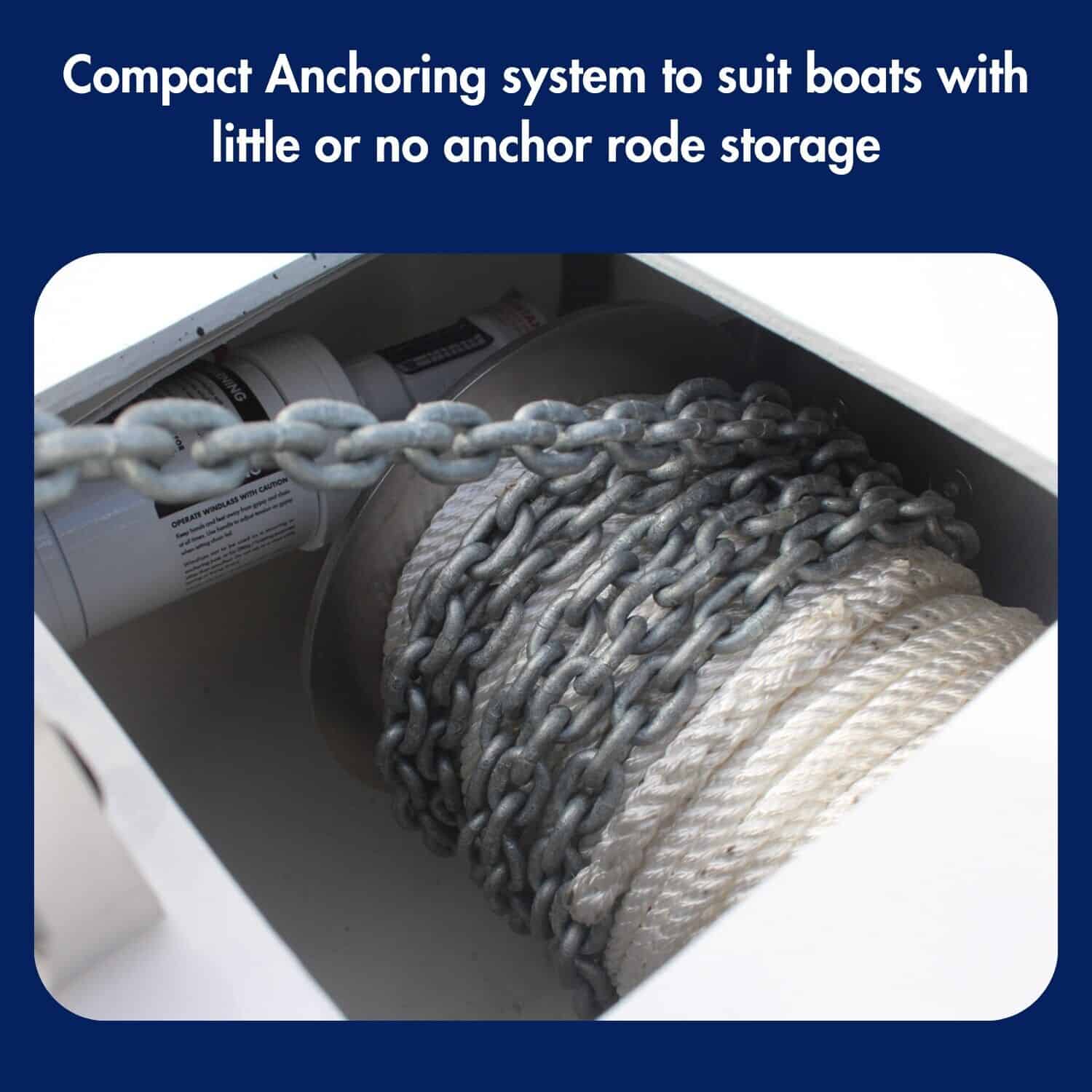

- Compact Anchoring system to suit boats with no anchor rode storage

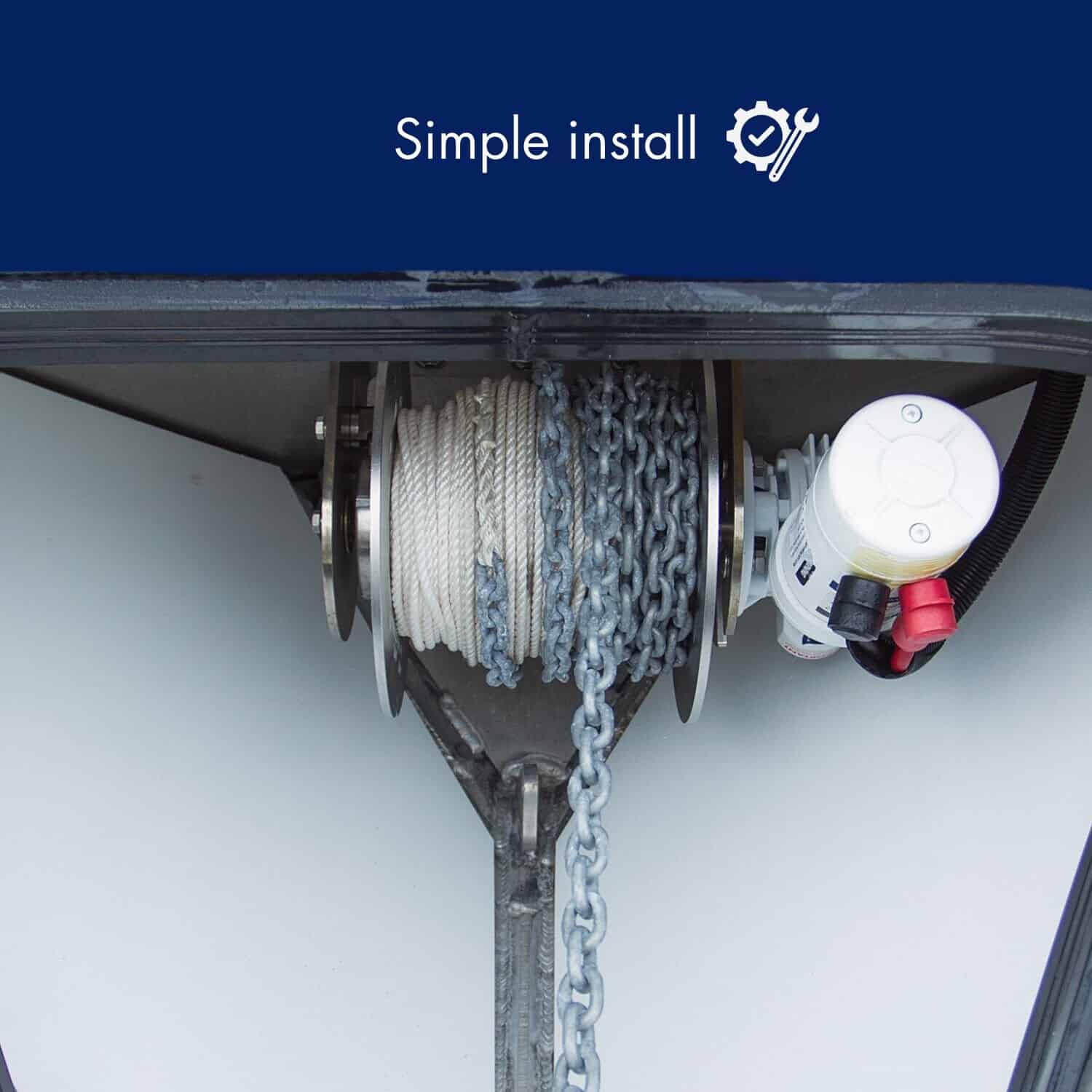

- Simple installation
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
8m - 10m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
1200Watts
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
260Kg
Workload (Kg)
87Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
10 mm (3/8")
Auto Anchor Compatible
Yes
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Muir Reliable DW 10 Standard Drum Winch
For boats up to 10m (33ft), the DW 10 Standard offers high-capacity drum storage, dual-direction control, and smooth, tangle-free rope-chain operation. Built for serious weekenders and offshore anglers.
Drawings
Top View
Slide View
Features
- Marine grade 316 stainless steel drum
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Compact Anchoring system to suit boats with no anchor rode storage
- Simple installation
Technical Specification
Name
Specs
Recommended Vessel Length (m)
8m - 10m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
1200Watts
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
260Kg
Workload (Kg)
87Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
10 mm (3/8")
Chain On Drum
5 m of 8 mm
Rope Capacity @ 6mm
120 m
Rope Capacity @ 8mm
80 m
Auto Anchor Compatible
Yes
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
Downloads
Parts
Only logged in customers who have purchased this product may leave a review.
Not Sure Which Windlass Is Right for You?
Find the right recreational windlass for your boat using our Windlass Selection Guide.
Find Your Windlass
Reviews
There are no reviews yet.
