VC800 Inline Capstan
$926.25
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions

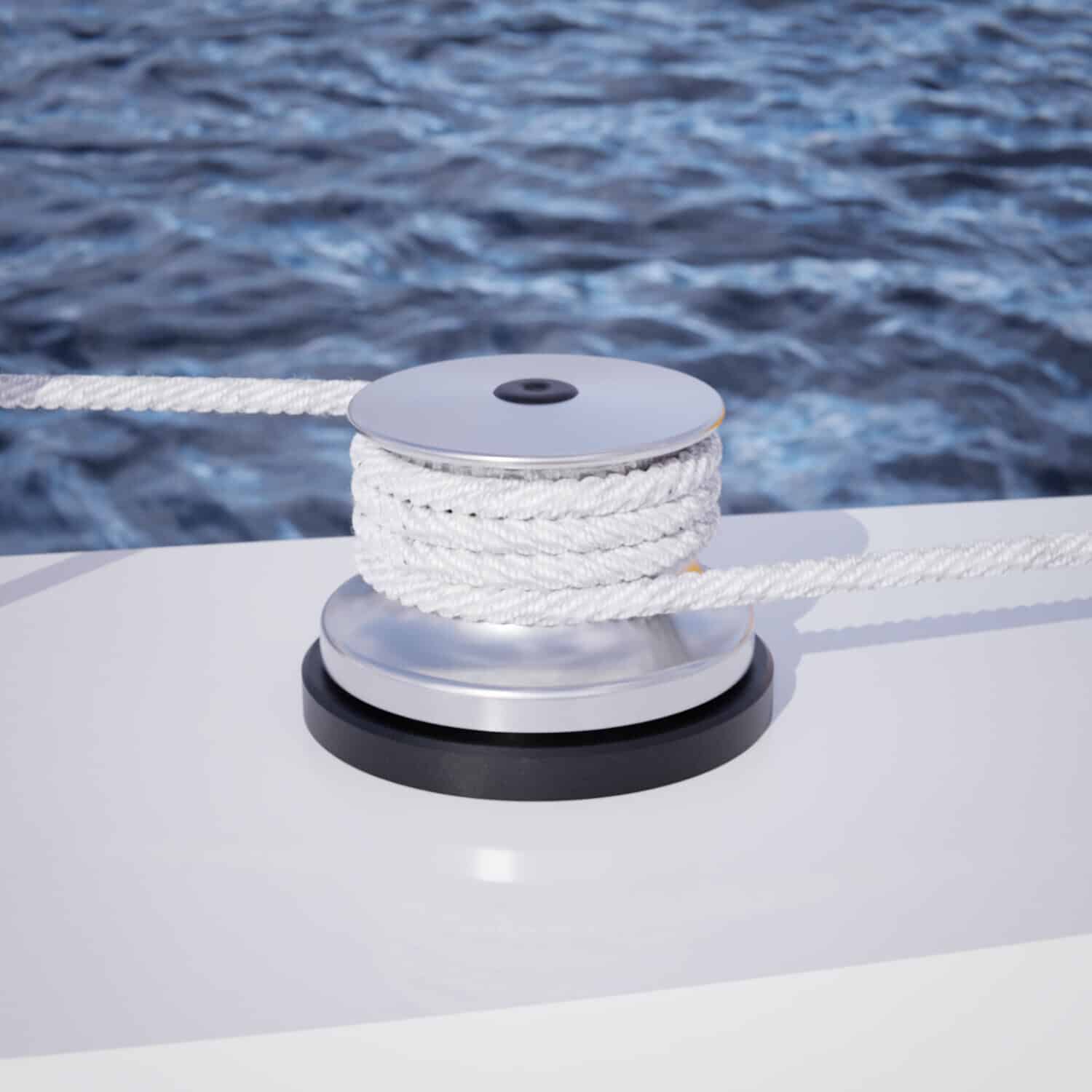

Reliable VC800 Inline Capstan

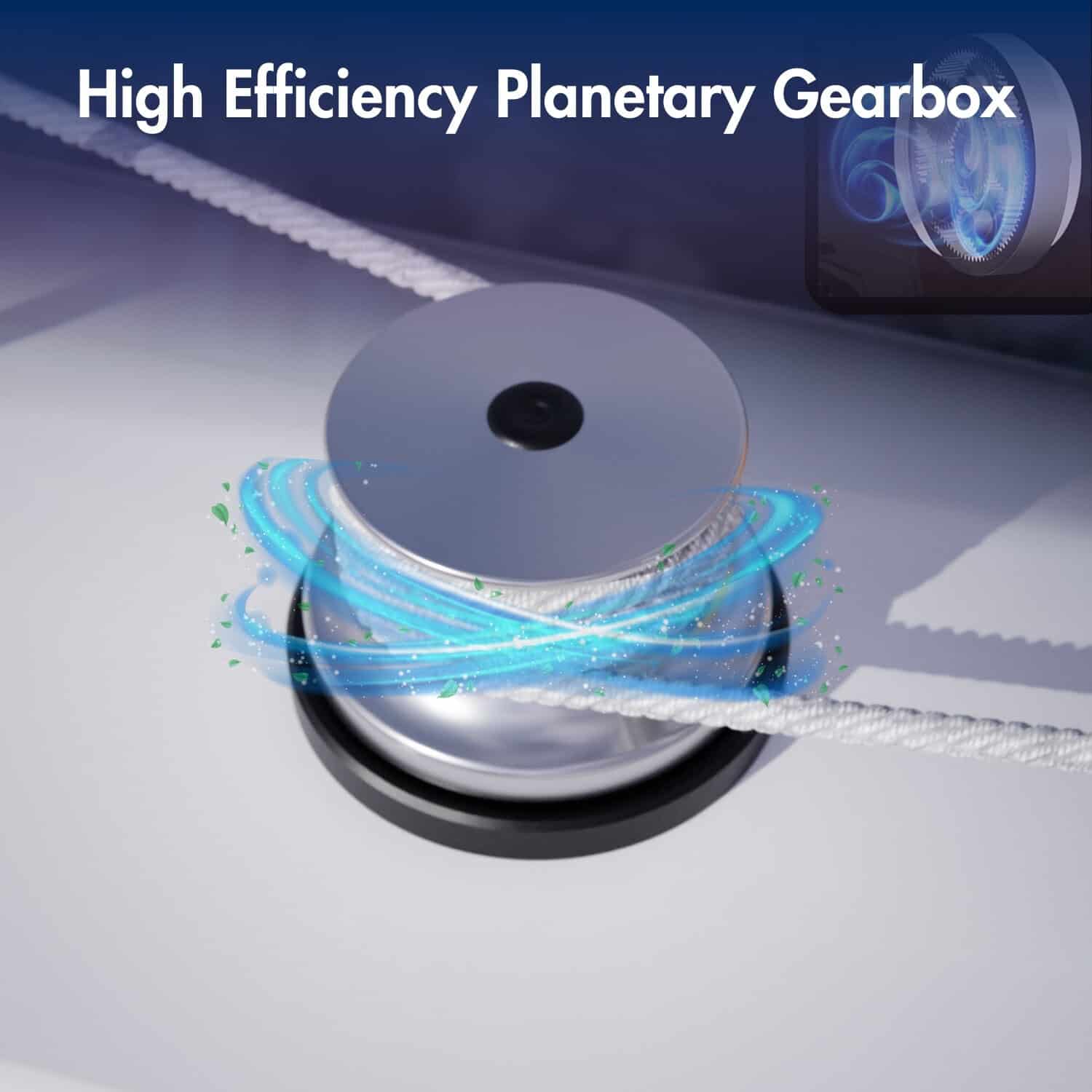

Muir introduce the VC800 Inline Capstan new Inline drive capstans, delivering more power when you need it. These highly efficient and light weight capstans are fitted with a 600w one piece integrated gearbox/motor assembly which provides increased power and speed normally not achieved with conventional gear systems.
The one piece assembly significantly reduces installation time and is ideal for use where below deck space is restricted.
Designed to suit vessels up to 11m (36ft) the Inline capstan can be used for mooring, warping, anchoring, line hauling and fishing from any direction and are well suited to any application in either vertical or horzontal mounting positions.
Accommodating various deck thickness, these models are available in 12V DC.
The VC800 Inline Capstan delivers powerful vertical hauling for vessels up to 20m. Built with marine-grade stainless steel for durability and smooth rope handling.

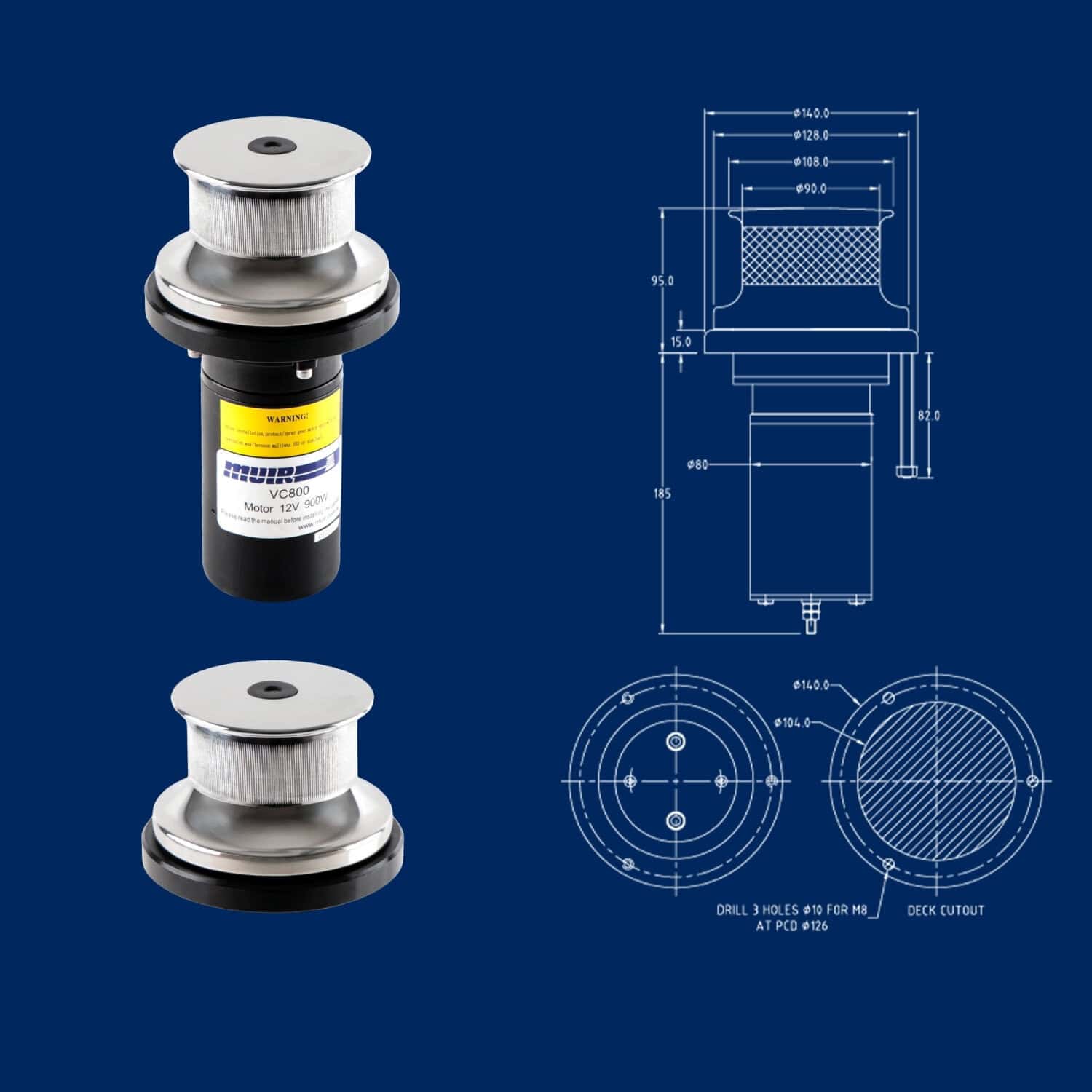

Drawings

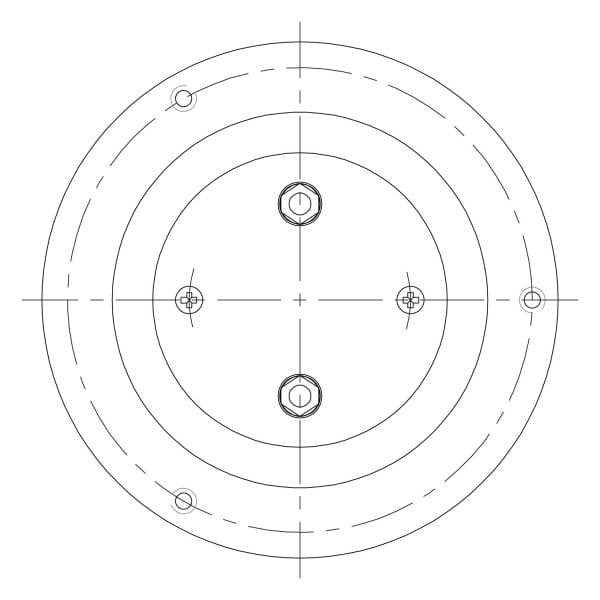

Top View
Features

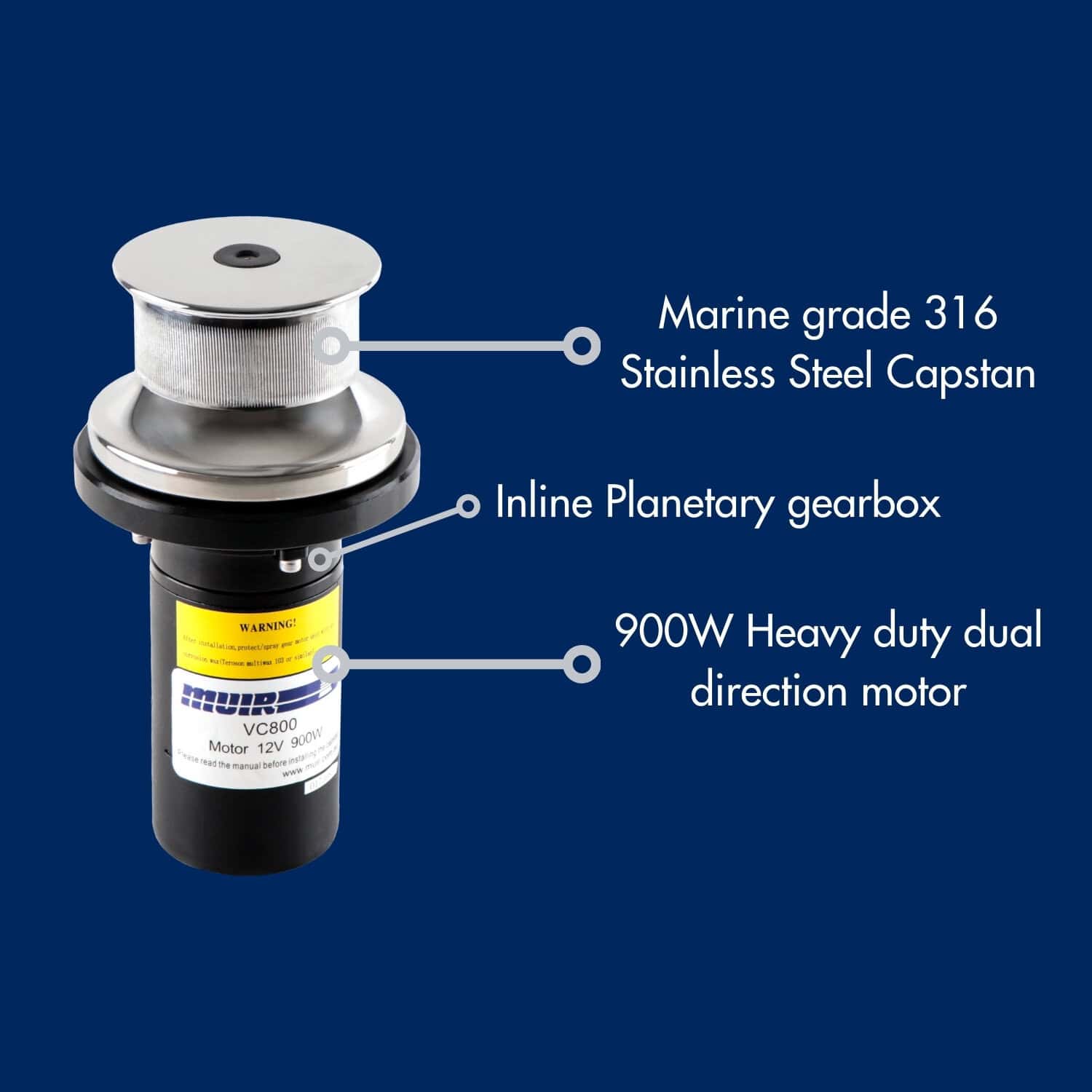

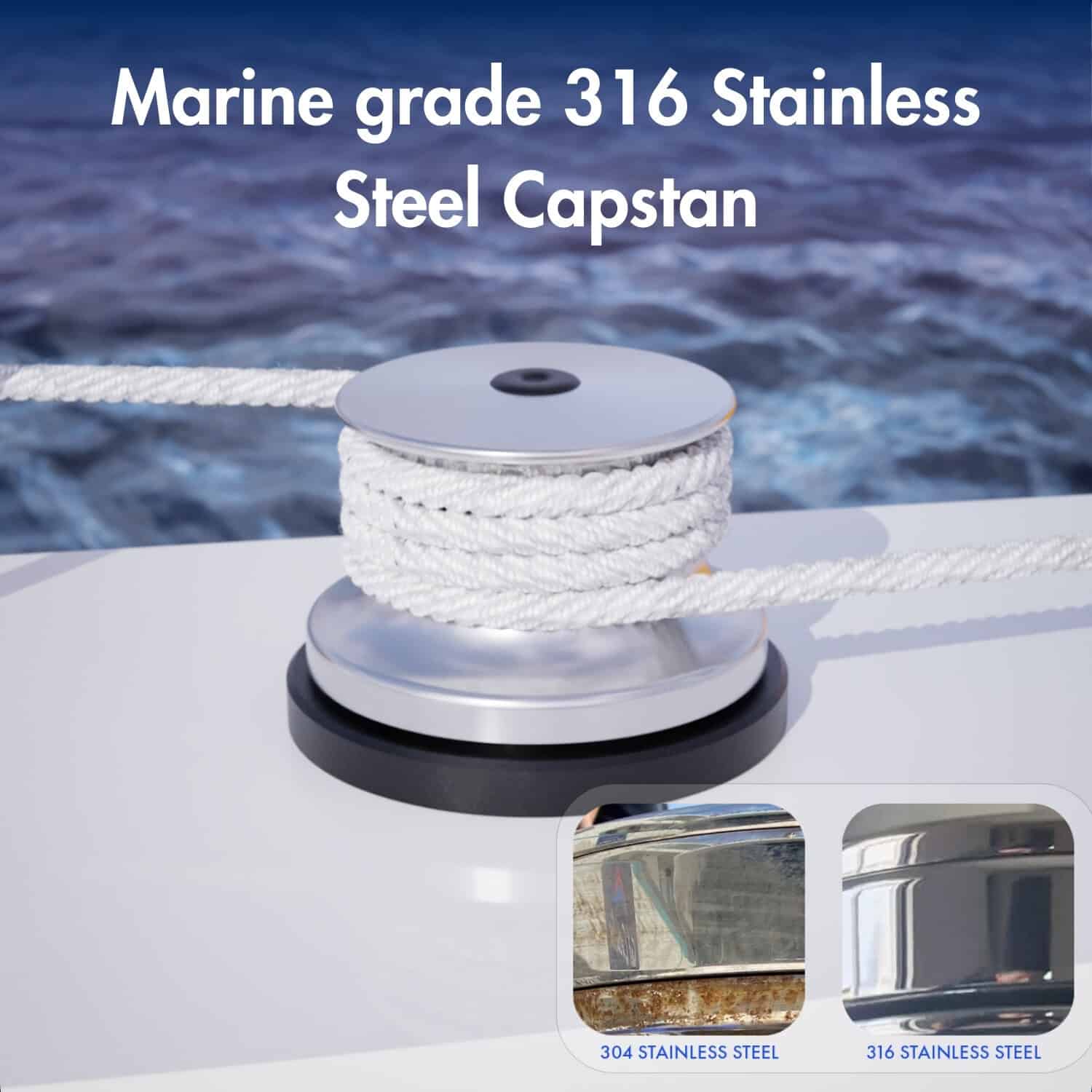

- Marine grade 316 Stainless Steel Capstans

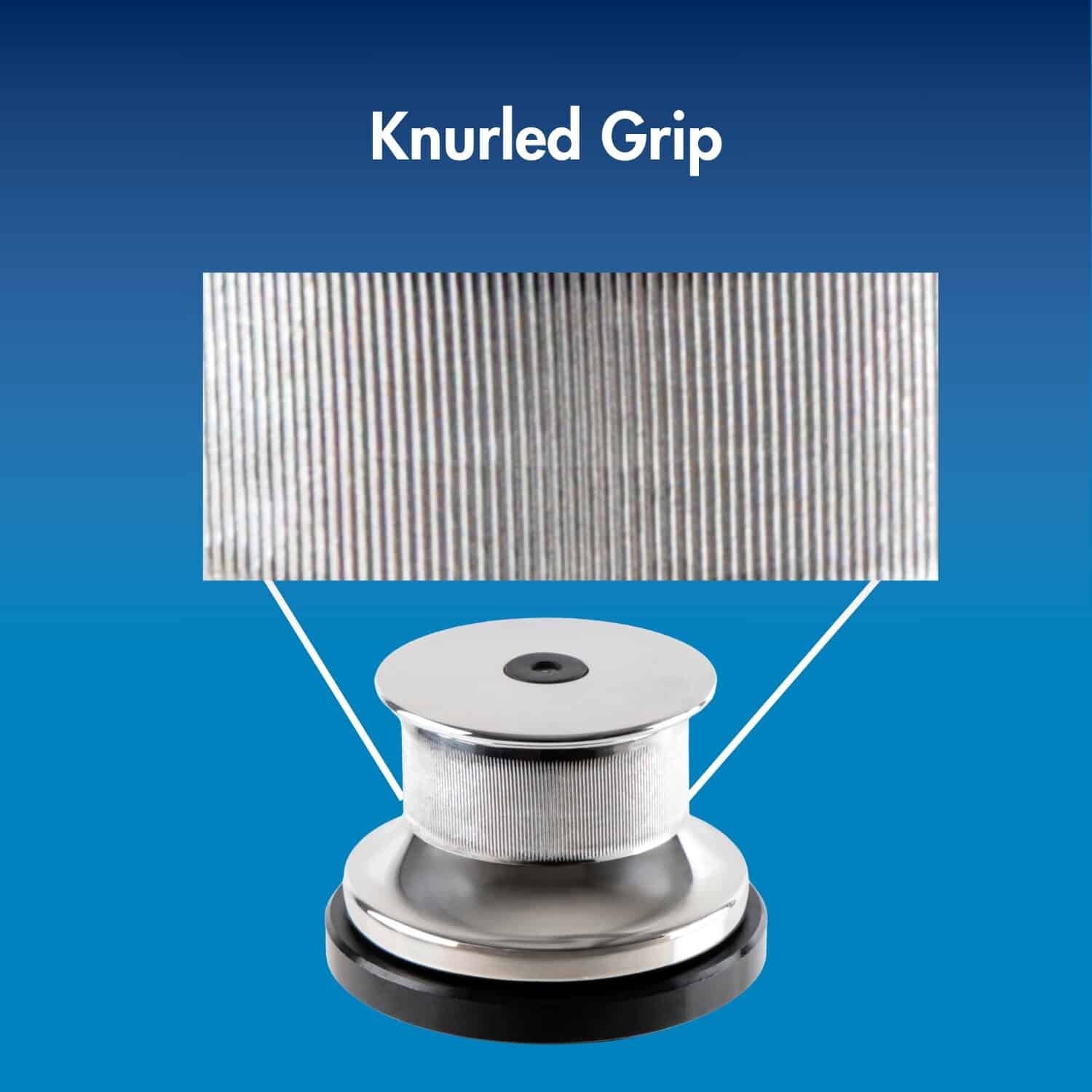

- Capstan features knurled finish for increased grip

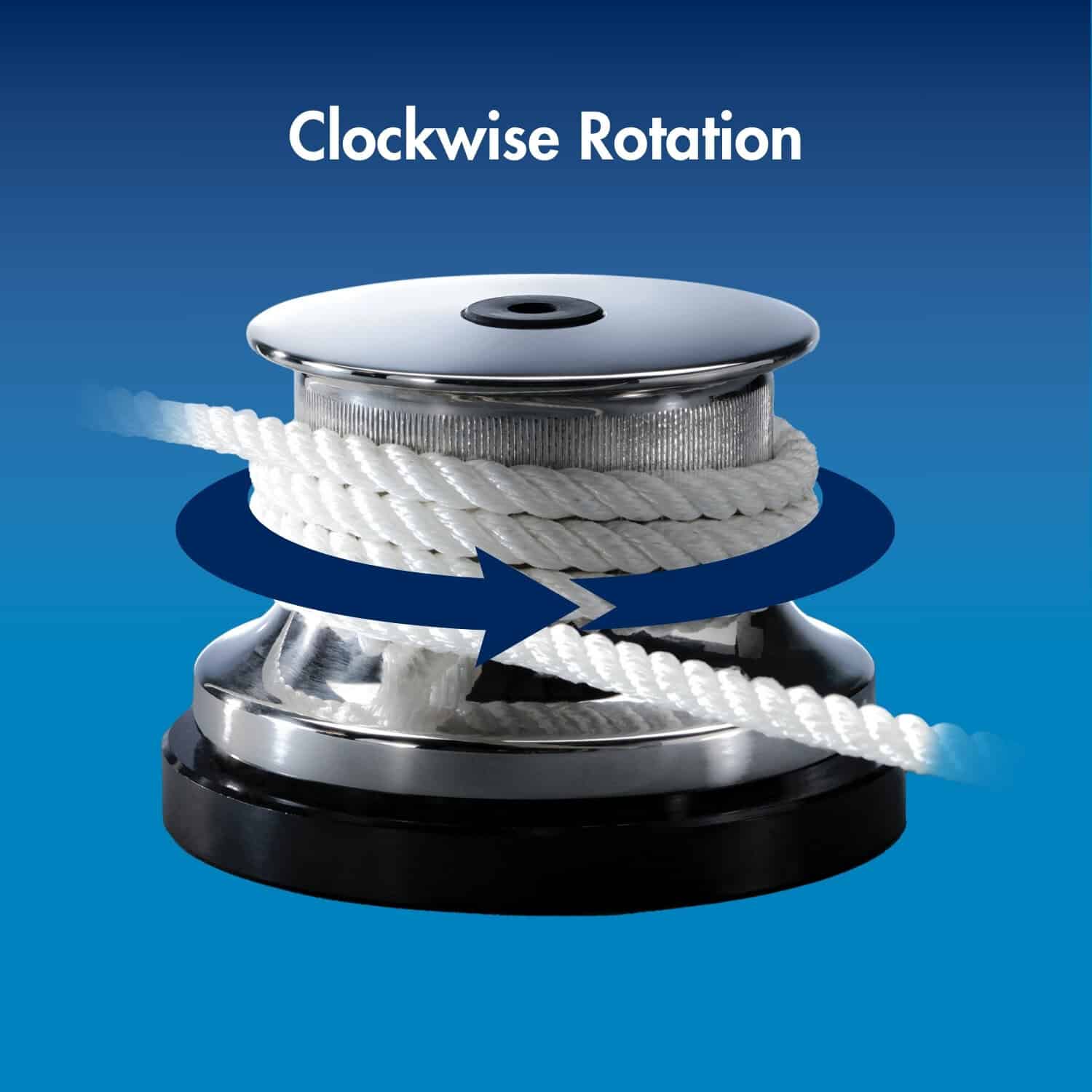

- Clockwise rotation
- Auto action clutch preventing rollback
- Unit can be mounted horizontally
- Stainless steel mounting bolts
- Shaft seal
- Installation/Operation booklet
- Deck switch included
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
6m - 11m
Power Supply Options
DC 12V
Recommended Circuit Breaker
80A (12V)

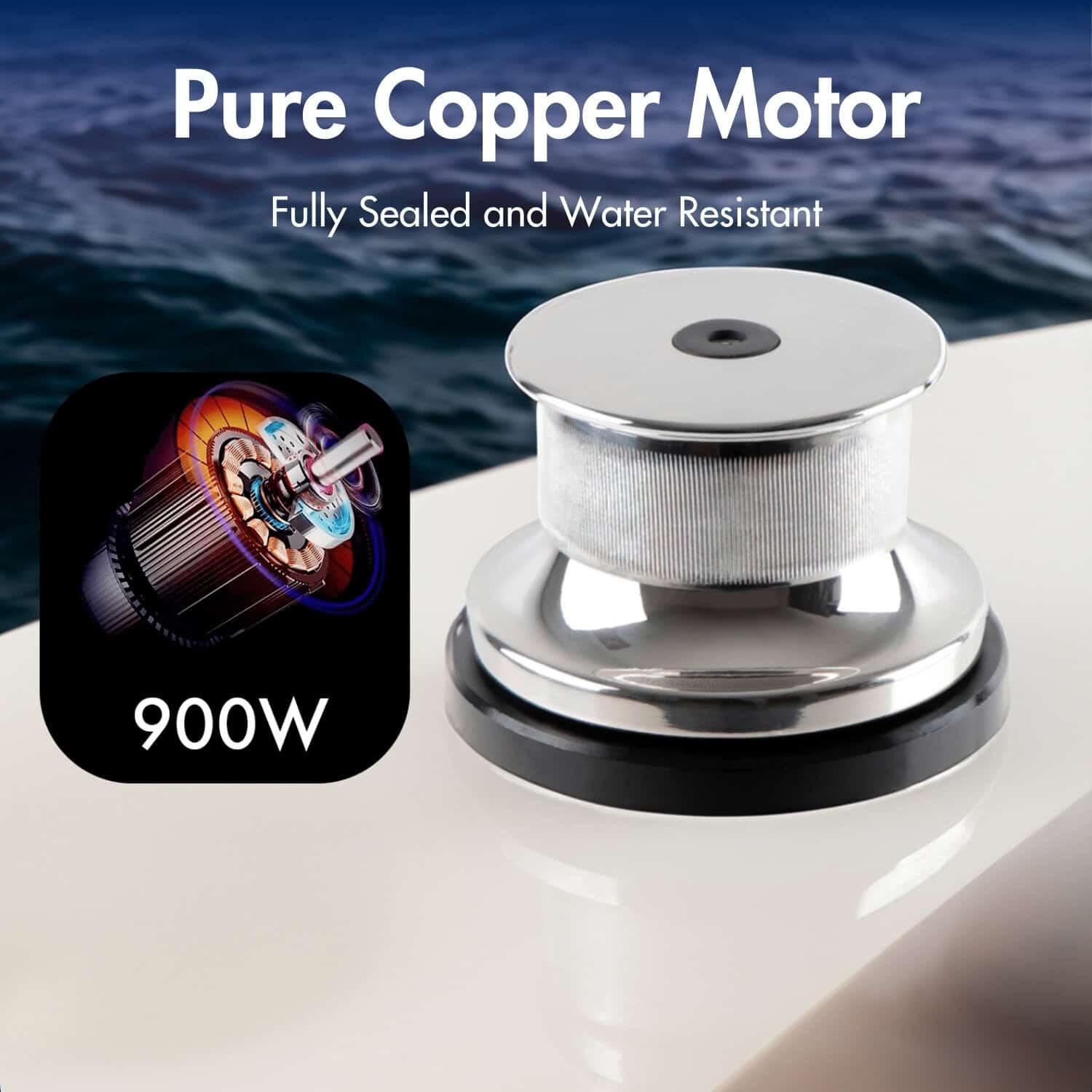

Motor (Watts)
900Watts
Amps Workload
60A (12V)

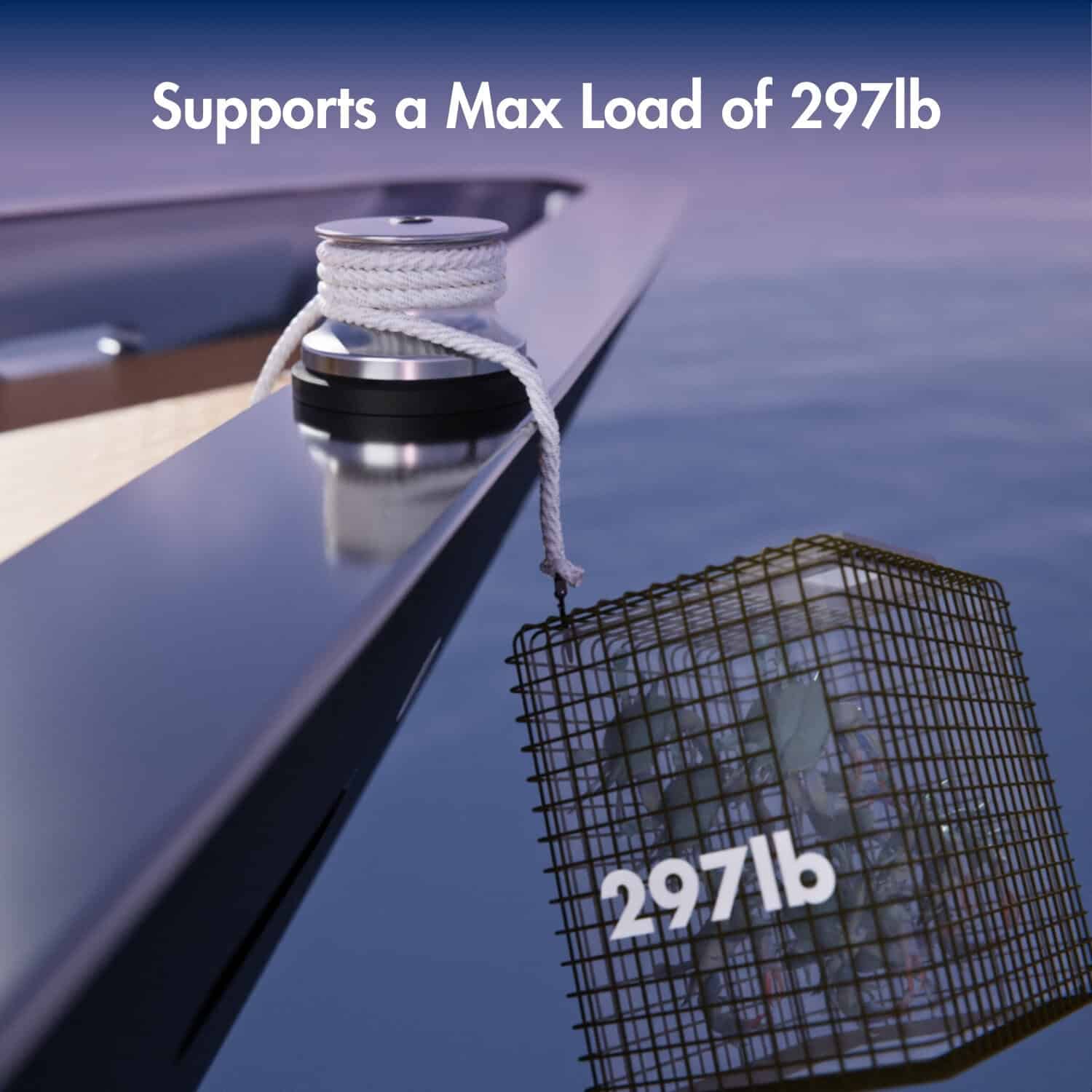

Max Load (Kg)
135Kg
Workload (Kg)
45Kg
Max Line Speed
25m/min
Compatible Rope/Chain Combo (mm)
12 mm (1/2")
Compatible Rope Sizes (mm)
Up to 12 mm (Up to 1/2")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
8.5Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Deck mounting studs and fasteners
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Reviews
Description
Reliable VC800 Inline Capstan
Muir introduce the VC800 Inline Capstan new Inline drive capstans, delivering more power when you need it. These highly efficient and light weight capstans are fitted with a 600w one piece integrated gearbox/motor assembly which provides increased power and speed normally not achieved with conventional gear systems.
The one piece assembly significantly reduces installation time and is ideal for use where below deck space is restricted.
Designed to suit vessels up to 11m (36ft) the Inline capstan can be used for mooring, warping, anchoring, line hauling and fishing from any direction and are well suited to any application in either vertical or horzontal mounting positions.
Accommodating various deck thickness, these models are available in 12V DC.
The VC800 Inline Capstan delivers powerful vertical hauling for vessels up to 20m. Built with marine-grade stainless steel for durability and smooth rope handling.
Drawings
Top View
Features
- Marine grade 316 Stainless Steel Capstans
- Capstan features knurled finish for increased grip
- Clockwise rotation
- Auto action clutch preventing rollback
- Unit can be mounted horizontally
- Stainless steel mounting bolts
- Shaft seal
- Installation/Operation booklet
- Deck switch included
Technical Specification
Name
Specs
Recommended Vessel Length (m)
6m - 11m
Power Supply Options
DC 12V
Recommended Circuit Breaker
80A (12V)
Motor (Watts)
900Watts
Amps Workload
60A (12V)
Max Load (Kg)
135Kg
Workload (Kg)
45Kg
Max Line Speed
25m/min
Compatible Rope/Chain Combo (mm)
12 mm (1/2")
Compatible Rope Sizes (mm)
Up to 12 mm (Up to 1/2")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
8.5Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Deck mounting studs and fasteners
Installation/Operation booklet
