Descriptions
Muir HR650 Compact Horizontal Windlass — Powerful, Durable Anchoring for Recreational Boats
The Muir HR650 Compact Horizontal Windlass delivers reliable, high-performance anchoring power for recreational vessels. Built with a brushed 316 marine-grade stainless steel housing and polished stainless components, this robust windlass is engineered to withstand harsh marine environments while offering smooth, dependable operation. Its marine-grade, dual-direction motor and heavy-duty Italian drive train ensure strong pulling capacity, while the integrated chain pipe and peeler provide seamless rope and chain handling.
Designed for boats approximately 5–9 m (16–30 ft), the HR650 is ideal for sailors and cruisers seeking efficient anchor retrieval and deployment with minimal effort. Constructed in Australia with quality materials and backed by Muir’s proven engineering, it’s a trusted choice for compact anchoring systems.
Features
- Brushed finished 316 stainless steel housing
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Chain Pipe and Peeler
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
5m - 8m
Power Supply Options
DC 12V
Recommended Circuit Breaker
80A/80A (12/24V)
Motor (Watts)
550Watts
Amps Workload
60A (12V)
Max Load (Kg)
369Kg
Workload (Kg)
123Kg
Max Line Speed
21m/min
Compatible Chain Sizes (mm)
6 mm (1/4")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Manual Operation
N/A
Package Inclusions

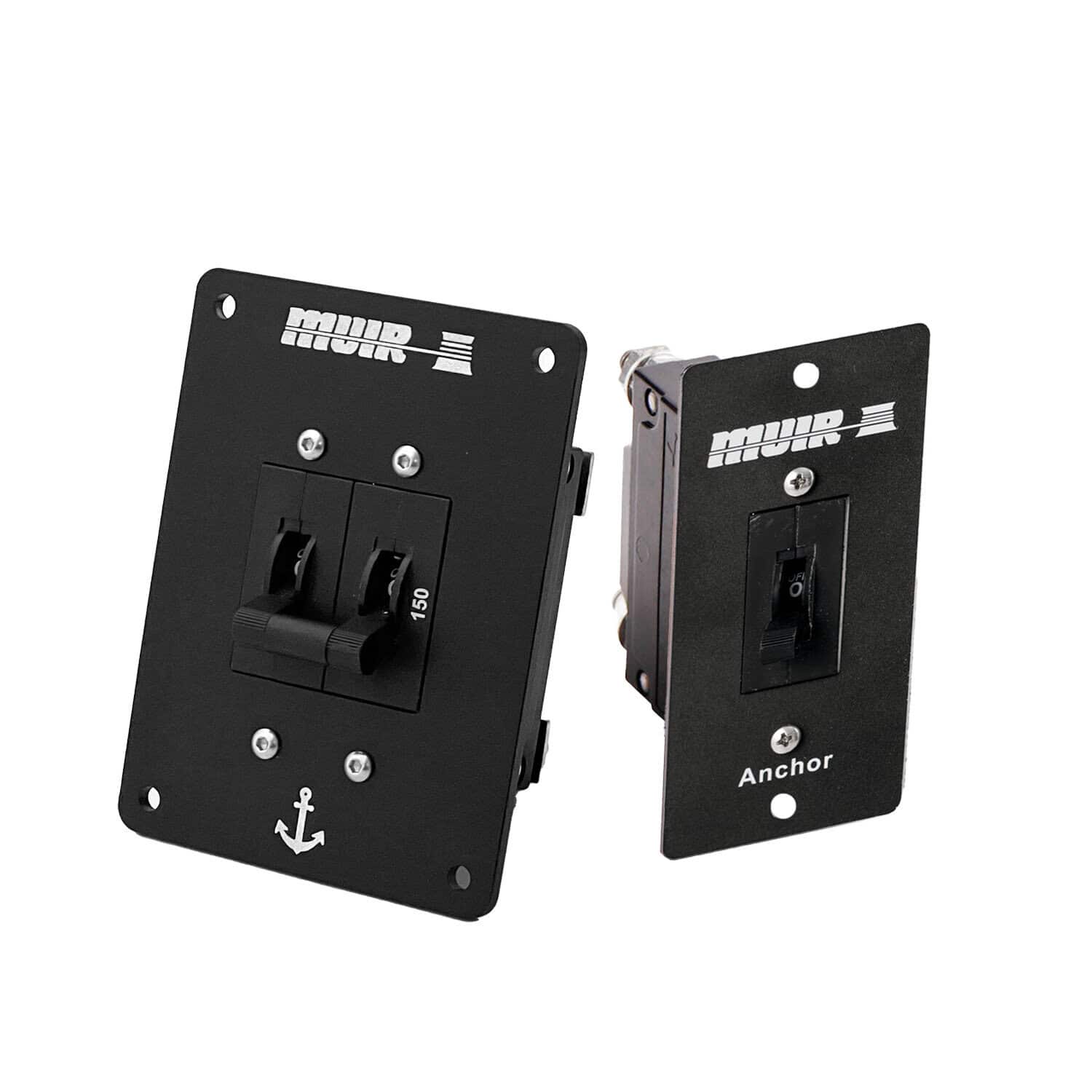

Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners

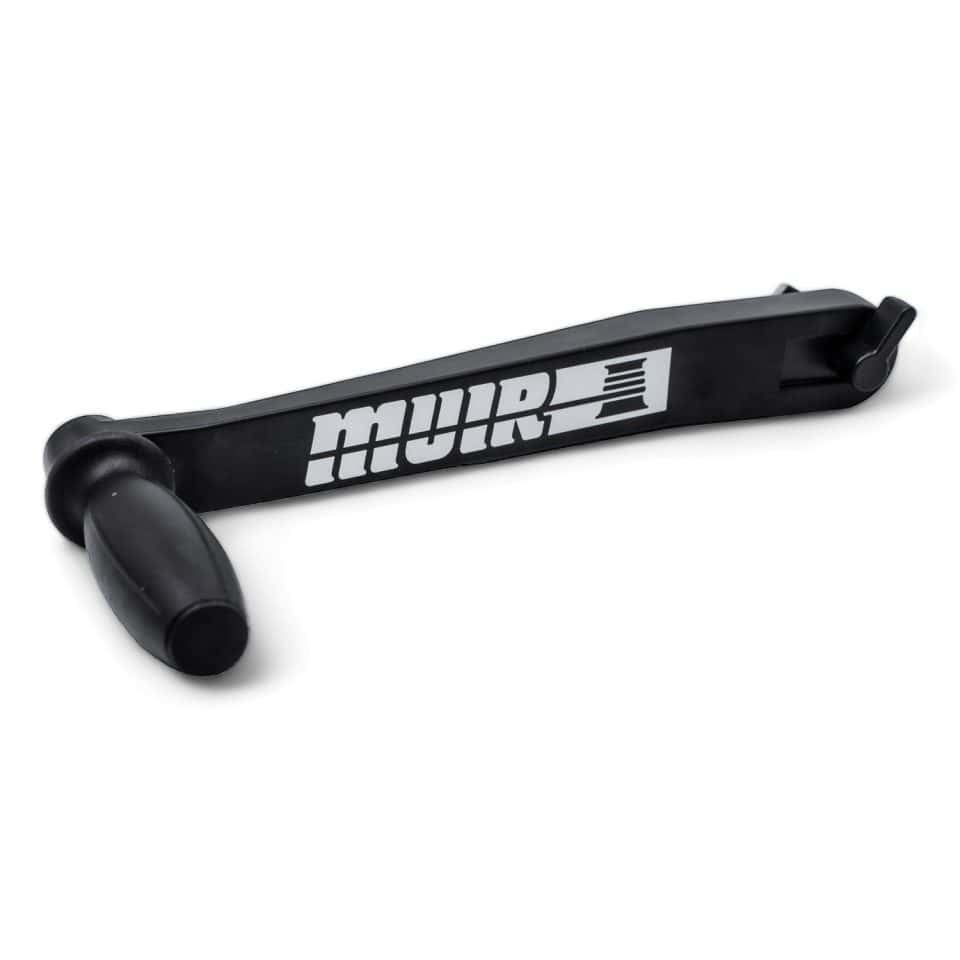

Clutch release handle

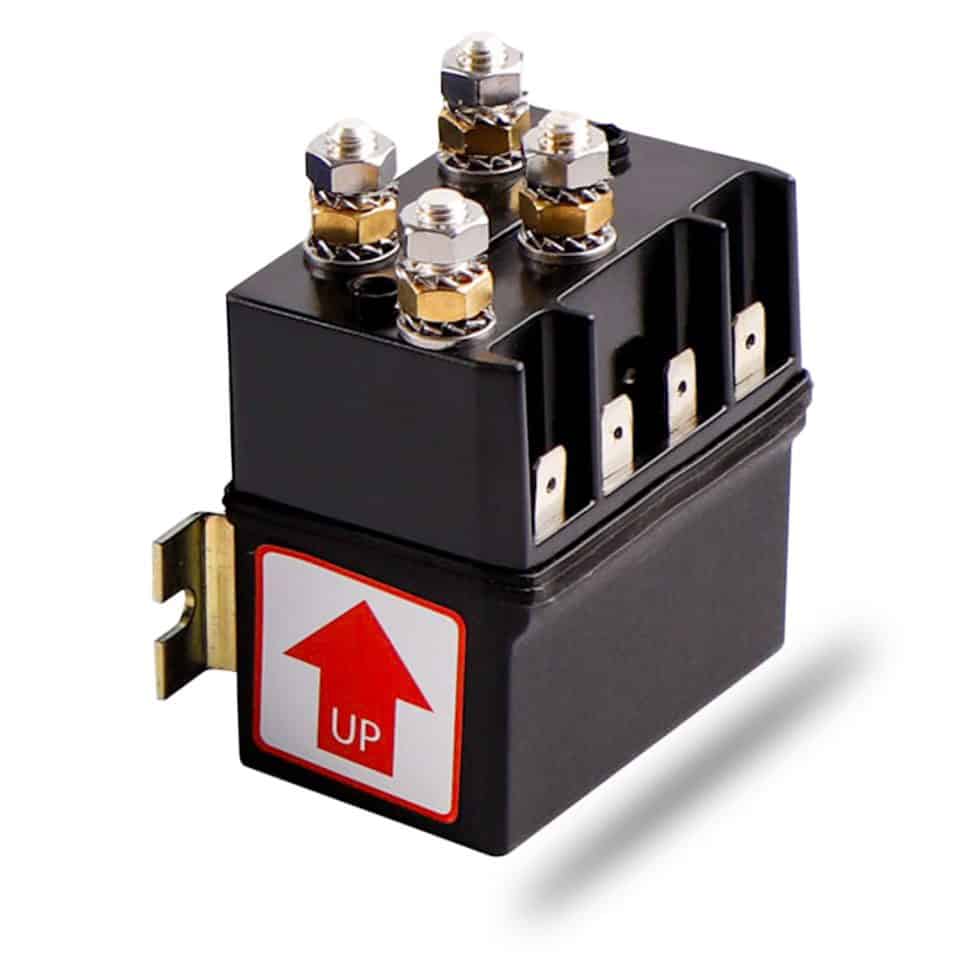

Reversing Solenoid kit

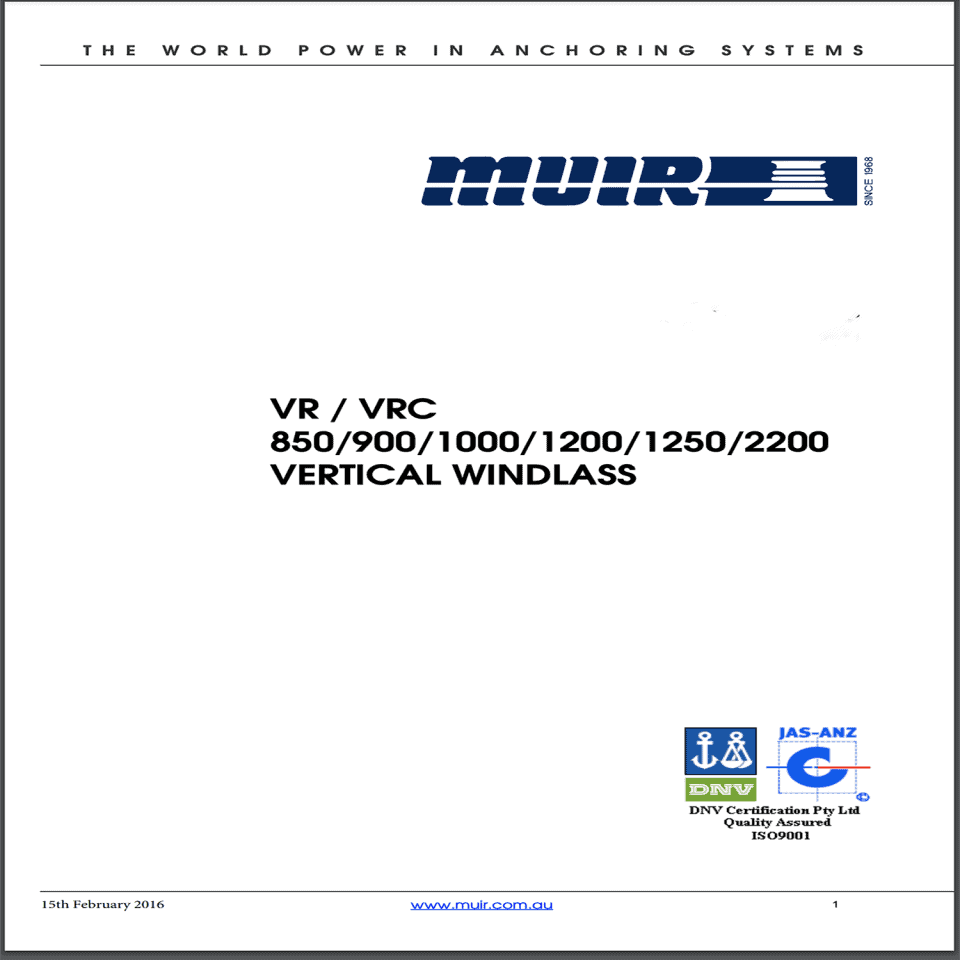

Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Reviews
Description
Muir HR650 Compact Horizontal Windlass — Powerful, Durable Anchoring for Recreational Boats
The Muir HR650 Compact Horizontal Windlass delivers reliable, high-performance anchoring power for recreational vessels. Built with a brushed 316 marine-grade stainless steel housing and polished stainless components, this robust windlass is engineered to withstand harsh marine environments while offering smooth, dependable operation. Its marine-grade, dual-direction motor and heavy-duty Italian drive train ensure strong pulling capacity, while the integrated chain pipe and peeler provide seamless rope and chain handling.
Designed for boats approximately 5–9 m (16–30 ft), the HR650 is ideal for sailors and cruisers seeking efficient anchor retrieval and deployment with minimal effort. Constructed in Australia with quality materials and backed by Muir’s proven engineering, it’s a trusted choice for compact anchoring systems.
Drawings
Slide View
Features
- Brushed finished 316 stainless steel housing
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Chain Pipe and Peeler
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Recommended Vessel Length (m)
5m - 8m
Power Supply Options
DC 12V
Recommended Circuit Breaker
80A/80A (12/24V)
Motor (Watts)
550Watts
Amps Workload
60A (12V)
Max Load (Kg)
369Kg
Workload (Kg)
123Kg
Max Line Speed
21m/min
Compatible Chain Sizes (mm)
6 mm (1/4")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Clutch release handle
Reversing Solenoid kit
Installation/Operation booklet
