HR3500 Jaguar
Price range: $5,695.25 through $6,163.76
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions

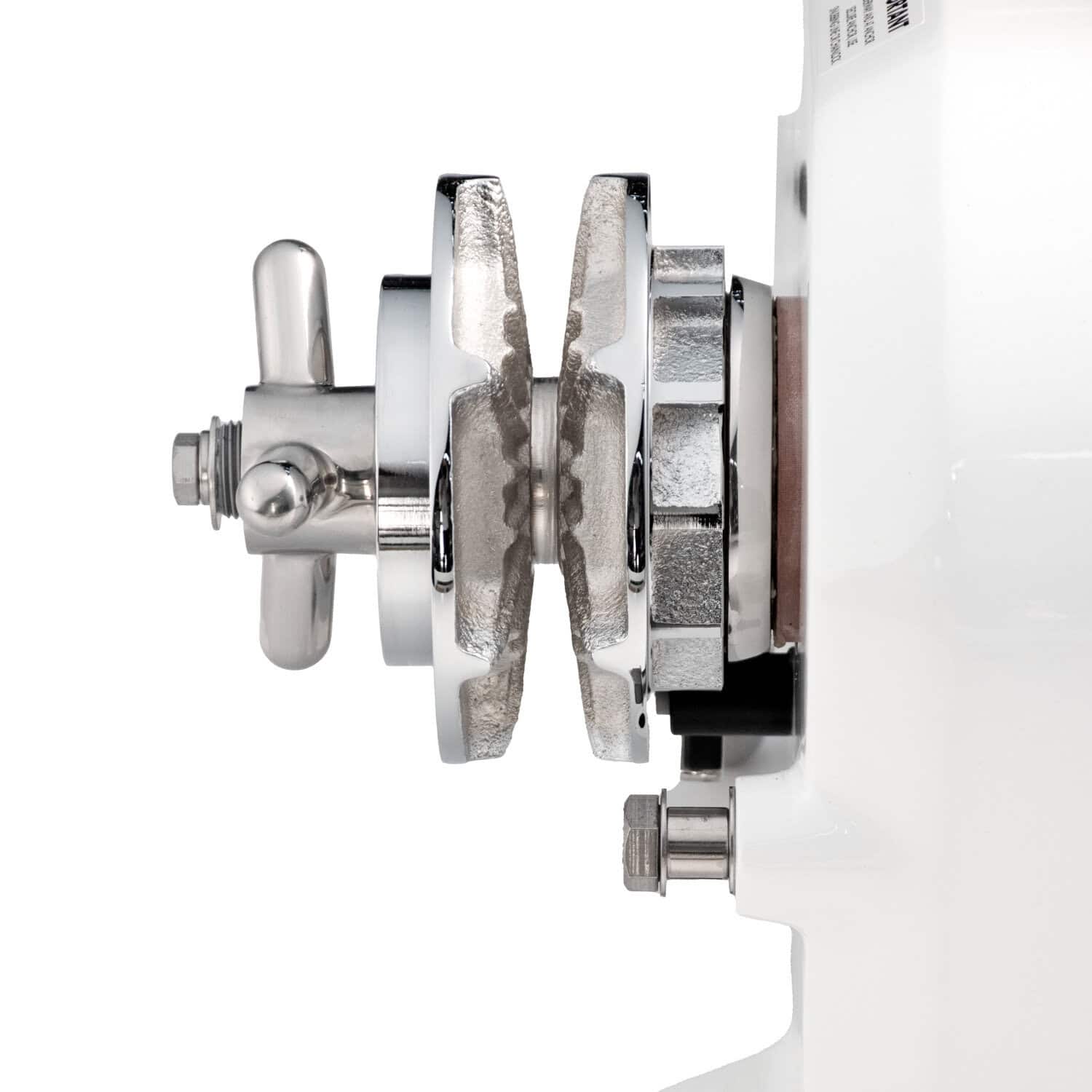

Muir Compact HR3500 Jaguar
For vessels up to 20m (67ft), the HR3500 Jaguar is engineered for serious pulling power. With its composite housing, oil bath gearbox, and stainless drive components, it’s built to perform under pressure.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
Slide View
Features
- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Chain Pipe and Peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
14m - 20m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1700Watts
Amps Workload
185A/90A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
28L/min
Max Load (Kg)
1650Kg
Workload (Kg)
550Kg
Max Line Speed
28m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Override System MORS
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Muir Compact HR3500 Jaguar
For vessels up to 20m (67ft), the HR3500 Jaguar is engineered for serious pulling power. With its composite housing, oil bath gearbox, and stainless drive components, it’s built to perform under pressure.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
Slide View
Features
- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Chain Pipe and Peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Recommended Vessel Length (m)
14m - 20m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1700Watts
Amps Workload
185A/90A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
28L/min
Max Load (Kg)
1650Kg
Workload (Kg)
550Kg
Max Line Speed
28m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Override System MORS
Downloads
Parts
