HR4000 Thor
Price range: $7,595.25 through $7,988.70
3 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions
Muir Compact HR4000 Thor
Designed for boats up to 24m (79ft), the HR4000 Thor brings brute strength with quiet precision. Whether in remote anchorages or tight marinas, this windlass delivers total reliability and premium performance.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View

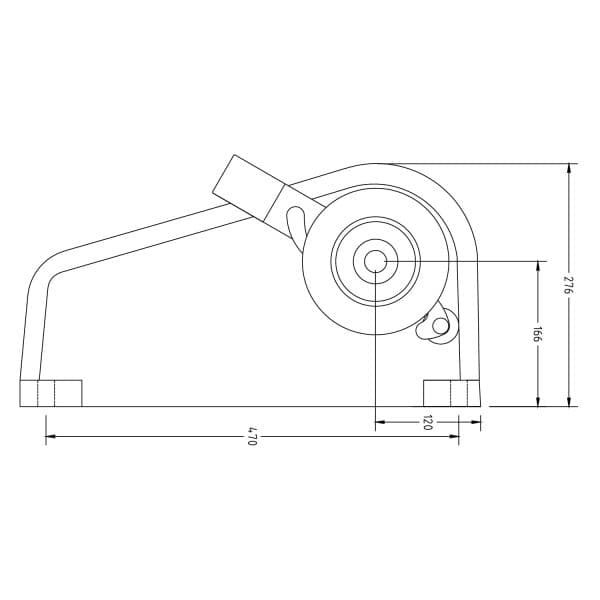

Slide View
Features

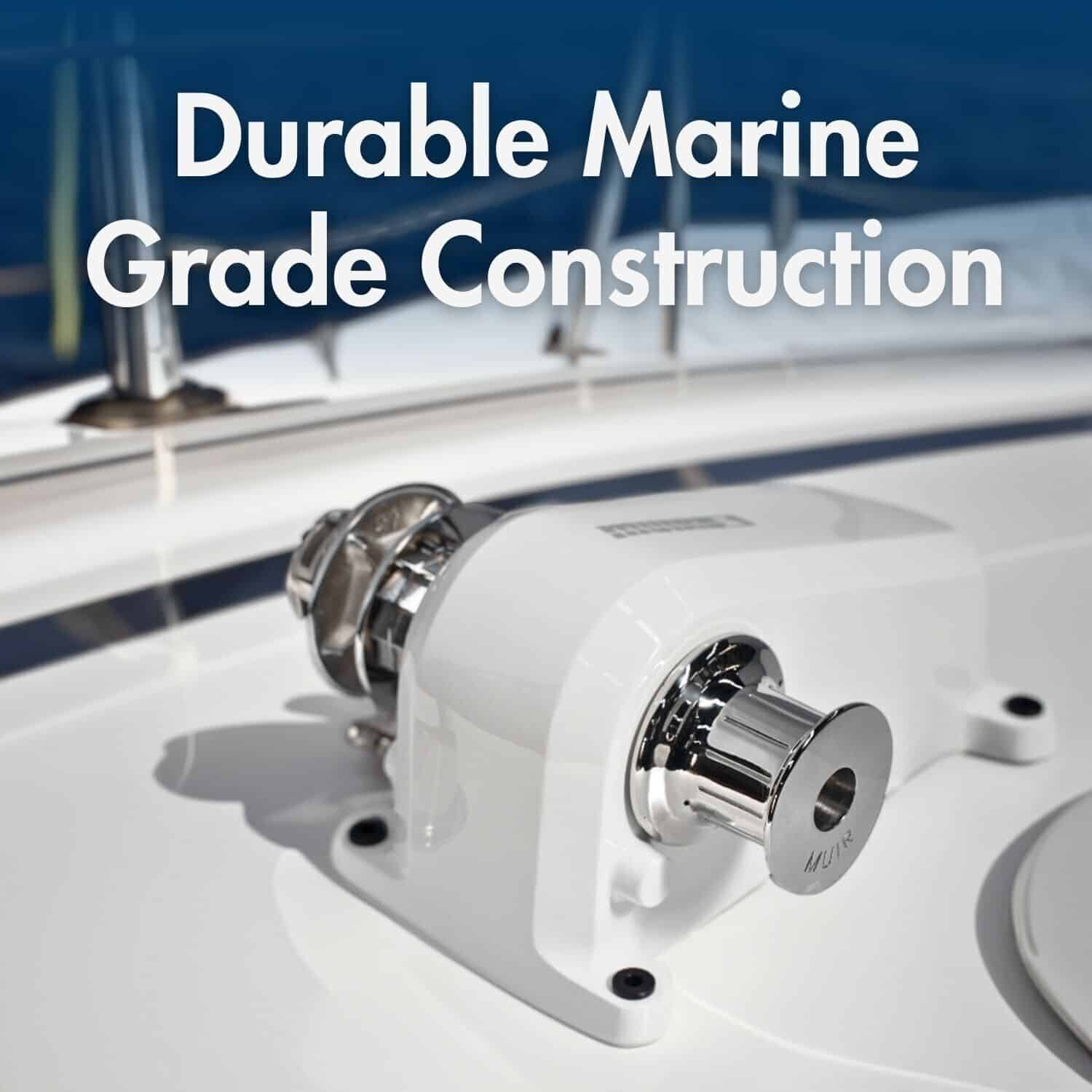

- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear

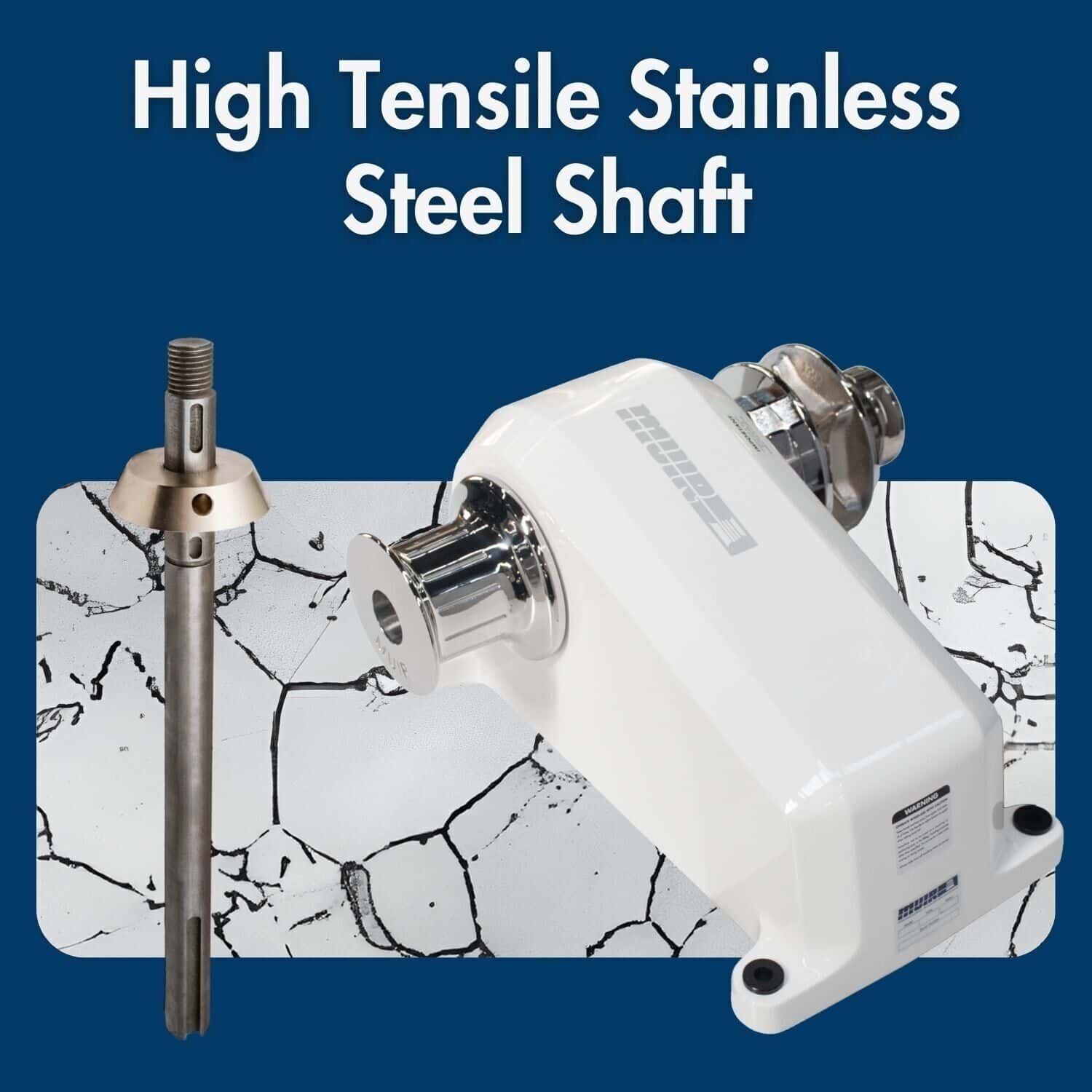

- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor

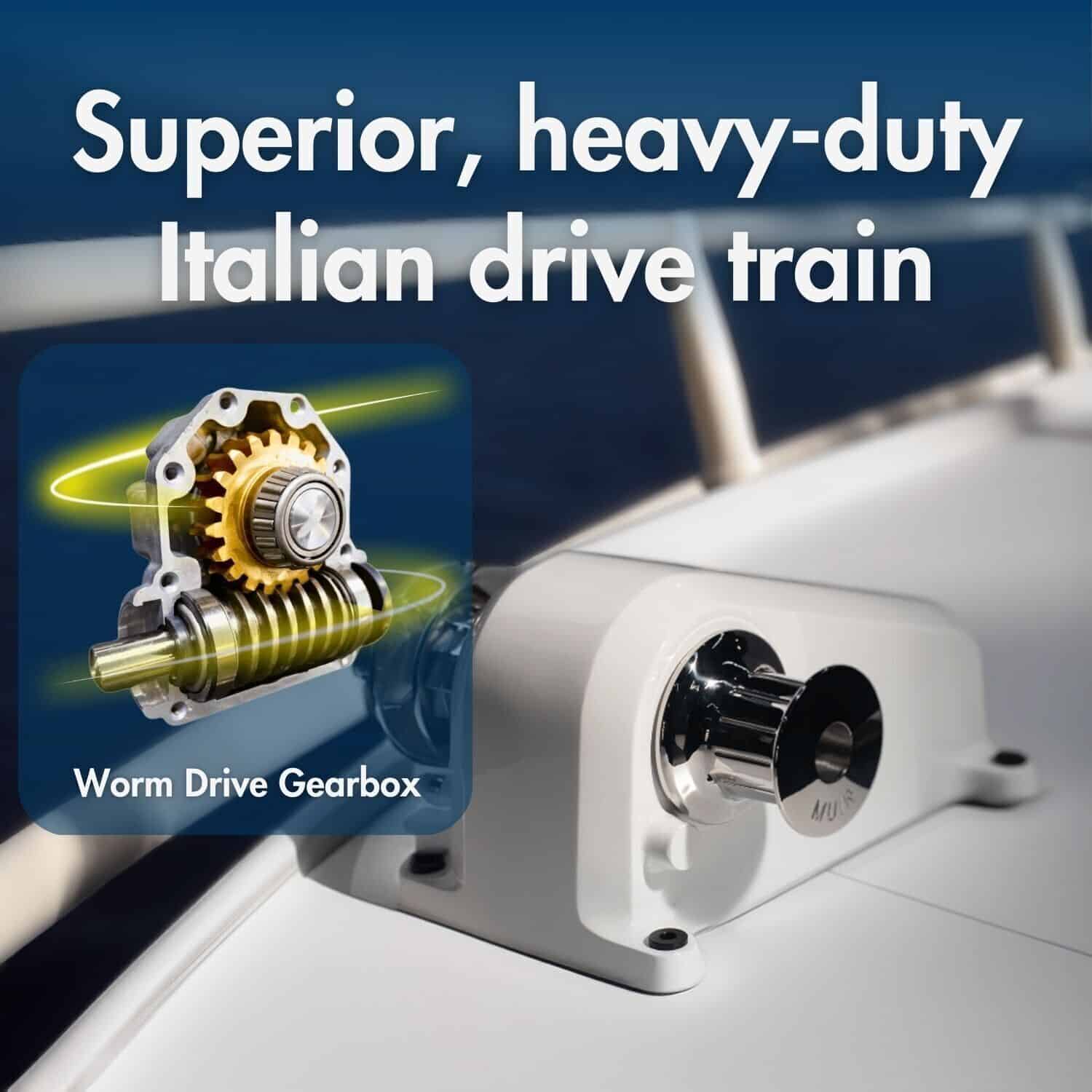

- Superior heavy-duty Italian drive train

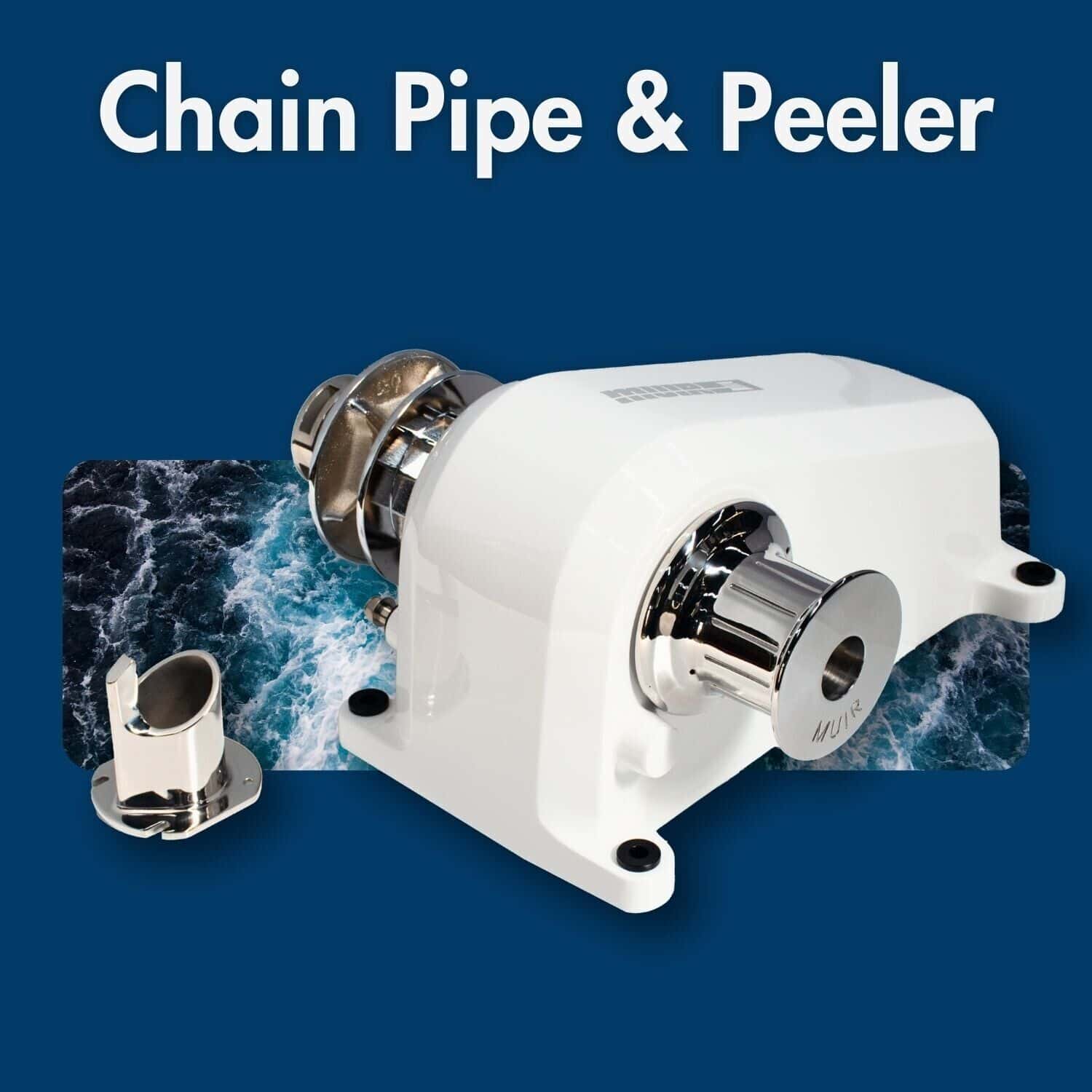

- Chain Pipe and Peeler

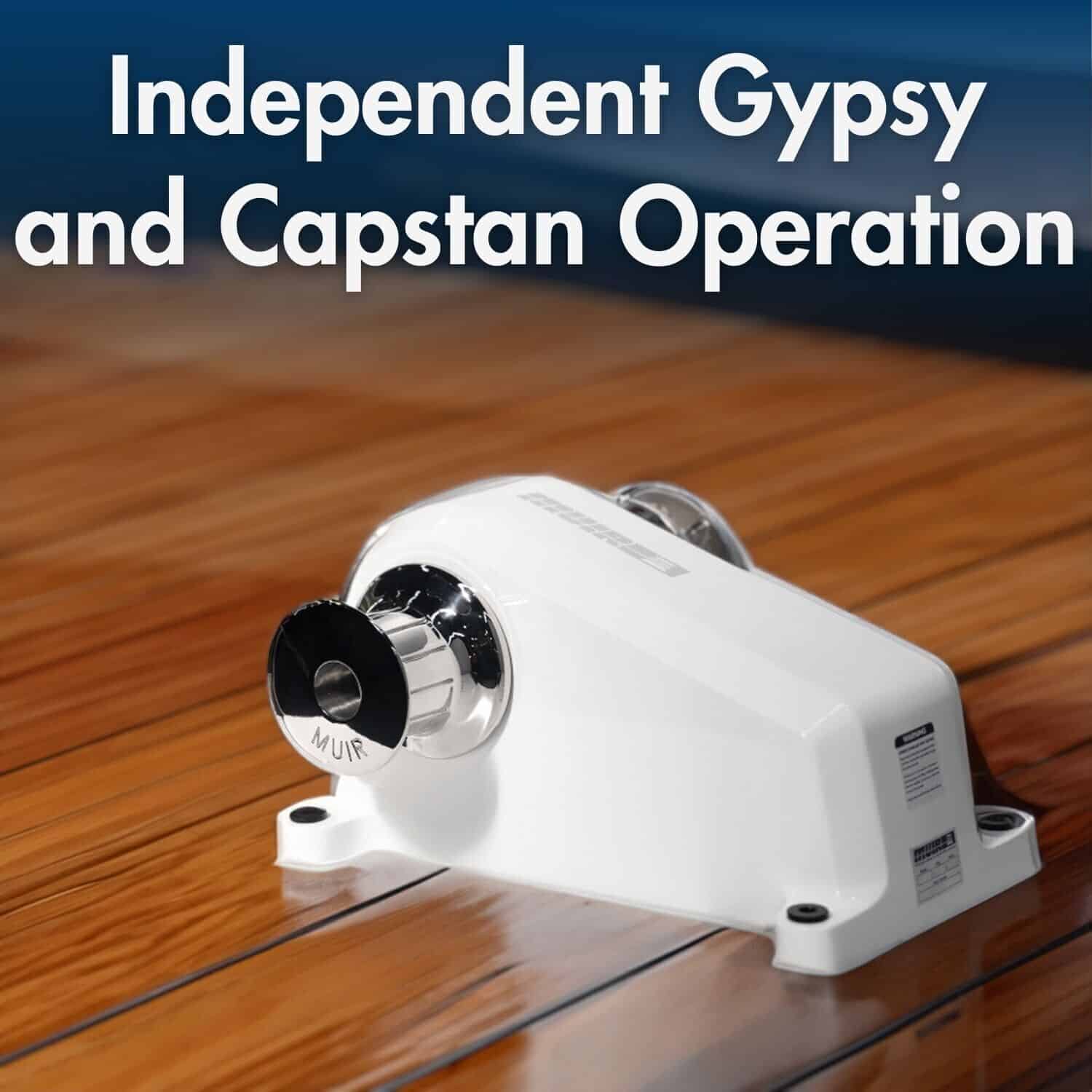

- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Power Supply Options
DC 24V, DC 48V
Recommended Circuit Breaker
150A (24V)
Amps Workload
90A (12V)
Hydraulic Pressure
12MPa
Hydraulic Flow
28L/min
Max Load (Kg)
1800Kg
Workload (Kg)
600Kg
Max Line Speed
17m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8"), 13 mm (1/2"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Override System MORS
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Muir Compact HR4000 Thor
Designed for boats up to 24m (79ft), the HR4000 Thor brings brute strength with quiet precision. Whether in remote anchorages or tight marinas, this windlass delivers total reliability and premium performance.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
Slide View
Features
- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Chain Pipe and Peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Power Supply Options
DC 24V, DC 48V
Recommended Circuit Breaker
150A (24V)
Amps Workload
90A (12V)
Hydraulic Pressure
12MPa
Hydraulic Flow
28L/min
Max Load (Kg)
1800Kg
Workload (Kg)
600Kg
Max Line Speed
17m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8"), 13 mm (1/2"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Override System MORS
Downloads
Parts
