HR1200 Stainless
$2,638.91
3 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions

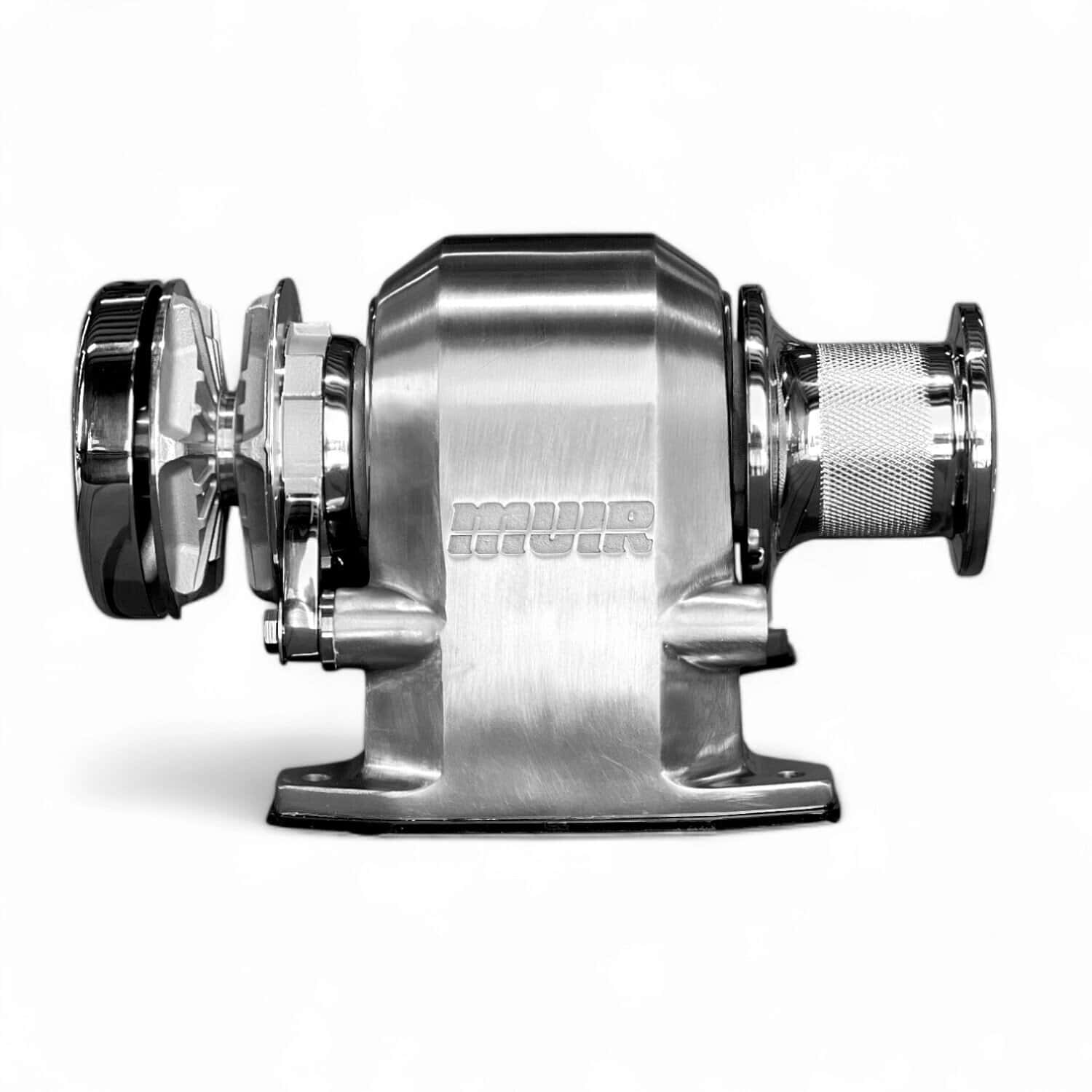

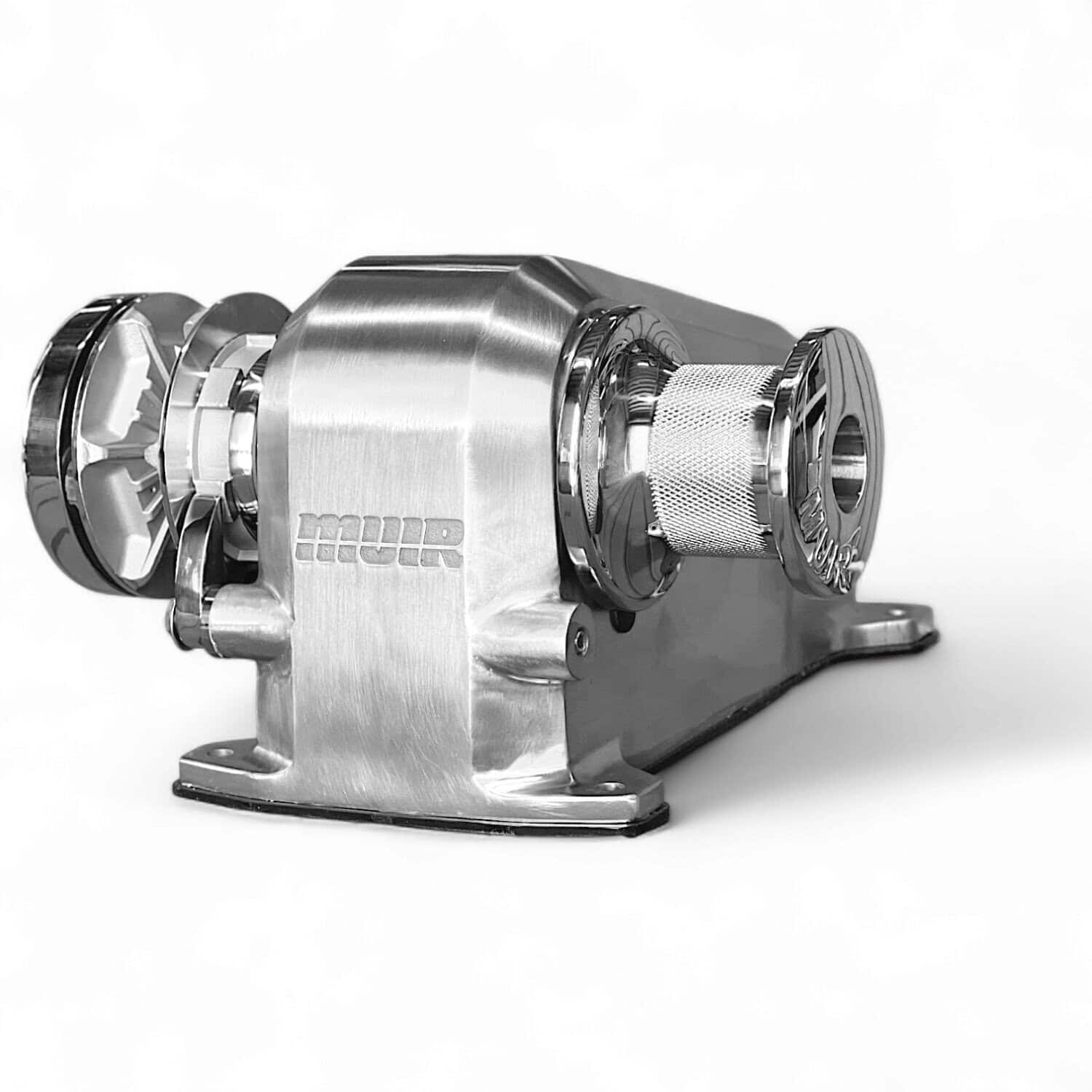

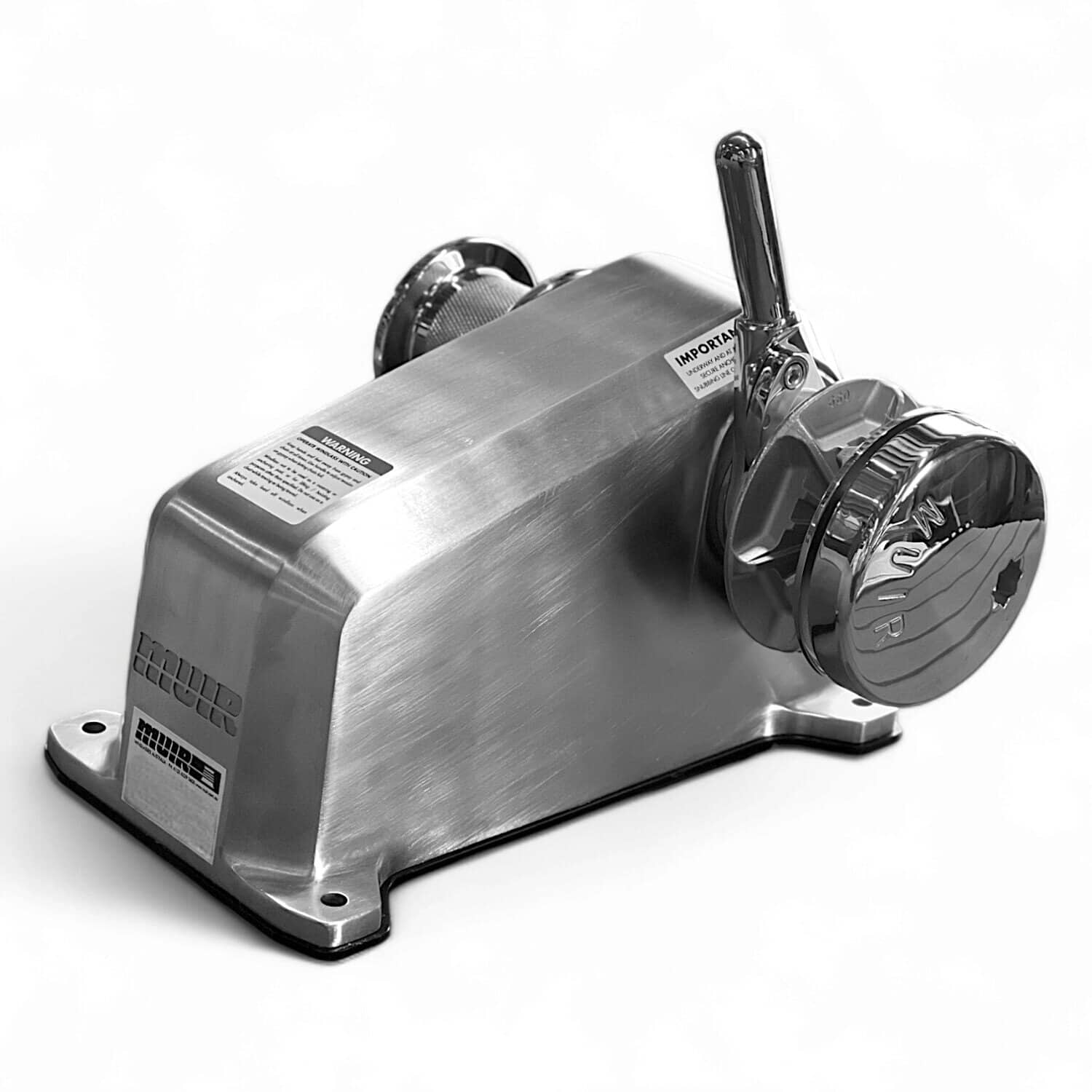

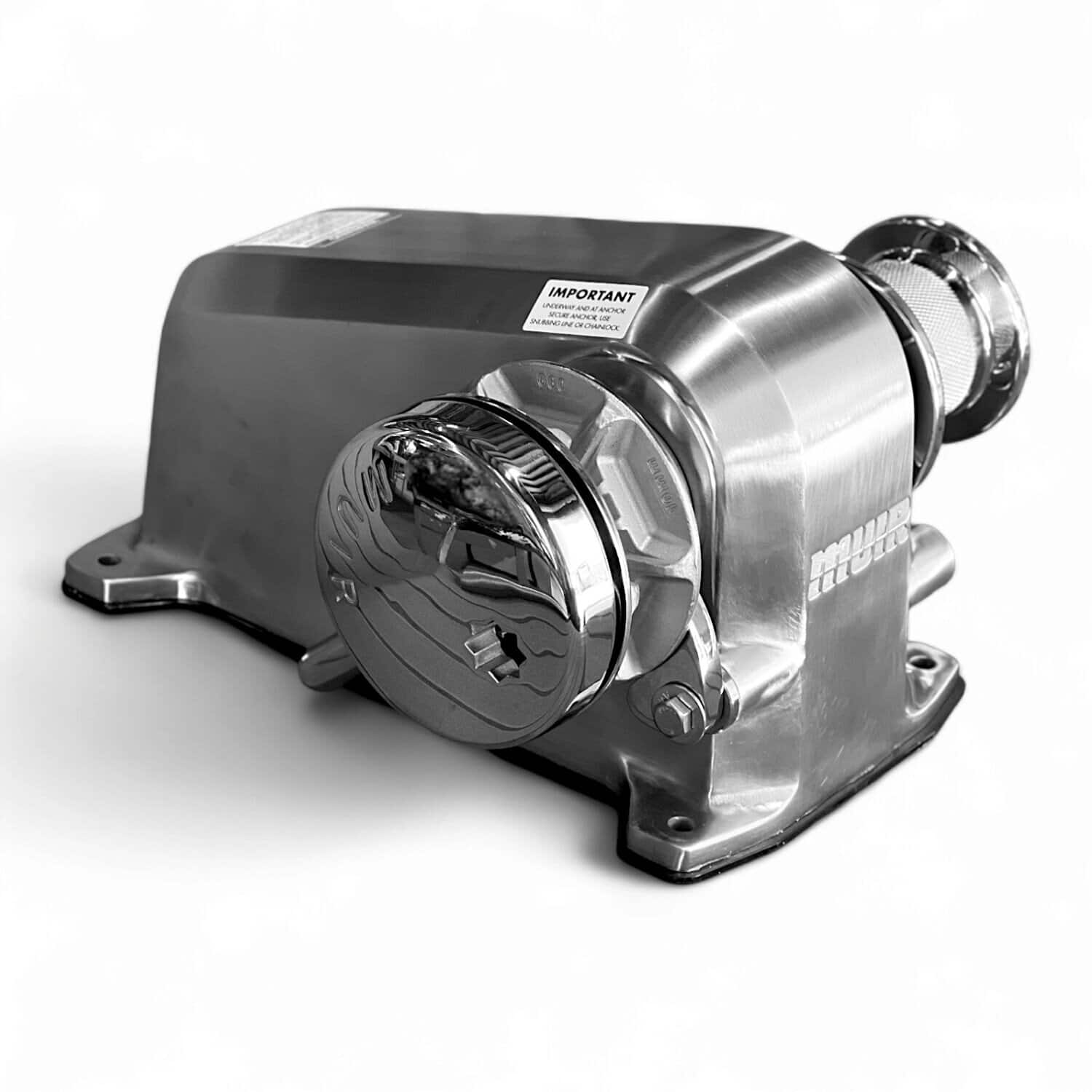

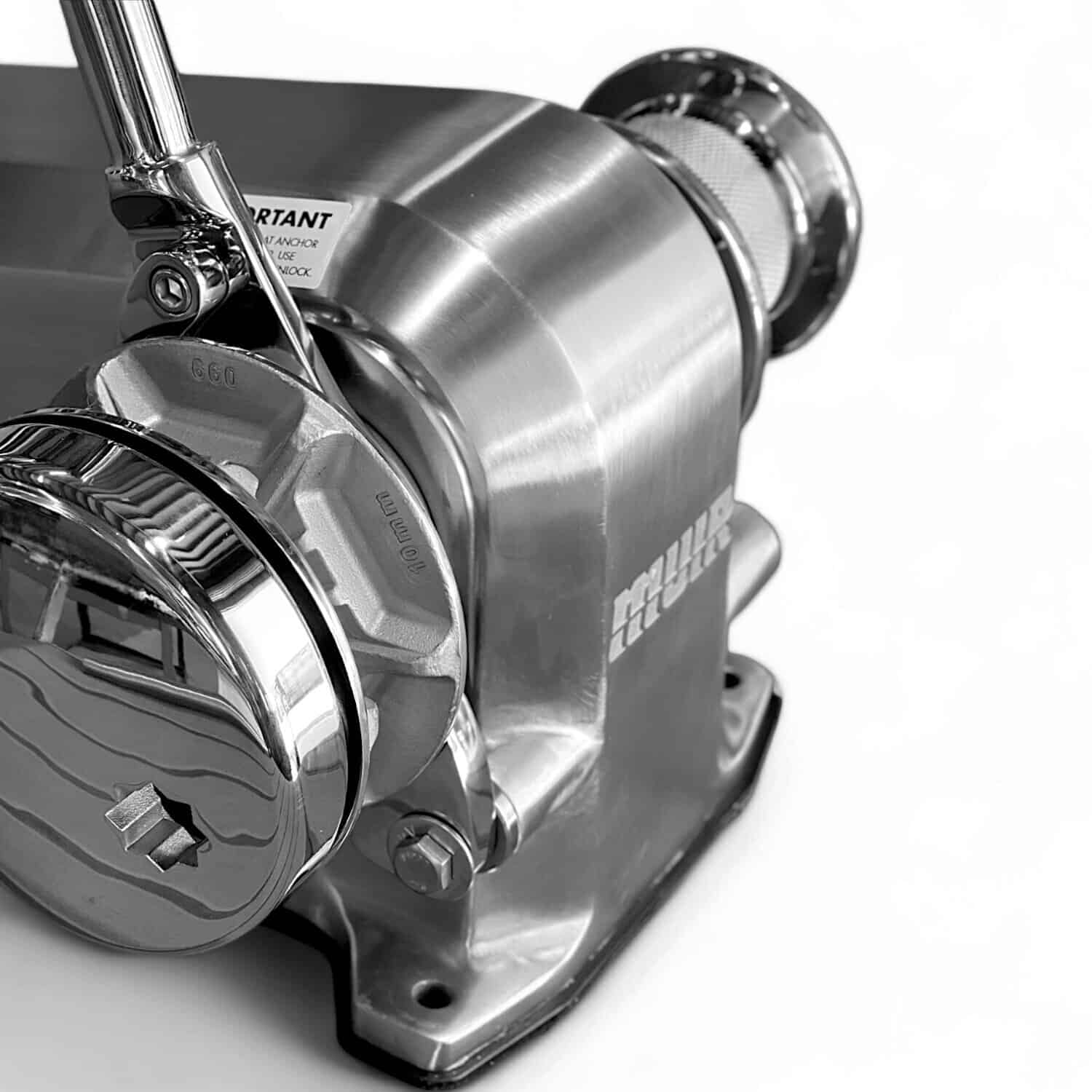

Muir Reliable Compact HR1200 Stainless
For boats up to 12m (39ft), the HR1200 Stainless combines power and reliability in a compact design. Its oil-bath gearbox, stainless components, and manual backup ensure dependable anchoring in all conditions.
Drawings
Top View
Slide View
Features
- Brushed finished 316 stainless steel housing

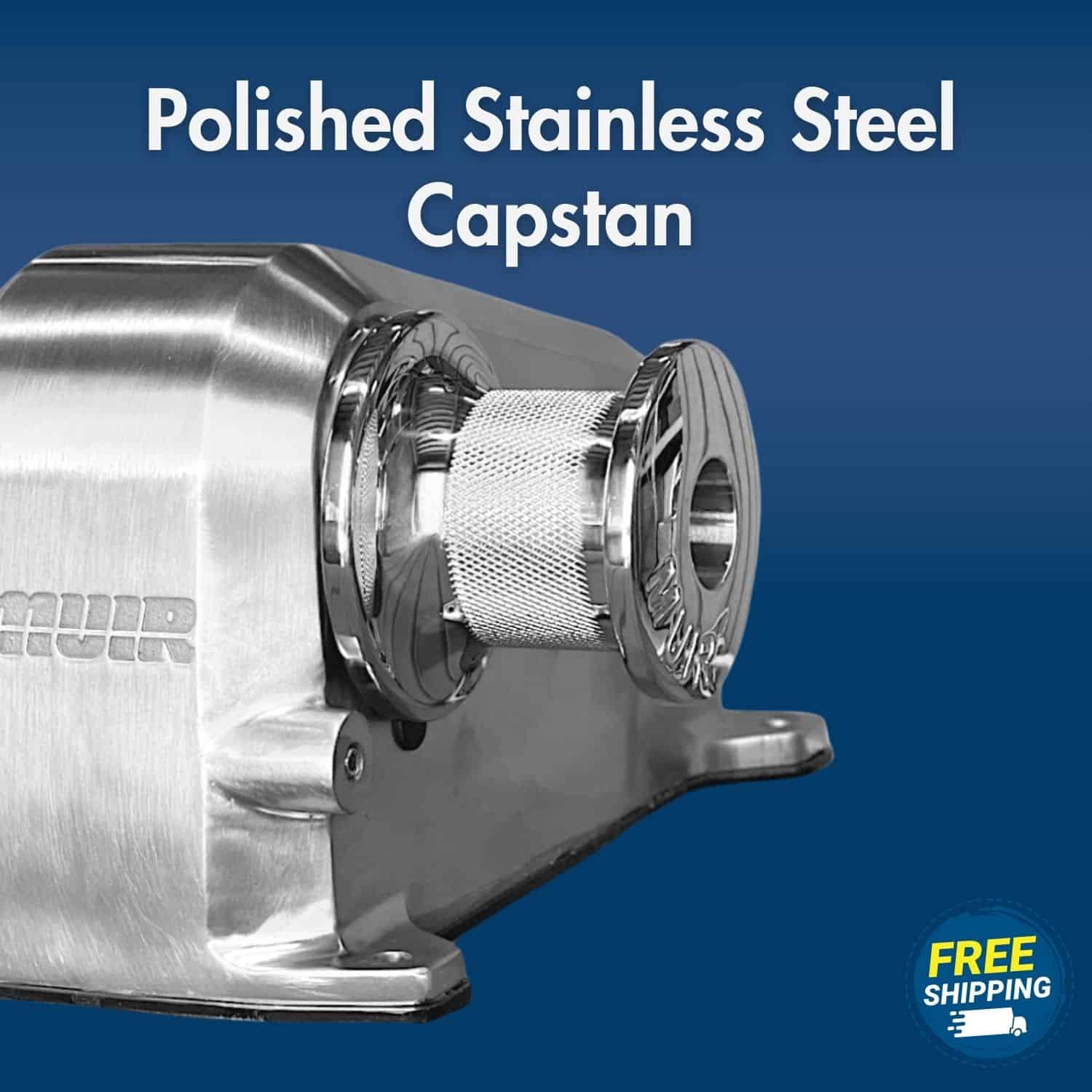

- Polished stainless steel components
- High tensile stainless steel shaft

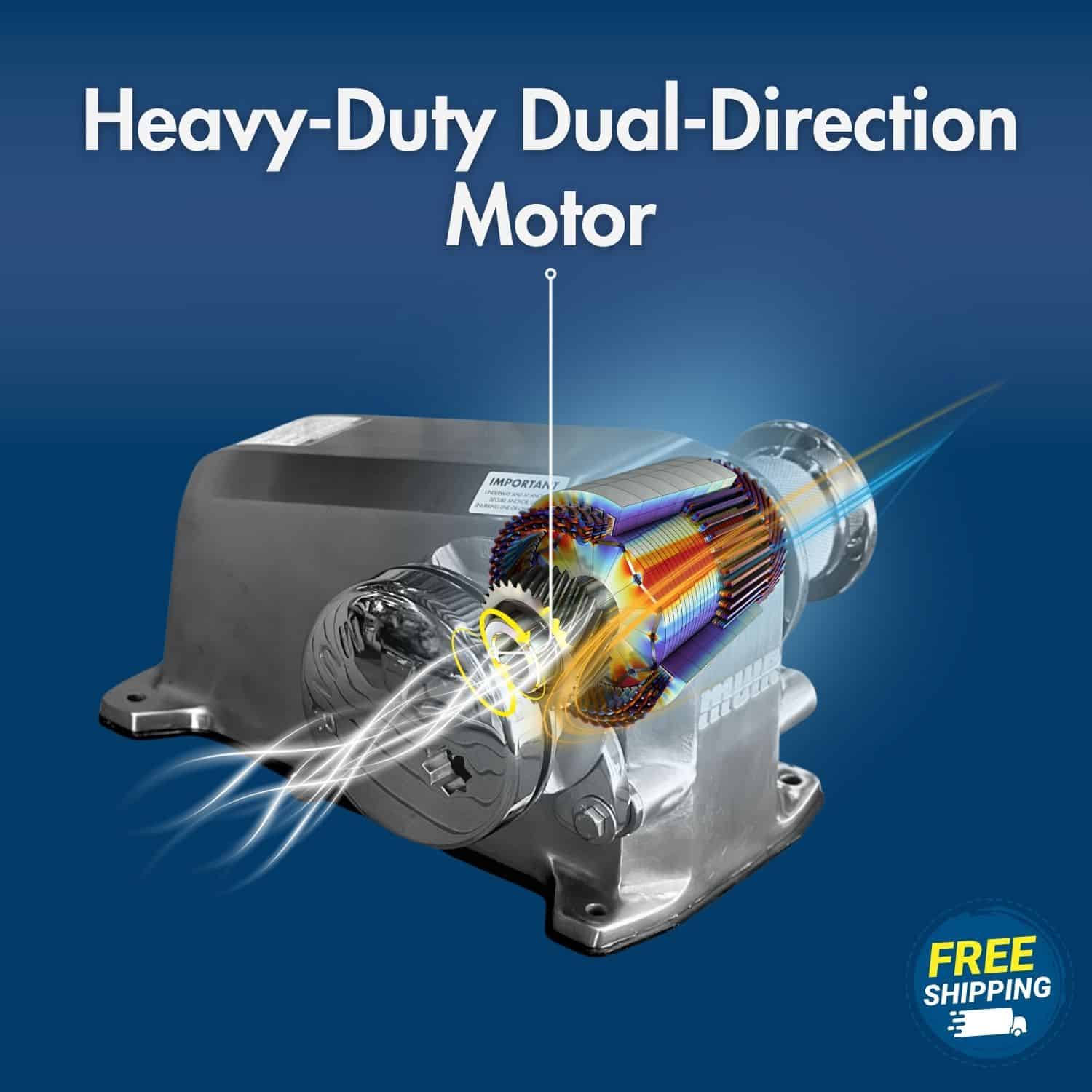

- Heavy duty, marine grade, dual-direction motor

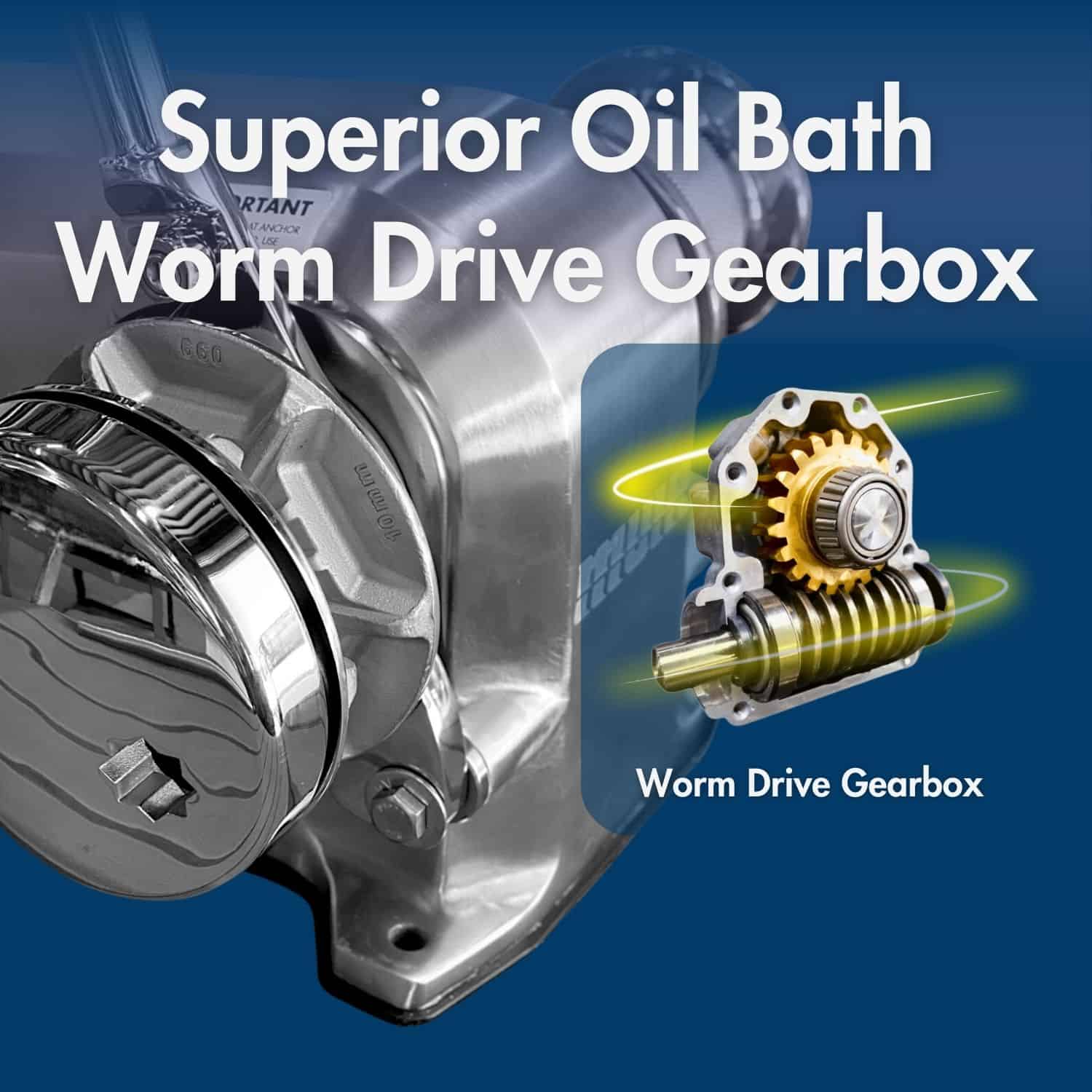

- Superior heavy-duty Oil bath worm drive gearbox
- Gypsy lock/pawl

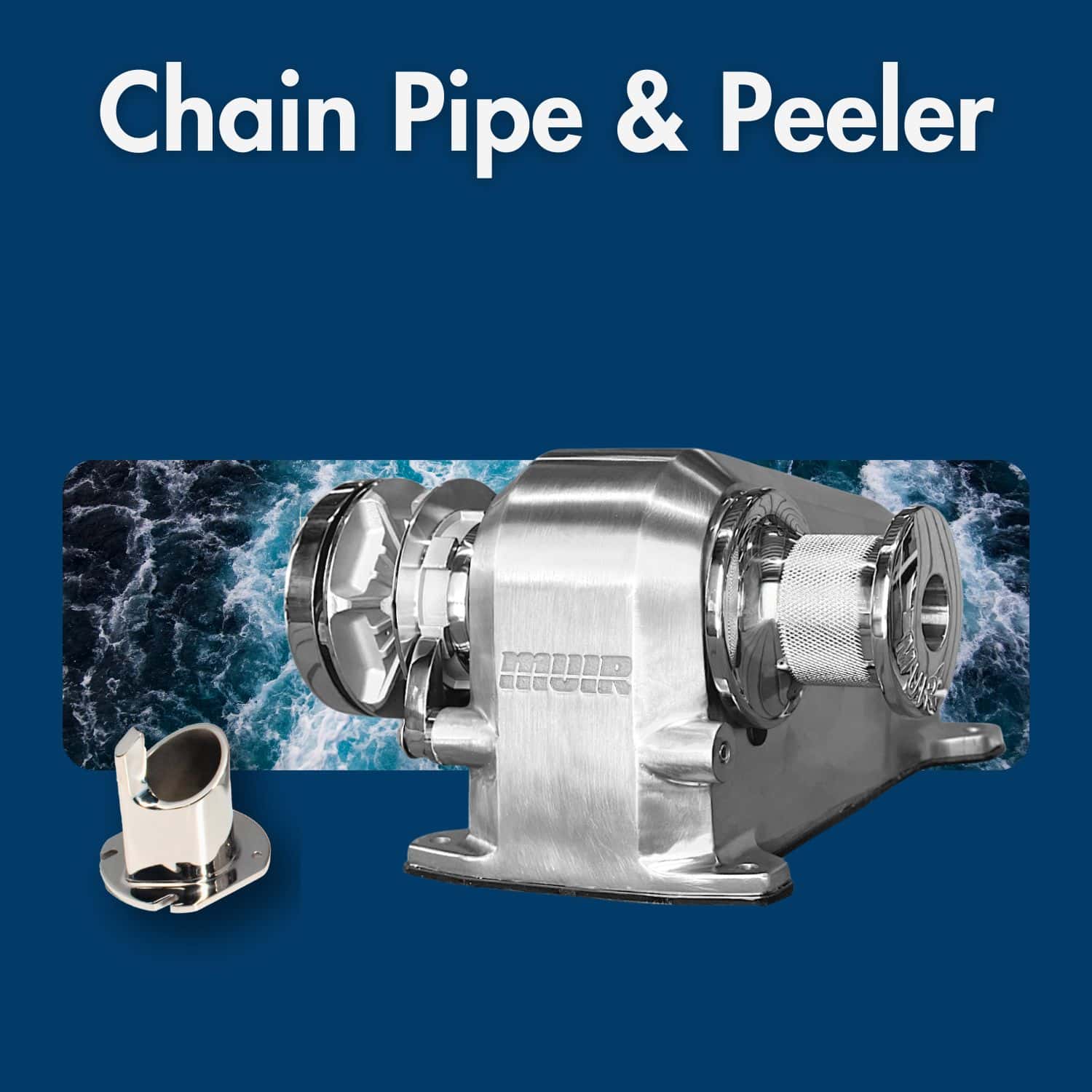

- Chain Pipe and Peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
80A/80A (12/24V)
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
500Kg
Workload (Kg)
166Kg
Max Line Speed
26m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)

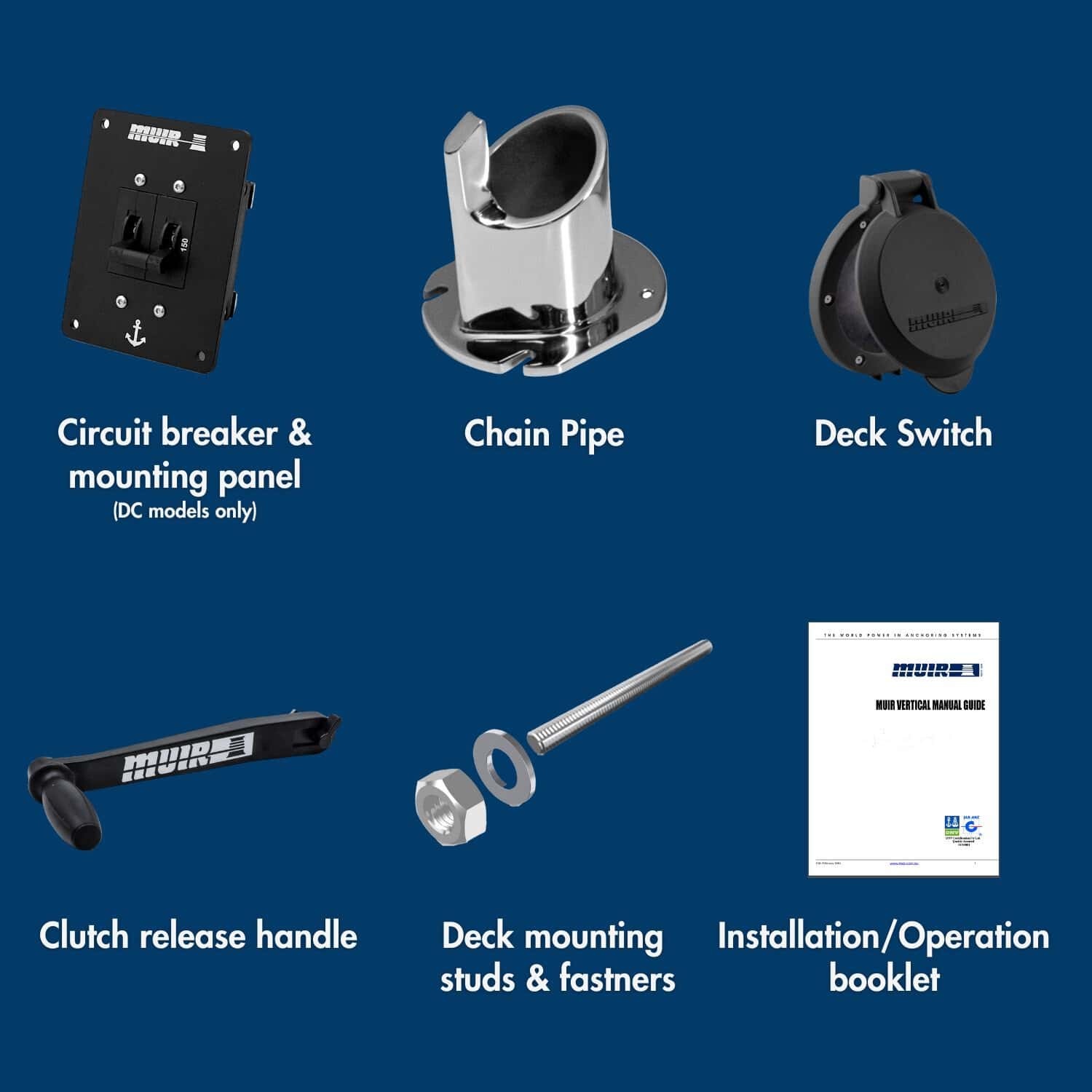

Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Clutch release handle
Installation/Operation booklet
Deck mounting studs and fasteners
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Reviews
Description
Muir Reliable Compact HR1200 Stainless
For boats up to 12m (39ft), the HR1200 Stainless combines power and reliability in a compact design. Its oil-bath gearbox, stainless components, and manual backup ensure dependable anchoring in all conditions.
Drawings
Top View
Slide View
Features
- Brushed finished 316 stainless steel housing
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Gypsy lock/pawl
- Chain Pipe and Peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
80A/80A (12/24V)
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
500Kg
Workload (Kg)
166Kg
Max Line Speed
26m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Clutch release handle
Installation/Operation booklet
Deck mounting studs and fasteners
