HR2500 Cheetah
Price range: $4,419.00 through $4,625.32
5 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions

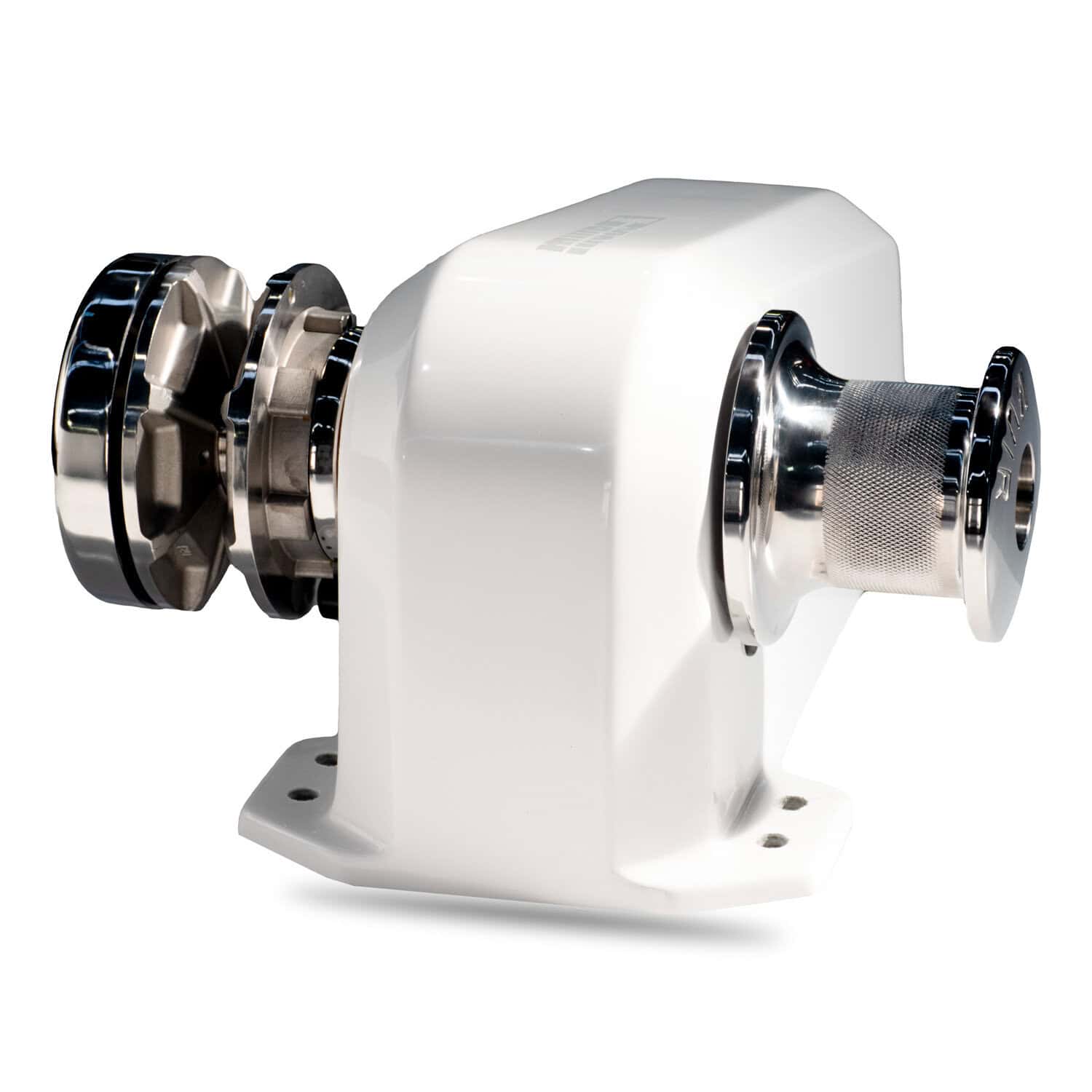

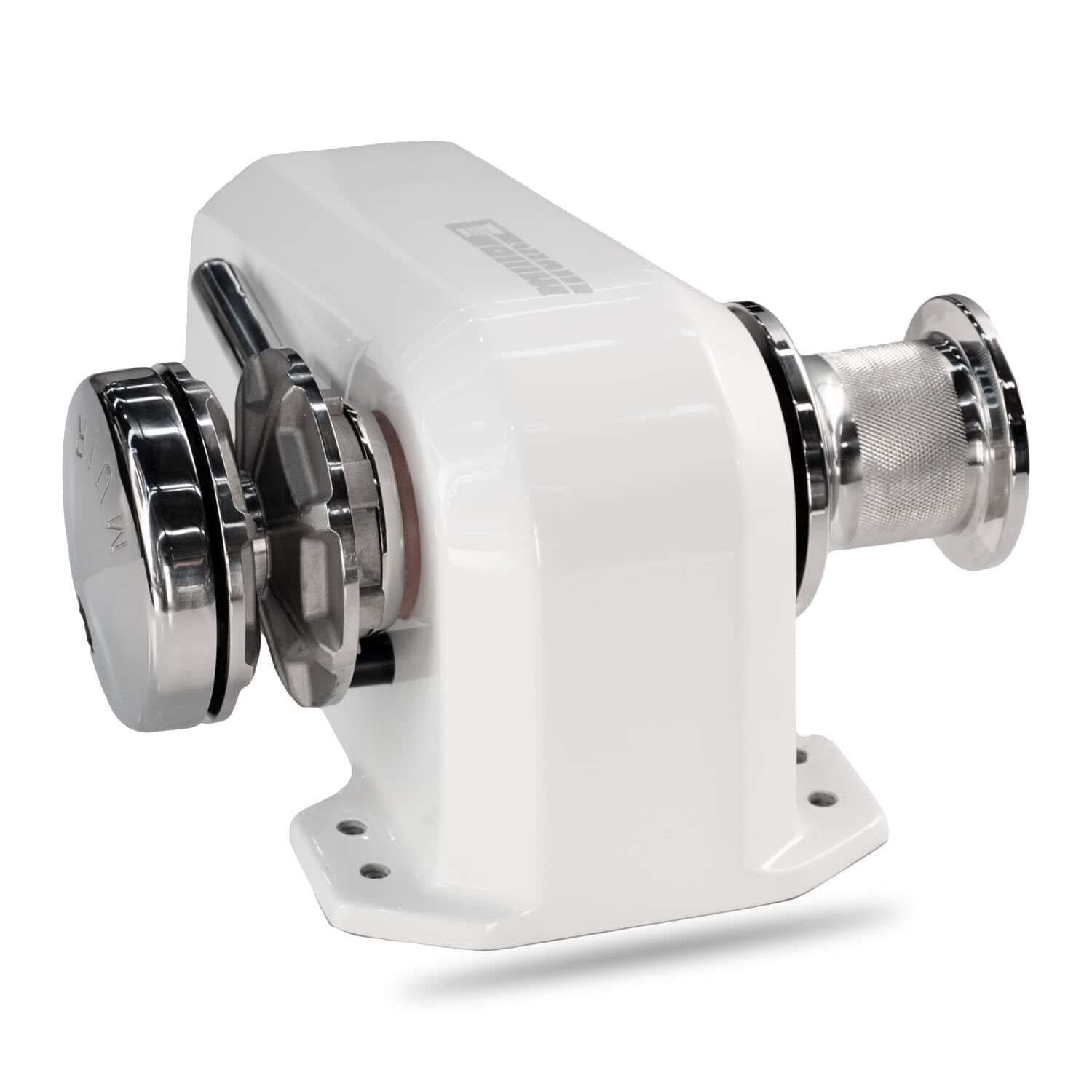

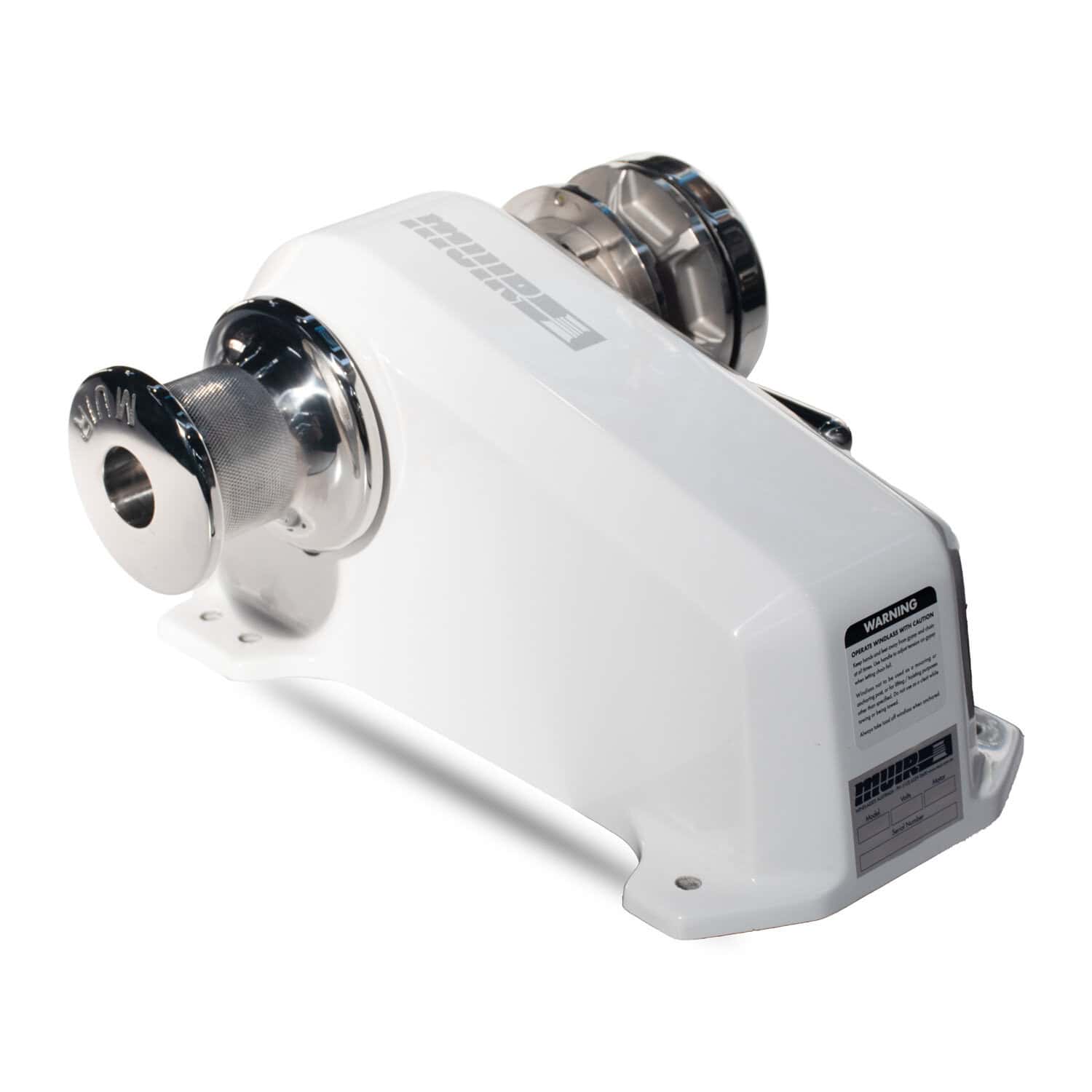

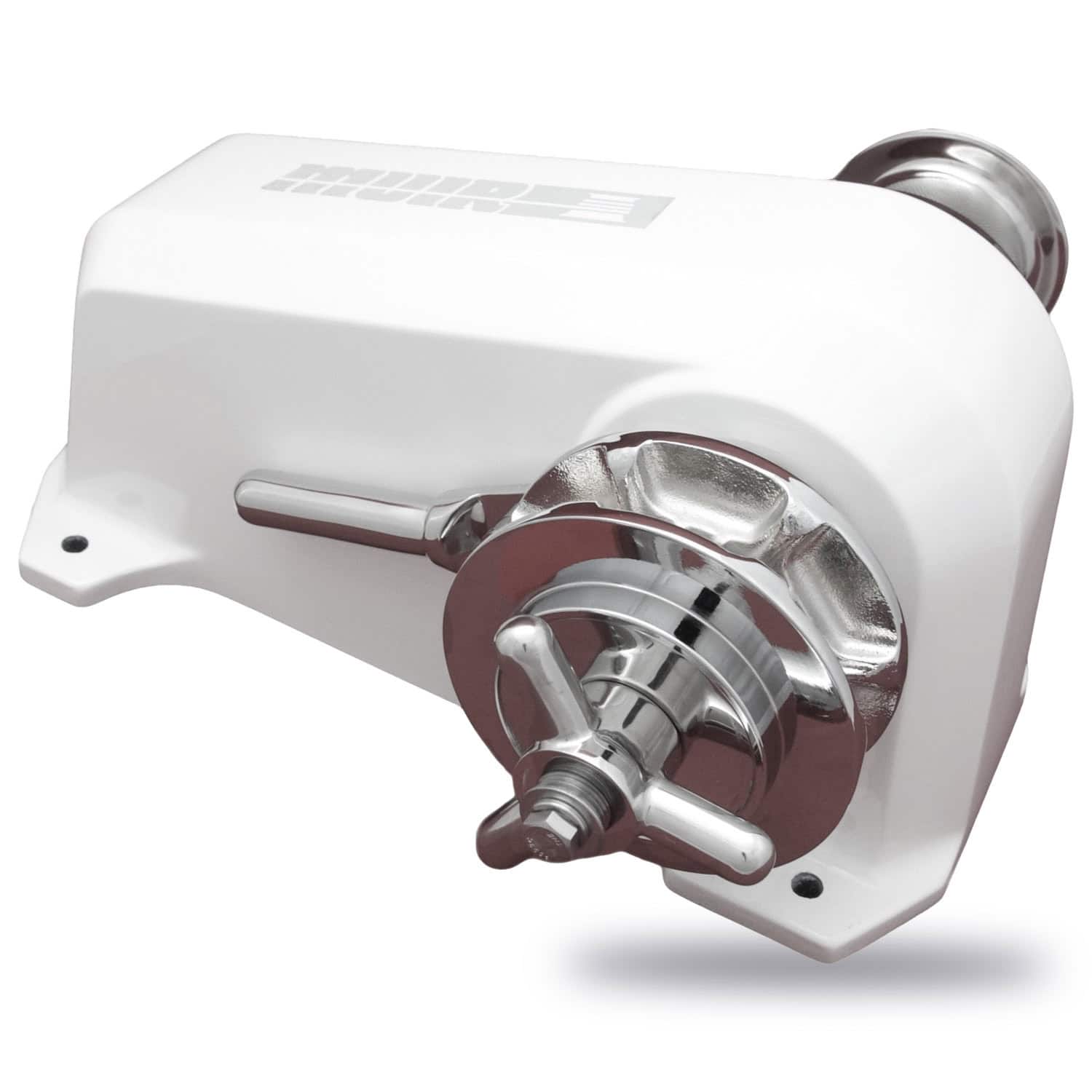

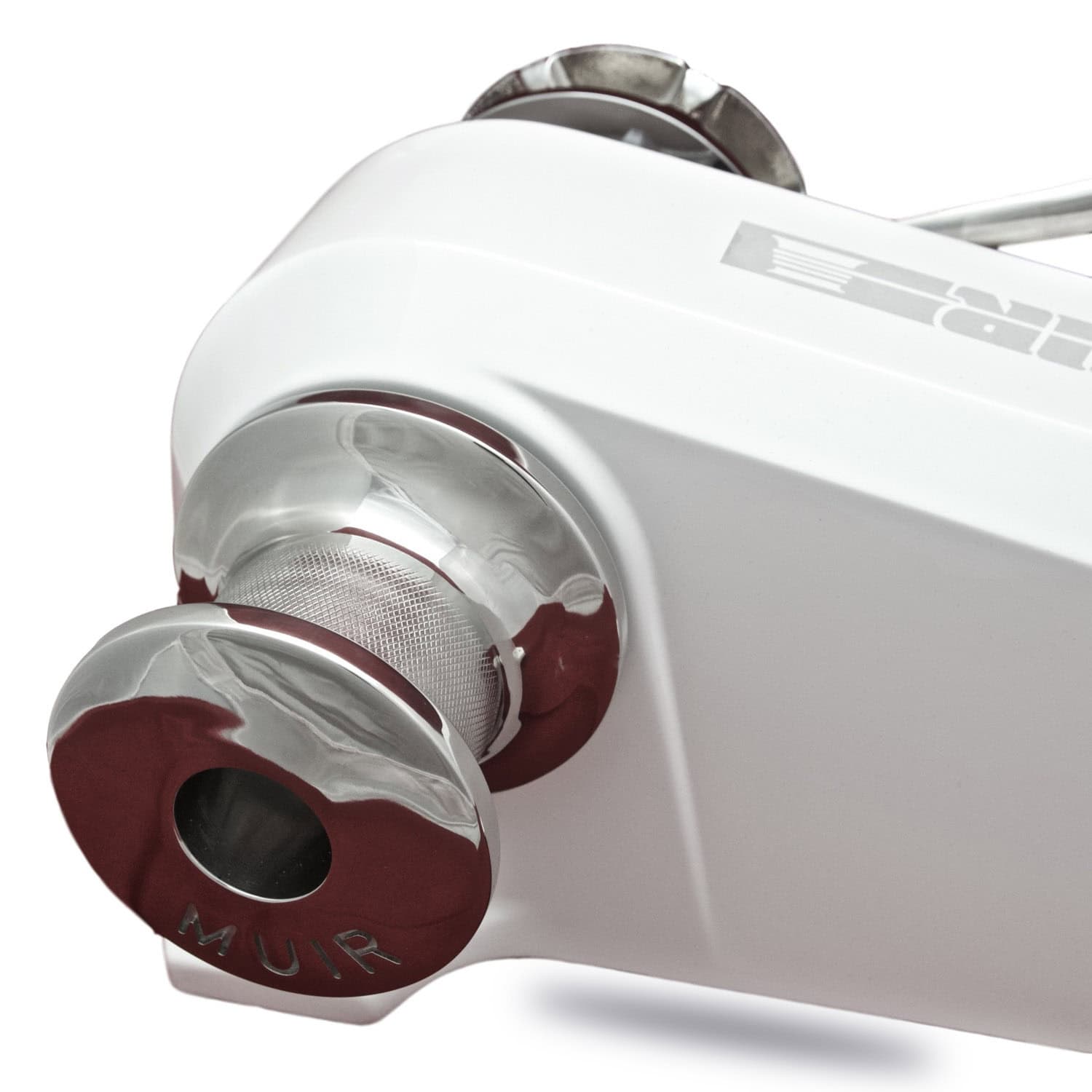

Muir Reliable Compact HR2500 Cheetah
Power meets precision in the HR2500 Cheetah, built for vessels up to 17m (57ft). With rope-chain compatibility, dual-direction power, and manual override, it’s a top-tier solution for offshore cruisers and commercial operators.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings

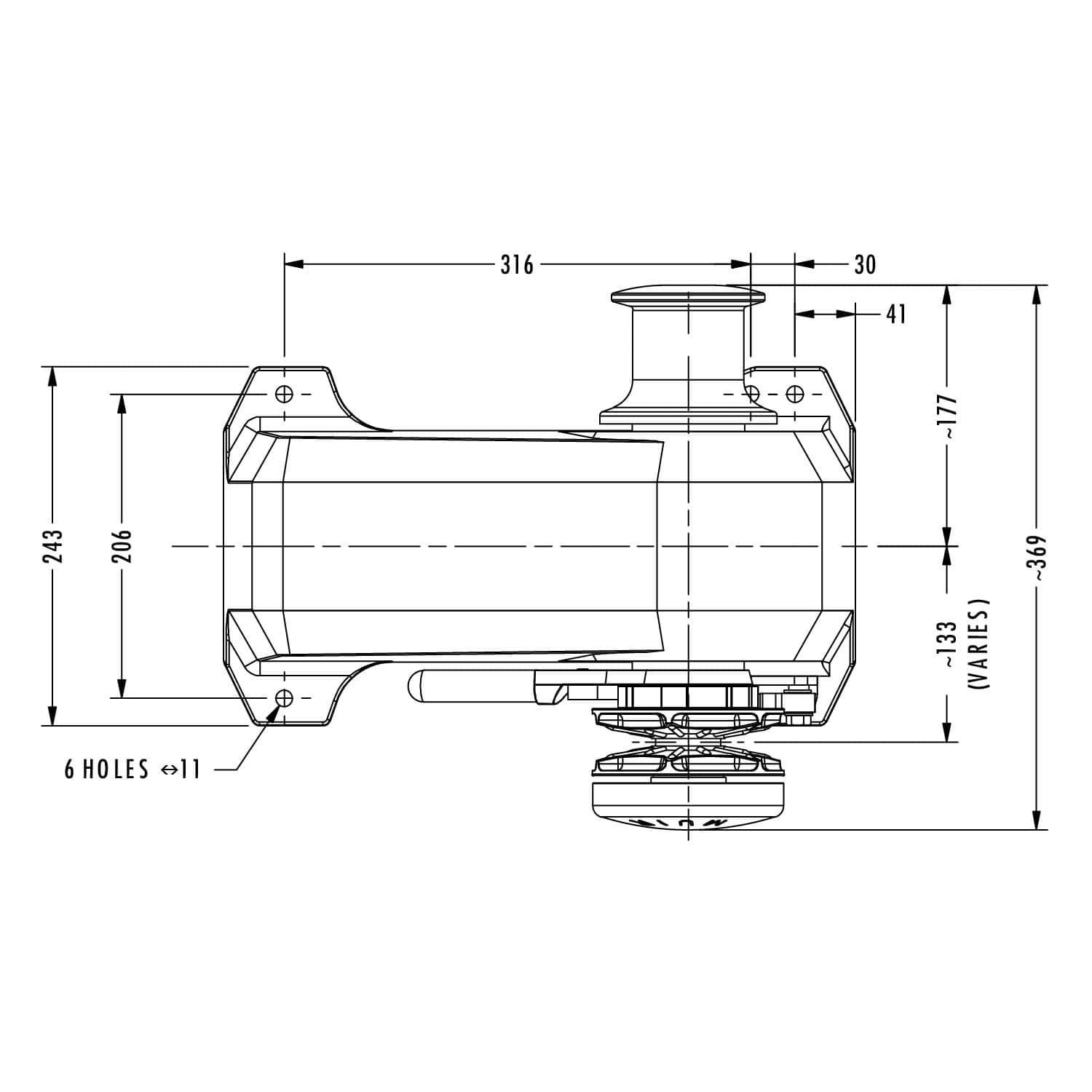

Top View

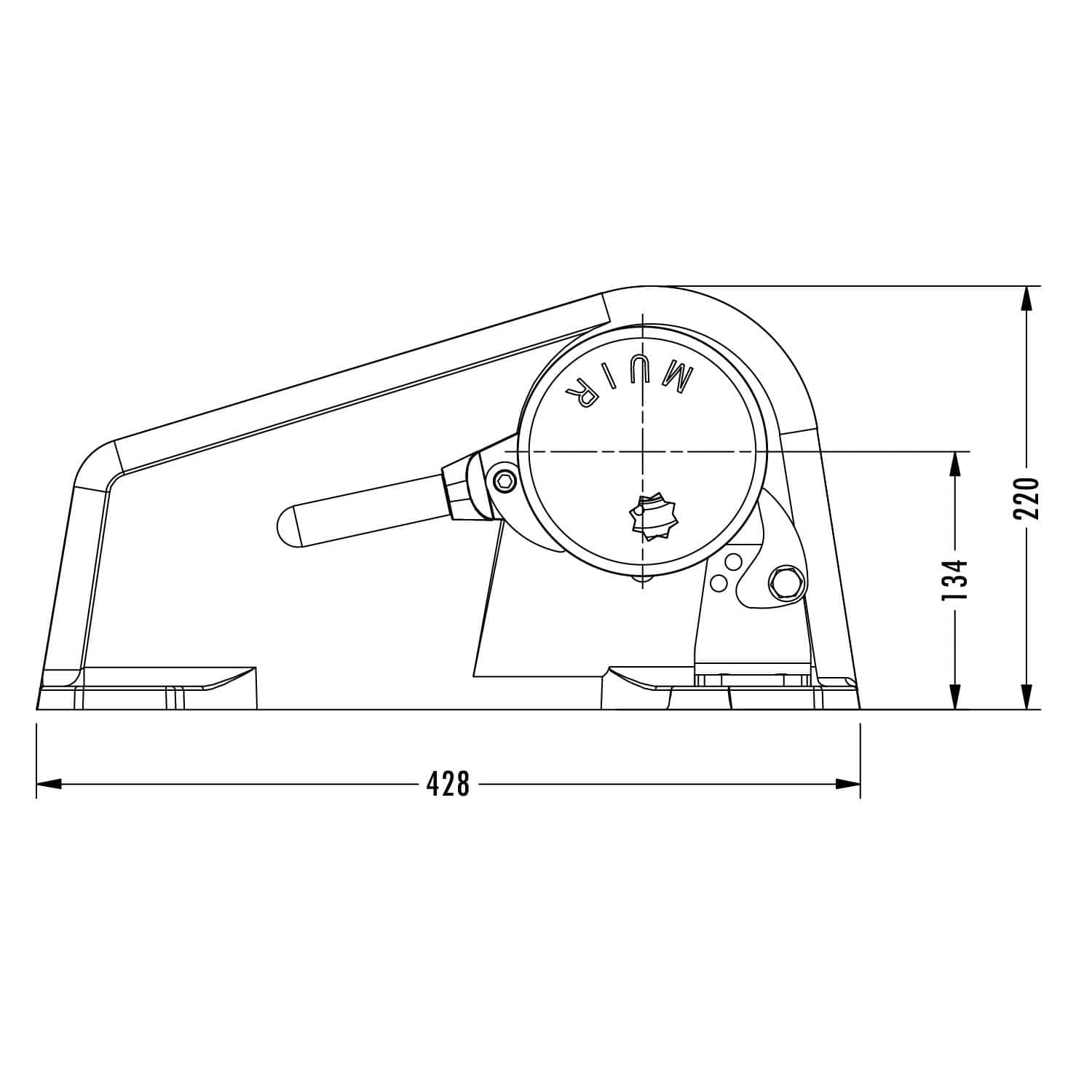

Slide View
Features
- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor

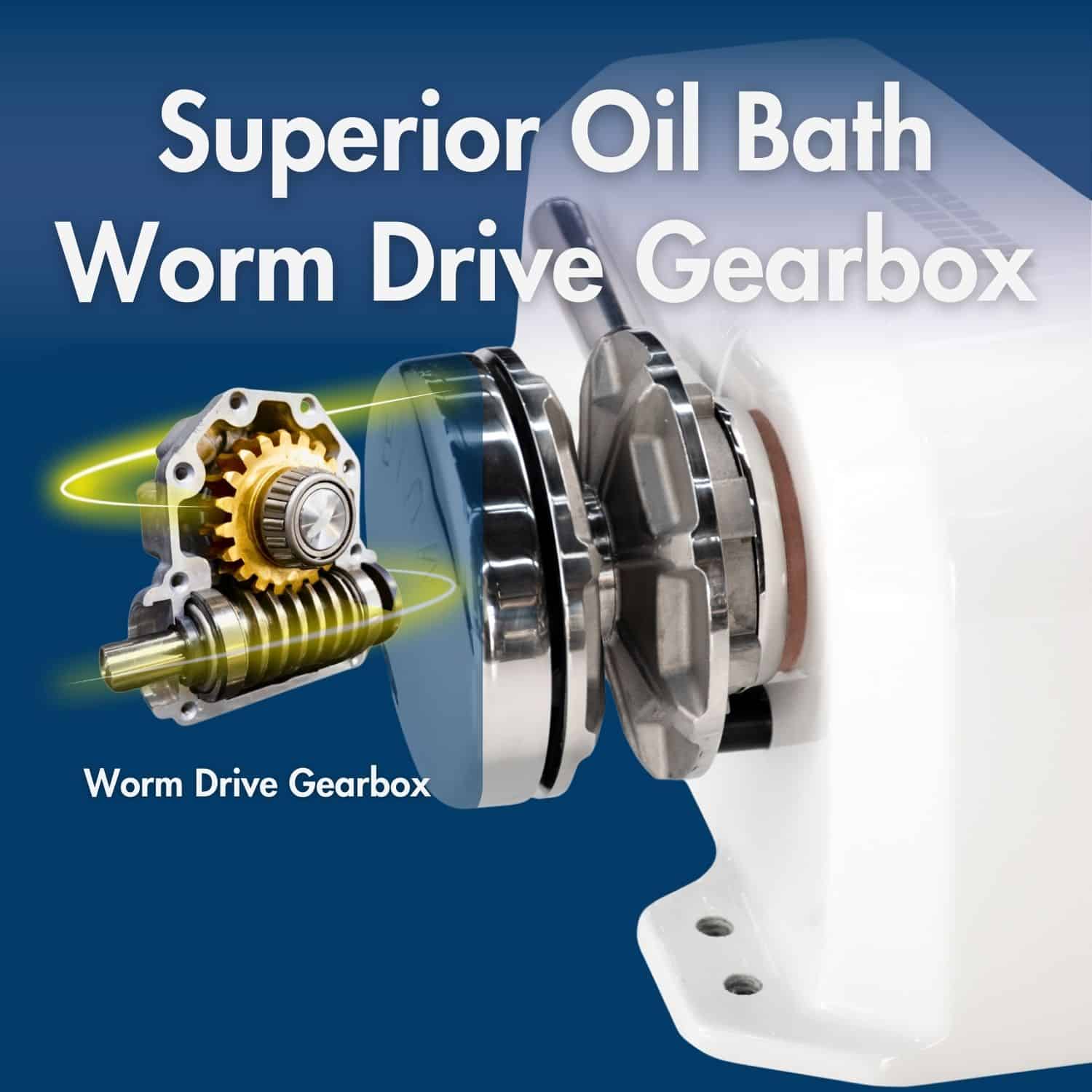

- Superior heavy-duty Italian drive train

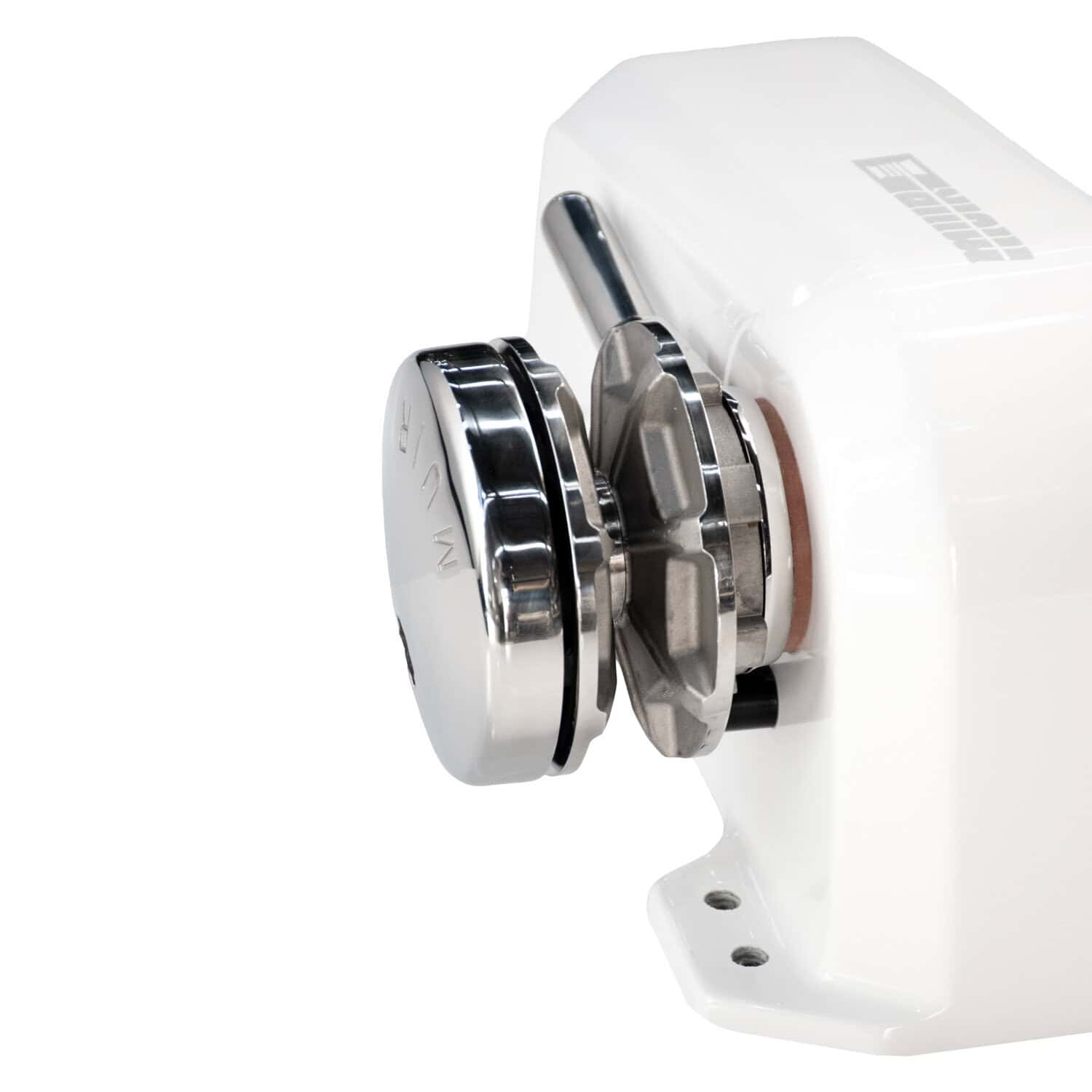

- Gypsy lock/pawl

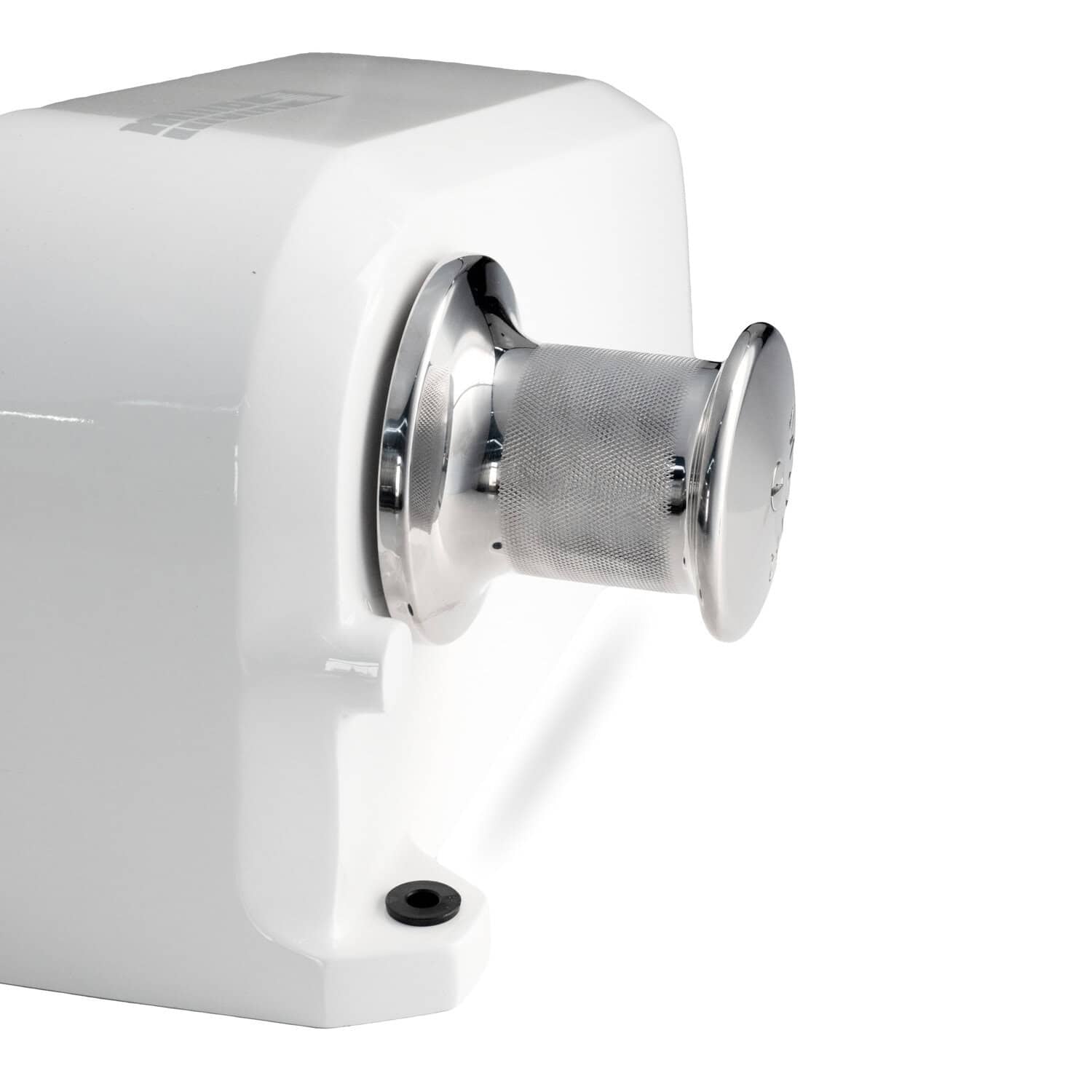

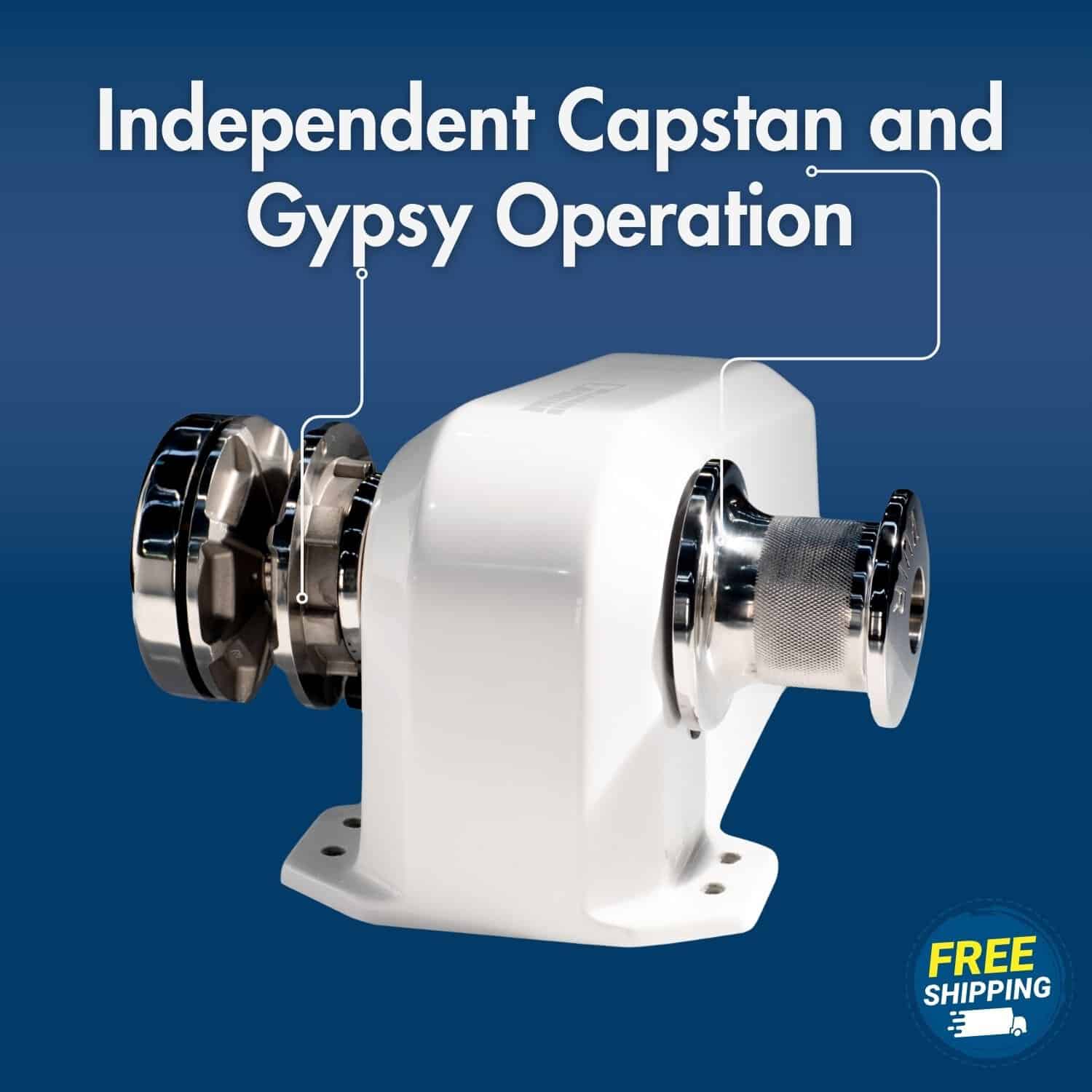

- Independent gypsy and capstan operation

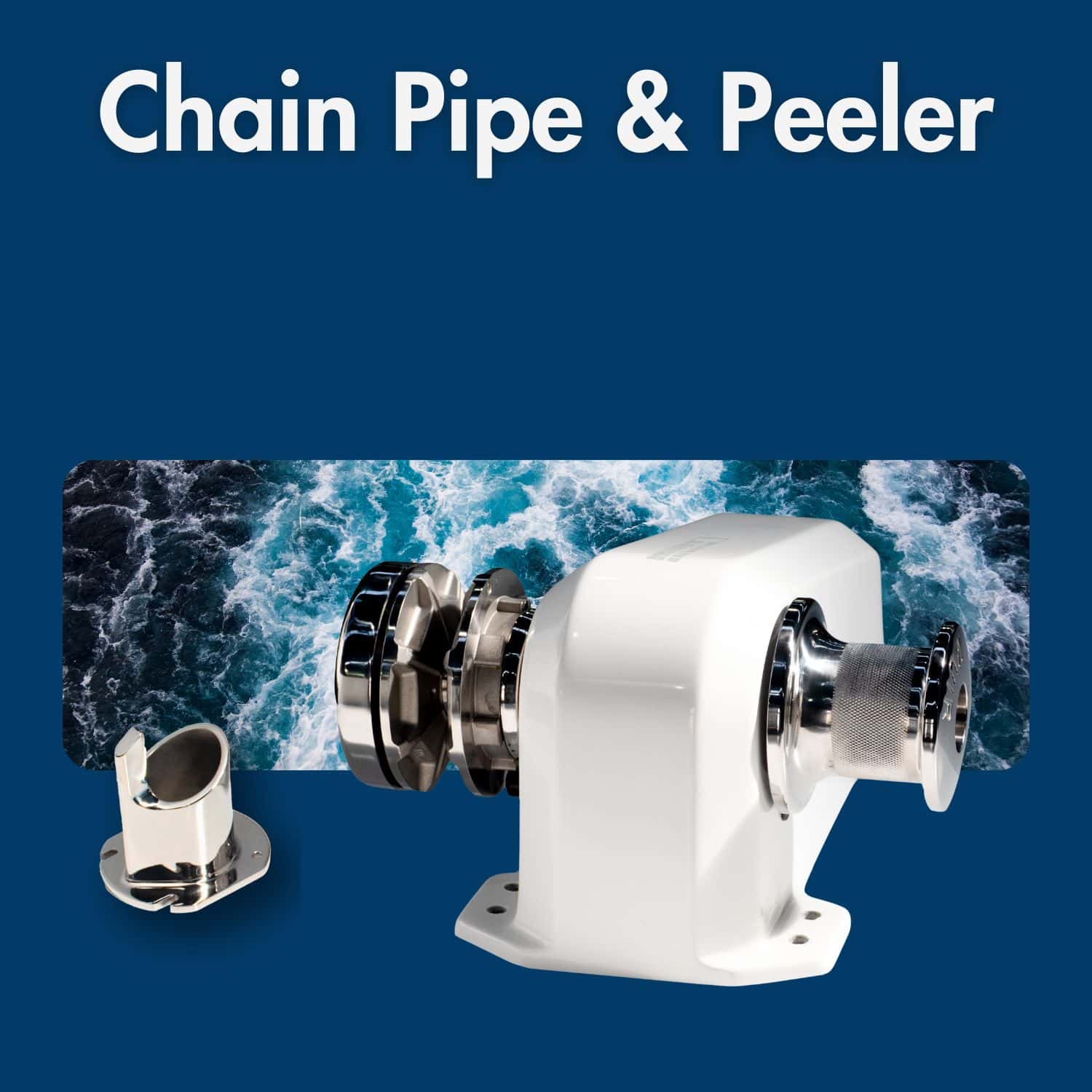

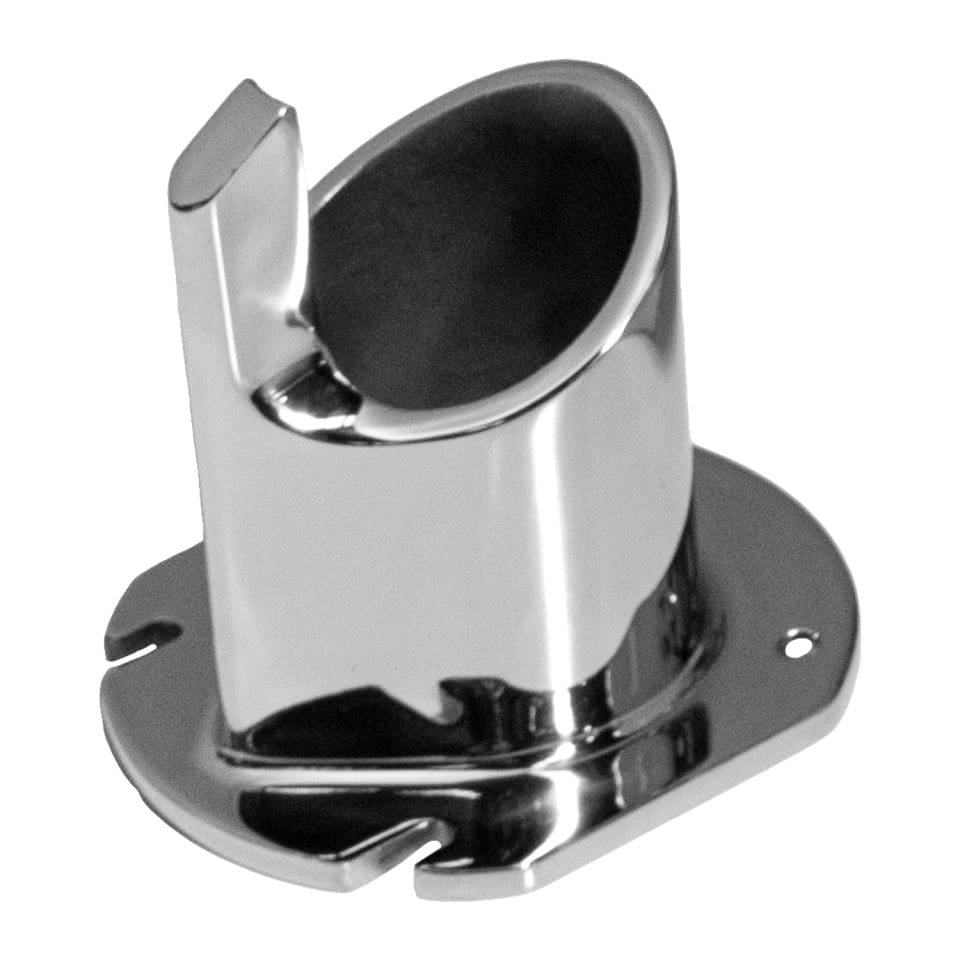

- Chain Pipe and Peeler
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Amps Workload
150A/75A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
20L/min
Max Load (Kg)
1200Kg
Workload (Kg)
400Kg
Max Line Speed
28m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)

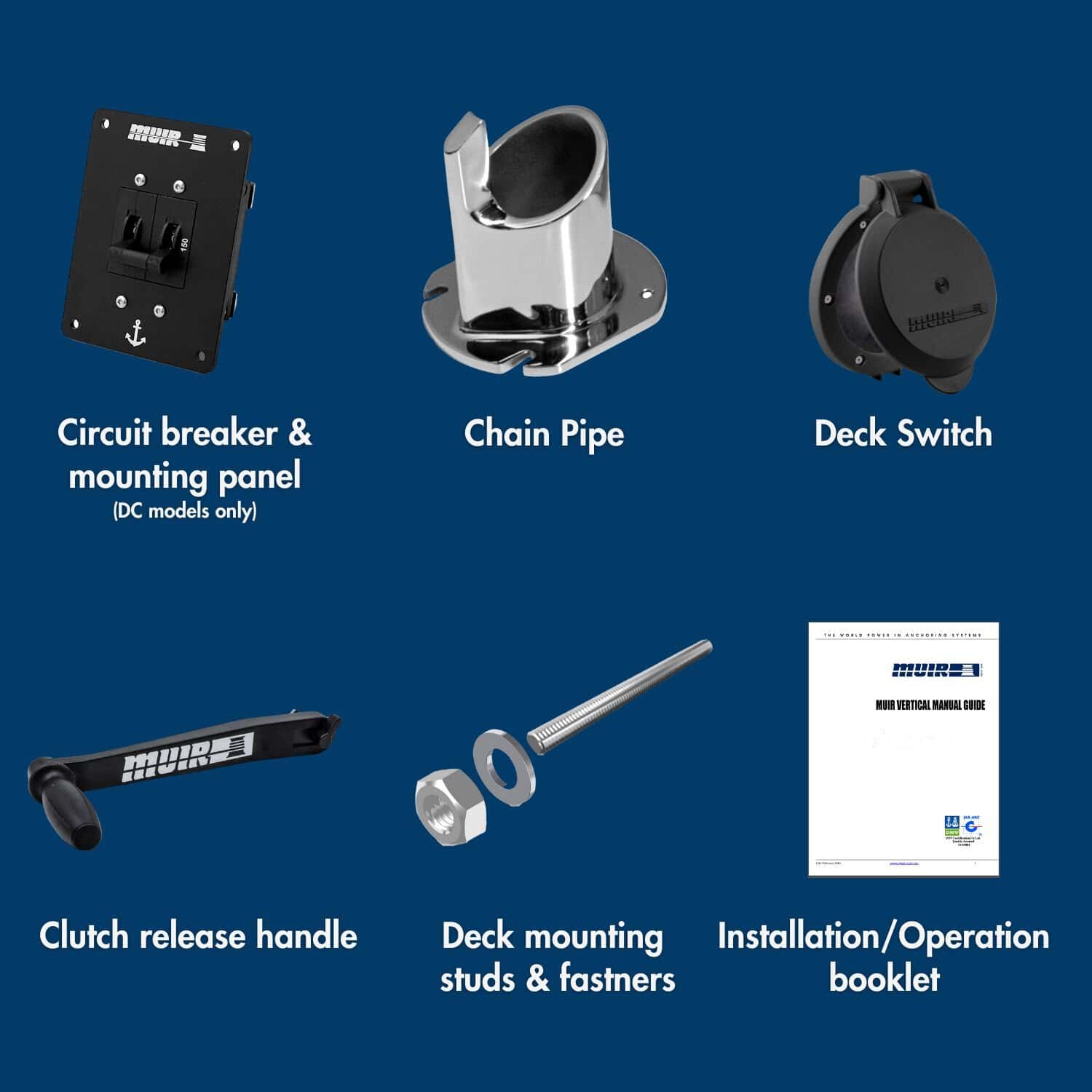

Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Clutch release handle
Installation/Operation booklet
Deck mounting studs and fasteners
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Muir Reliable Compact HR2500 Cheetah
Power meets precision in the HR2500 Cheetah, built for vessels up to 17m (57ft). With rope-chain compatibility, dual-direction power, and manual override, it’s a top-tier solution for offshore cruisers and commercial operators.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
Slide View
Features
- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Gypsy lock/pawl
- Independent gypsy and capstan operation
- Chain Pipe and Peeler
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Amps Workload
150A/75A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
20L/min
Max Load (Kg)
1200Kg
Workload (Kg)
400Kg
Max Line Speed
28m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Clutch release handle
Installation/Operation booklet
Deck mounting studs and fasteners
Downloads
Parts
