VC 850
$1,852.50
3 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions
Muir Reliable VC 850 Capstan
Built for reliable performance on boats up to 14m (47ft), the VC 850 offers a powerful 1200W motor, compact footprint, and knurled grip for efficient line hauling. Rugged, polished, and ready for demanding tasks.
Features
- Deck hugging snag free design
- Unit can be mounted horizontally
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
- Capstan features knurled finish for increased grip
- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specification
Name
Specifications
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
100A/80A (12/24V)
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
447Kg
Workload (Kg)
149Kg
Max Line Speed
24m/min
Compatible Rope Sizes (mm)
10 mm (3/8"), 14 mm (9/16")
Auto Anchor Compatible
No
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Reviews
Description
Muir Reliable VC 850 Capstan
Built for reliable performance on boats up to 14m (47ft), the VC 850 offers a powerful 1200W motor, compact footprint, and knurled grip for efficient line hauling. Rugged, polished, and ready for demanding tasks.

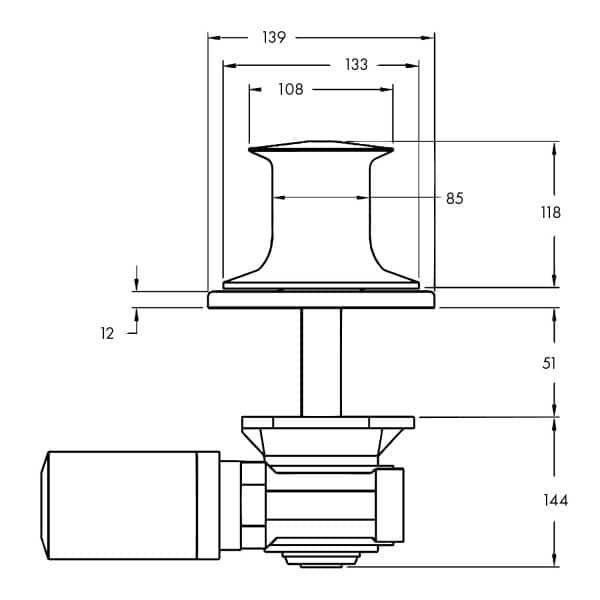

Drawings
Slide View
Features
- Deck hugging snag free design
- Unit can be mounted horizontally
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
- Capstan features knurled finish for increased grip
- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specification
Name
Specs
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
100A/80A (12/24V)
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
447Kg
Workload (Kg)
149Kg
Max Line Speed
24m/min
Compatible Rope Sizes (mm)
10 mm (3/8"), 14 mm (9/16")
Auto Anchor Compatible
No
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Installation/Operation booklet
