Storm VR850
$1,952.25
3 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions

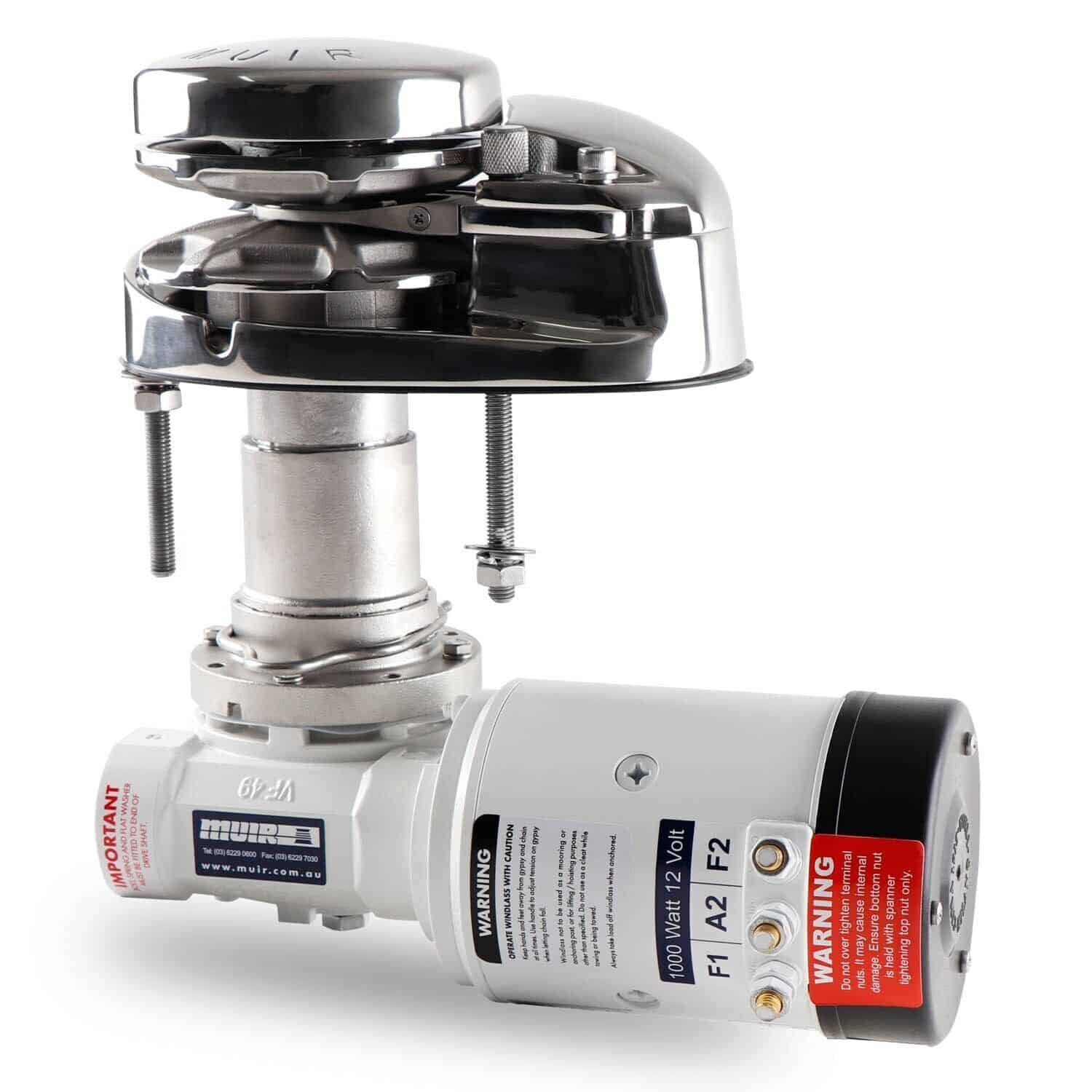

Storm VR850 Reliable Windlass
For vessels up to 11m (37ft), the Storm VR850 offers rapid retrieval, quiet power, and reliable rope-chain performance. With premium stainless steel construction and modern styling, it’s the perfect upgrade for small to mid-size boats.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.

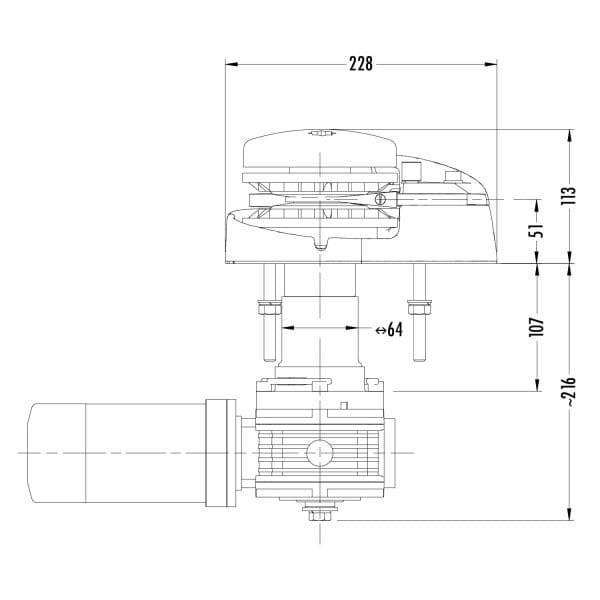

Drawings
Top View
VR
Features

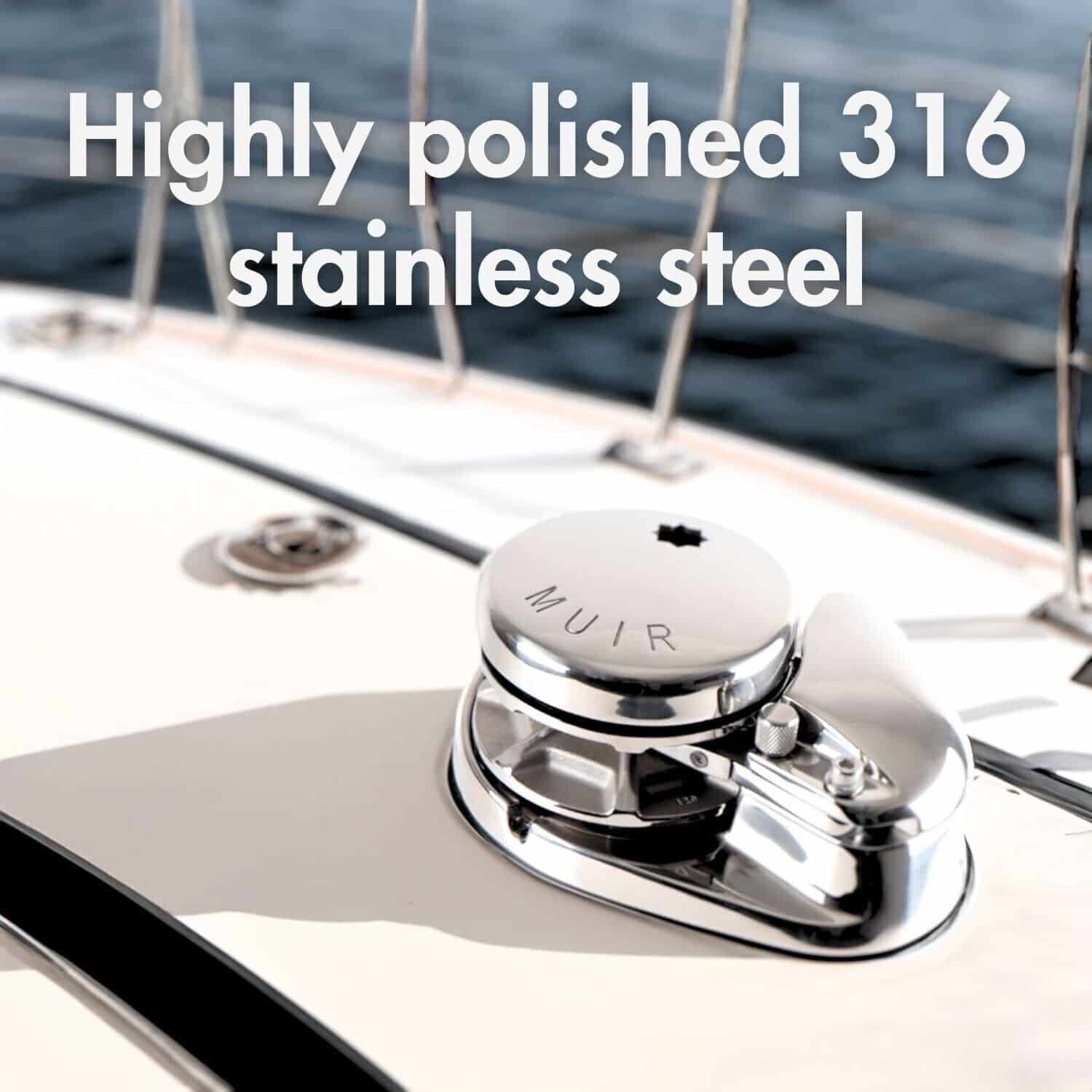

- Polished stainless steel components
- High tensile stainless steel shaft

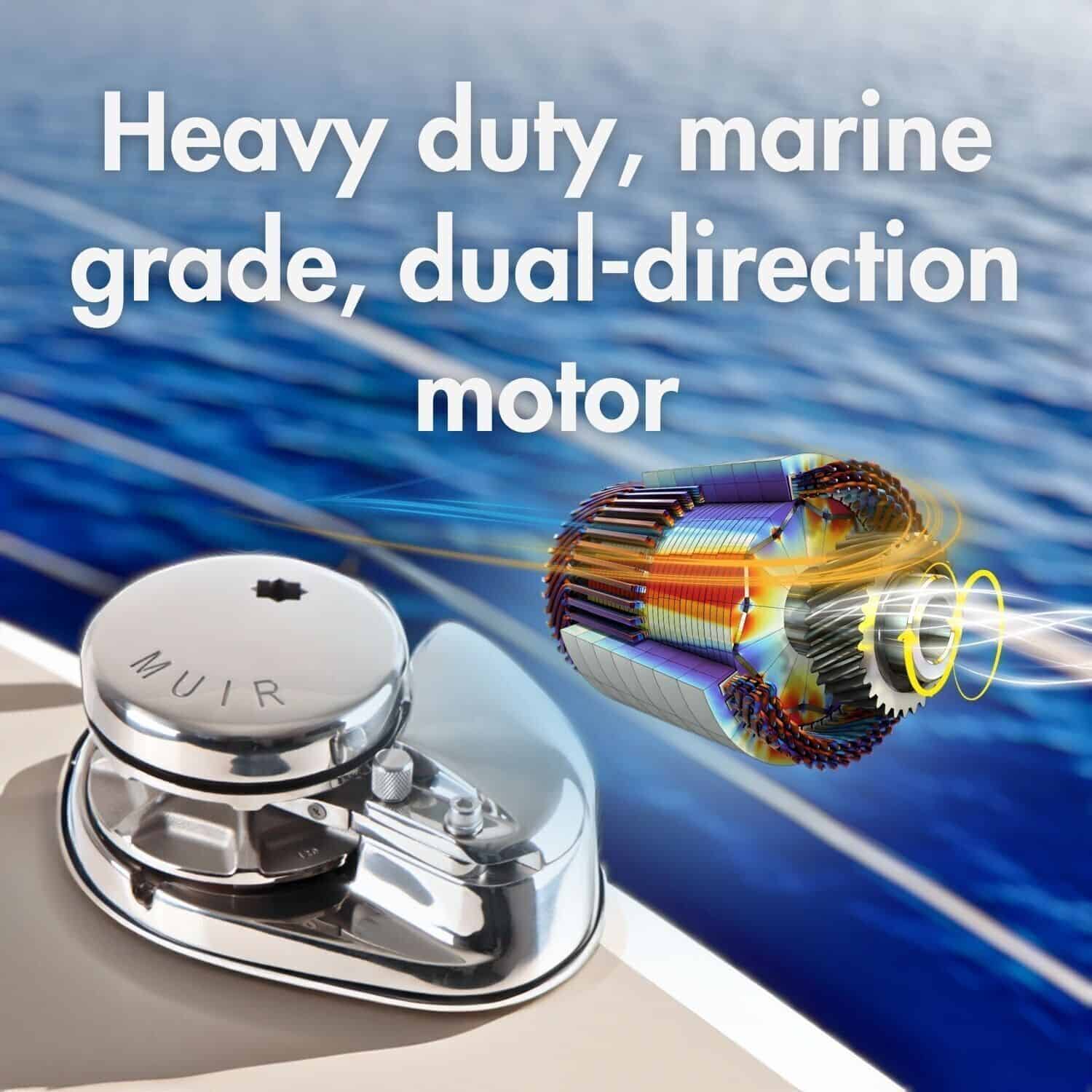

- Heavy duty, marine grade, dual-direction motor

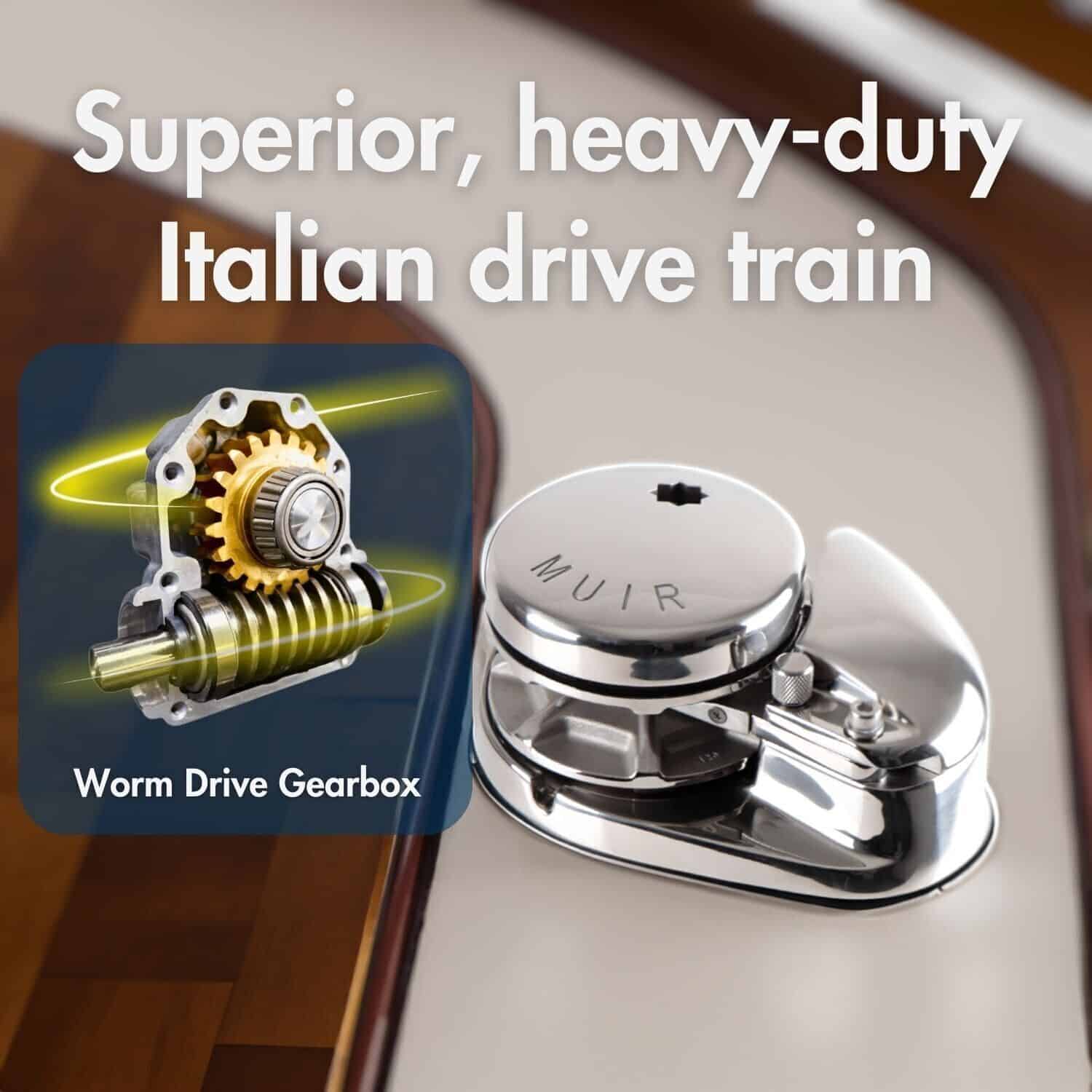

- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
80A/80A (12/24V)
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
450Kg
Workload (Kg)
150Kg
Max Line Speed
26m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Compatible Rope/Chain Combo (mm)
6 mm (1/4"), 8mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch

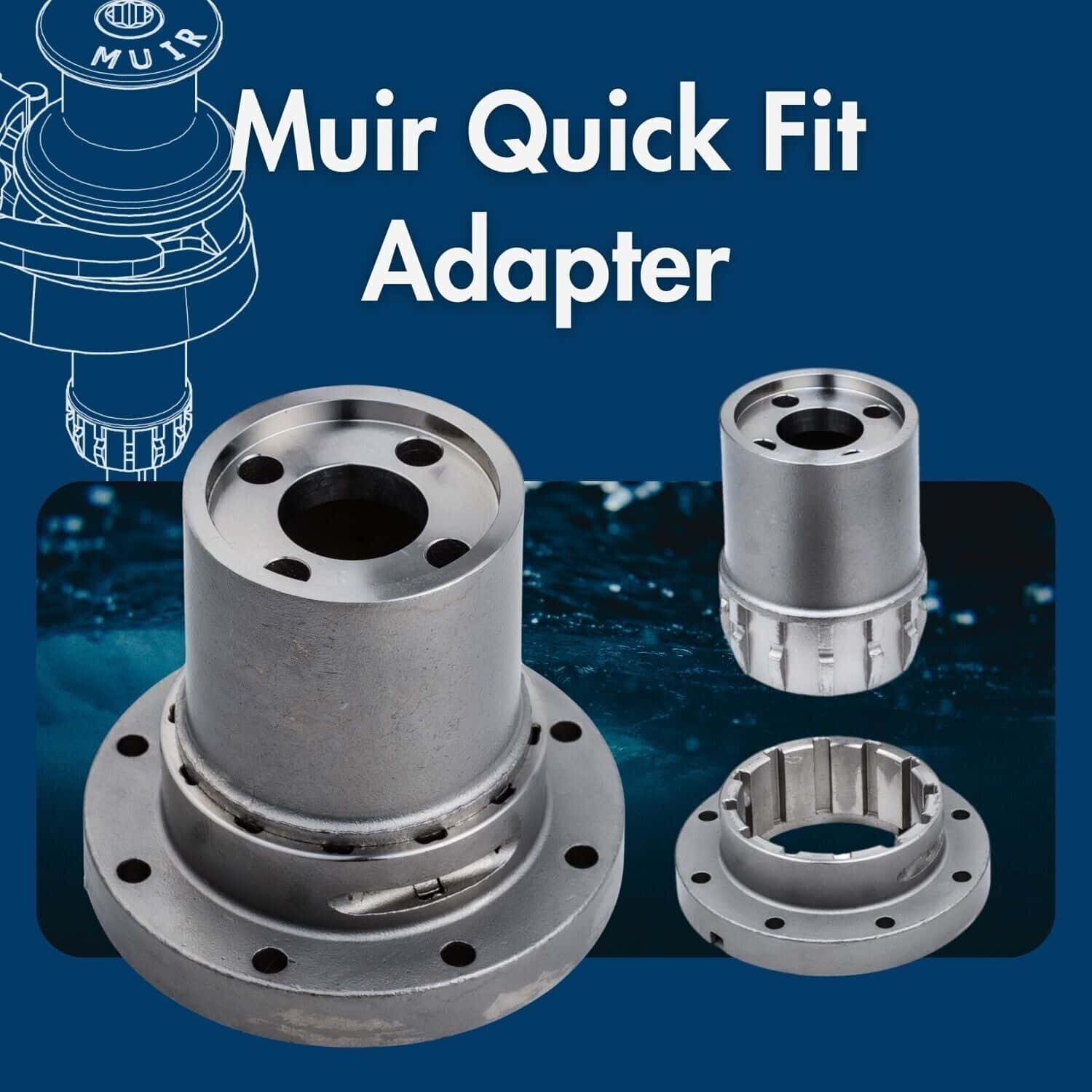

Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Operation System MOS
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Storm VR850 Reliable Windlass
For vessels up to 11m (37ft), the Storm VR850 offers rapid retrieval, quiet power, and reliable rope-chain performance. With premium stainless steel construction and modern styling, it’s the perfect upgrade for small to mid-size boats.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
VR
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
80A/80A (12/24V)
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
450Kg
Workload (Kg)
150Kg
Max Line Speed
26m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Compatible Rope/Chain Combo (mm)
6 mm (1/4"), 8mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
12 mm (1/2"), 14 mm (9/16"), 16 mm (5/8")
Auto Anchor Compatible
Yes
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Quick fit adaptor
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Operation System MOS
Downloads
Parts
