Descriptions
Muir DFF 10 Standard Free-Fall Drum Winch
Engineered for boats 8–10m (26–33ft), the DFF 10 Standard offers the same robust performance of the DW 10 Standard with the added speed of free-fall anchoring — no electronics required.
Drawings
Top View
Slide View
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing center for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage
- 316 stainless steel drum
- Superior heavy-duty Italian drive train
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
8m - 10m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
1200Watts
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
261Kg
Workload (Kg)
87Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
10 mm (3/8")
Auto Anchor Compatible
Yes
Net Weight DC VR/HR or Standard (kg)
30Kg

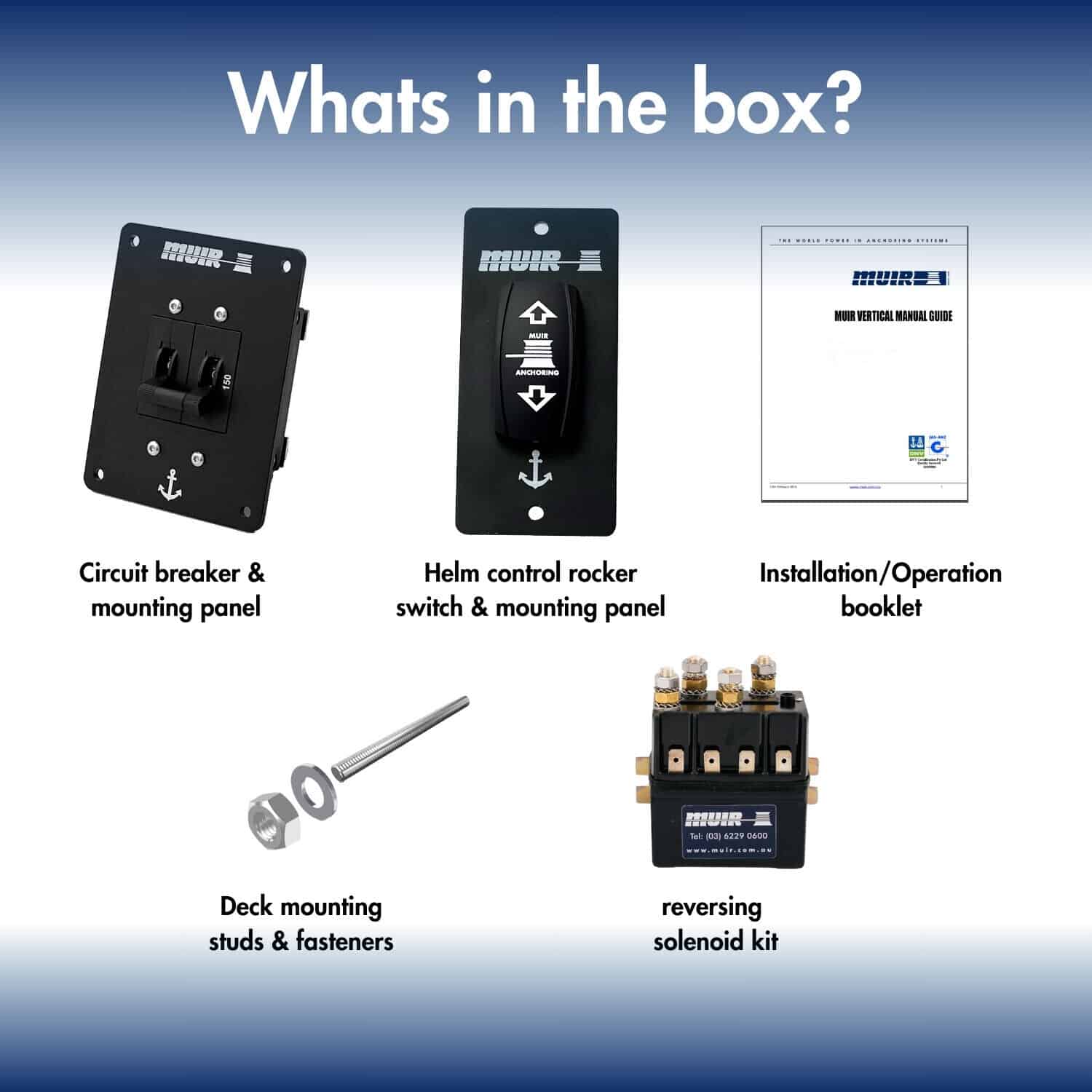

Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Reviews
Description
Muir DFF 10 Standard Free-Fall Drum Winch
Engineered for boats 8–10m (26–33ft), the DFF 10 Standard offers the same robust performance of the DW 10 Standard with the added speed of free-fall anchoring — no electronics required.
Drawings
Top View
Slide View
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing center for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage
- 316 stainless steel drum
- Superior heavy-duty Italian drive train
Technical Specification
Name
Specs
Drum capacity
Recommended Vessel Length (m)
8m - 10m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
100A/80A (12/24V)
Motor (Watts)
1200Watts
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
261Kg
Workload (Kg)
87Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
10 mm (3/8")
Chain On Drum
5 m of 8 mm
Rope Capacity @ 6mm
120 m
Rope Capacity @ 8mm
80 m
Auto Anchor Compatible
Yes
Net Weight DC VR/HR or Standard (kg)
30Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
