VC 500
$1,377.50
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions

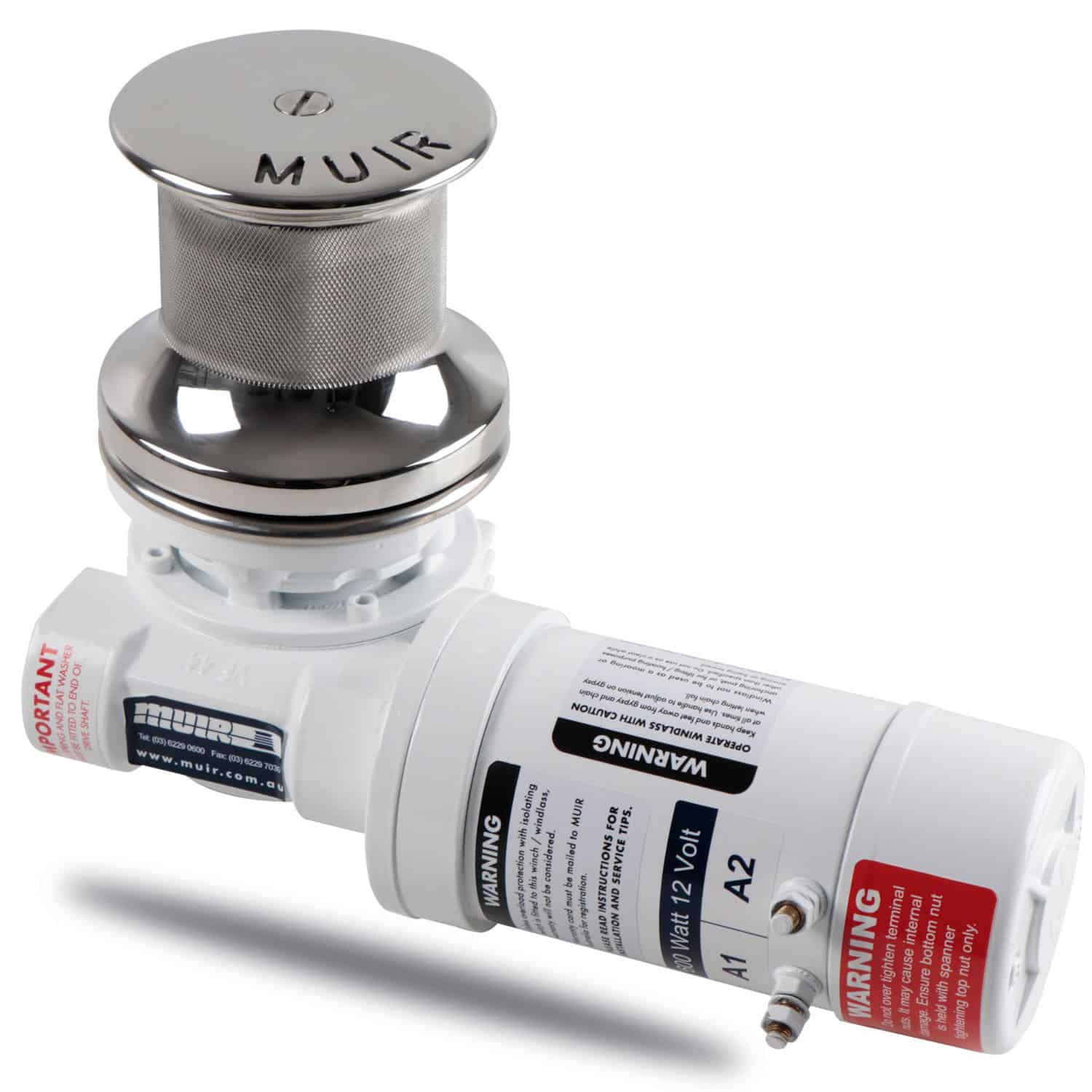

Muir Reliable VC 500 Capstan
Compact and efficient, the VC 500 is perfect for line handling on boats up to 9m (31ft). With a sleek deck-hugging design and 550W motor, it’s ideal for mooring, warping, or light anchoring with rope.
Features
- Deck hugging snag free design
- Unit can be mounted horizontally

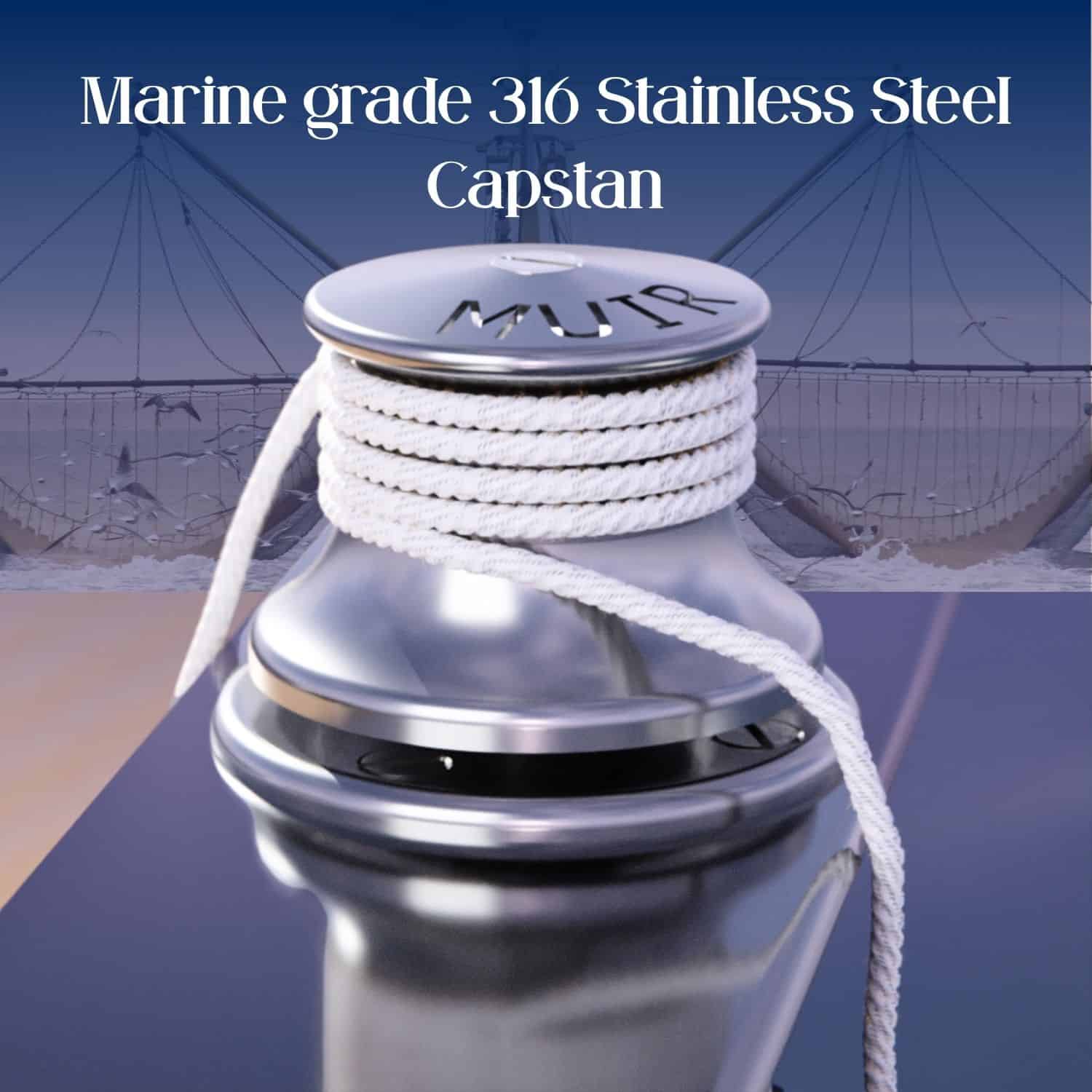

- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models

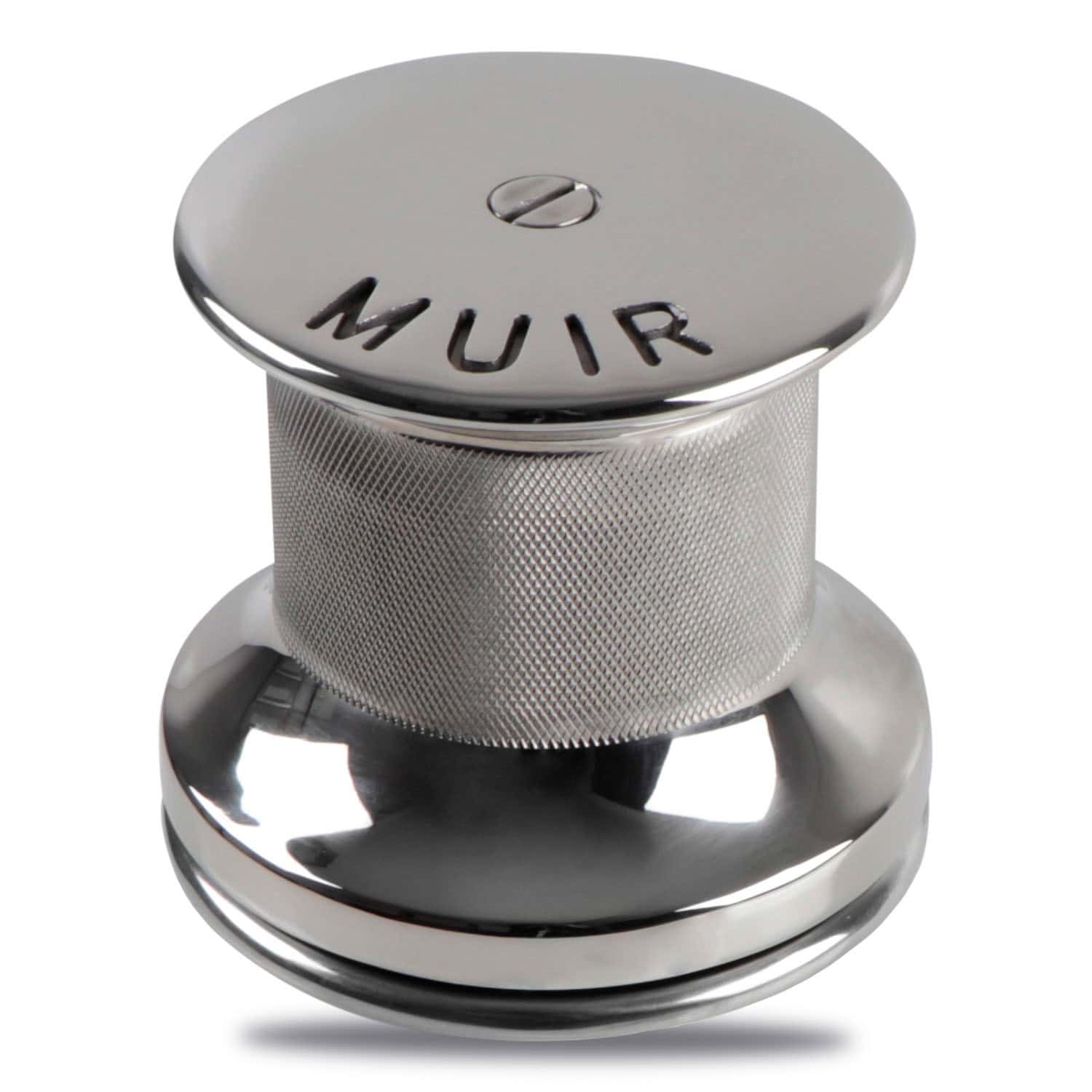

- Capstan features knurled finish for increased grip

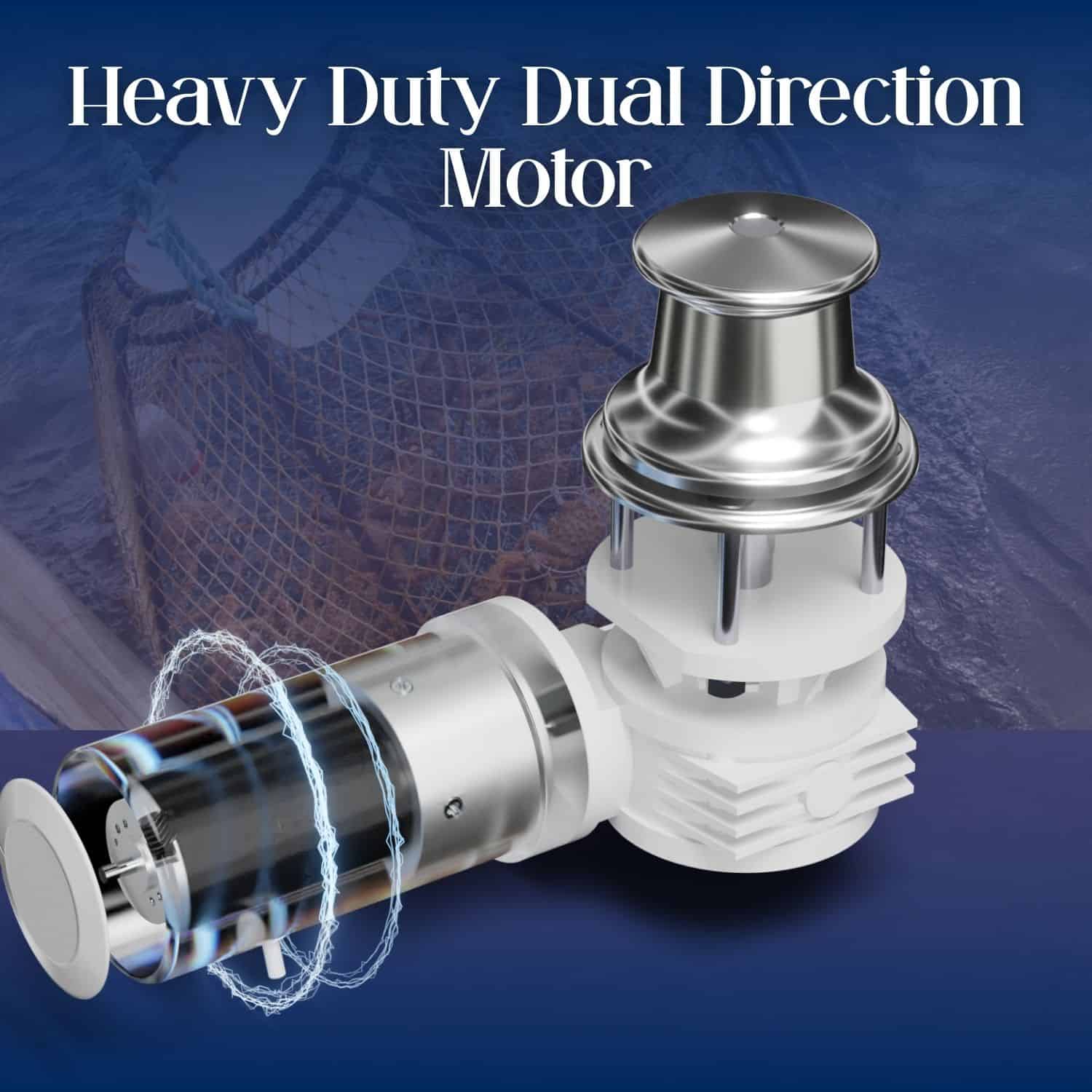

- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
5m - 9m
Power Supply Options
DC 12V
Recommended Circuit Breaker
80A (12V)
Motor (Watts)
800Watts
Amps Workload
75A (12V)
Max Load (Kg)
150Kg
Workload (Kg)
50Kg
Max Line Speed
25m/min
Compatible Rope Sizes (mm)
10 mm (3/8"), 12 mm (1/2")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
9Kg
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Reviews
Description
Muir Reliable VC 500 Capstan
Compact and efficient, the VC 500 is perfect for line handling on boats up to 9m (31ft). With a sleek deck-hugging design and 550W motor, it’s ideal for mooring, warping, or light anchoring with rope.

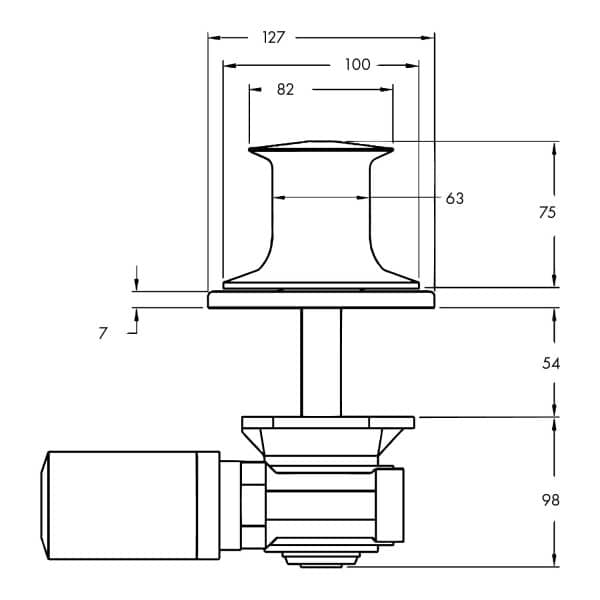

Drawings
Slide View
Features
- Deck hugging snag free design
- Unit can be mounted horizontally
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
- Capstan features knurled finish for increased grip
- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specification
Name
Specs
Recommended Vessel Length (m)
5m - 9m
Power Supply Options
DC 12V
Recommended Circuit Breaker
80A (12V)
Motor (Watts)
800Watts
Amps Workload
75A (12V)
Max Load (Kg)
150Kg
Workload (Kg)
50Kg
Max Line Speed
25m/min
Compatible Rope Sizes (mm)
10 mm (3/8"), 12 mm (1/2")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
9Kg
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Installation/Operation booklet
