HR1600 Cougar
$3,014.75
3 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions

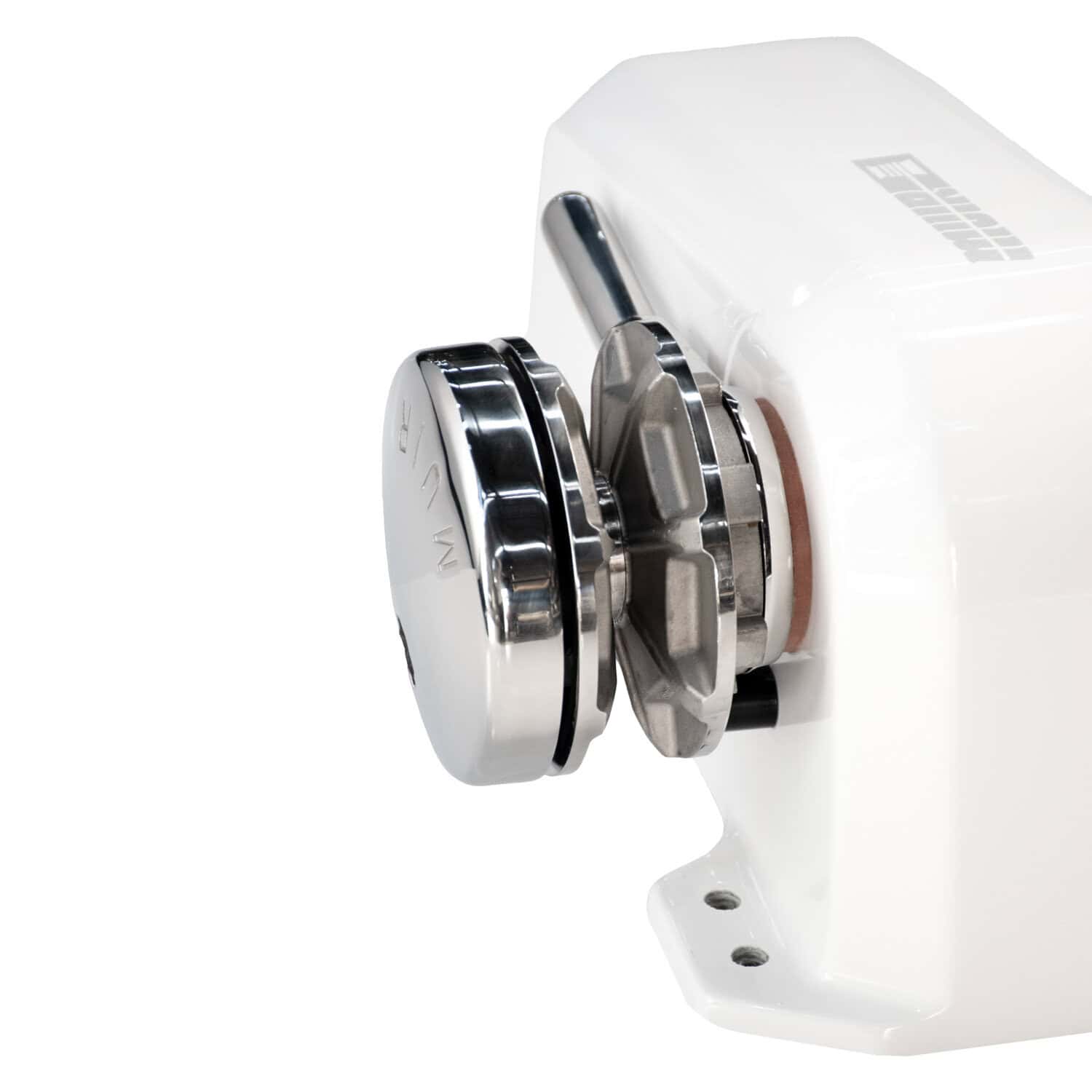

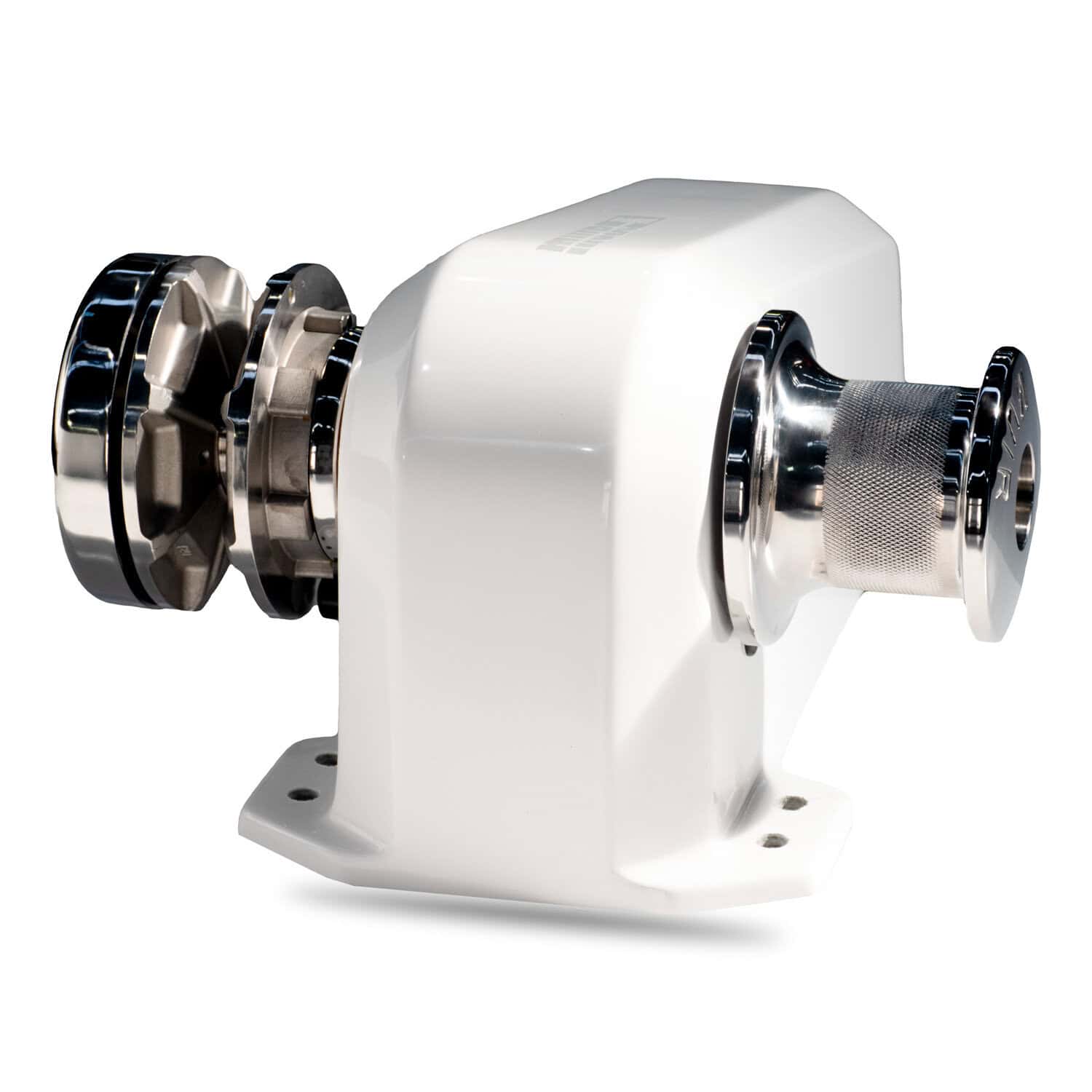

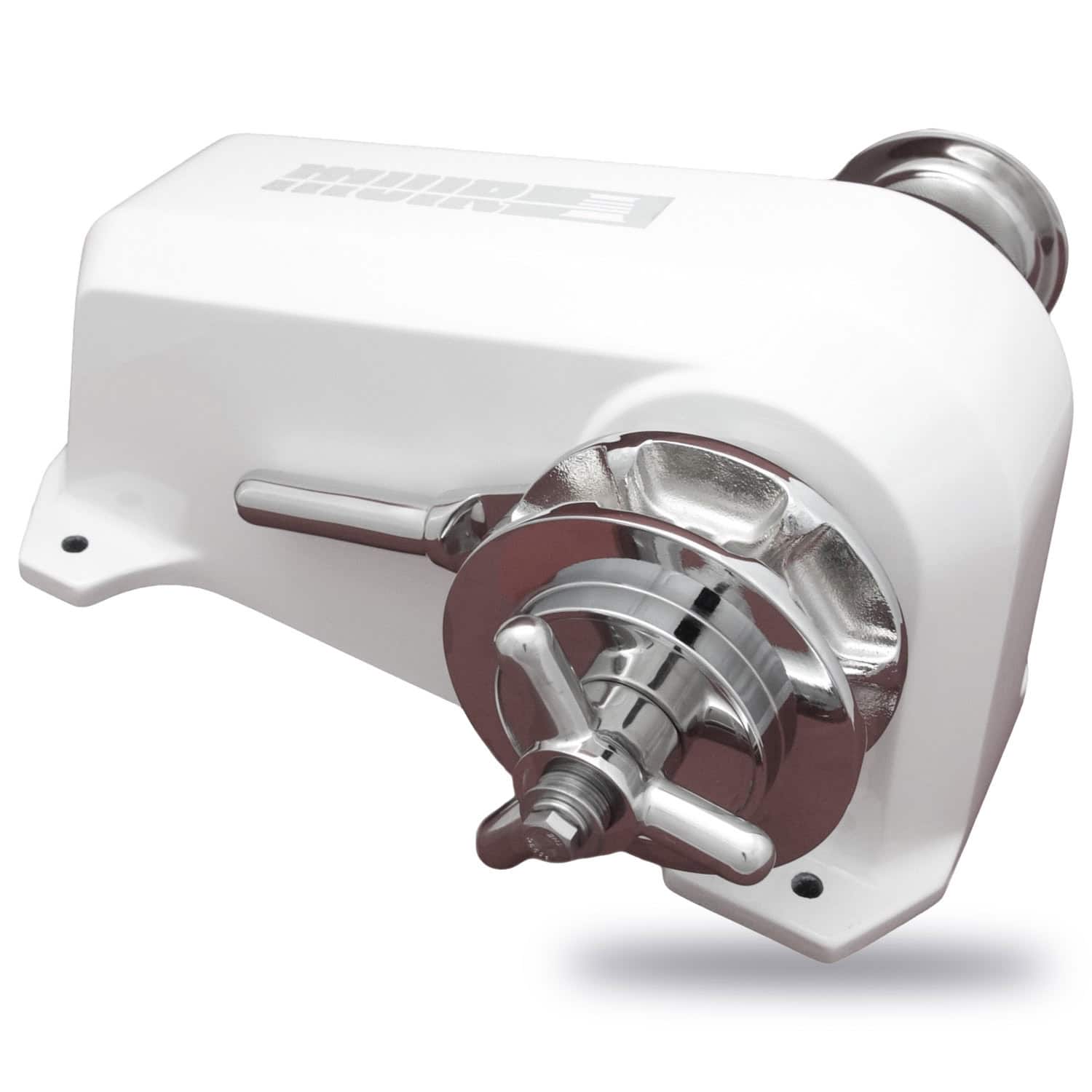

Muir Reliable Compact HR1600 Cougar
Ideal for vessels up to 14m (46ft), the HR1600 Cougar features a heavy-duty motor, fast retrieval speeds, and robust stainless/bronze construction. Manual override included for total control offshore.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
Slide View
Features

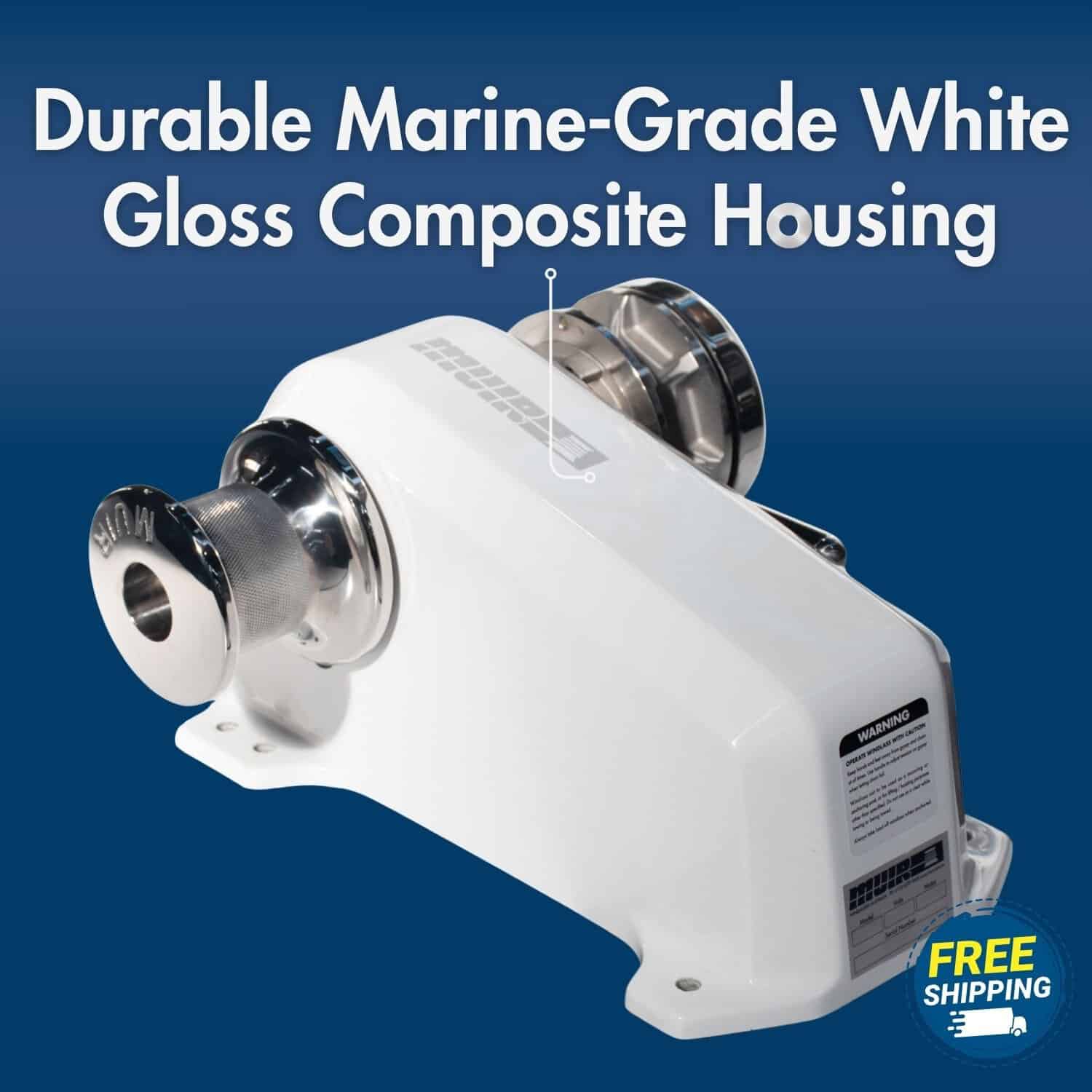

- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- High tensile stainless steel shaft

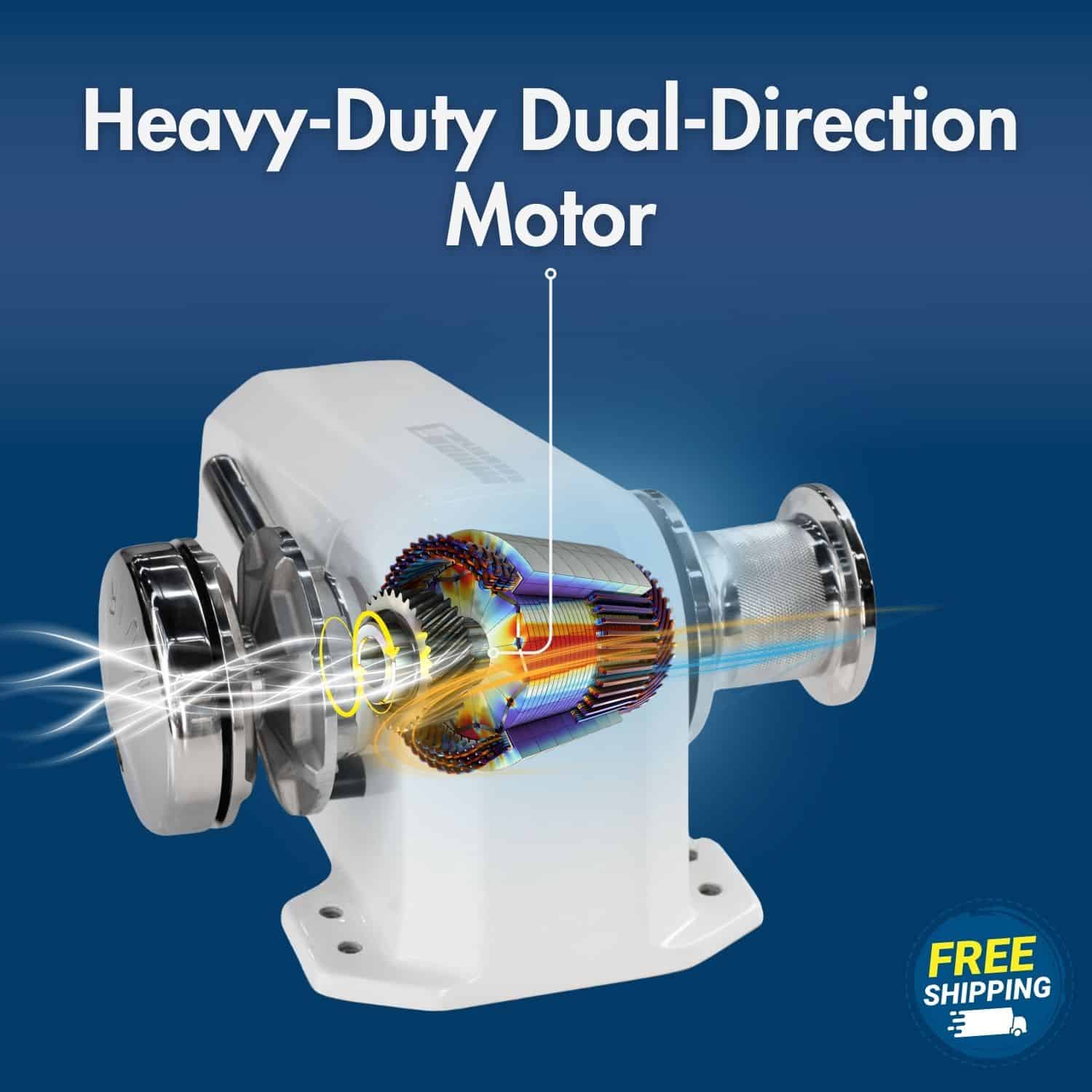

- Heavy duty, marine grade, dual-direction motor

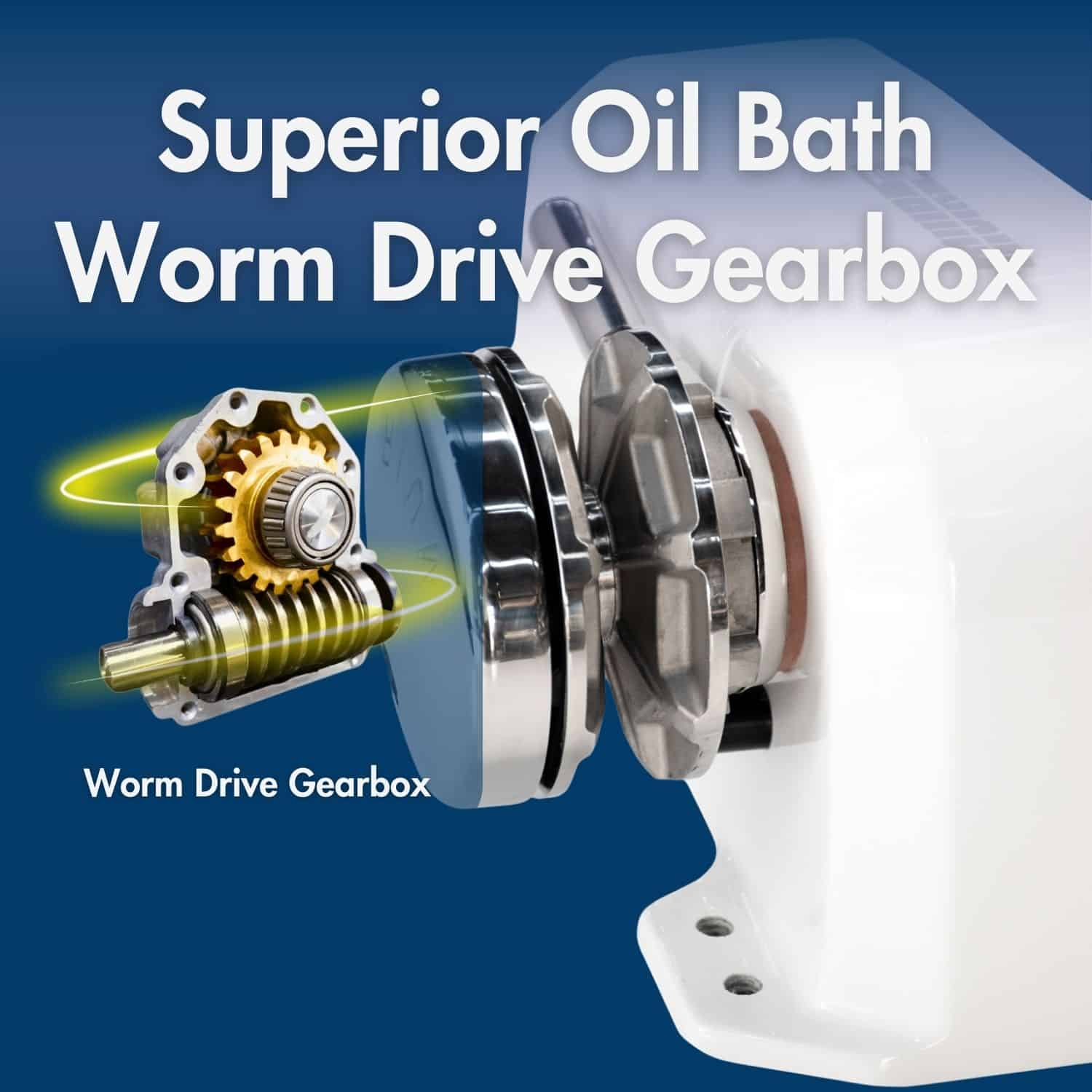

- Superior heavy-duty Italian drive train
- Gypsy lock/pawl
- Chain Pipe and Peeler

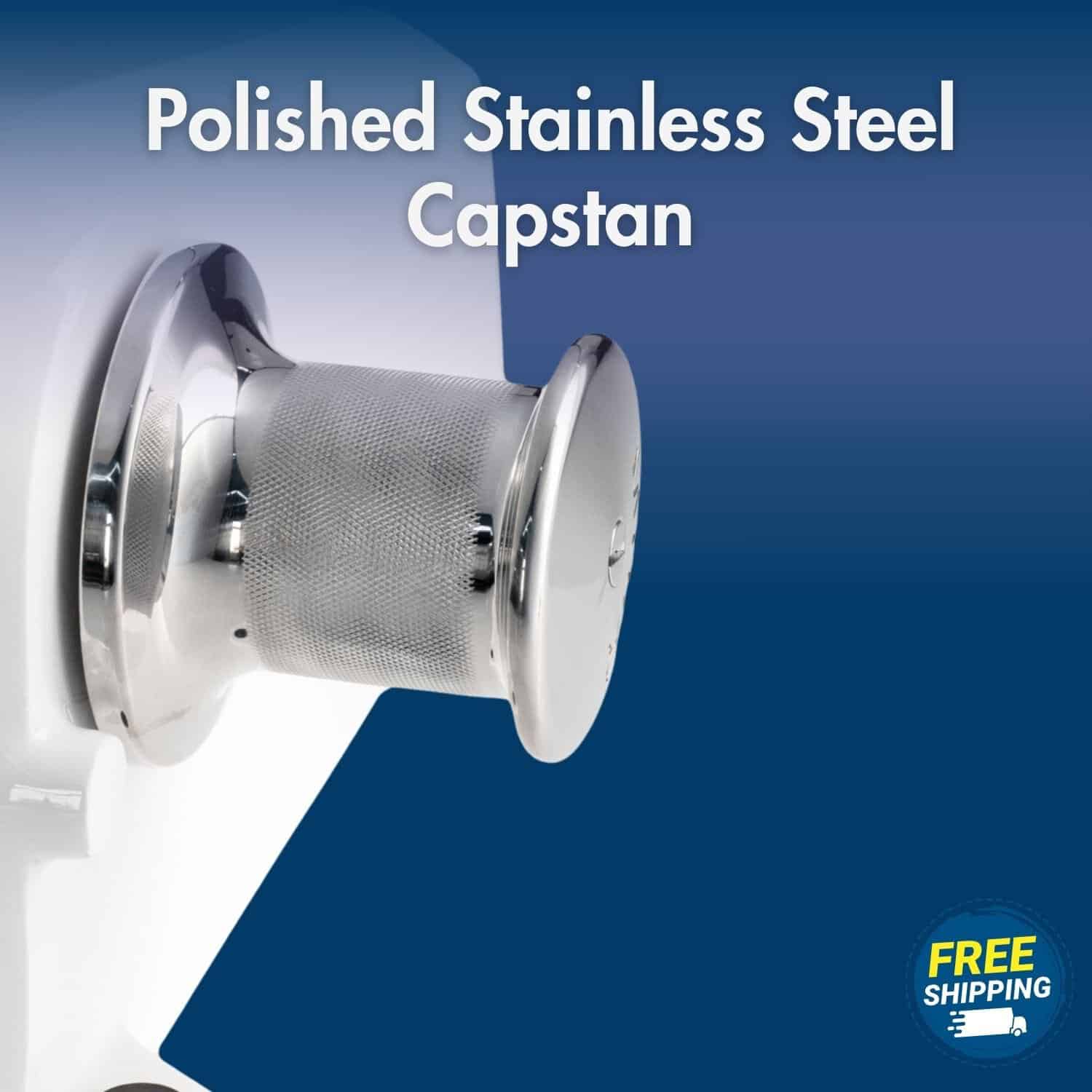

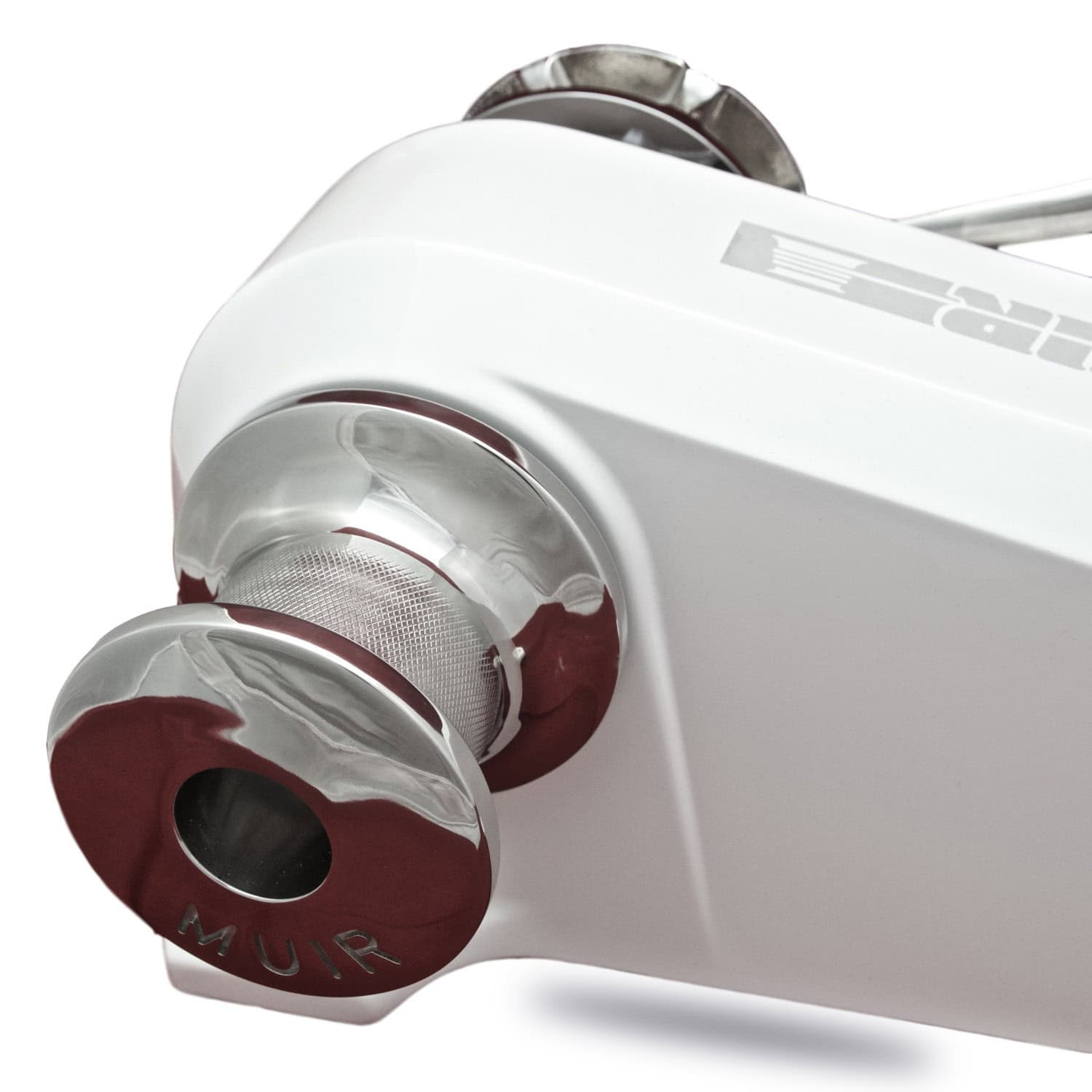

- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
100A/80A (12/24V)
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
621Kg
Workload (Kg)
207Kg
Max Line Speed
30m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Compatible Rope/Chain Combo (mm)
N/A
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Override System MORS
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Muir Reliable Compact HR1600 Cougar
Ideal for vessels up to 14m (46ft), the HR1600 Cougar features a heavy-duty motor, fast retrieval speeds, and robust stainless/bronze construction. Manual override included for total control offshore.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
Slide View
Features
- Durable marine-grade white gloss composite housing
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Italian drive train
- Gypsy lock/pawl
- Chain Pipe and Peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
100A/80A (12/24V)
Amps Workload
125A/60A (12/24V)
Max Load (Kg)
621Kg
Workload (Kg)
207Kg
Max Line Speed
30m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Compatible Rope/Chain Combo (mm)
N/A
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Manual Override System MORS
Downloads
Parts
