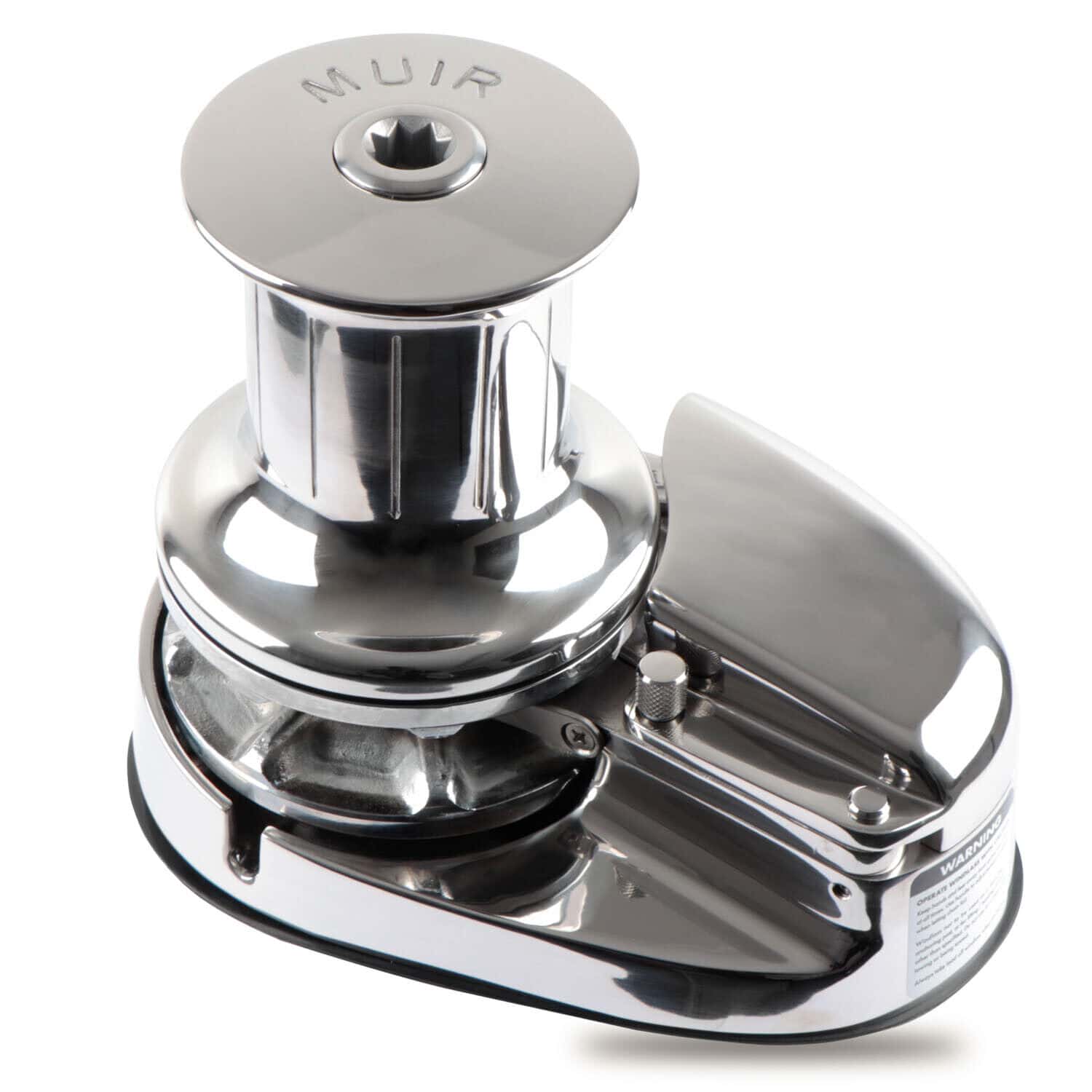

Storm VRC2500
Price range: $4,524.85 through $5,061.79
5 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions
The Storm VRC2500 is a highly efficient anchoring solution tailored for small to medium-sized boats, delivering dependable performance in demanding maritime conditions. Constructed with premium materials that resist saltwater corrosion, this windlass ensures durability and consistent functionality. Its powerful motor offers smooth and controlled anchor deployment, providing boaters with confidence and ease during every use. Designed for reliability, the Storm VRC2500 is a trusted choice for enhancing vessel safety on the water.
Compact yet robust, this windlass is engineered for straightforward installation and user-friendly operation. Its quiet mechanism and efficient power consumption make it an excellent addition for those seeking convenience without compromising strength. The Storm VRC2500 supports rapid anchor retrieval, reducing effort and time when securing your vessel. Ideal for both leisure and professional maritime activities, this model guarantees dependable anchoring performance, contributing to a safer and more enjoyable boating experience.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.

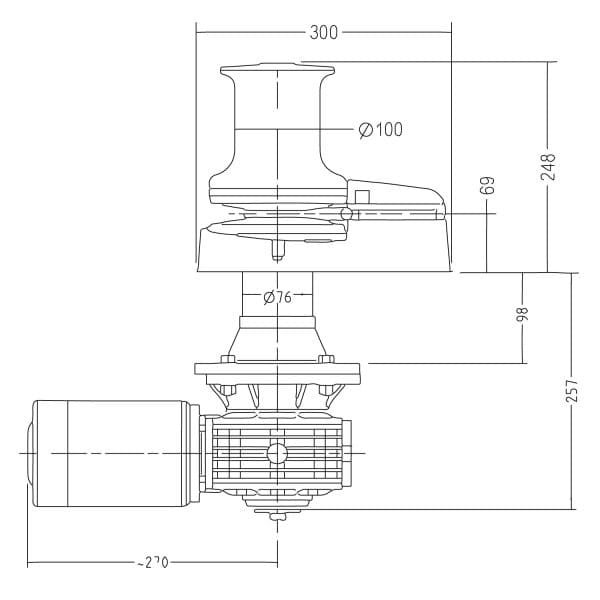

Drawings

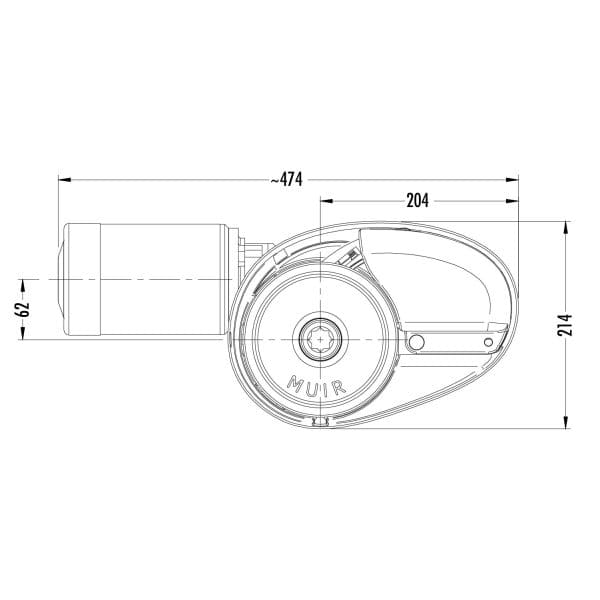

Top View
VRC
Features

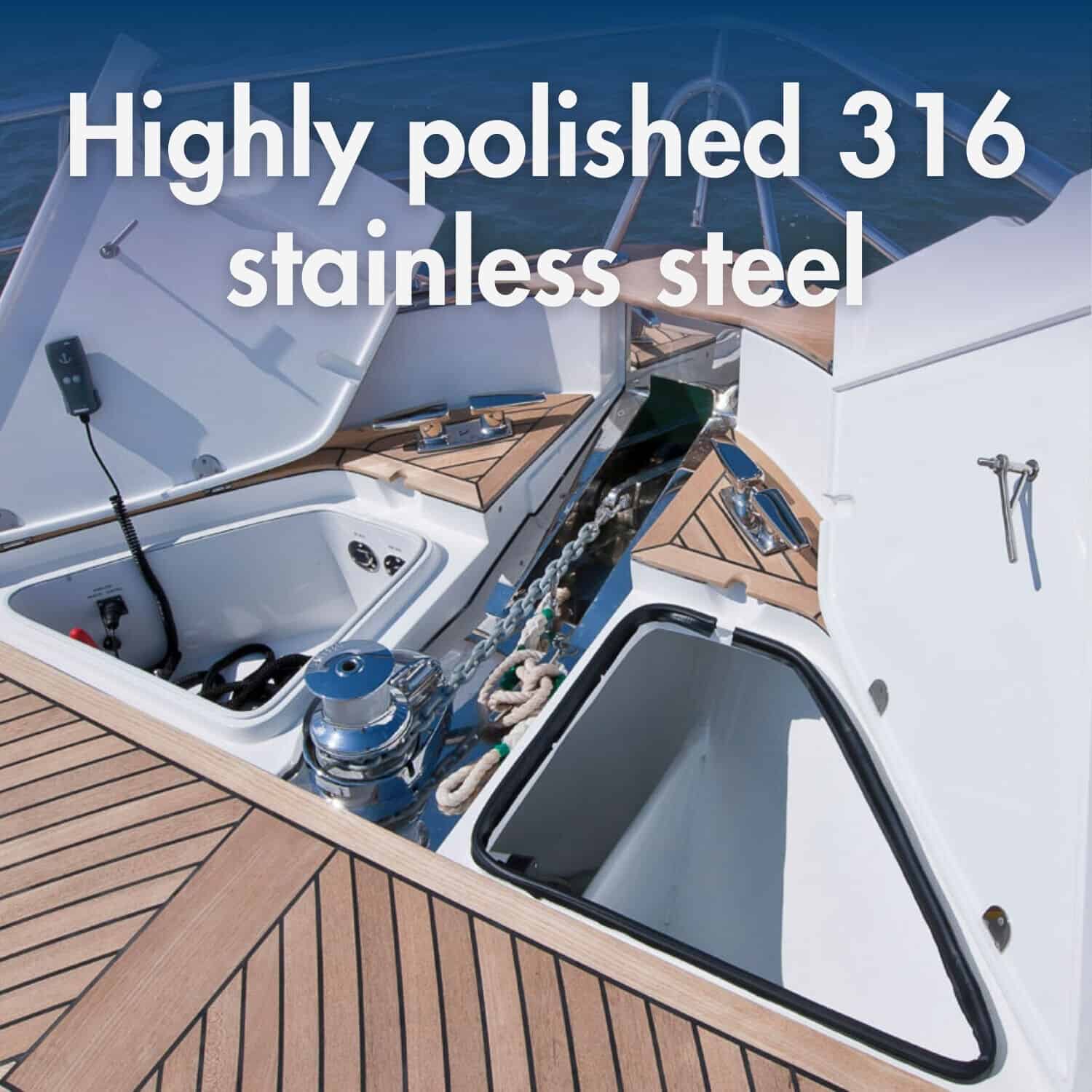

- Polished stainless steel components

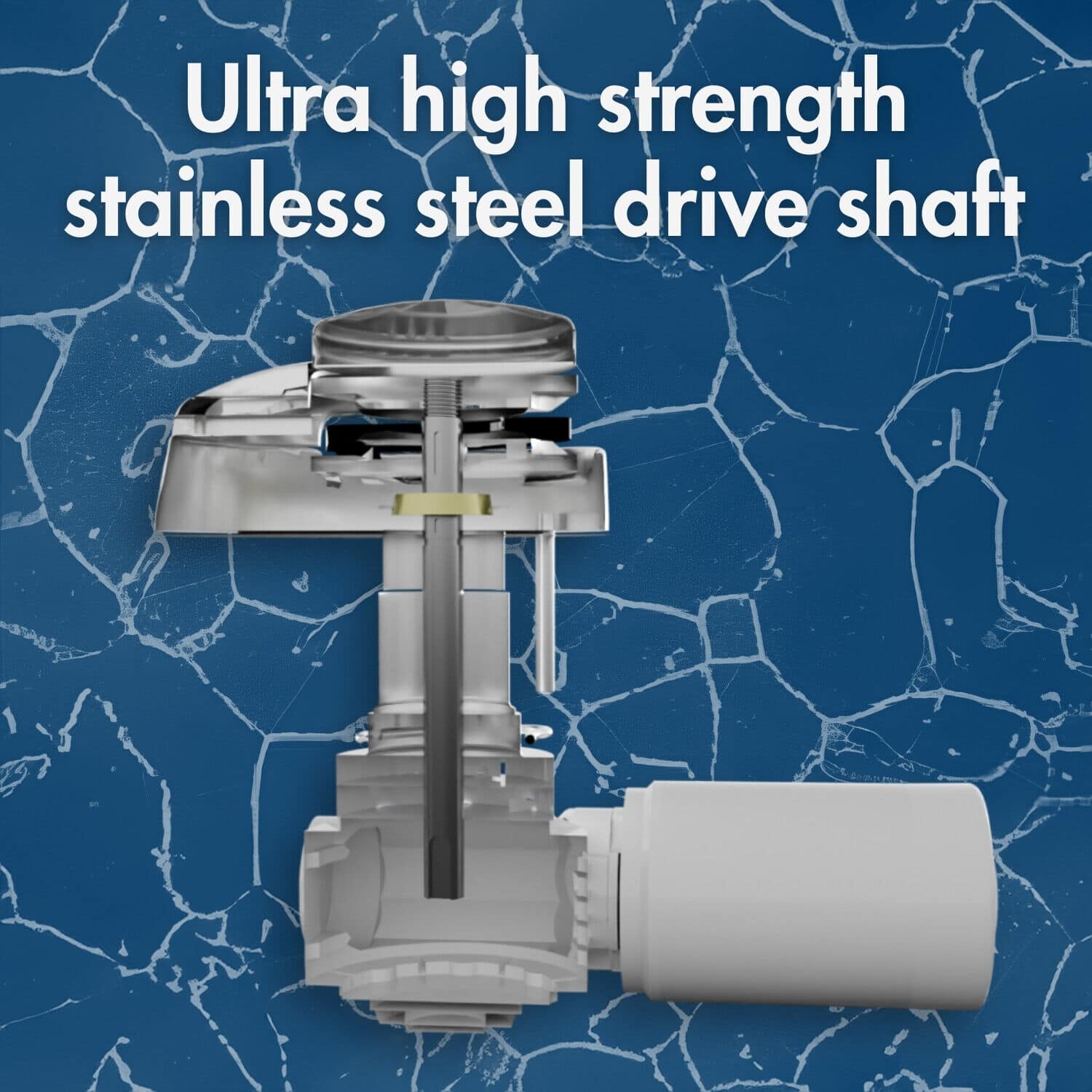

- High tensile stainless steel shaft

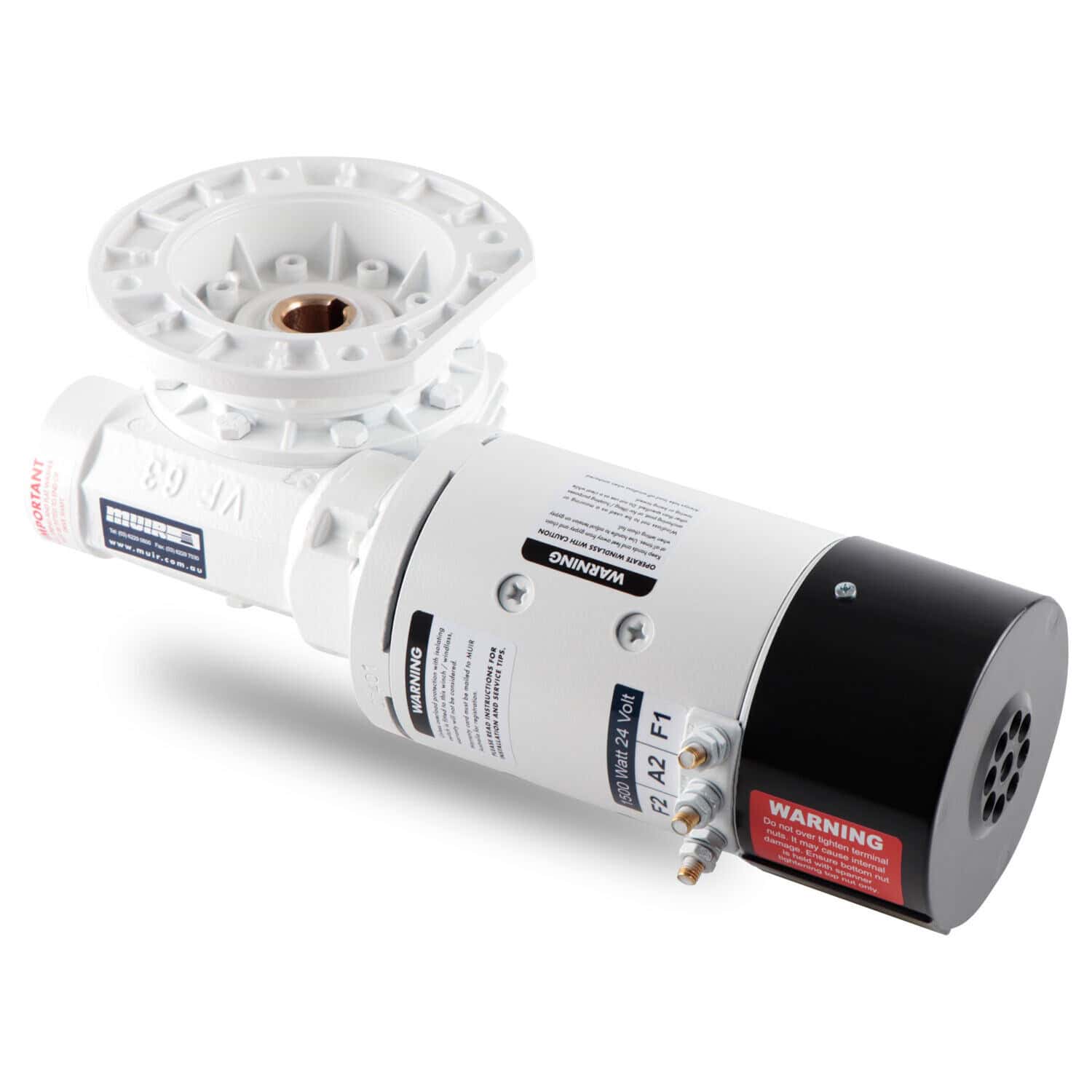

- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Amps Workload
150A/70A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
20L/min
Max Load (Kg)
1200Kg
Workload (Kg)
400Kg
Max Line Speed
28m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Compatible Rope/Chain Combo (mm)
8mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Compatible Rope Sizes (mm)
14 mm (9/16"), 16 mm (5/8"), 20 mm (3/4")
Auto Anchor Compatible
Yes

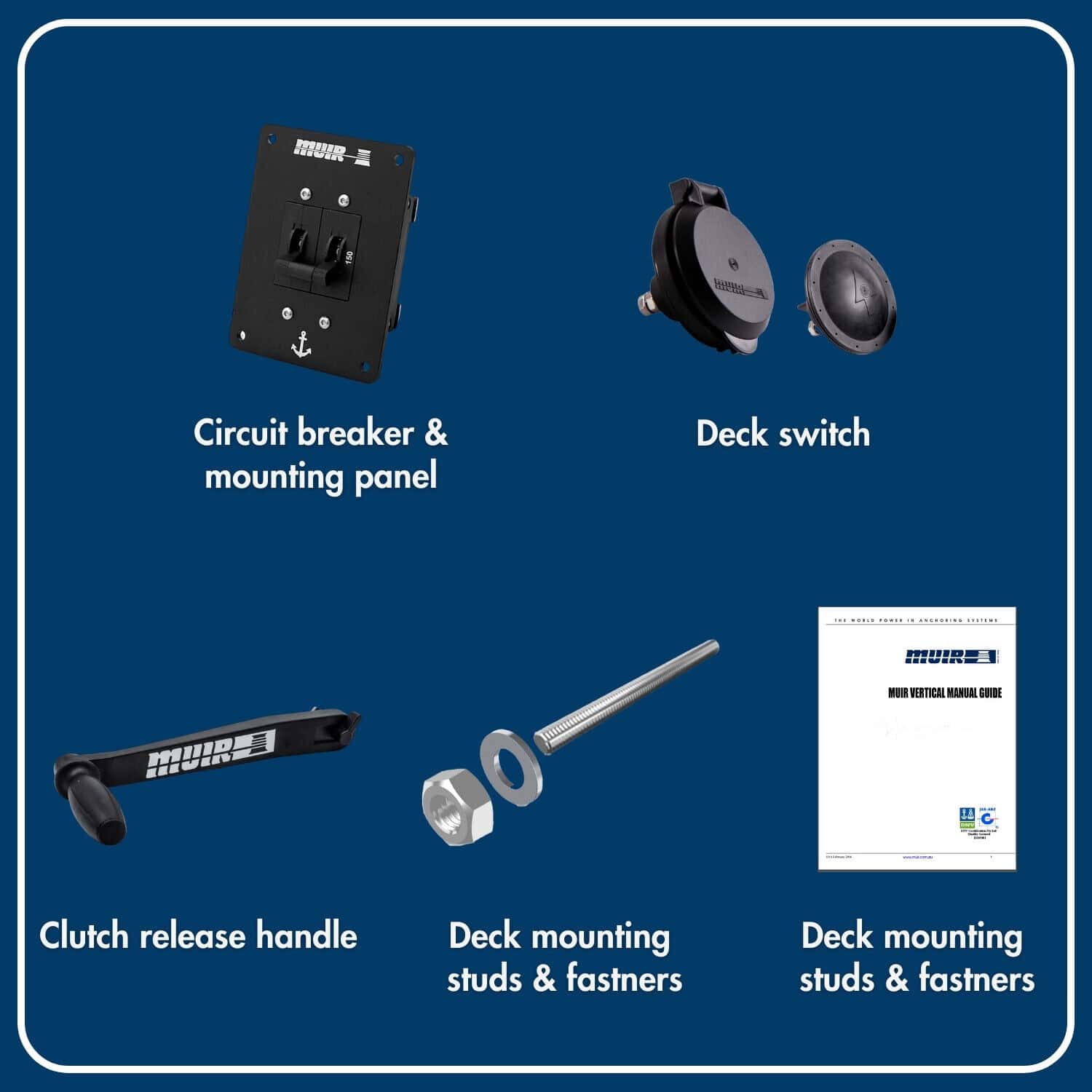

Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
The Storm VRC2500 is a highly efficient anchoring solution tailored for small to medium-sized boats, delivering dependable performance in demanding maritime conditions. Constructed with premium materials that resist saltwater corrosion, this windlass ensures durability and consistent functionality. Its powerful motor offers smooth and controlled anchor deployment, providing boaters with confidence and ease during every use. Designed for reliability, the Storm VRC2500 is a trusted choice for enhancing vessel safety on the water.
Compact yet robust, this windlass is engineered for straightforward installation and user-friendly operation. Its quiet mechanism and efficient power consumption make it an excellent addition for those seeking convenience without compromising strength. The Storm VRC2500 supports rapid anchor retrieval, reducing effort and time when securing your vessel. Ideal for both leisure and professional maritime activities, this model guarantees dependable anchoring performance, contributing to a safer and more enjoyable boating experience.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
VRC
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Amps Workload
150A/70A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
20L/min
Max Load (Kg)
1200Kg
Workload (Kg)
400Kg
Max Line Speed
28m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Compatible Rope/Chain Combo (mm)
8mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Compatible Rope Sizes (mm)
14 mm (9/16"), 16 mm (5/8"), 20 mm (3/4")
Auto Anchor Compatible
Yes
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
