DFF 12
$2,886.59
Drum Capacity
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions
Muir DFF 12 Free-Fall Drum Winch
Maximum holding power meets rapid deployment. The DFF 12 suits vessels 10–12m (33–39ft) and is perfect for quick drops in changing conditions. All mechanical, no hassle.
Drawings
Top View
Slide View
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing center for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum

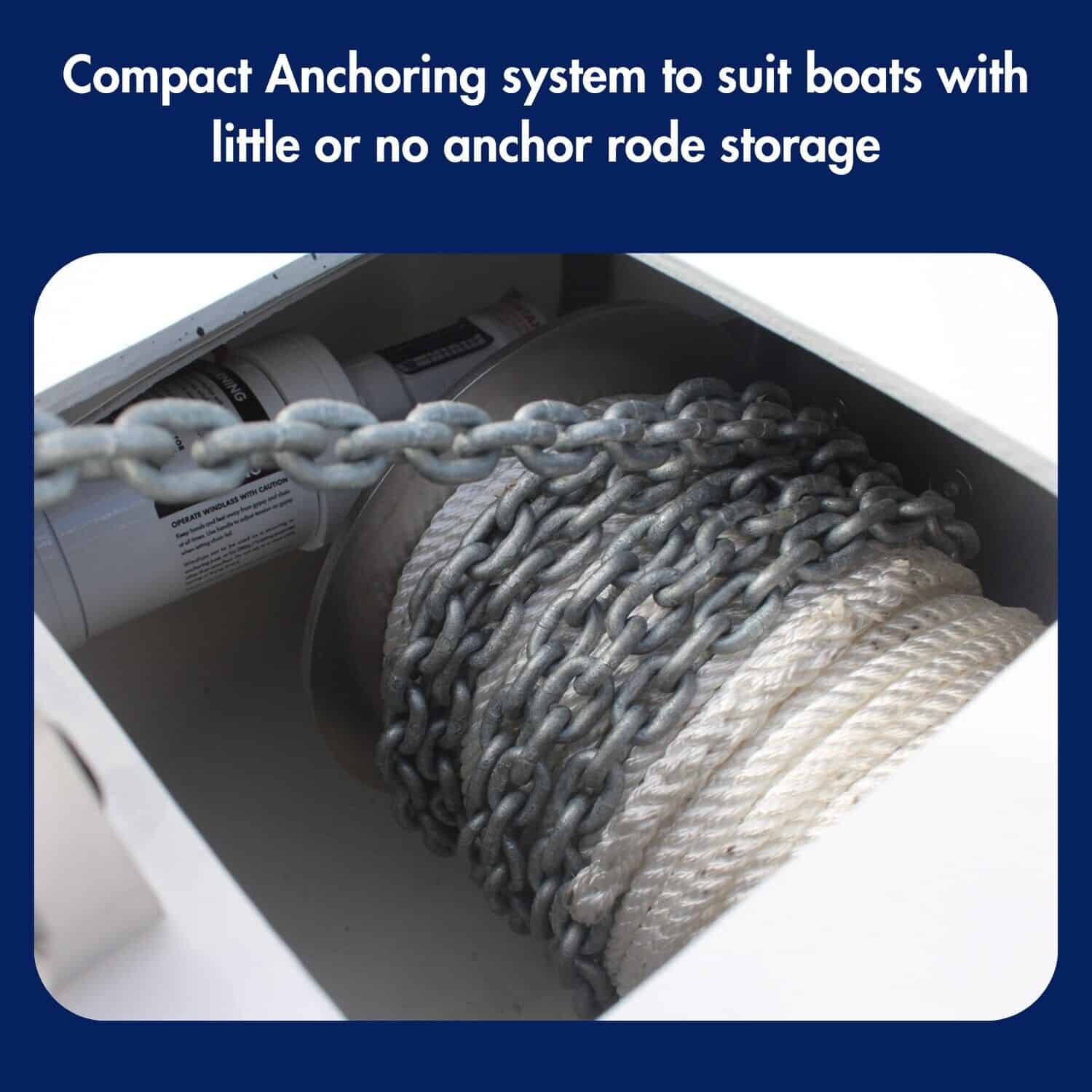

- Compact Anchoring system to suit boats with no anchor rode storage
- 316 stainless steel drum

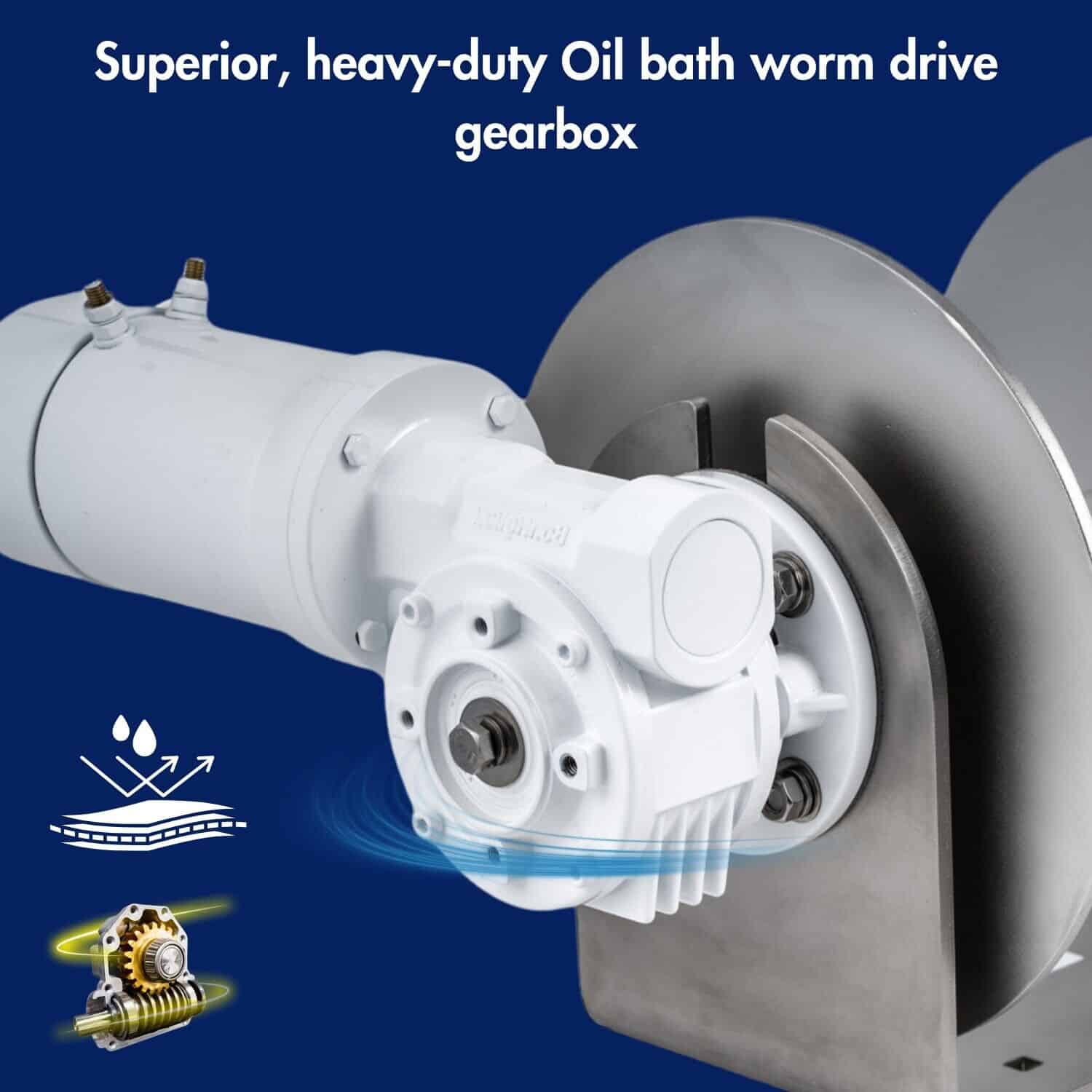

- Superior heavy-duty Italian drive train
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
10m - 12m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1500Watts
Amps Workload
150A/70A (12/24V)
Max Load (Kg)
312Kg
Workload (Kg)
104Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
10 mm (3/8")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
32Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Reviews
Description
Muir DFF 12 Free-Fall Drum Winch
Maximum holding power meets rapid deployment. The DFF 12 suits vessels 10–12m (33–39ft) and is perfect for quick drops in changing conditions. All mechanical, no hassle.
Drawings
Top View
Slide View
Features
- Muir’s patented Auto Freefall or Manual Release Freefall is available in one unit!
- Mechanical Auto & Manual Release Freefall means no troublesome electronics must be mounted on the Drum or your chain locker
- Drum Shaft on a serviceable bearing center for smooth, hassle-free operation even under full load.
- Muir’s drum brake means no over-run during Freefall
- Fast, easy and reliable anchoring with a Muir Drum Winch
- Large capacity drum
- Compact Anchoring system to suit boats with no anchor rode storage
- 316 stainless steel drum
- Superior heavy-duty Italian drive train
Technical Specification
Name
Specs
Drum capacity
Recommended Vessel Length (m)
10m - 12m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1500Watts
Amps Workload
150A/70A (12/24V)
Max Load (Kg)
312Kg
Workload (Kg)
104Kg
Max Line Speed
33m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8")
Compatible Rope Sizes (mm)
10 mm (3/8")
Chain On Drum
5 m of 8 mm
Rope Capacity @ 6mm
120 m
Rope Capacity @ 8mm
80 m
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
32Kg
Package Inclusions
Circuit Breaker and Mounting Panel
Rocker Switch
Deck mounting studs and fasteners
Reversing Solenoid kit
Installation/Operation booklet
