VC 2500
Price range: $2,707.50 through $3,583.22
motor
Max pull
Work Load
Free shipping over $300. Ships from Melbourne, duties and taxes included at checkout. US shipping info
5% cheaper than our eBay store. Same Muir warranty. Buy direct vs eBay
5 year warranty. Comprehensive coverage and peace of mind. See Warranty Policy.
No surprise customs fees. Import duties and local taxes included for major destinations.
Descriptions
Muir Reliable VC 2500 Capstan
Designed for commercial and recreational vessels up to 22m (72ft), the VC 2500 features a 1500W heavy-duty motor, knurled grip, and high-torque line control — ideal for mooring, fishing, and general deck operations.
AC drive option: available on request (POA) — contact us for a quote.
Features
- Deck hugging snag free design
- Unit can be mounted horizontally

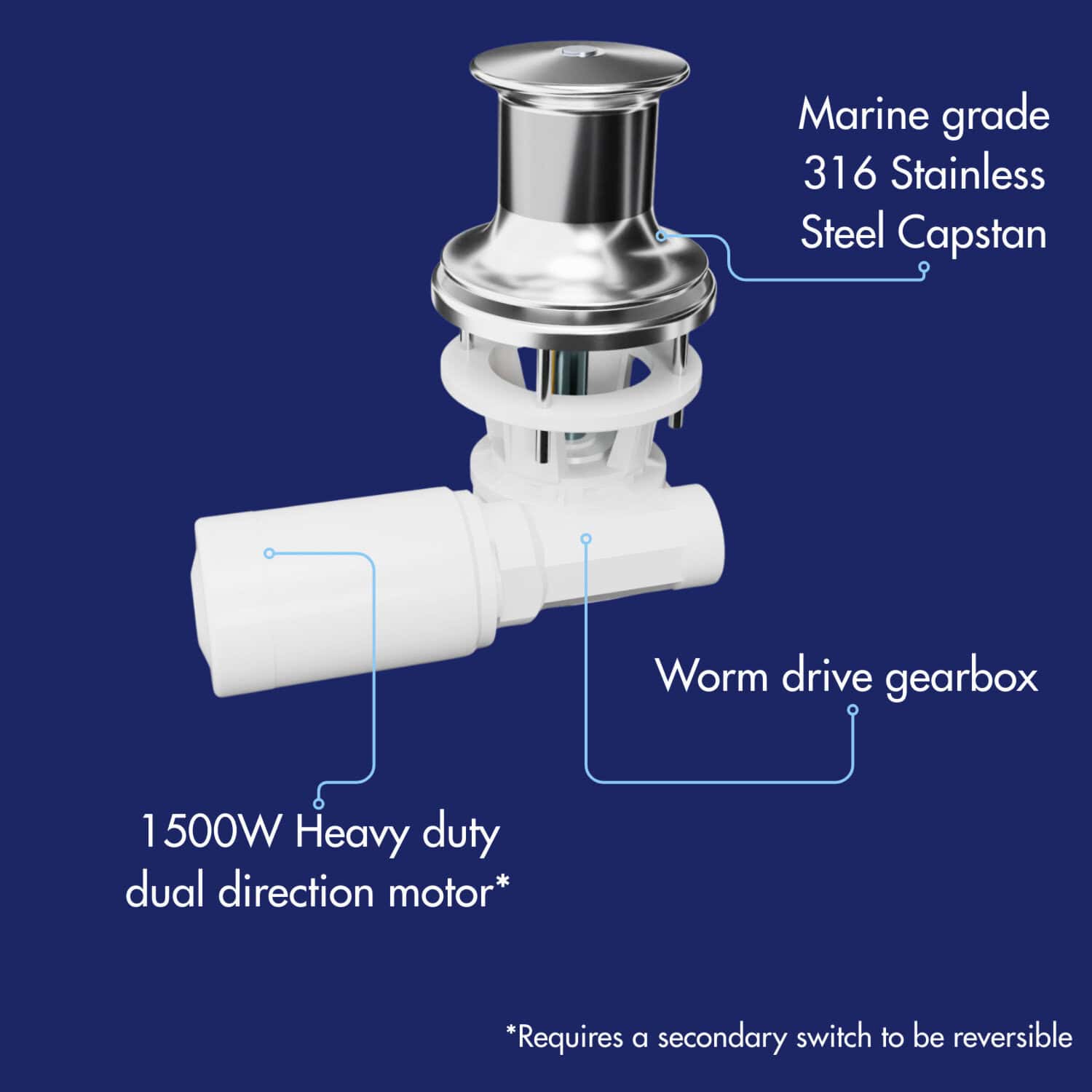

- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
- Capstan features knurled finish for increased grip
- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
14m - 22m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1500Watts
Amps Workload
150A/70A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
20L/min
Max Load (Kg)
1185Kg
Workload (Kg)
395Kg
Max Line Speed
15m/min
Compatible Rope Sizes (mm)
12 mm (1/2"), 19 mm (3/4")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
25Kg
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
Muir Reliable VC 2500 Capstan
Designed for commercial and recreational vessels up to 22m (72ft), the VC 2500 features a 1500W heavy-duty motor, knurled grip, and high-torque line control — ideal for mooring, fishing, and general deck operations.
AC drive option: available on request (POA) — contact us for a quote.

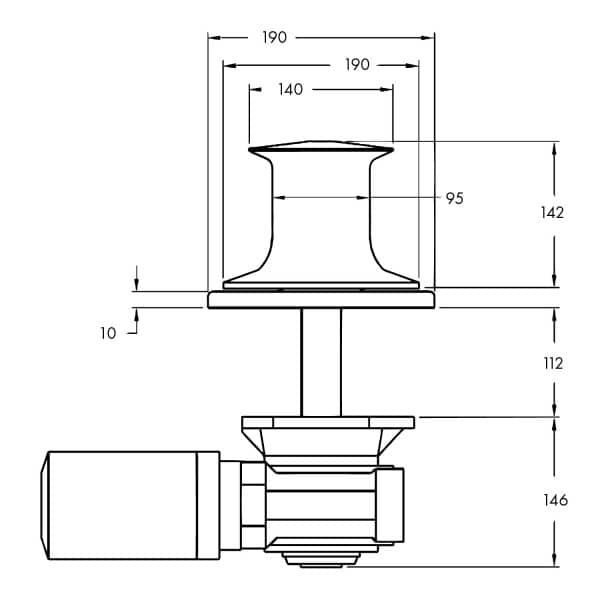

Drawings
Slide View
Features
- Deck hugging snag free design
- Unit can be mounted horizontally
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
- Capstan features knurled finish for increased grip
- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specification
Name
Specs
Recommended Vessel Length (m)
14m - 22m
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Motor (Watts)
1500Watts
Amps Workload
150A/70A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
20L/min
Max Load (Kg)
1185Kg
Workload (Kg)
395Kg
Max Line Speed
15m/min
Compatible Rope Sizes (mm)
12 mm (1/2"), 19 mm (3/4")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
25Kg
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Installation/Operation booklet
Downloads
Parts
Only logged in customers who have purchased this product may leave a review.
Not Sure Which Windlass Is Right for You?
Find the right recreational windlass for your boat using our Windlass Selection Guide.
Find Your Windlass
