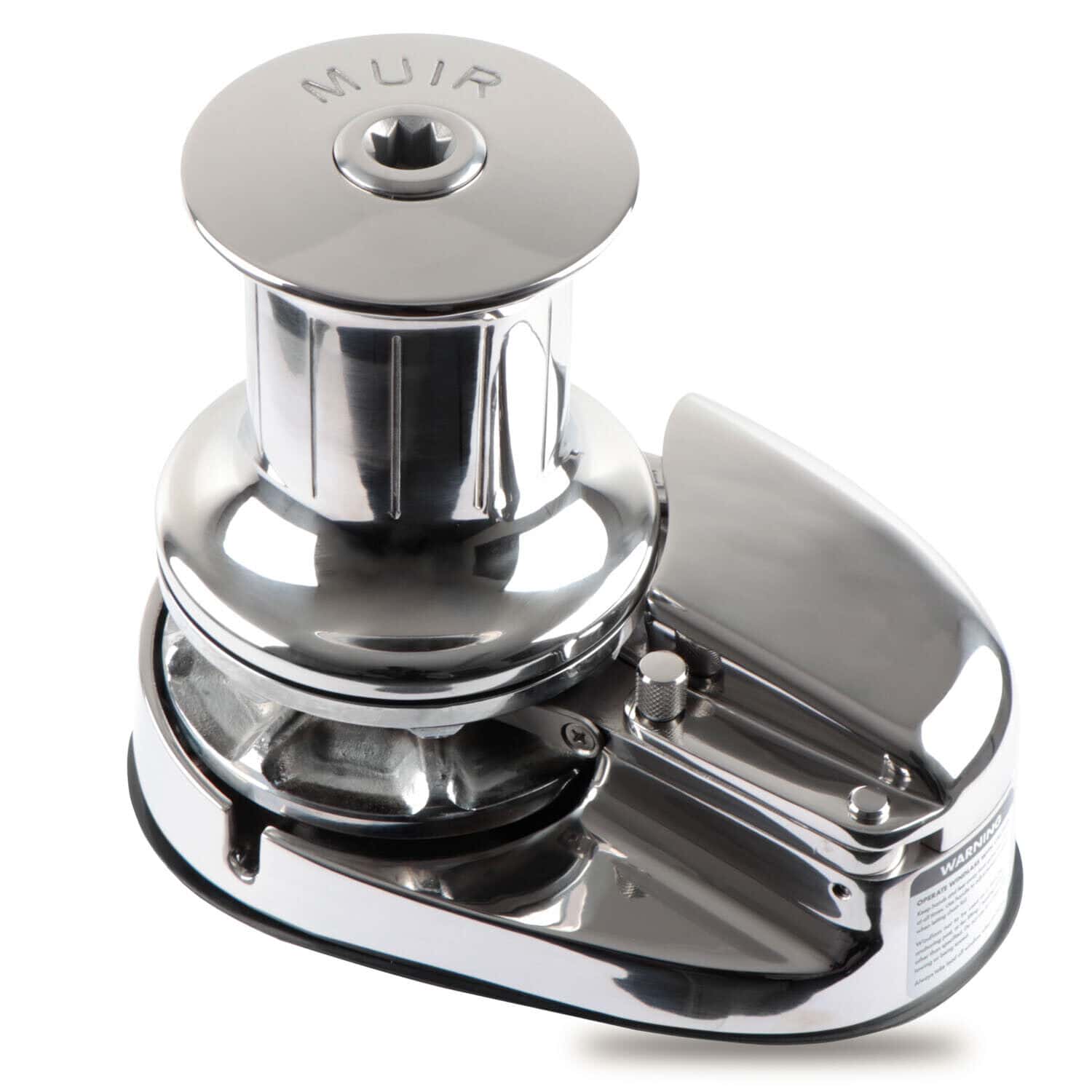

Storm VRC3500
Price range: $4,639.80 through $5,133.79
5 Years Warranty
Comprehensive Coverage and peace of mind.
No surprise customs Fees
Import duties and local taxes included for major destinations.
Max pull
Work Load
Line Speed
Descriptions
The Storm VRC3500 offers exceptional anchoring power designed for marine vessels of various sizes. Built to withstand tough maritime environments, this windlass provides reliable anchor deployment and retrieval with minimal effort. Its sturdy construction features corrosion-resistant components, ensuring longevity and consistent performance even under challenging sea conditions. This model delivers smooth operation and efficient power management, making it a valuable addition for boat owners aiming for hassle-free anchoring.
Perfect for both recreational and professional sailors, the Storm VRC3500 combines compactness with high functionality. Installation is simple, allowing quick integration into existing setups. With intuitive controls and robust motor capabilities, this windlass enhances safety and convenience during mooring. Offering dependable strength and durability, the Storm VRC3500 is designed to improve your anchoring routine, providing peace of mind on every voyage.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.

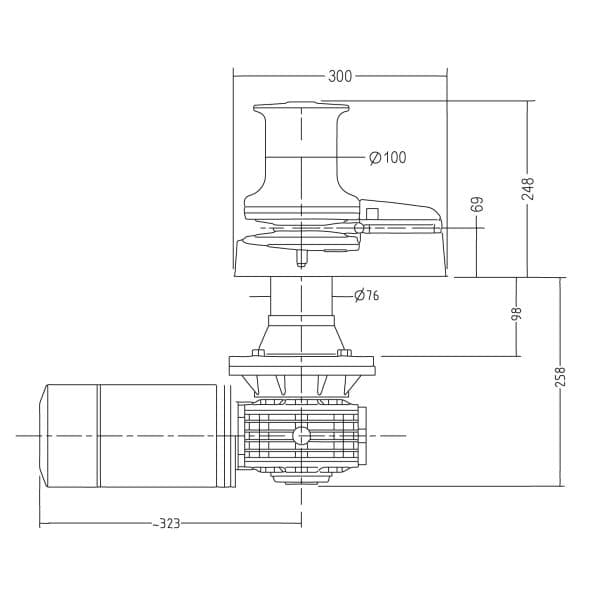

Drawings

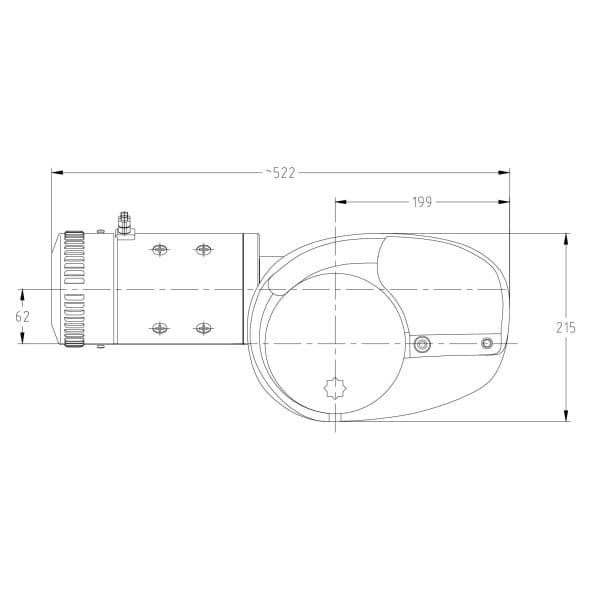

Top View
VRC
Features

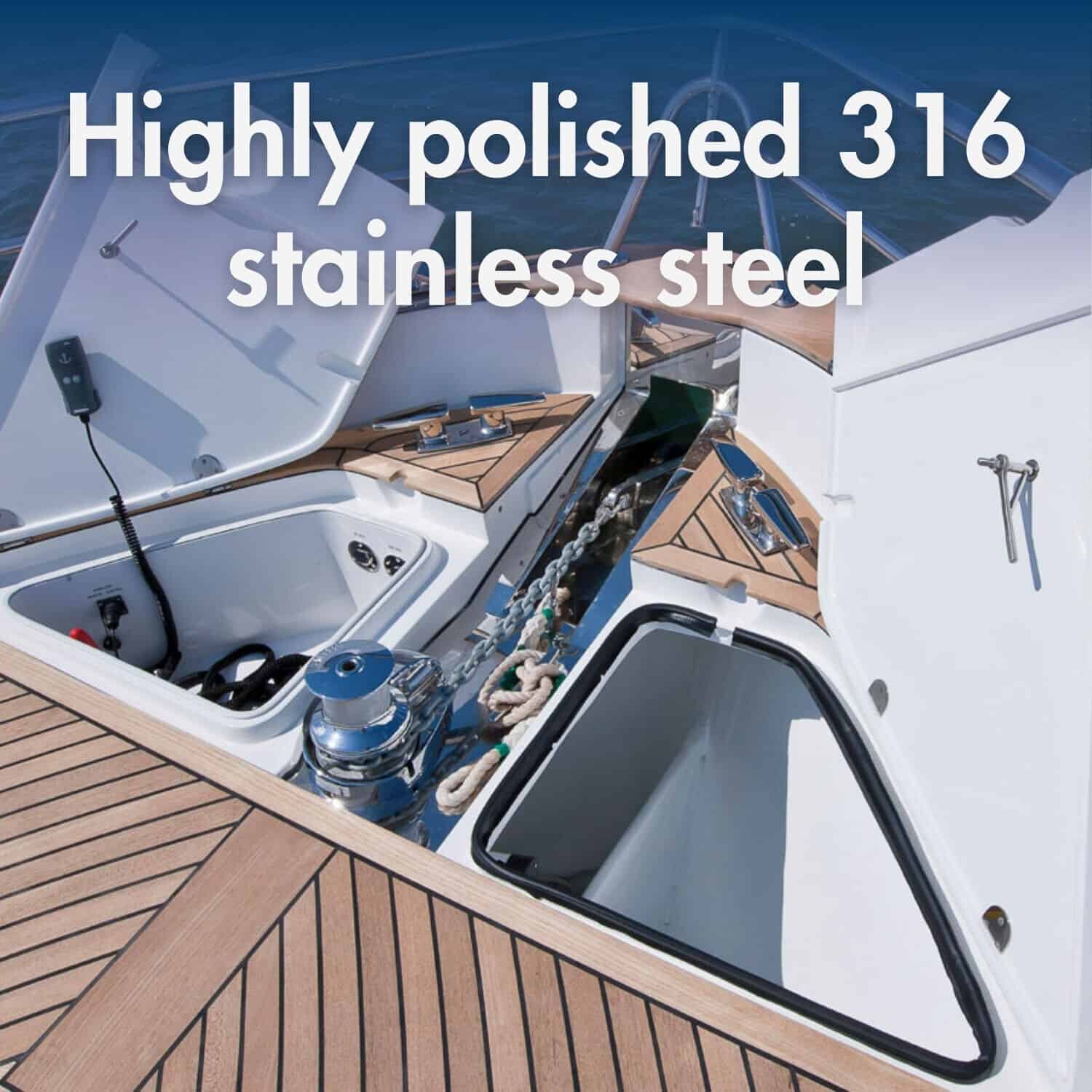

- Polished stainless steel components

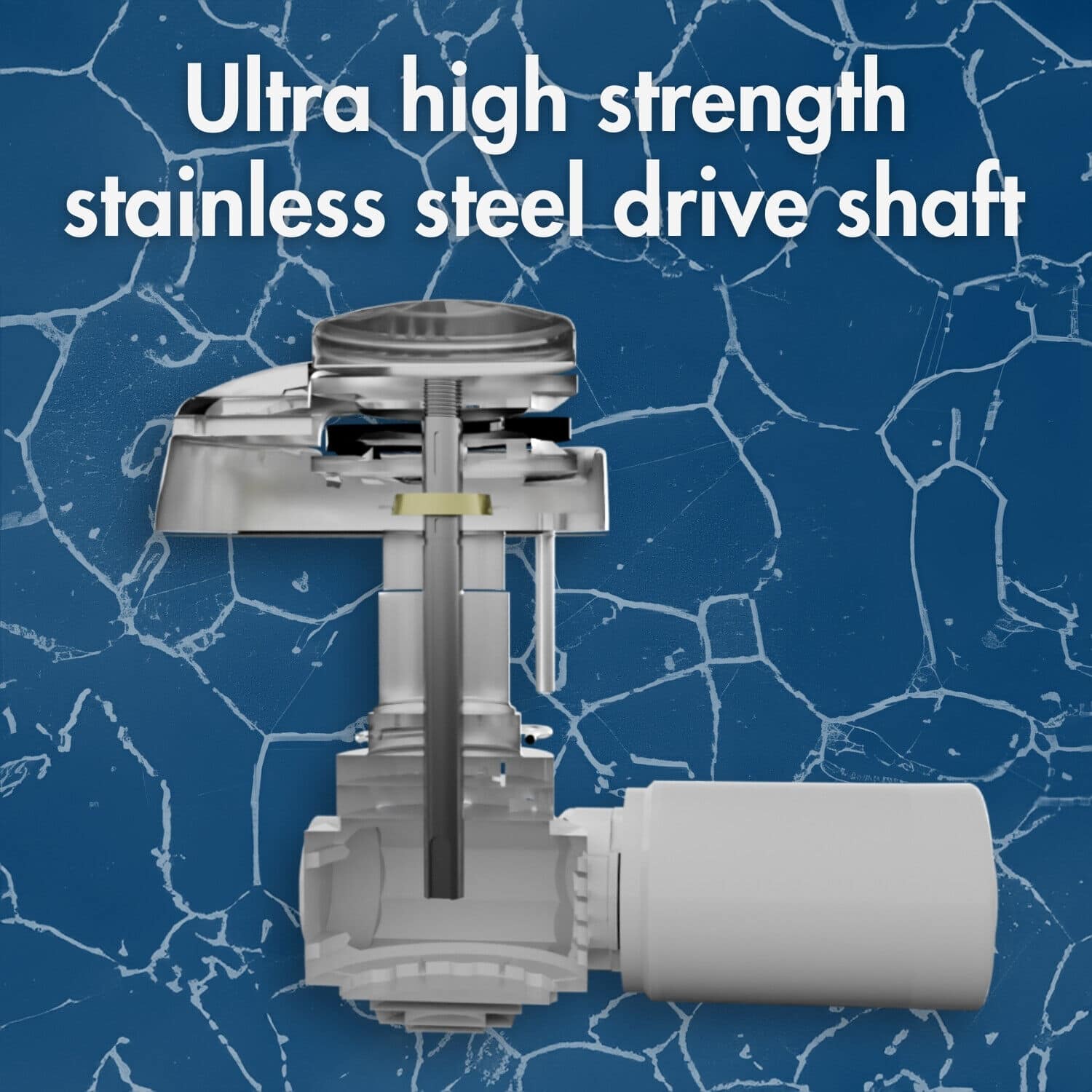

- High tensile stainless steel shaft

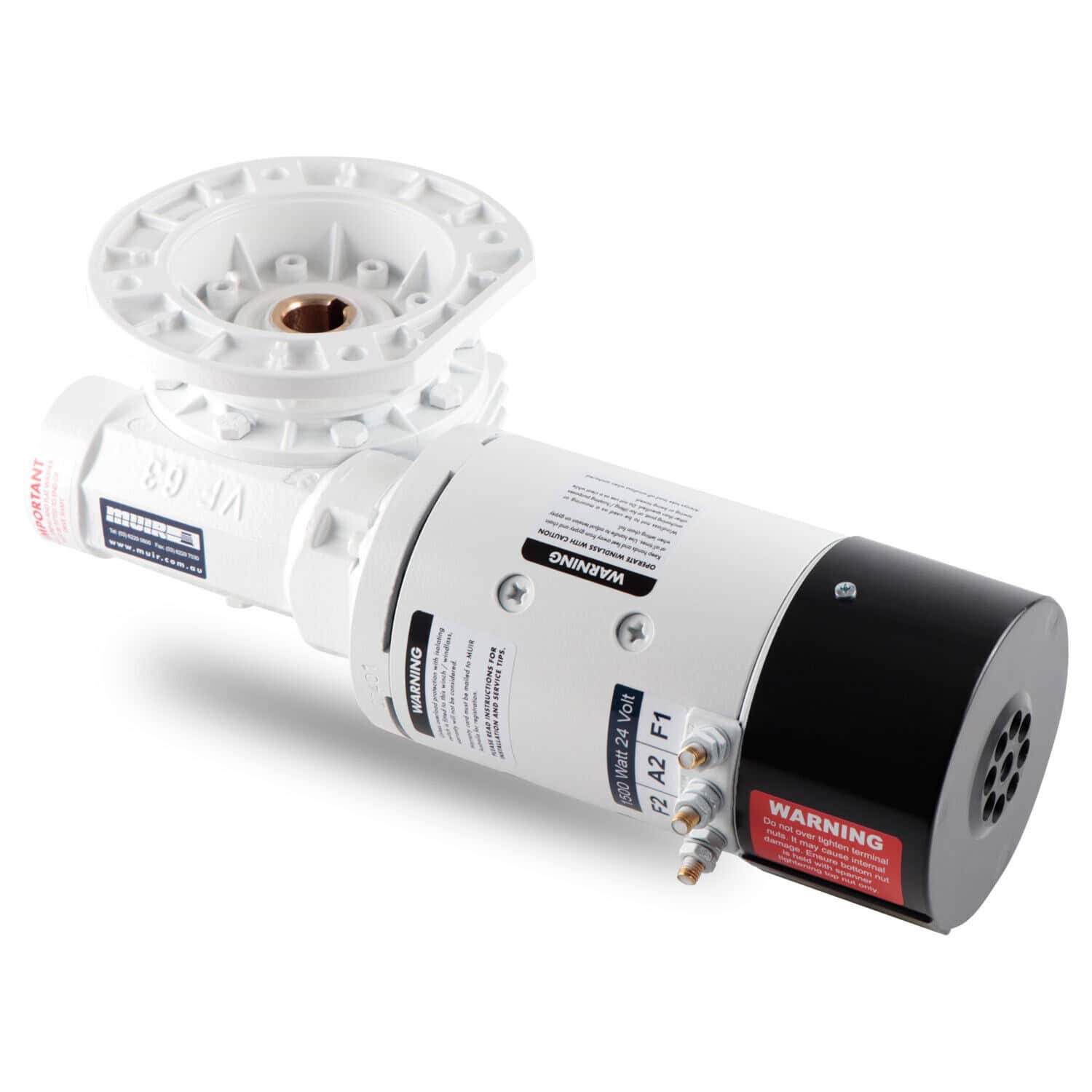

- Heavy duty, marine grade, dual-direction motor

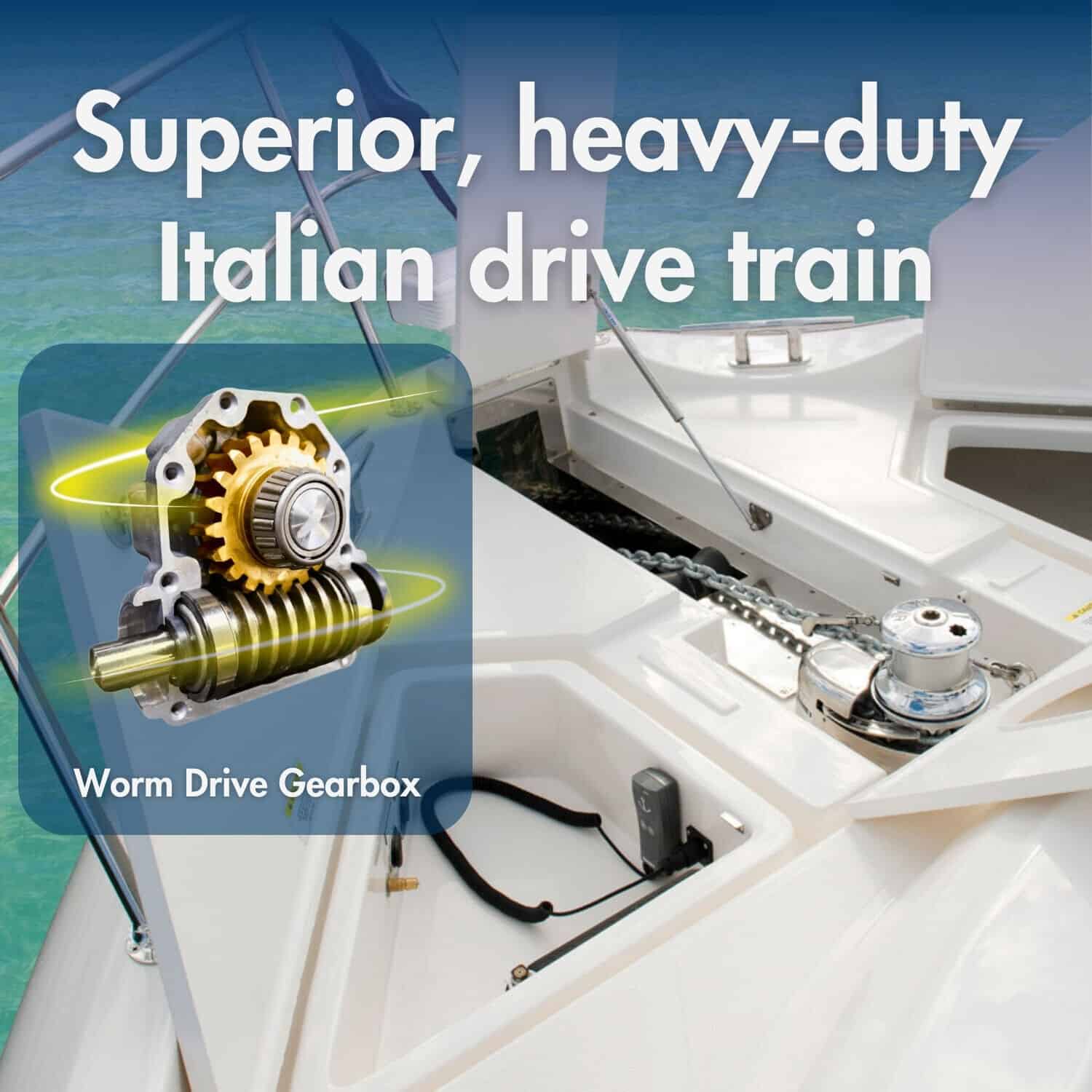

- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush

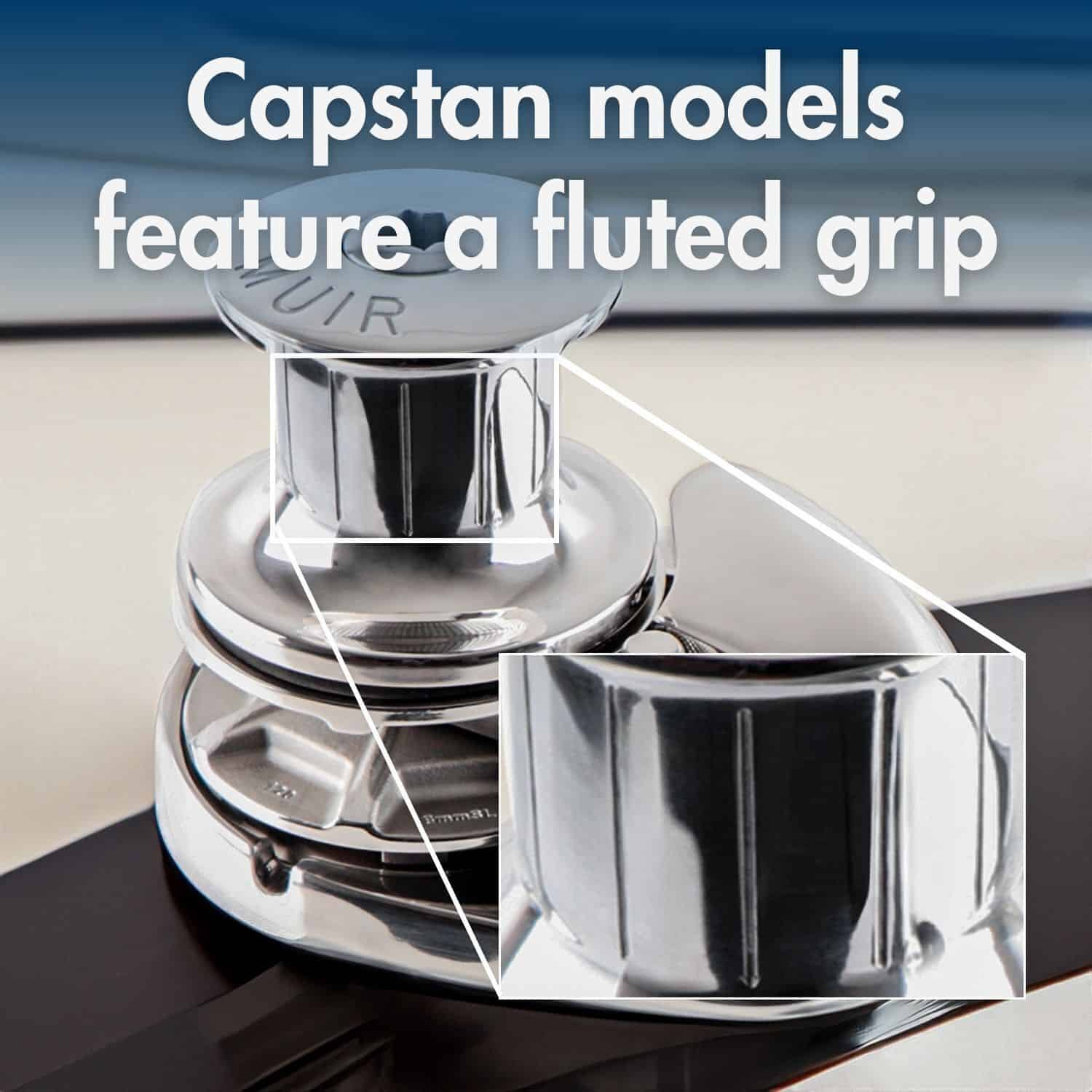

- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Amps Workload
185A/90A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
28L/min
Max Load (Kg)
1650Kg
Workload (Kg)
550Kg
Max Line Speed
28m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Compatible Rope/Chain Combo (mm)
8mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Auto Anchor Compatible
Yes

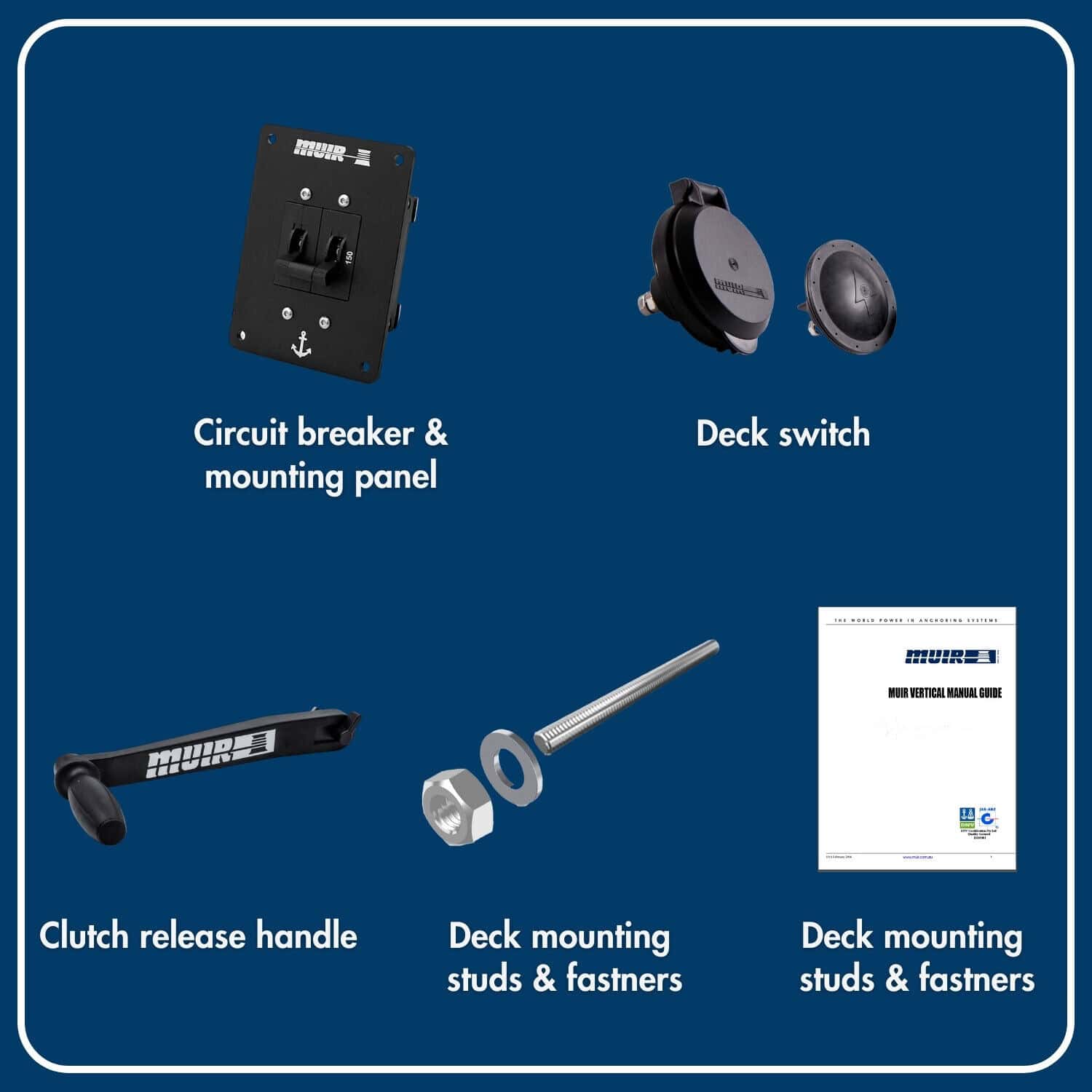

Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Parts
- Reviews
Description
The Storm VRC3500 offers exceptional anchoring power designed for marine vessels of various sizes. Built to withstand tough maritime environments, this windlass provides reliable anchor deployment and retrieval with minimal effort. Its sturdy construction features corrosion-resistant components, ensuring longevity and consistent performance even under challenging sea conditions. This model delivers smooth operation and efficient power management, making it a valuable addition for boat owners aiming for hassle-free anchoring.
Perfect for both recreational and professional sailors, the Storm VRC3500 combines compactness with high functionality. Installation is simple, allowing quick integration into existing setups. With intuitive controls and robust motor capabilities, this windlass enhances safety and convenience during mooring. Offering dependable strength and durability, the Storm VRC3500 is designed to improve your anchoring routine, providing peace of mind on every voyage.
Chain standard: gypsies are supplied to suit Australian short-link, DIN 766 or USA BBB / G4 high-test chain — we confirm your chain standard when processing your order.
Drawings
Top View
VRC
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specs
Power Supply Options
DC 12V, DC 24V, DC 48V
Recommended Circuit Breaker
150A/100A (12/24V)
Amps Workload
185A/90A (12/24V)
Hydraulic Pressure
10MPa
Hydraulic Flow
28L/min
Max Load (Kg)
1650Kg
Workload (Kg)
550Kg
Max Line Speed
28m/min
Compatible Chain Sizes (mm)
8 mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Compatible Rope/Chain Combo (mm)
8mm (5/16"), 10mm (3/8"), 13 mm (1/2")
Auto Anchor Compatible
Yes
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Deck mounting studs and fasteners
Clutch release handle
Installation/Operation booklet
Downloads
Parts
Only logged in customers who have purchased this product may leave a review.
Not Sure Which Windlass Is Right for You?
Find the right recreational windlass for your boat using our Windlass Selection Guide.
Find Your WindlassPart of the Muir Storm Vertical Series?
Explore the complete Storm Vertical Series and compare available models.
View Storm Vertical Series
Reviews
There are no reviews yet.
