Muir Reliable VC 650 Capstan

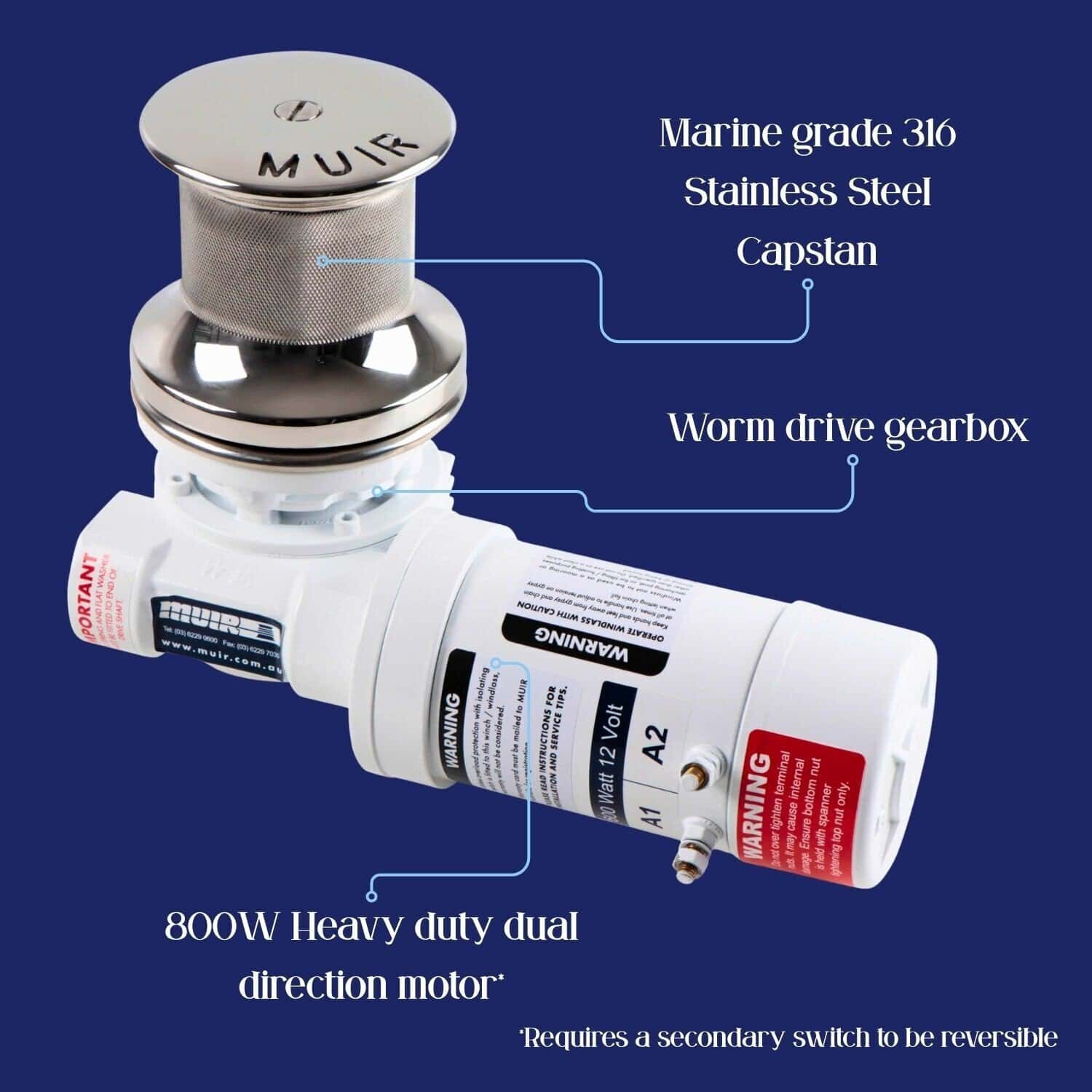

For vessels up to 11m (38ft), the VC 650 delivers smooth rope handling with a 800W dual-direction motor. Built from marine-grade materials and easy to install, it’s a practical choice for mooring and utility use.
Features
- Deck hugging snag free design
- Unit can be mounted horizontally
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models

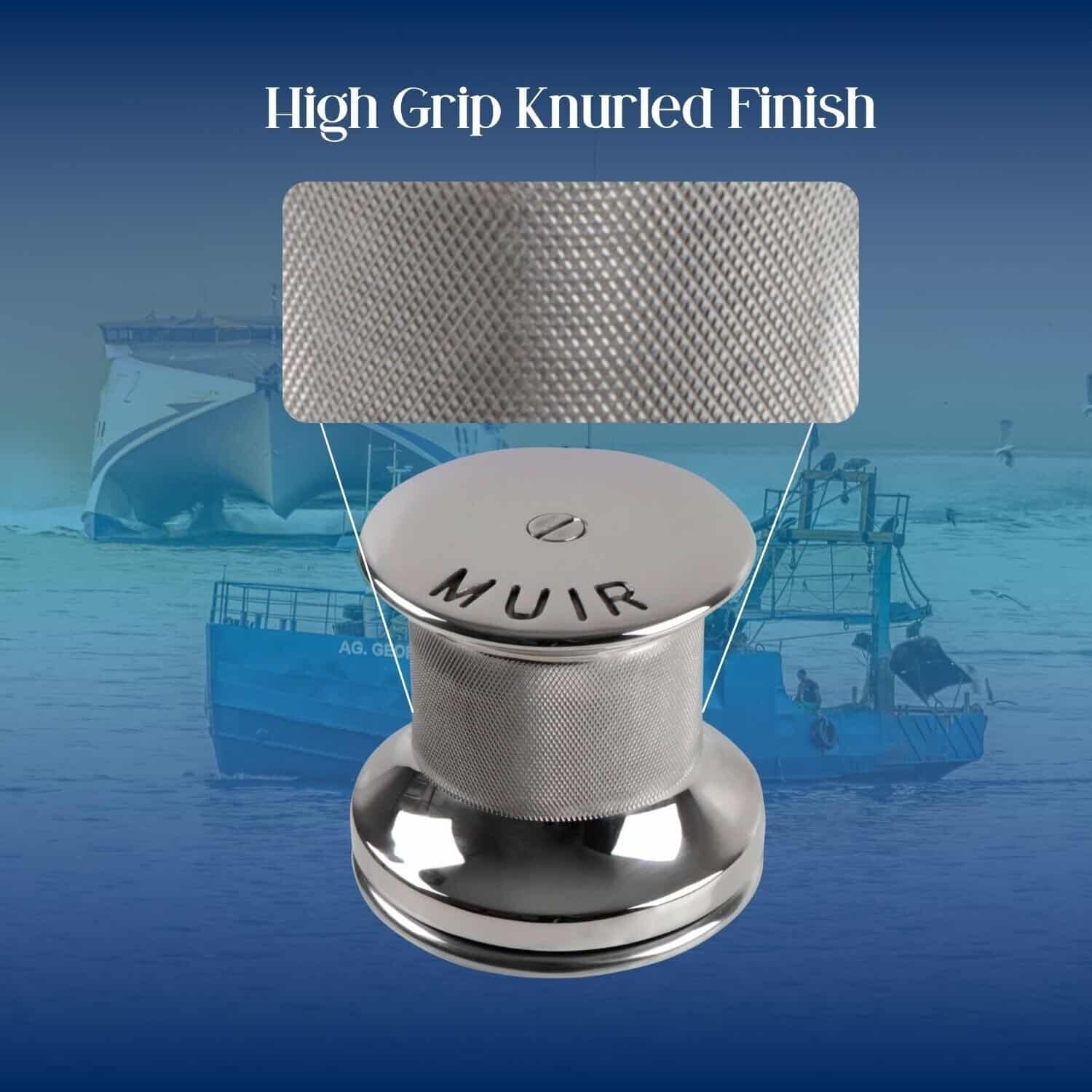

- Capstan features knurled finish for increased grip

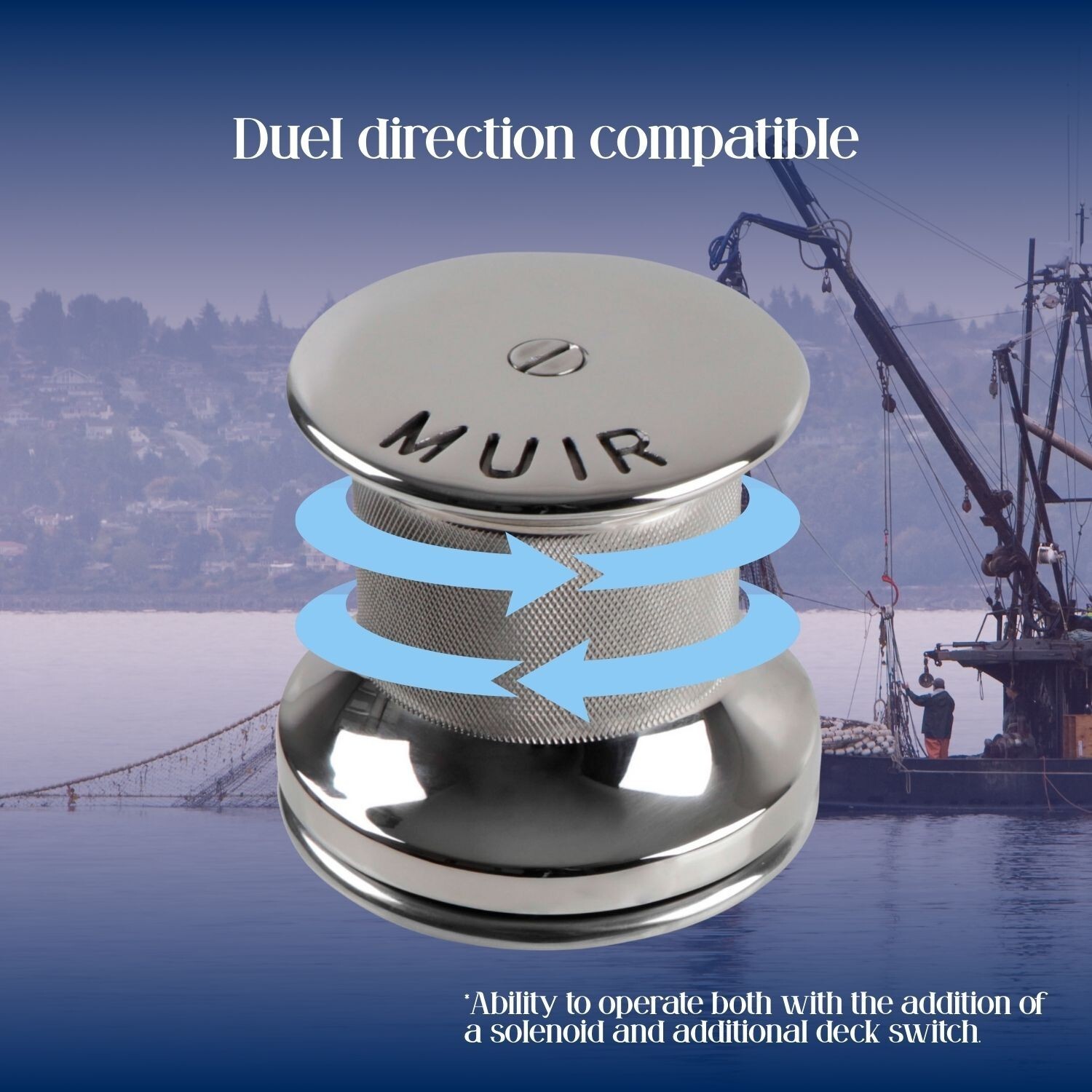

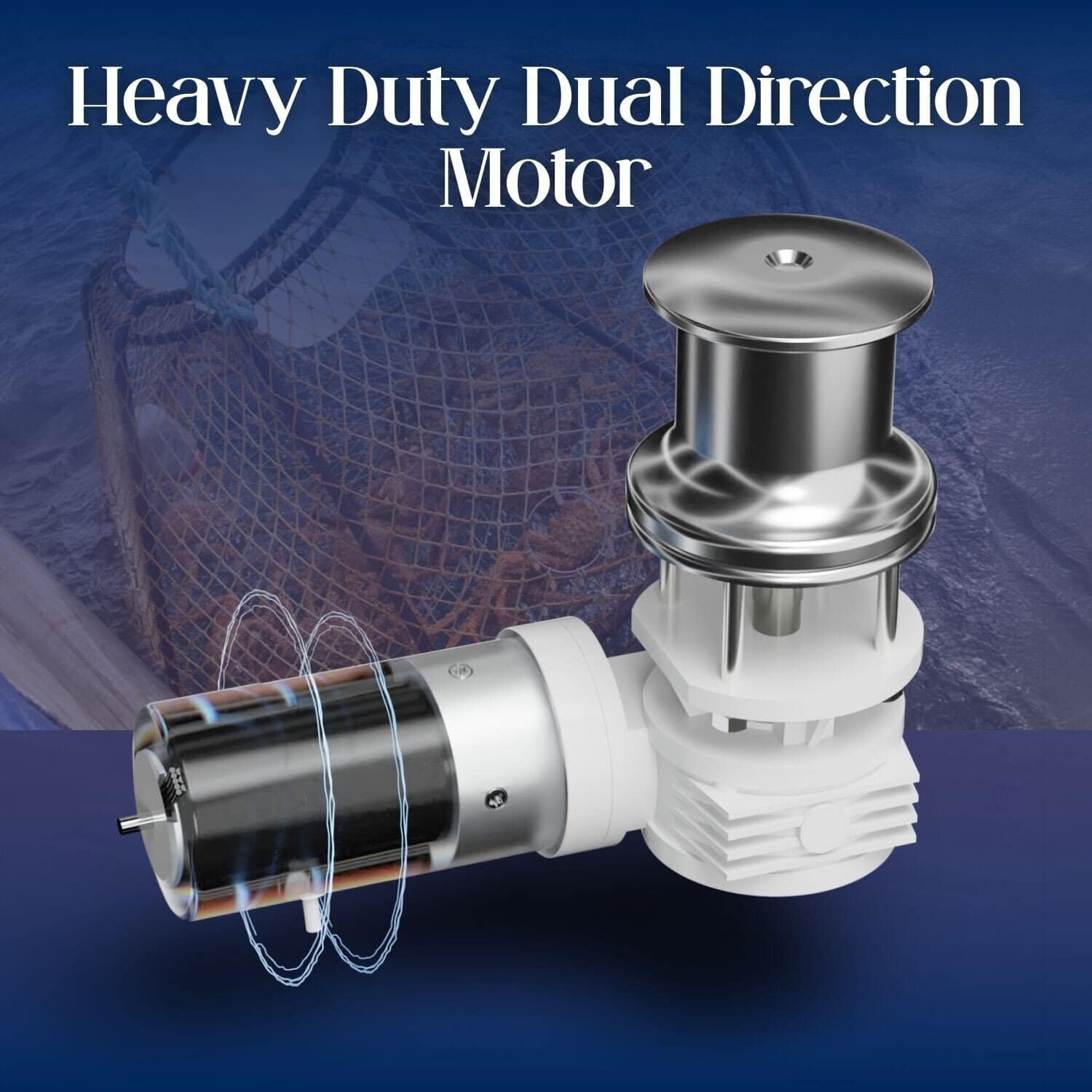

- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
8m - 11m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
80A/80A (12/24V)
Motor (Watts)
800Watts
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
330Kg
Workload (Kg)
110Kg
Max Line Speed
20m/min

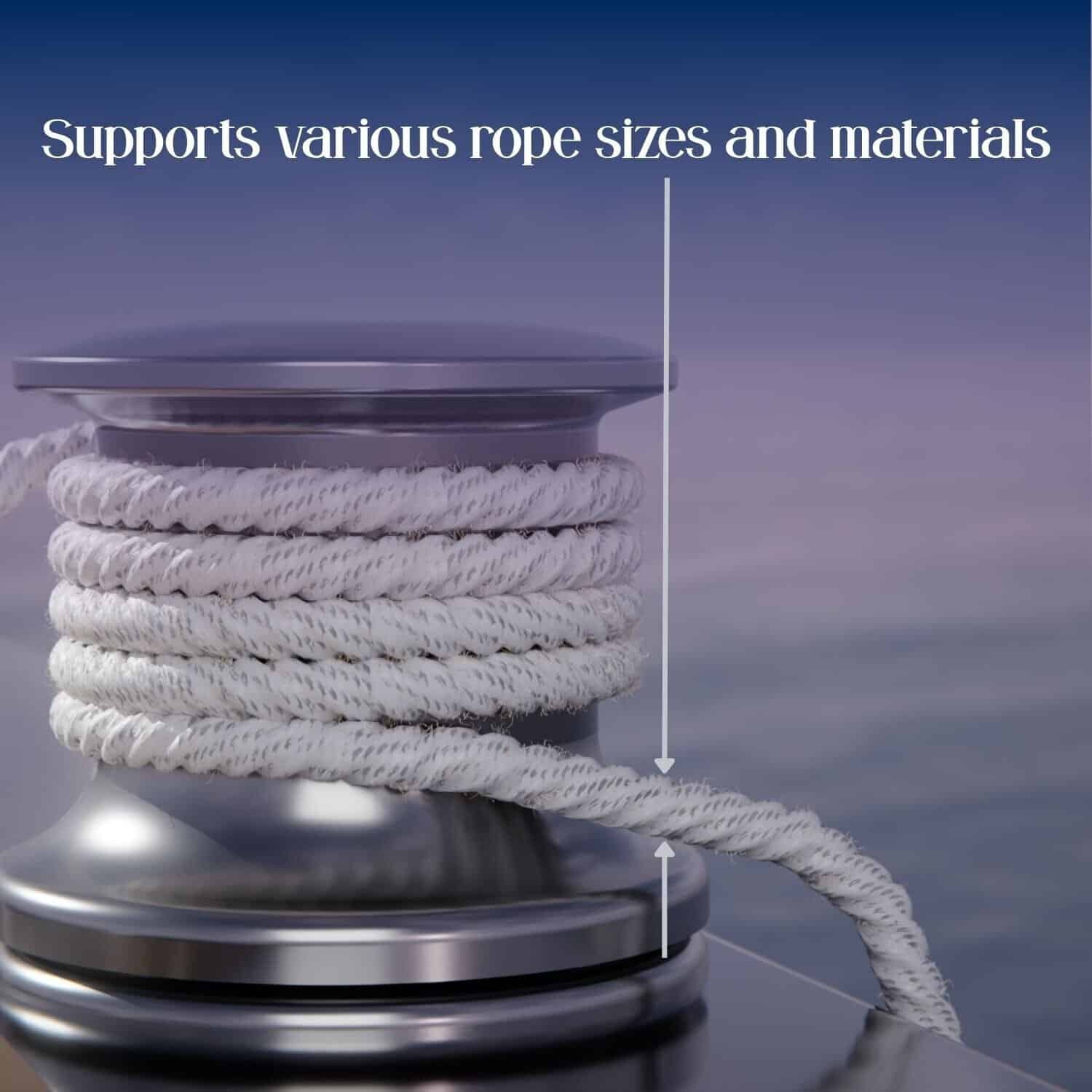

Compatible Rope Sizes (mm)
10 mm (3/8"), 12 mm (1/2")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
12Kg
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Installation/Operation booklet
Download
- Description
- Tec Spec
- Package Inclusions
- Downloads
- Related Accessories
- Reviews
Description
Muir Reliable VC 650 Capstan
For vessels up to 11m (38ft), the VC 650 delivers smooth rope handling with a 800W dual-direction motor. Built from marine-grade materials and easy to install, it’s a practical choice for mooring and utility use.

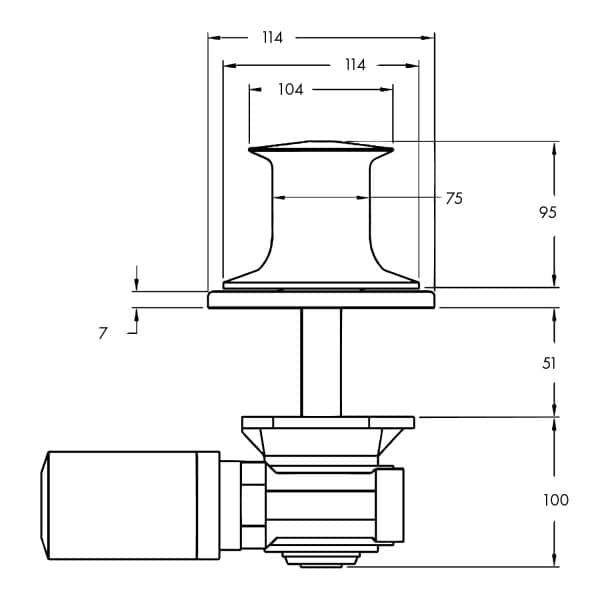

Drawings
Slide View
Features
- Deck hugging snag free design
- Unit can be mounted horizontally
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
- Capstan features knurled finish for increased grip
- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Technical Specification
Name
Specs
Recommended Vessel Length (m)
8m - 11m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
80A/80A (12/24V)
Motor (Watts)
800Watts
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
330Kg
Workload (Kg)
110Kg
Max Line Speed
20m/min
Compatible Rope Sizes (mm)
10 mm (3/8"), 12 mm (1/2")
Auto Anchor Compatible
No
Net Weight DC VR/HR or Standard (kg)
12Kg
Manual Operation
N/A
Package Inclusions
Circuit Breaker and Mounting Panel
Deck Switch
Installation/Operation booklet
