Descriptions
Muir Reliable Compact HR1200 Stainless
For boats up to 12m (39ft), the HR1200 Stainless combines power and reliability in a compact design. Its oil-bath gearbox, stainless components, and manual backup ensure dependable anchoring in all conditions.
Drawings

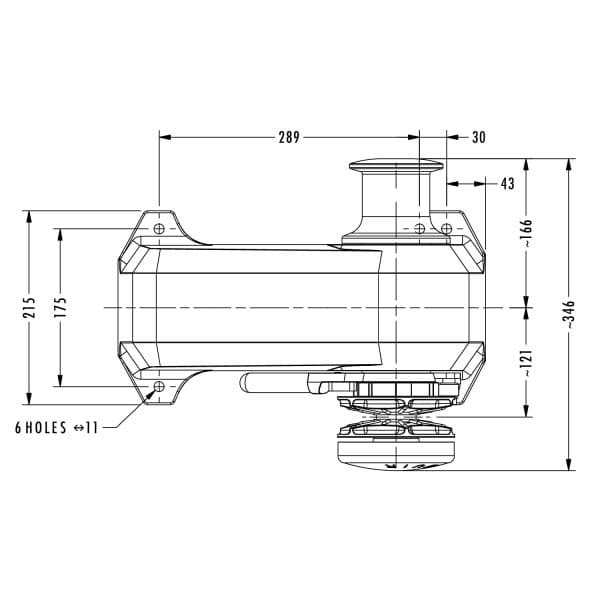

Top View

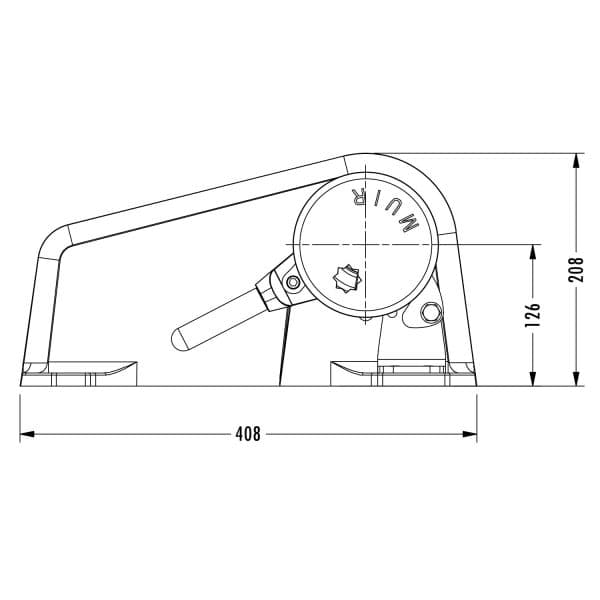

Slide View
Features
- Brushed finished 316 stainless steel housing
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior heavy-duty Oil bath worm drive gearbox
- Gypsy lock/pawl
- Chain Pipe and Peeler
- Independent gypsy and capstan operation
- Front double twin footings
- Suits multiple global chain standards
- Deck isolation pad
Technical Specification
Name
Specifications
Recommended Vessel Length (m)
8m - 12m
Power Supply Options
DC 12V, DC 24V
Recommended Circuit Breaker
80A/80A (12/24V)
Motor (Watts)
800Watts
Amps Workload
75A/40A (12/24V)
Max Load (Kg)
500Kg
Workload (Kg)
166Kg
Max Line Speed
26m/min
Compatible Chain Sizes (mm)
6 mm (1/4"), 8 mm (5/16"), 10mm (3/8")
Auto Anchor Compatible
Yes
Manual Operation
MORS (std)
Package Inclusions
Circuit Breaker and Mounting Panel
Chain Pipe
Deck Switch
Clutch release handle
Installation/Operation booklet
Deck mounting studs and fasteners
