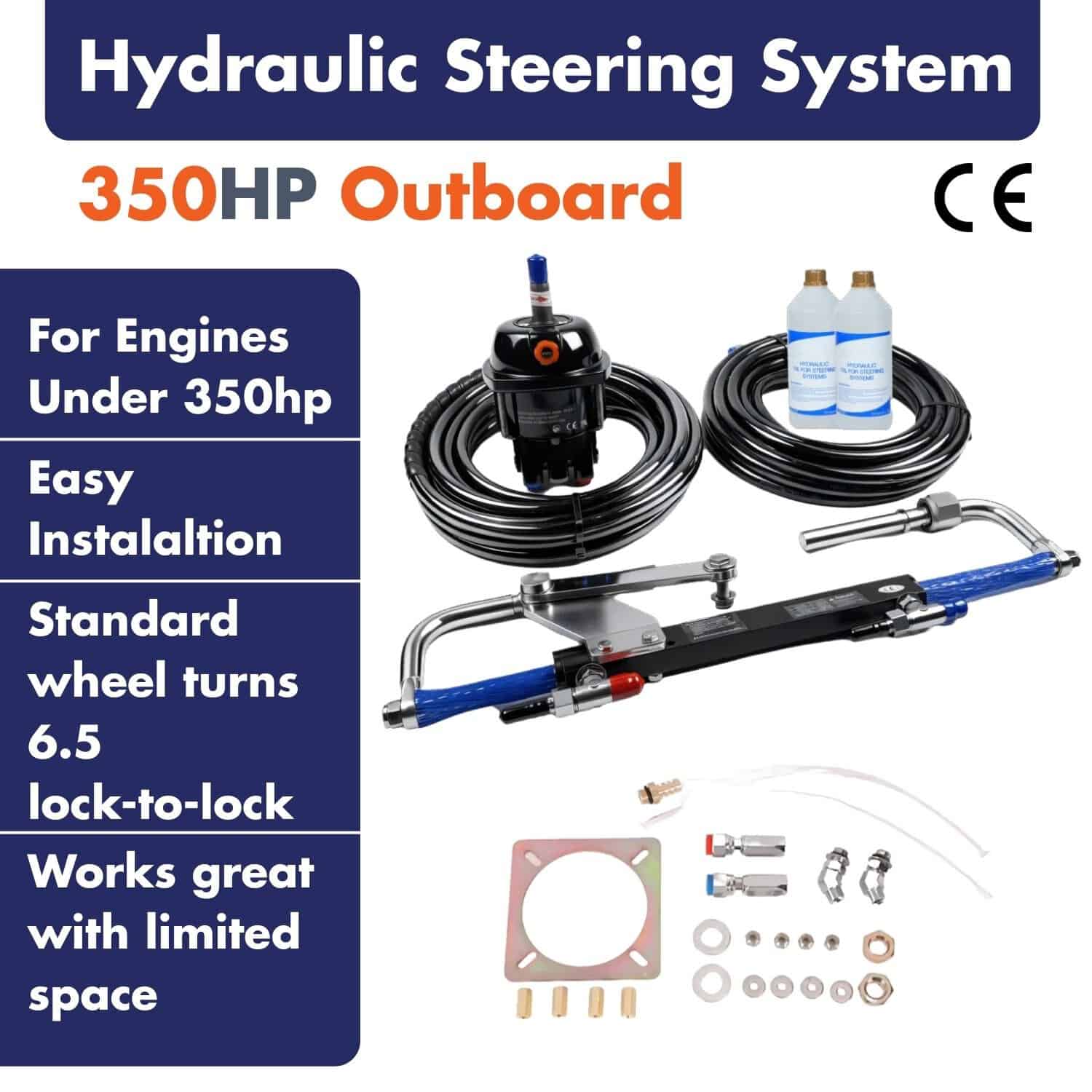

350HP Outboard Hydraulic Steering Kit

350HP Outboard Hydraulic Steering Kit System

350HP Outboard Hydraulic Steering Kit System is a complete marine steering solution designed for single outboard engines. Built for durability, precision, and smooth handling, this system delivers reliable hydraulic performance for recreational and commercial vessels.

Ideal for fishing boats, center consoles, runabouts, and small offshore boats, this 350HP Outboard Hydraulic Steering Kit provides effortless control, reduced steering torque, and improved maneuverability at all speeds.

Ultimate Control & Comfort

Upgrade your boat’s handling with this professional-grade 350HP Outboard Hydraulic Steering Kit. Designed specifically for outboard engines under 350 horsepower, this system provides smooth, effortless steering, making your time on the water safer and more enjoyable.

• Engine Compatibility: Perfect for outboards under 350HP.
• Precision Control: 6.5 turns lock-to-lock for responsive handling.
• Easy Installation: Comprehensive kit designed for DIY setup.
• Space Saving: Compact cylinder design works great in limited splashwell space.
• Complete Kit: Includes Pump, Cylinder, Hoses, and Hydraulic Fluid.
• Certified: CE Marked for quality and safety.

Application Guide

This kit (Model CJX-350HP) is compatible with the following outboard motors:

Brand	Type	Applicable HP Range
Yamaha	4 Stroke	75hp to 350hp
Yamaha	2 Stroke	50hp, 60hp to 100hp to 250hp
Honda	4 Stroke	50hp to 250hp
Suzuki	4 Stroke	70hp to 300hp
Mercury	–	50hp to 150hp
Tohatsu	4 Stroke	Up to 150hp
Tohatsu	2 Stroke	Up to 140hp
Evinrude	–	From 65hp to 150hp
Parsun	4 stroke	85hp to 130hp, 300hp

High-Performance Helm Pump

The helm pump features a built-in locking valve ensuring secure rubber locking and a fully water-proof design.

• Waterproof: Sealed construction to withstand marine elements.
• Capacity: Front Mount Helm pump 22cc.
• Safety: Built-in locking valve prevents feedback.
• Universal Fit: Standard tapered shaft with keyway (half-moon shaped part).

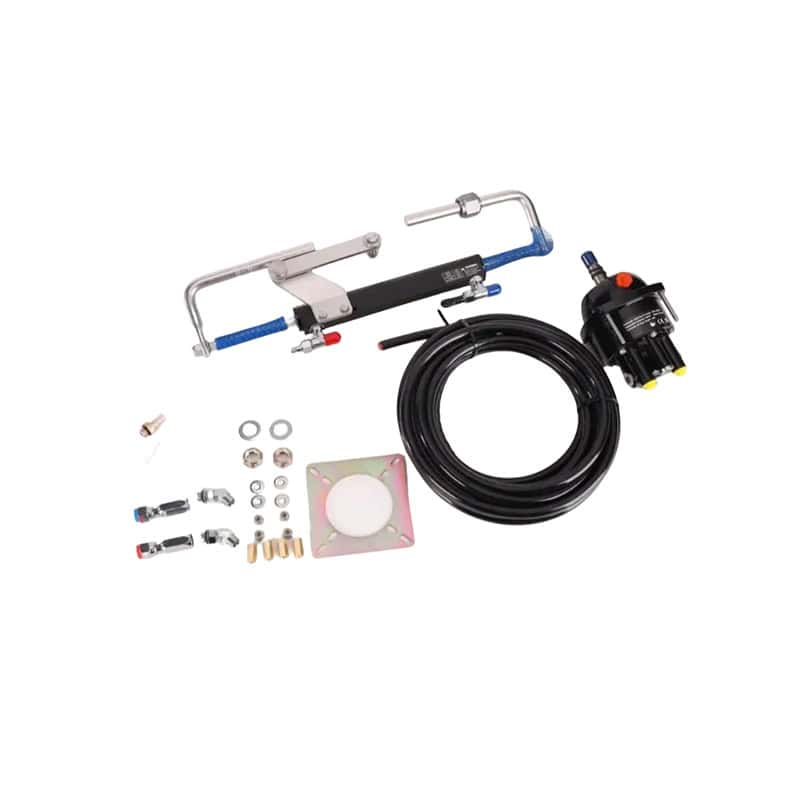

What’s In The Box

A complete standard package containing everything you need for installation.

• Steering Pump: Front Mount Helm pump 22cc
• Steering Cylinder: Cylinder for small engine under 350HP

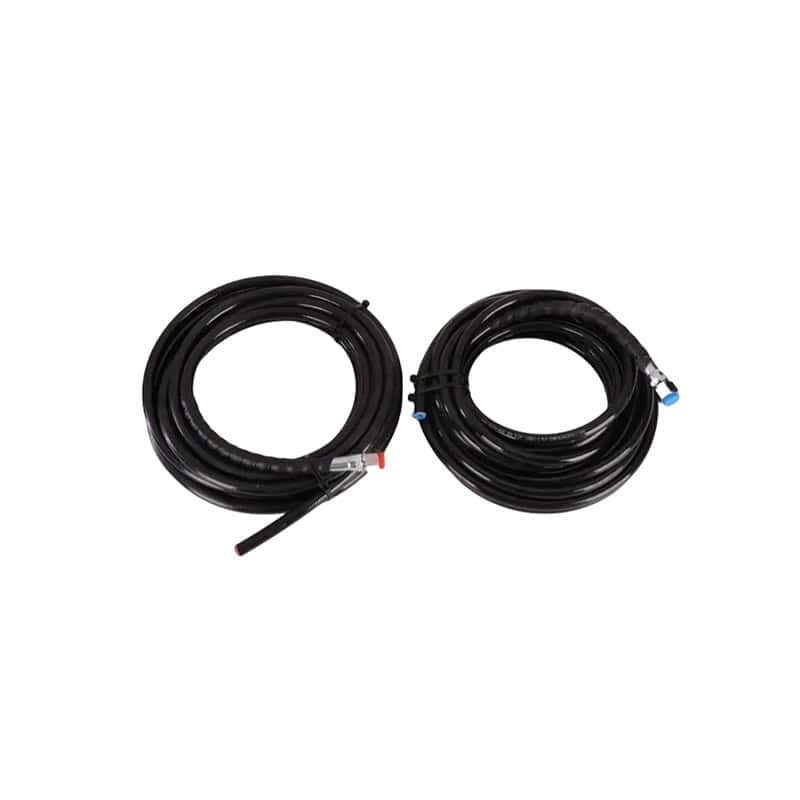

• Hose: 2x Hydraulic Hose 5/16″ (7 meters each)
• Oil: 2x Hydraulic oil 1 liter bottles (ISO VG15)
• Mounting Hardware: 1x Mounting plate, 4x Mounting bushings
• Fittings: 2x 135-degree elbow fittings (with O-rings), 2x Quick connectors
• Accessories: Transparent bleed hoses, Grease nipple, Manual
